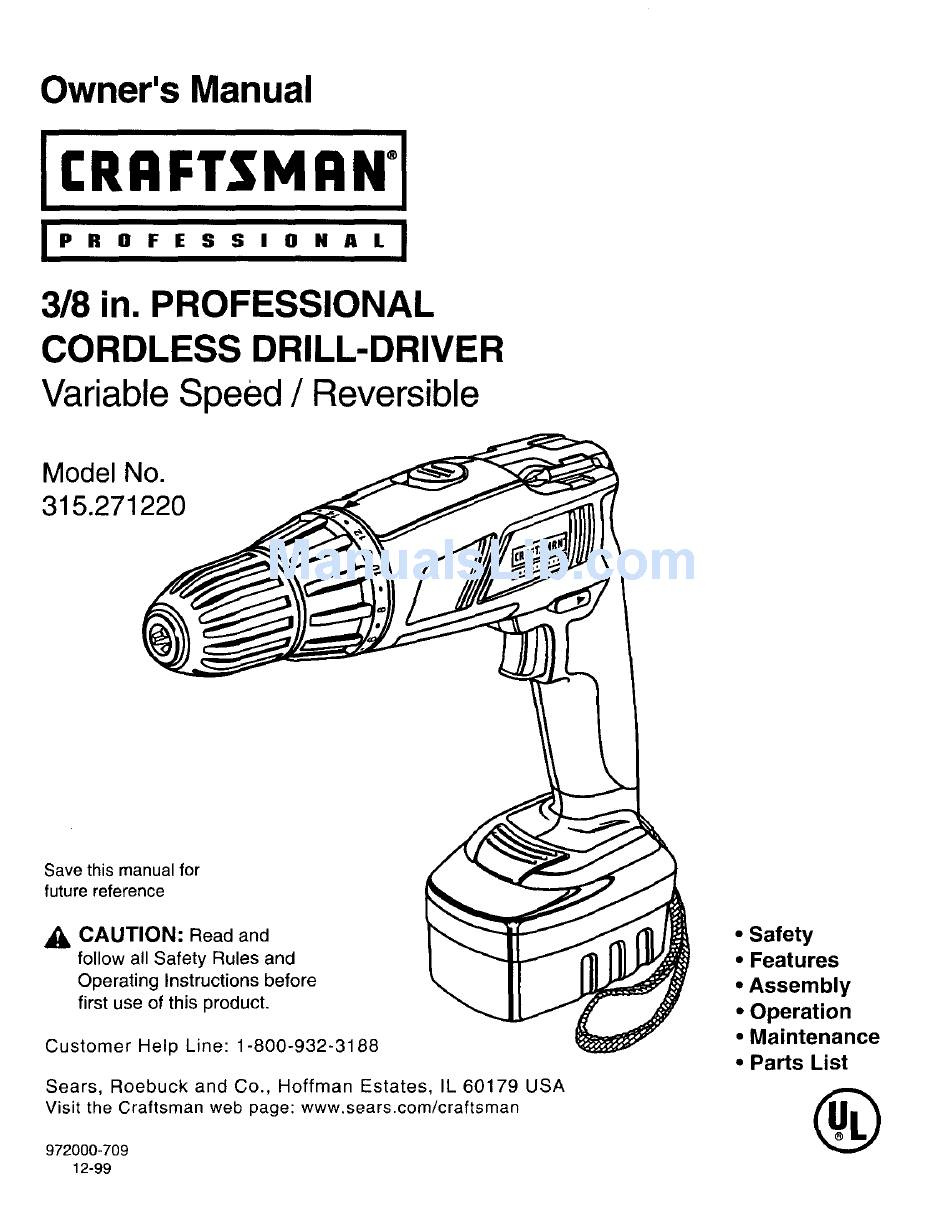

Craftsman 315.27122 Owner's Manual

318 in. professional cordless drill-driver variable speed / reversible
Hide thumbs

Advertisement

Quick Links

Owner's Manual
iP
R
0
F E S
S
I
O N A
L I
318 in. PROFESSIONAL
CORDLESS DRILL-DRIVER
Variable Speed / Reversible
Model No.
315.271220
Save this manual for
future reference
CAUTION:
Read and
follow all Safety Rules and
Operating Instructions before
first use of this product.
Customer
Help Line:
1-800-932-3188
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179
USA
Visit the Craftsman
web page: www.sears.com/craftsman
972000-709
12-99
• Safety
• Features
• Assembly
• Operation
• Maintenance
• Parts List
®

Advertisement

Table of Contents
loading

  Related Manuals for Craftsman 315.27122

  Summary of Contents for Craftsman 315.27122

  • Page 1 Safety Rules and Operating Instructions before first use of this product. Customer Help Line: 1-800-932-3188 Sears, Roebuck and Co., Hoffman Visit the Craftsman web page: www.sears.com/craftsman 972000-709 12-99 Estates, IL 60179 • Safety • Features • Assembly • Operation •...
  • Page 2: Battery Pack

    TABLE OF CONTENTS • General Safety Rules ... • Specific Safety Rules/Symbols • Features ... • Assembly ... • Operation ... • Maintenance ... • Accessories • Exploded View And Repair Parts List ... • Parts Ordering / Service ... WARNING: Read and understand all instructions.
  • Page 3 Tool Use and Care Use clamps or other practical way to secure and • support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control. • Do not force tool.
  • Page 4 Important Safety Instructions • Save these instructions. This manual contains important safety and operating instructions battery charger part number 9-11040. Following this rule will reduce the risk of electric shock, fire, or serious personal injury. • Before using battery charger, read all instructions and cautionary markings in this manual, on battery charger, and product using battery...
  • Page 5 SYMBOLS SYMBOL NAME Volts Amperes Hertz rain Minutes "_ Alternating Current Direct Current No Load Speed .../min Revolutions or Reciprocation Safety Alert Symbol DANGER: Failure to obey a safety warning will result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
  • Page 6 KNOW YOUR DRILL-DRIVER See Figure 1. Before attempting to use your drill-driver, familiarize yourself with all operating features and safety requirements. WARNING: Carefully read through this entire owner's manual before using your new drill-driver. Pay close attention to the Rules For Safe Operation, Warnings and Cautions.
  • Page 7 I.B/B. S IOFIA6E Q'_RGE_ BA'FIB_ PACK GRBE_ UG-I]'"ON" INDCA'I_S F ULLY _/_DSLOWQ-I/_NG TOf_t_Nr,_N I _._ PACK Fig. I CHARGER See Figure 2. Your charger has a "key hole" hanging feature for convenient, space saving storage. Screws should be installed so that center distances are 4-1/8 inches apart.
  • Page 8 INSTALLING BITS See Figure 3. • Lock the switch trigger by placing the direction of rotation selector in center position. See Figure 10. • Open or close chuck jaws to a point where the open- ing is slightly larger than the bit size you intend to use. Also, raise the front of your drill slightly to keep the bit from falling out of the chuck jaws.
  • Page 9 TO ATTACH BATTERY PACK TO DRILL See Figure 5. Note: Battery pack is shipped in a low charge condition. Therefore, it must be charged prior to use. Refer to page 10, "CHARGING BATTERY PACK" for charging instructions. • Lock the switch trigger by placing the direction of rotation selector in center position.
  • Page 10 WARNING: Always wear safety goggles or safety glasses with side shields when operating tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. CHARGING BATTERY PACK The battery pack for this tool has been shipped in a low charge condition to prevent possible problems.
  • Page 11 SWITCH See Figure 8. To turn your drill ON, depress the switch trigger. To turn it OFF, release the switch trigger. c_ln_l:_6nlON (LOCI<) VARIABLE SPEED This tool has a variable speed switch that delivers higher speed and torque with increased trigger pressure. Speed is controlled by the amount of switch trigger depression.
  • Page 12 KEYLESS CHUCK See Figure 11. A keyless chuck has been provided with your drill to allow for easy installation and removal of bits. As the name implies, you can hand tighten or release drill bits in the chuck jaws. Arrows on the chuck indicate which direction to rotate the chuck sleeve in order to LOCK (tighten) or UNLOCK (release) the chuck jaws.
  • Page 13 APPLICATIONS (Use drill-driver only for the purpose listed below) • Drilling in wood. • Drilling in ceramics, plastics, fiberglass, and lami- nates. • Drilling in both hard and soft metals. • Using driving accessories, such as driving screws with screwdriver bits. •...
  • Page 14: Chuck Removal

    CHUCK REMOVAL See Figures 16, 17, and 18. The chuck must be removed in order to use some accessories. To remove: • Lock the switch trigger by placing the direction of rotation selector in center position. See Figure 10. • Insert a 5/16 inch or larger allen wrench (hex key wrench) into the chuck of your drill and tighten the chuck jaws securely.
  • Page 15 WARNING: When servicing use only identical Craftsman replacement parts. Use of any other parts may create a hazard or cause product damage. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.
  • Page 16 Retail Stores. WARRANTY FULL ONE YEAR WARRANTY If this CRAFTSMAN Professional Cordless Drill-Driver fails due to a defect in material or workmanship within one year from the date of purchase, Sears will repair it, free of charge. WARRANTY SERVICE IS AVAILABLE THE UNITED STATES.
  • Page 17 318 in. PROFESSIONAL The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your CRAFTSMAN 3/8 in. PROFESSIONAL or when ordering repair parts. SEE BACK PAGE Number...
  • Page 18 In U.S.A. or Canada for in-home major brand repair service: Call 24 hours a day, 7 days a week 1-8004-MY-HOME Para pedir servicio de reparacibn Au Canada pour tout le service ou les pi_ces - 1-800-469 4663 For the repair or replacement Call 6 a.m.
