StarTech.com PR42GI-NETWORK-CARD Quick Start Manual

4-Port 2.5GBase-T Ethernet Network Adapter Card - PCIe 2.0 x4

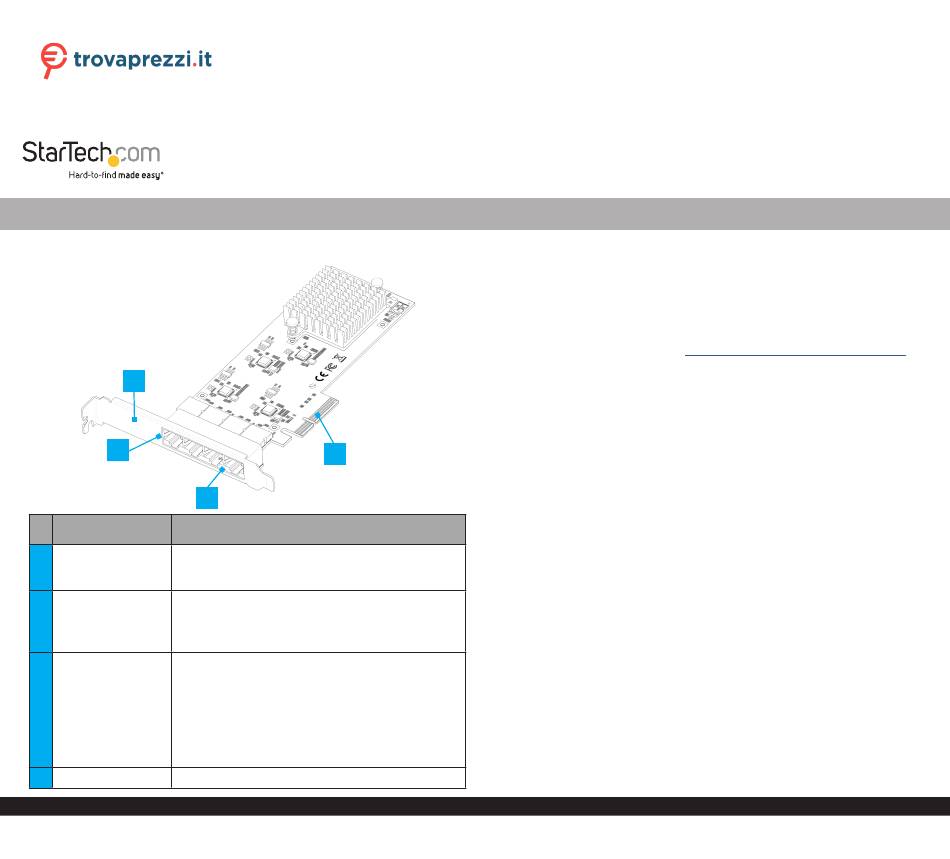

Product Diagram (PR42GI-NETWORK-CARD)
1
2
P1
P2
P3
3
Port/LED/Connector
• Secures the card to the Host Computer Case
1 Bracket • The Full Profile Bracket comes pre-installed
• The Low Profile Bracket is included
• Connect a Network Cable to the Network Card
• Supports 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
2 4x Ethernet Ports
Note: Ethernet port 1 (P1) is the only port that
supports WoL (Wake-on-LAN).
• Left LED Indicator is Link Speed
• Solid Green: 2.5 Gbps
• Solid Amber: 1 Gbps
3 LED Indicators
• Off: 100 or 10 Mbps
• Right LED Indicator is Link Status
• Solid Green: Active link
• Flashing Green: Activity
4 PCIe 2.0 x4 Connector • Insert into a PCI Express Slot on the Host Computer
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
PR42GI-NETWORK-CARD
4
P4
*Product may vary from image
Function
o cerca il tuo prodotto tra le migliori offerte di Schede di Rete
Package Contents
• 4-Port PCIe 2.5 Gbps Network Card x 1
• Low Profile Bracket x 1
• Quick-Start Guide x 1
Requirements
For the latest requirements, please visit
• Host Computer with an available PCI Express 2.0 or greater Slot (x4, x8, or x16)
Installation
Install the PCI Express Card
WARNING!
Static Electricity can severely damage PCI Express Cards. Ensure that you are
adequately Grounded before you open your Host Computer Case or touch the PCI
Express Card. You should wear an Anti-Static Strap or use an Anti-Static Mat when
installing any Host Computer component. If an Anti-Static Strap isn't available,
discharge any built-up static electricity by touching a large Grounded Metal Surface
for several seconds. Only handle the PCI Express Card by its edges and don't touch
the gold connectors.
1. Turn off the Host Computer and any Peripheral Devices that are connected to it
(e.g. printers, external hard drives, etc.).
2. Unplug the Power Cable from the back of the Host Computer.
3. Disconnect any Peripheral Devices that are connected to the Host Computer.
4. Remove the Cover from the Host Computer Case. Consult the documentation that
came with the Host Computer for details about doing this safely.
5. Locate an open PCI Express Slot and remove the corresponding Slot Cover Plate
from the back of the Host Computer Case.
Note: Consult the documentation that came with the Host Computer for details
about doing this safely. This card works in PCI Express x4, x8, or x16 Slots.
6. Gently insert the PCI Express Card into the open PCI Express Slot and fasten the
Bracket to the back of the Host Computer Case.
Note: If you install the PCI Express Card into a Small Form Factor or a Low Profile
Desktop System, it may be necessary to replace the pre-installed standard
Full Profile Bracket with the included Low Profile Bracket.
StarTech.com
Quick-Start Guide
www.startech.com/PR42GI-NETWORK-CARD
Manual Revision: January 9, 2023
