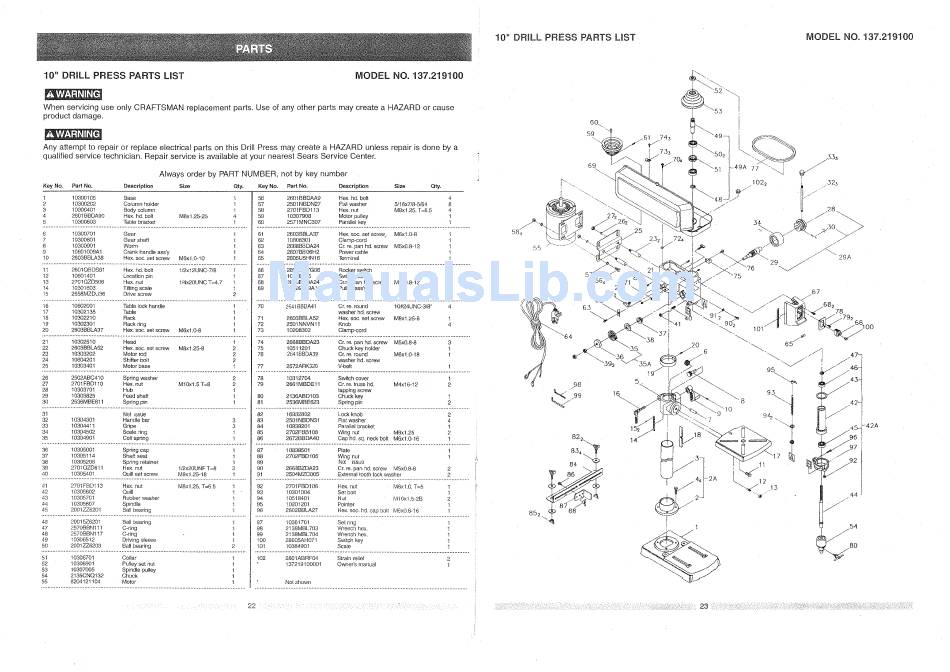

!0" DRILL PRESS PARTS LIST MODEL NO. !37.2!9100
10" DRILL PRESS PARTS LiST
MODEL NO. 137.219100
When servicing use only CRAFTSMAN replacement parts. Use of any other parts may create a HAZARD or cause
product damage.
Any attempt to repair or replace electrical parts on this Drill Press may create a HAZARD unless repair is done by a
qualified service technician. Repair service is available at your nearest Sears Service Center.
Always order by PART NUMBER, not by key number
Key No. Part No. Description Size Qty. Key No, Part No. Description Size Qty,
1 10300105 Base 1 56 260t BBDAA9 Hex. hd, bolt 4
2 10300202 Co}umn holder I 57 2501NBDN27 Flal washer 5/16x7/8-5/64 8
3 10300401 Body column 1 58 2701FBD113 Hex. nut M8xl.25, T=6.5 4
4 2601BBDAg0 Hex, hd. boil M8x1.25-25 4 59 10307908 Motor pulley 1
5 10300603 Table bracket t 60 2571 MNC307 Paraltef key 1
............................................................................................................................... , ....................................................................................................................................
6 10300701 Gear t 6! 2603BBLA37 Hex. soc. set screw, M6x1.0-8 1
7 1030080t Gear shaft 1 62 10808301 Clamp-cord 1
8 10300901 Worm t 63 2668BBDA24 Cr. re. pan hd. screw M5x0.8-12 1
9 10601009A1 Crank handle ass'y ! 64 2807BB 06H2 Power cable 1
10 2603BBLA38 Hex, soc. set screw M6×1.0-t0 1 65 2805U5HNt6 Terminal 1
............................................................................................................................... i ....................................................................................................................................
11 2601QBDS81 Hex. hd. bolt I/2xl 2UNC-7/8 I 66 2898DH7G06 Rocker switch 1
12 10601401 Location pin 1 67 10308805 Switch box 1
13 2701QZD506 Hex. nut t/4x20UNC T=4.7 1 68 2668BBDA24 Cnre, pan hd. screw M5x0.8-12 2
14 10301603 TiEting scale 1 69 10309009A1 Pulley ass'y 1
15 2658MZDU36 Drive screw 2
............................................................................................................................... i ....................................................................................................................................
16 10602001 Table lock handle 1 70 2.641BBDA41 Cr. re. round 10#24UNC_3/8" 4
17 10302135 Table 1 washer hd. screw
18 10302210 Rack 1 71 2603BBLA52 Hex. soc. set screw M8x1.25-8 t
t 9 1030230 t Rack ring 1 72 2501 NNVN 11 Knob 4
20 2603BBLA37 Hex. soc. se! screw M6x1.0-8 1 73 10208302 Clamp-cord
............................................................................................................................... , ......... t ..........................................................................................................................
21 10302510 Head 1 74 2668BBDA23 Cr. re. pan hd, screw M5x0.8-8 3
22 2603BBLA52 Hex. soc, set screw M8x1.25-8 2 75 10511201 Chuck key holder 1
23 10303202 Motor rod 2 76 264 t 8BDA3£ Cr. re. round M6x1.0q 8 1
24 10604201 Shifter bolt 2 washer hd, screw
25 10303401 Motor base 1 77 2572ARK320 V-belt 1
............................................................................................................................... i ....................................................................................................................................
26 2502ABC410 Spnng washer 2 78 10312704 Switch cover 1
27 2701FBDlt0 Hex. nut M10x1,5 T=8 2 79 2661MBDEt1 Or. re. truss hd, M4x16-t2 2
28 10303701 Hub t tapping screw
29 10303825 Feed shaft 1 80 2136ADD103 Chuck key 1
30 2536MBE611 Spring pin 1 81 2536MBE623 Spring pin 2
31 Not _ssue 82 16932802 Lock knob 2
32 10304301 Handle bar 3 83 2501NBDN31 Fiat washer 4
33 10304411 Gripe 3 84 10838201 Parallel bracket 1
34 10304502 Scale ring 1 85 2702FBB108 Wing nut MBxl.25 2
35 10304901 Coil spring 1 86 2672BBDA40 Cap hd. sq, neck bolt M6x1.0-16 1
............................................................................................................................... i ....................................................................................................................................
36 !0305001 Spring cap 1
37 !0305114 Shaft seat 1
38 10305206 Spring retainer 1
39 2701QZD611 Hex. nut 1i2x20UNF T=8 2
40 10305401 Quill set screw M8xt .25-18 !
41 270t FBDt 13 Hex. nut M8x1.25, T=6.5 !
42 10305602 Quill 1 "
43 10305701 Rubber washer t
44 10305807 Spindle 1
45 200tZZ620I Bail bearing I
46 20015Z6201 Bail bearing t
47 2570BBN111 C-ring t
48 2570BBN117 C-ring t
49 10306512 Driving sleeve i
50 2001 ZZ6203 Ball bearing 2
87 10838501 Plate 1
88 2702FBDt06 Wing nut t
89 Not msue
90 2668BZDA23 Cr. re. pan hd. screw M5x0.8-8 2
91 2504MZC005 External tooth lock washer 2
92 2701FBD106 Hex. nut M6x1.0, T=5 i
93 10301004 Set bolt i
94 105/8401 Nut M10xl.5-2B 2
95 t 020t 20! Pointer i
96 2602BBLA27 Hex. soc. hd. cap bolt MBx0.8=_6 1
97 10361701 Set nag 1
98 2138MBL703 Wrench hex.
99 2138MBL704 Wrench hex.
100 28605AH071 Switctl key ]
1OI !0384901 ScaJe ]
5t t030670t Collar 1 102 2801ABRF04 Strain relief 2
52 10306901 P0ttey set nut 1 137219100001 Owner's manual 1
53 t0307005 Spindle pulley 1
54 2t350NQ132 Chuck 1
55 8204121104 Motor 1 Not shown
