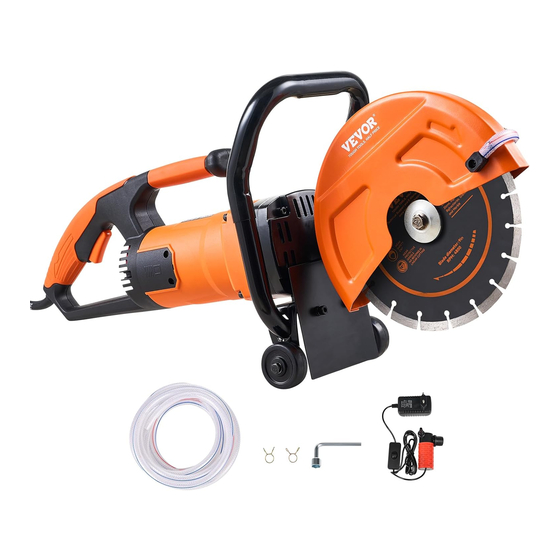

CONCRETE SAW
OWNER'S MANUAL
MODEL: DC235
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DC235 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VEVOR DC235

Summary of Contents for VEVOR DC235

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support CONCRETE SAW OWNER’S MANUAL MODEL: DC235 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

  • Page 4: Main Specifications

    Input(W) Cutting Blade speed Supply(V/Hz) (kg) Depth （inch） Size(mm) （RPM） DC235 120/60 1800 Φ228 5000 10.9 MARKINGS The manufacturer is required to apply the following markings: • Products shall be marked with the markings specified by the particular product standard.
  • Page 5 apply these additional markings, where [For products eligible to bear the cCSAus Mark, (i.e., the product is certified and manufactured to the requirements of BOTH Canadian and U.S. Standards), the Markings section of the report shall include the following statement:] The products listed are eligible to bear the CSA Mark shown with adjacent indicators 'C' and 'US' for Canada and US (indicating that products have been manufactured to the requirements of both Canadian and U.S.
  • Page 6 de sécurité” or equivalent or the sign M004 of ISO 7010 or the following safety sign: The eye protection symbol may be modified by adding other personal protective equipment such as ear protection, dust mask, etc WARNING To reduce the risk of injury, use proper guard and use only accessories rated at least equal to the maximum speed marked on the tool.

  • Page 7: General Safety Rules

    safety instructions may be separate from the instruction manual. An explanation of the symbols required by this standard shall be provided in either the instruction manual or the safety instructions. They shall be written in the official language(s) of the country in which the tool is sold. They shall be legible and contrast with the background.
  • Page 8 outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
  • Page 9 ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
  • Page 10 The guard helps to protect operator from broken wheel fragments and accidental contact with wheel. b) Use only bonded reinforced or diamond cut-off wheels for your power tool. Just because an accessory can be attached to your power tool, it does not assure safe operation.
  • Page 11 i) Do not use damaged wheels. Before each use, inspect the wheels for chips and cracks. If power tool or wheel is dropped, inspect for damage or install an undamaged wheel. After inspecting and installing the wheel, position yourself and bystanders away from the plane of the rotating wheel and run the power tool at maximum no load speed for one minute.
  • Page 12 p) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. q) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
  • Page 13 or kickback forces, if proper precautions are taken. b) Never place your hand near the rotating accessory. Accessory may kickback over your hand. c) Do not position your body in line with the rotating wheel. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging.
  • Page 14 j) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS INSTALLING/REMOVING A DISC WARNING: Always disconnect the machine from the power supply before attempting to install or remove a Cutting Disc.
  • Page 15 CUTTING ADVICE PRE-CUTTING ADVICE • Ensure that the power supply matches the requirements specified on the matches the requirements specified on the machines rating plate. • Ensure that the machine trigger switch is in the “OFF” position. If the machine is connected to a power source with trigger switch the “ON”position , the machine could start operating immediately with the possibility of a...
  • Page 16 - 14 -...
  • Page 17 Part Description Part Description Cable wire Gear washer Nut M6 bearing pressure plate Left handle Screw M4x10 Screw M5x20 oil baffle Cable sheath Gear Tension Nut M8 wiring buckle oil baffle switch Gear box right handle Screw M5x25 M6 washer Handle Screw M6x25 Sctew M6x45...
  • Page 18 Brush cover Circlip for shaft 6 Screw ST3x8 Gear box Rotor Bearing 6200Z baffle oil baffle Bearing washer Circlip for shaft 15 Bearing 6202 RS Axle sleeve Gear box Bevel gear Screw M4x10 Gear cover Screw ST5x40 O-ringφ60x1.5 Bearing 6200 RS Screw M6x16 Screw M4x10 Locking handwheel...
  • Page 19 Bearing 6302Z Key 4x4x30 Spindle Bearing pressure plate Water pump Screw M6x16 Pvc water pipe 6x8 Dustproof ring Flange Flange saw blade wrench flange washer Washer Screw Pvc water pipe 8x10 （230mm） Pvc water pipe 8x10 （5000mm） Breakwater -plate Importer: WAITCHX Address: 250 bis boulevard Saint-Germain 75007 Paris Importer: FREE MOOD LTD Address: 2 Holywell Lane, London, England, EC2A 3ET...
  • Page 20 TechnicalSupport and E-Warranty Certificate www.vevor.com/support...
