User manual

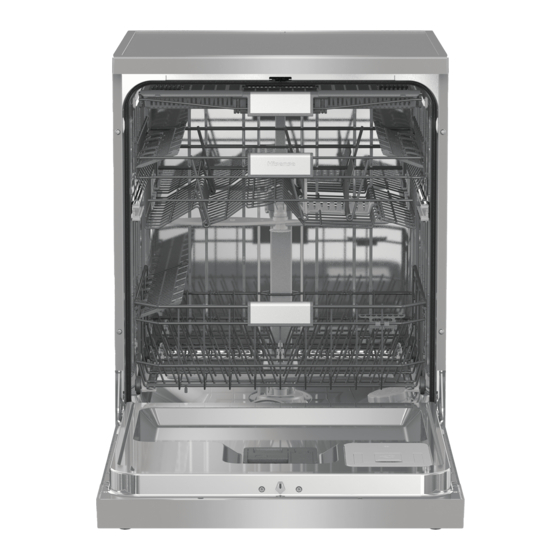

Dishwasher
HS693C60XADUK

Advertisement

Table of Contents
loading

Related Manuals for Hisense HS693C60XAD

Summary of Contents for Hisense HS693C60XAD

  • Page 1 User manual Dishwasher HS693C60XADUK...

  • Page 2: Table Of Contents

    Contents Your dishwasher ........................Safety instructions ........................Automatic child lock - CL ......................Child lock - CL ......................... Installation ..........................Declaration of conformity ......................Overflow guard ......................... Packaging ..........................Disposal ............................ Symbols on the appliance ......................Before washing for the first time ................... 1.
  • Page 3 Care and cleaning ........................Top up with rinse aid ........................ Top up with salt ........................Top up dishwasher detergent for automatic dosing ..............Clean the filter ........................... Cleaning the spray arms ......................Clean the outside of the dishwasher ..................CLn - Run the Clean (Self-clean) program ................Remove blockages ........................

  • Page 4: Your Dishwasher

    Your dishwasher Install the dishwasher, see the chapter Installation. Press The first time the dishwasher is switched on, it is important that you choose the right settings to ensure good dishwashing results. See the chapter Before washing for the first time. On/Off Start/Pause/Stop Display...

  • Page 5: Safety Instructions

    Safety instructions Read the user manual and keep it in a safe place! Number of standard place settings: 16 Never use the dishwasher for any purpose other than that specified in these operating instructions. Do not load the dishwasher door or dishwasher baskets with anything other than dishes.

  • Page 6: Automatic Child Lock - Cl

    WARNING! Children must be supervised – dishwasher detergent is corrosive! Automatic child lock - CL You can activate the Automatic child lock setting to prevent children from starting the dishwasher. See the chapter Settings. CL (Child Lock) will be shown on the display when pressing the control panel.

  • Page 7: Symbols On The Appliance

    Symbols on the appliance Read the user manual. Recycle as electrical waste. Approved in accordance with the relevant EU directives. Approved in accordance with the relevant UK legal requirements.

  • Page 8: Before Washing For The First Time

    Before washing for the first time 1. Water hardness In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dishes and the dishwasher. Checking water hardness Water hardness is specified using German degrees of water hardness (°dH), French degrees of water hardness (°fH), English degrees of water hardness (°eH) or millimoles per litre (mmol/l).

  • Page 9: Basic Settings

    2. Basic settings The first time the dishwasher is switched on, it is important that you choose the right settings to ensure good dishwashing results. See page 23. Set up: Rinse aid Water hardness TAB (All-in-one detergent) Automatic dosing of detergent Top up with rinse aid Drying is faster and a better result is achieved Lift up to open...

  • Page 10: Top Up Dishwasher Detergent For Automatic Dosing

    WARNING! In order to avoid rust stains a dishwashing program must be started immediately after adding salt. Top up dishwasher detergent for automatic dosing Fill the automatic dosing compartment with Lift up to open dishwasher detergent gel if you have activated the Automatic dosing of detergent setting.

  • Page 11: Greener Dishwashing

    Greener dishwashing Save energy and water When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand. Do not rinse under running water Do not rinse the dishes under running water as this will lead to increased energy and water consumption. Simply scrape off large food particles before loading the dishwasher.

  • Page 12: Loading The Dishwasher

    Loading the dishwasher Fragile dishes Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand high heat, others can be damaged by dishwasher detergent. Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic.

  • Page 13: Upper Basket

    Upper basket Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right. 3 positions Knife stand Raising and lowering the upper basket...

  • Page 14: Lower Basket

    Adjustable plate supports The adjustable plate supports can be folded down to make it easier to load pots, bowls and glasses. Lower basket Place plates, side plates, serving dishes and pots in the lower basket. Cutlery can be placed in the cutlery holder.

  • Page 15: Using The Dishwasher

    Using the dishwasher Add detergent You have two options for adding detergent – manual or automatic. To activate Automatic dosing of detergent, see the chapter Settings. The manual detergent compartment can be used as a supplement even when Automatic dosing of detergent is activated (e.g. for dishwasher detergent with bleaching agent or if the automatic dosing compartment is empty).

  • Page 16: On/Off

    On/Off Start/Pause/Stop Display WiFi NOTE! The control panel only reacts to use when the door is closed. On/Off Close the door properly, otherwise the dishwasher will not start. Press . Also turn on the water tap if it is turned off. Select program Select a program to suit the type of dishes and how dirty they are.

  • Page 17: Select Option

    Glass 40° A gentle dishwashing program with a low temperature for washing fragile items made of crystal/glass. Remember to use a small amount of detergent and to place items so that they do not touch each other during the wash. See also Fragile dishes in the chapter Loading the dishwasher. Porcelain that has just been used without dried leftovers can also be washed using this program.

  • Page 18: Start/Pause/Stop

    The Auto Dry option is pre-selected for some programs. Not available for: Hygiene 70°, Self-clean NOTE! For the best drying results, do not close the door before the drying phase has finished and the machine has automatically switched off. WARNING! The dishwasher door must not be blocked or closed when opened automatically.

  • Page 19: If You Want To Load More Dishes

    If you want to load more dishes Press and hold for three seconds to pause the program. Open the door. Add the dishes and close the door. Press If the dishwashing program was remote started, the interrupted program will continue once the door is closed.

  • Page 21: Connectlife

    ConnectLife ConnectLife is a smart home platform that connects people, devices and services. The ConnectLife application includes advanced digital services and carefree solutions that allow users to monitor and control appliances, receive notifications from a smartphone, and update software (supported features may vary depending on your appliance and the region/country in which you are located).

  • Page 22: Remote Control The Dishwasher

    Remote control the dishwasher The dishwasher's network symbol is shown on the display when the dishwasher is paired with a smartphone/tablet. You can use the ConnectLife app to monitor the dishwasher and change settings. Remote start the dishwasher To remote start the dishwasher, close the door and press , then press .

  • Page 23: Settings

    Settings 1. Press 2. To open the dishwasher's settings menu, press and hold and until SEt is shown on the display. 3. Press to step through the settings menu. 4. Press to step through the alternatives. 5. Confirm the selected setting by pressing 6.
  • Page 24 Settings Alternatives See 1Water hardness in the chapter Before washing for the first time. For a water supply with a hardness above 5 °dH (9 °fH / 6 °eH / 0.9 mmol/l), fill with salt. For a water supply with a hardness below 6°dH (10°fH / 7°eH / 1.0 mmol/l), select 4:00.

  • Page 25: Care And Cleaning

    Care and cleaning Top up with rinse aid When the rinse aid needs topping up, the above symbol lights on the display. Lift up to open Press to close 1. Open the rinse aid compartment lid. 2. Carefully top up with rinse aid to the level marked MAX. 3.

  • Page 26: Top Up Dishwasher Detergent For Automatic Dosing

    Top up dishwasher detergent for automatic dosing When the dishwasher detergent gel has run out and needs to be refilled, the above symbol appears on the display. (You can run 1-2 programs before the compartment is completely empty.) Lift up to open 1.

  • Page 27: Clean The Filter

    Clean the filter The filter traps larger food particles, which cannot get past the drainage pump. Empty the filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used. 1. Turn the locking ring anticlockwise and lift the filter straight up. 2.

  • Page 28: Clean The Outside Of The Dishwasher

    Lower spray arm Pull the lower spray arm straight up to release it. Clean the outside of the dishwasher Door and door seal Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth. Clean the door seal at the lower front edge of the dishwasher with a washing-up brush.

  • Page 29: Winter Storage/Transport

    6. Refit the drainage pump stop along with the fine and coarse filters. 7. Plug the machine in again. Drainage pump stop NOTE! Do not forget to refit the drainage pump stop. Unblocking the inlet hose filter If the water supply contains small particles, the outer filter on the inlet hose may become blocked, which results in the Water inlet fault error message.

  • Page 30: Troubleshooting

    Troubleshooting Error messages Action Overfilling water Unblocking the drainage pump. See the chapter Care and cleaning. If the problem persists, contact your nearest service centre. Water outlet fault See "Water remains in the dishwasher" under "Problem" in the table below. If the problem persists, contact your nearest service centre.
  • Page 31 Problem Possible causes Action Dirt on the control panel. Clean with a dry or slightly damp cloth. Cannot close door. The baskets are not correctly Check that the baskets are cor- positioned. rectly positioned horizontally. Check that the dishes are not blocking the baskets from slid- ing properly into place.
  • Page 32 Problem Possible causes Action Incorrect detergent dosage. Dose according to water hard- ness. Far too much or far too little detergent results in poorer dishwashing results. Old detergent. Detergent is a Avoid large packages. perishable product. Automatic dosing of detergent To check that detergent is dis- is activated, but dishwasher pensed, press and hold...
  • Page 33 Problem Possible causes Action Salt compartment empty. Top up with salt. See the chapter Before washing for the first time. Incorrect water softener setting. See Water hardness in the chapter Settings. The water softener is leaking Check that the salt compart- salt.
  • Page 34 Problem Possible causes Action The filters are not fitted cor- Check that the filters are fitted rectly. correctly. See the chapter Care and cleaning. Debris in the drainage pump. Clean the drainage pump. See the chapter Care and cleaning. Drainage pump stop missing. Check that the yellow drainage pump stop (on the right in the bottom drain) is in place.

  • Page 35: Wifi

    WiFi Problem Possible causes Action The dishwasher's network sym- The dishwasher is not connec- Connect the dishwasher to your ted to your wireless network. wireless network. See the does not appear on the chapter ConnectLife. display. The WiFi connection is deactiv- Activate the WiFi connection.

  • Page 36: Installation

    Installation Nominal dimensions. Actual measurements may vary. [mm] Safety instructions Connections to electricity, water and drainage must be performed by a qualified professional. Always follow applicable regulations for water, drainage and electricity. Take care during installation! Wear protective gloves! There must always be two people! Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks.

  • Page 37: Adjust The Height And Slide The Dishwasher Into Place

    Adjust the height and slide the dishwasher into place 24 mm Freestanding Make sure the area on which the dishwasher is to be installed is firm. Adjust the dishwasher's height using the four feet so that the dishwasher is level. Also check that the dishwasher door can be opened freely and is centred in the tub opening.

  • Page 38: Drainage Connection

    Drainage connection min. 14 mm max. 950 mm min. 350 mm The drainage hose may be extended by a maximum of 3 m (the total length of the drainage hose must not exceed 4.5 m). Any joints and connecting pipes must have an internal diameter of at least 14 mm. No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher.

  • Page 39: Electrical Connection

    Connection to hot water supply Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water connection reduces the dishwasher's energy consumption. NOTE! Do not exceed the permitted water supply temperature.

  • Page 40: Service

    Read the chapter Troubleshooting before contacting the service centre. If you have encountered a problem that you cannot resolve, please contact your nearest service centre for professional help, see global.hisense.com. Our website also has information about spare part availability and what you can repair yourself.

  • Page 41: Technical Data And Energy Labelling

    2) In accordance with the EN 60436 standard. Information for consumers Information about your appliance can be found at global.hisense.com. You can also find information in the EU Product Registration database for Energy Labelling, EPREL. Scan the QR code on the energy label supplied with the dishwasher (or go to https://eprel.ec.europa.eu and search for the model name).
  • Page 42 Your notes...
  • Page 43 Your notes...
  • Page 44 876590-a6 We reserve the right to make changes.
