Contents Your dishwasher ........................Safety instructions ........................Automatic child lock - CL ......................Child lock - CL ......................... Installation ..........................Overflow guard function ......................Winter storage/transport ......................Packaging ..........................Disposal ............................ Symbols ............................ Before washing for the first time ................... Water hardness .........................
Page 3
Remove devices ........................Settings ............................ Care and cleaning ........................Top up with rinse aid ........................ Top up with salt ........................Top up dishwasher detergent for automatic dosing ..............Clean the filter ........................... Cleaning the spray arms ......................Clean the outside of the dishwasher ..................CLn - Run the Clean (Self-clean) program ................

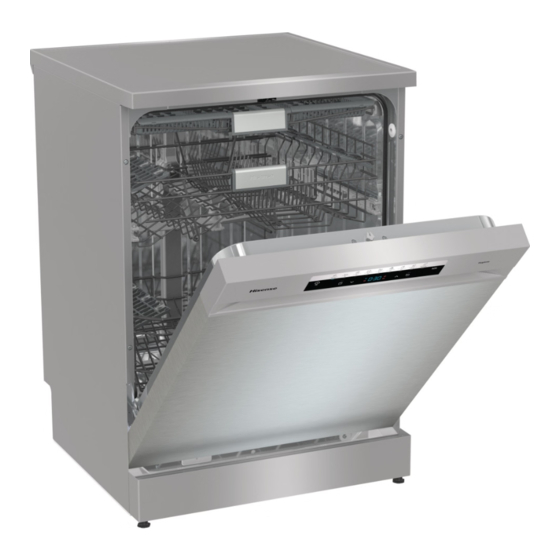

Your dishwasher Install the dishwasher, see the chapter Installation. Press The first time the dishwasher is switched on, it is important that you choose the right settings to ensure good dishwashing results. See the chapter Before washing for the first time. On/Off Start/Pause/Stop Display...
Safety instructions Read the operating instructions and keep them in a safe place! Number of standard place settings: 16 Never use the dishwasher for any purpose other than that specified in these operating instructions. Do not load the dishwasher door or dishwasher baskets with anything other than dishes.
WARNING! Children must be supervised – dishwasher detergent is corrosive! Automatic child lock - CL You can activate the Automatic child lock setting to prevent children from starting the dishwasher. See the chapter Settings. CL (Child Lock) will be shown on the display when pressing the control panel.
Disposal The dishwasher is manufactured and labelled for recycling. When the dishwasher has reached the end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power cable and cut it as short as possible. Contact your local authority for information about where and how your dishwasher should be correctly recycled.
Before washing for the first time Water hardness In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dishes and the dishwasher. Checking water hardness Water hardness is specified using German degrees of water hardness (°dH), French degrees of water hardness (°fH), English degrees of water hardness (°eH) or millimoles per litre (mmol/l).
Basic settings The first time the dishwasher is switched on, it is important that you choose the right settings to ensure good dishwashing results. See page 23. Set up: Rinse aid Water hardness TAB (All-in-one detergent) Automatic detergent dispensing Top up with rinse aid Drying is faster and a better result is achieved if you use rinse aid.
Top up dishwasher detergent for automatic dosing Fill the automatic dosing compartment with dishwasher detergent gel if you have activated the Automatic detergent dispensing setting. Lift up to open 1. Open the lid of the automatic dosing compartment for dishwasher detergent gel. 2.
Greener dishwashing Save energy and water When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand. Do not rinse under running water Do not rinse the dishes under running water as this will lead to increased energy and water consumption. Simply scrape off large food particles before loading the dishwasher.
Loading the dishwasher Fragile dishes Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand high heat, others can be damaged by dishwasher detergent. Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic.
The top cutlery tray is comprised of three parts that can be moved sideways to better accommodate the dishes. Upper basket Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right.
Adjustable plate supports The adjustable plate supports can be folded down to make it easier to load pots, bowls and glasses. Lower basket Place plates, side plates, serving dishes and pots in the lower basket. Cutlery can be placed in the cutlery holder.
Using the dishwasher Add detergent You have two options for adding detergent – manual or automatic. To activate Automatic detergent dispensing, see the chapter Settings. The manual detergent compartment can be used as a supplement even when Automatic detergent dispensing is activated (for bleach, for example, or if the automatic dosing compartment is empty).
On/Off Start/Pause/Stop Display WiFi NOTE! The control panel only reacts to use when the door is closed. On/Off Close the door properly, otherwise the dishwasher will not start. Press . Also turn on the water tap if it is turned off. Select program Select a program to suit the type of dishes and how dirty they are.
Glass 40° A gentle dishwashing program with a low temperature for washing fragile items made of crystal/glass. Remember to use a small amount of detergent and to place items so that they do not touch each other during the wash. See also Fragile dishes in the chapter Loading the dishwasher. Porcelain that has just been used without dried leftovers can also be washed using this program.
The Auto Dry option is pre-selected for some programs. Not available for: Hygiene 70°, Self-clean NOTE! For the best drying results, do not close the door before the drying phase has finished and the machine has automatically switched off. WARNING! The dishwasher door must not be blocked or closed when opened automatically.
If you want to load more dishes Press and hold for three seconds to pause the program. Open the door. Add the dishes and close the door. Press If the dishwashing program was remote started, the interrupted program will continue once the door is closed.
WiFi connection ConnectLife You can remote control this dishwasher with your smartphone/tablet. Connect the dishwasher to your wireless network to be able to remote control and start the dishwasher using the ConnectLife app. The app can be used to find information, change settings, start a program and monitor the dishwasher. (The dishwasher can always be used without the app.) On/Off Start/Pause/Stop...
Network symbol on the display Flashing 0.5 sec on/off The dishwasher is ready to be connected to your wireless network or paired with your smartphone/tablet. Flashing 1.0 sec on/off The dishwasher is connected to your wireless network. Glows The dishwasher is connected to your wireless network and the cloud. Remote control the dishwasher The dishwasher's network symbol is shown on the display when the dishwasher is paired with a...
Settings 1. Press 2. To open the dishwasher's settings menu, press and hold and until SEt is shown on the display. 3. Press to step through the settings menu. 4. Press to step through the alternatives. 5. Confirm the selected setting by pressing 6.
Page 24
Settings Alternatives See Water hardness in the chapter Before washing for the first time. For a water supply with a hardness below 6°dH (10°fH / 7°eH / 1.0 mmol/l), select 4:00. The water softener is deac- tivated and no salt needs to be added. Pre-selected at factory: 4:04 5:00 (Off) Activate this setting when using an all-in-one detergent that...
Care and cleaning Top up with rinse aid When the rinse aid needs topping up, the above symbol lights on the display. Lift up to open Press to close 1. Open the rinse aid compartment lid. 2. Carefully top up with rinse aid to the level marked MAX. 3.
Top up dishwasher detergent for automatic dosing When the dishwasher detergent gel has run out and needs to be refilled, the above symbol appears on the display. (You can run 1-2 programs before the compartment is completely empty.) Lift up to open 1.
Clean the filter The filter traps larger food particles, which cannot get past the drainage pump. Empty the filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used. 1. Turn the locking ring anticlockwise and lift the filter straight up. 2.
Lower spray arm Pull the lower spray arm straight up to release it. Clean the outside of the dishwasher Door and door seal Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth. Clean the door seal at the lower front edge of the dishwasher with a washing-up brush.
Page 29
6. Refit the drainage pump stop along with the fine and coarse filters. 7. Plug the machine in again. Drainage pump stop NOTE! Do not forget to refit the drainage pump stop. Unblocking the inlet hose filter If the water supply contains small particles, the outer filter on the inlet hose may become blocked, which results in the Water inlet fault error message.
Troubleshooting Error messages Action Overfilling water Unblocking the drainage pump. See the chapter Care and cleaning. If the problem persists, contact your nearest service centre. Water outlet fault See "Water remains in the dishwasher" under "Problem" in the table below. If the problem persists, contact your nearest service centre.
Page 31
Problem Possible causes Action Cannot close door. The baskets are not correctly Check that the baskets are cor- positioned. rectly positioned horizontally. Check that the dishes are not blocking the baskets from slid- ing properly into place. The door lock does not click in- Check the door lock.
Page 32
Problem Possible causes Action Incorrect detergent dosage. Dose according to water hard- ness. Far too much or far too little detergent results in poorer dishwashing results. Old detergent. Detergent is a Avoid large packages. perishable product. Automatic detergent dispensing To check that detergent is dis- is activated, but dishwasher pensed, press and hold detergent gel is not dispensed.
Page 33
Problem Possible causes Action Salt compartment empty. Top up with salt. See the chapter Before washing for the first time. Incorrect water softener setting. See Water hardness in the chapter Settings. The water softener is leaking Check that the salt compart- salt.
Page 34
Problem Possible causes Action Kink in drainage hose. Check that the hose is free from kinks and sharp bends. Blocked drainage hose. Disconnect the drainage hose where it connects to the sink unit's water trap. Check that no debris has fastened and that the connection has an inner diamet- er of at least 14 mm.
WiFi Problem Possible causes Action The dishwasher's network sym- The dishwasher is not connec- Connect the dishwasher to your ted to your wireless network. wireless network. See the does not appear on the chapter WiFi connection. display. The WiFi connection is deactiv- Activate the WiFi connection.
Installation [mm] Nominal dimensions. Actual measurements may vary. Safety instructions Connections to electricity, water and drainage must be performed by a qualified professional. Always follow applicable regulations for water, drainage and electricity. Take care during installation! Wear protective gloves! There must always be two people! Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks.
Placing the dishwasher The dishwasher can be installed under a worktop or freestanding. Make sure the area on which the dishwasher is to be installed is firm. Adjust the height and slide the dishwasher into place 24 mm Freestanding Make sure the area on which the dishwasher is to be installed is firm. Adjust the dishwasher's height using the four feet so that the dishwasher is level.
Drainage connection min. 14 mm max. 950 mm min. 350 mm The drainage hose may be extended by a maximum of 3 m (the total length of the drainage hose must not exceed 4.5 m). Any joins and connecting pipes must have an internal diameter of at least 14 mm. However, the drainage hose should ideally be replaced with a new hose without joins.
Once the installation is complete, turn on the water tap and allow the pressure to settle for a while. Check that all connections are watertight. Connection to cold water supply Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas. Connection to hot water supply Connect the dishwasher to the hot water supply (max.
Remove dishwasher worktop The dishwasher can be installed in a recess without its worktop. If the dishwasher's worktop is removed, the dishwasher must be installed under a separate worktop.
Read the chapter Troubleshooting before contacting the service centre. If you have encountered a problem that you cannot resolve, please contact your nearest service centre for professional help, see global.hisense.com. Our website also has information about spare part availability and what you can repair yourself.
2) In accordance with the EN 60436 standard. Information for consumers Information about your product can be found at global.hisense.com, where you will also find a link to the European Product Database for Energy Labelling, EPREL. Or else visit https://eprel.ec.europa.eu directly.
Page 43
876590-a5 We reserve the right to make changes.
