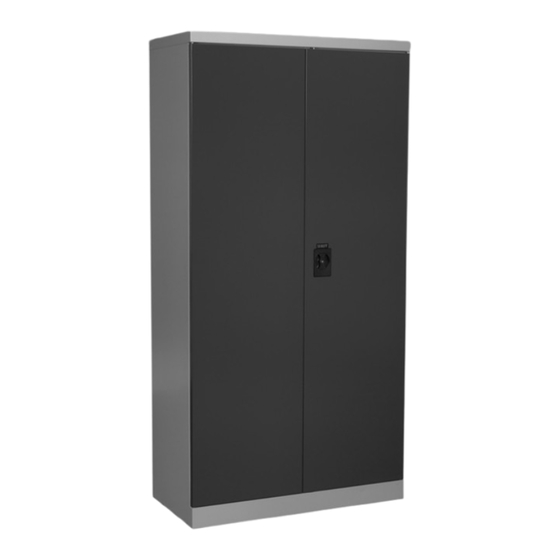

Full height industrial cabinet

Advertisement

Quick Links

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1. GENERAL SAFETY
WARNING! Ensure Health & safety, local authority, and
general workshop practice regulations are adhered to when
using this cabinet.
Locate cabinet in a suitable work area.
Keep the work area clean, uncluttered and ensure there is
adequate lighting.
WARNING! use cabinet on level and solid ground,
preferably concrete.
Keep the cabinet clean and tidy in accordance with good
workshop practice.
Keep children and unauthorised persons away from the work
area.
DO NOT use the cabinet for any purpose other than that
for which it is designed.
DO NOT use the cabinet outdoors.
DO NOT place the cabinet in a damp or wet location or an
area where there is condensation.
DO NOT clean the cabinet with any solvents which may
damage the surfaces or the protective coating.
 DO NOT move the cabinet when there are items placed
inside.
 DO NOT overload the cabinet.
2. INTRODUCTION
Industrial quality, double door, free standing cabinet. Durable,
scuff resistant design. reinforced steel doors with zinc plated
locking bars provide 3 point locking mechanism. supplied with
two coded keys. Ideal for home, office, garage or workshop use.
Dimensions:
overall Width: 900mm, Depth: 450mm, Height: 1800mm.
Internal Width: 850mm, Depth: 420mm, Height: 1710mm.
3. CONTENTS
unpack the contents of the box and check against the
parts list/diagram. If there are any parts missing,
contact your local sealey dealer.
Part No.
Part Name
A1
rear Panel
A2
rear Panel
B1
Left side Panel
B2
right side Panel
c1
Left Door
c2
right Door
D
top
E
Bottom
f
Inner face Plate
G
outer face Plate
J
Plastic stop
K
Locking Pin Locator
L
Hinge Pin Locator
M
screw
n
Hinge Pin
© Jack sealey Limited
InstructIons for:
FULL HEIGHT INDUSTRIAL CABINET
MoDEL no
No. of
1
1
1
1
1
1
1
1
1
1
4
2
4
18
4
Original Language Version
APIC1800F
:
APIc1800f
Issue: 1 - 09/08/12
