Networked audio and control processor and input and output device (18 pages)
Summary of Contents for QSC DDI-11
Page 1

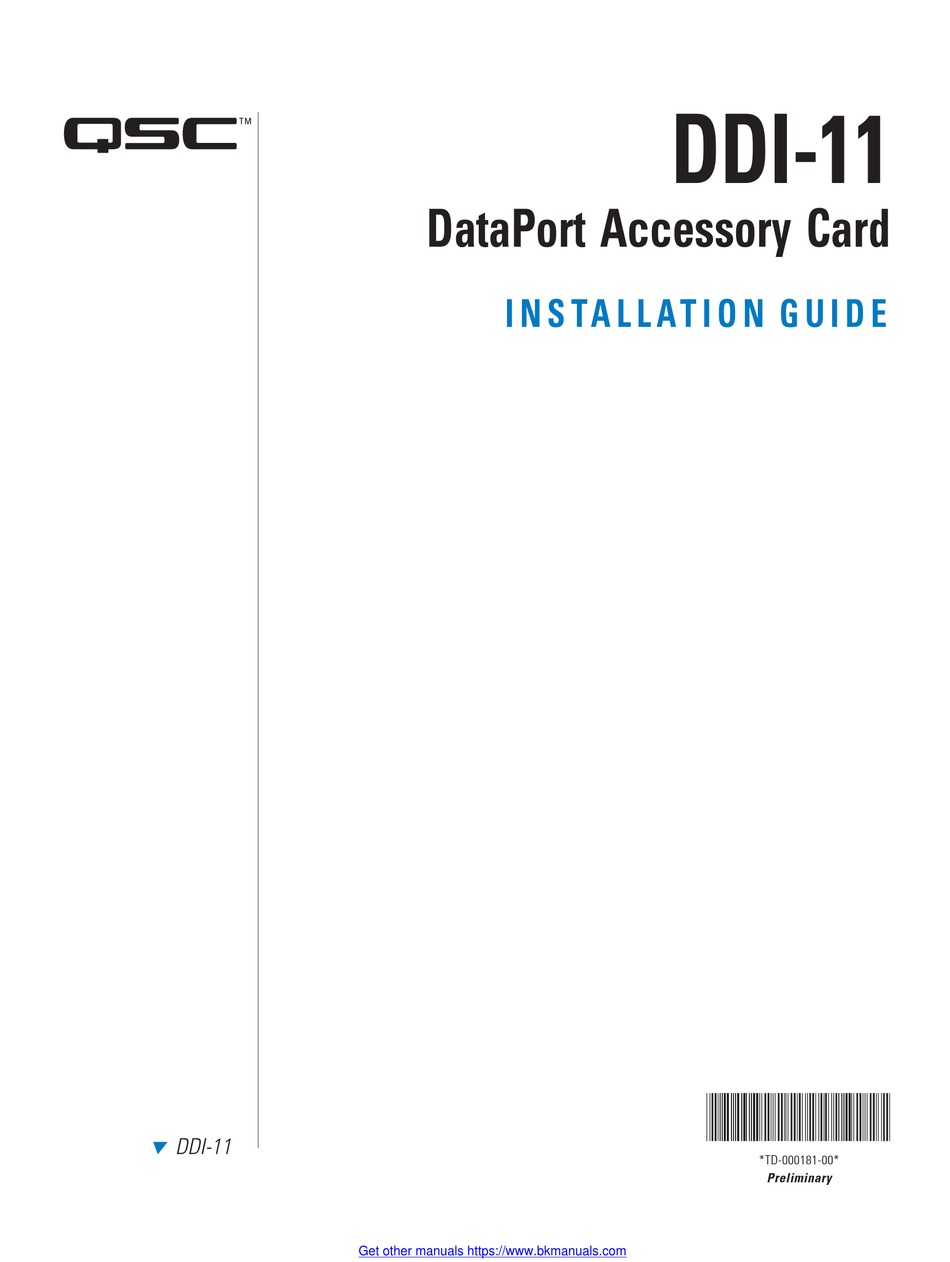

DDI-11 DataPort Accessory Card I N S TA L L AT I O N G U I D E *TD-000181-00* DDI-11 *TD-000181-00* Preliminary Get other manuals https://www.bkmanuals.com...
Page 2
The DDI-11 may also be used to connect to any DataPort connector on QSControl MultiSignal Processors and Basis products. Used this way, the DDI-11’s four signal input terminals now become signal outputs , allowing you to use the audio signals for whatever purpose you require. The standby and power supply terminals cannot be used in this application.
Page 3

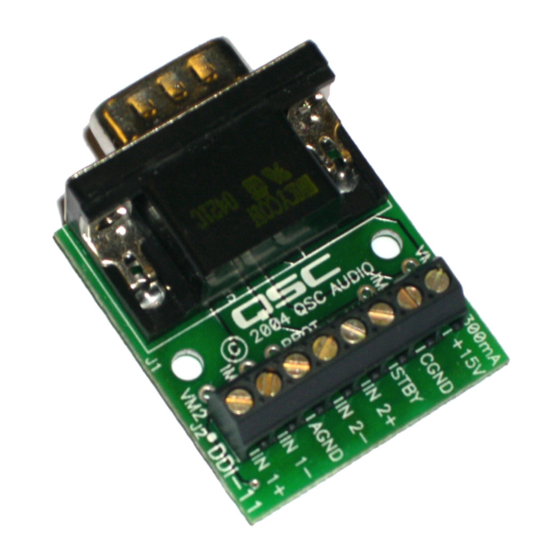

Plug the card into the amplifier’s DataPort. Use the two screws on each side of the DataPort to secure it; do not overtighten them. To attach wires to the DDI-11 terminal strip, strip about 5 mm (0.2”) of insulation from the wire. Twist the exposed wire strands together and make sure there are no stray ones.
Page 4
1675 MacArthur Boulevard Costa Mesa, California 92626 USA PH: (714) 754-6175 FAX: (714) 754-6174 QSControl is a trademark of QSC Audio Products, Inc. “QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office. Get other manuals https://www.bkmanuals.com...
