Summary of Contents for Outsunny 846-108V90

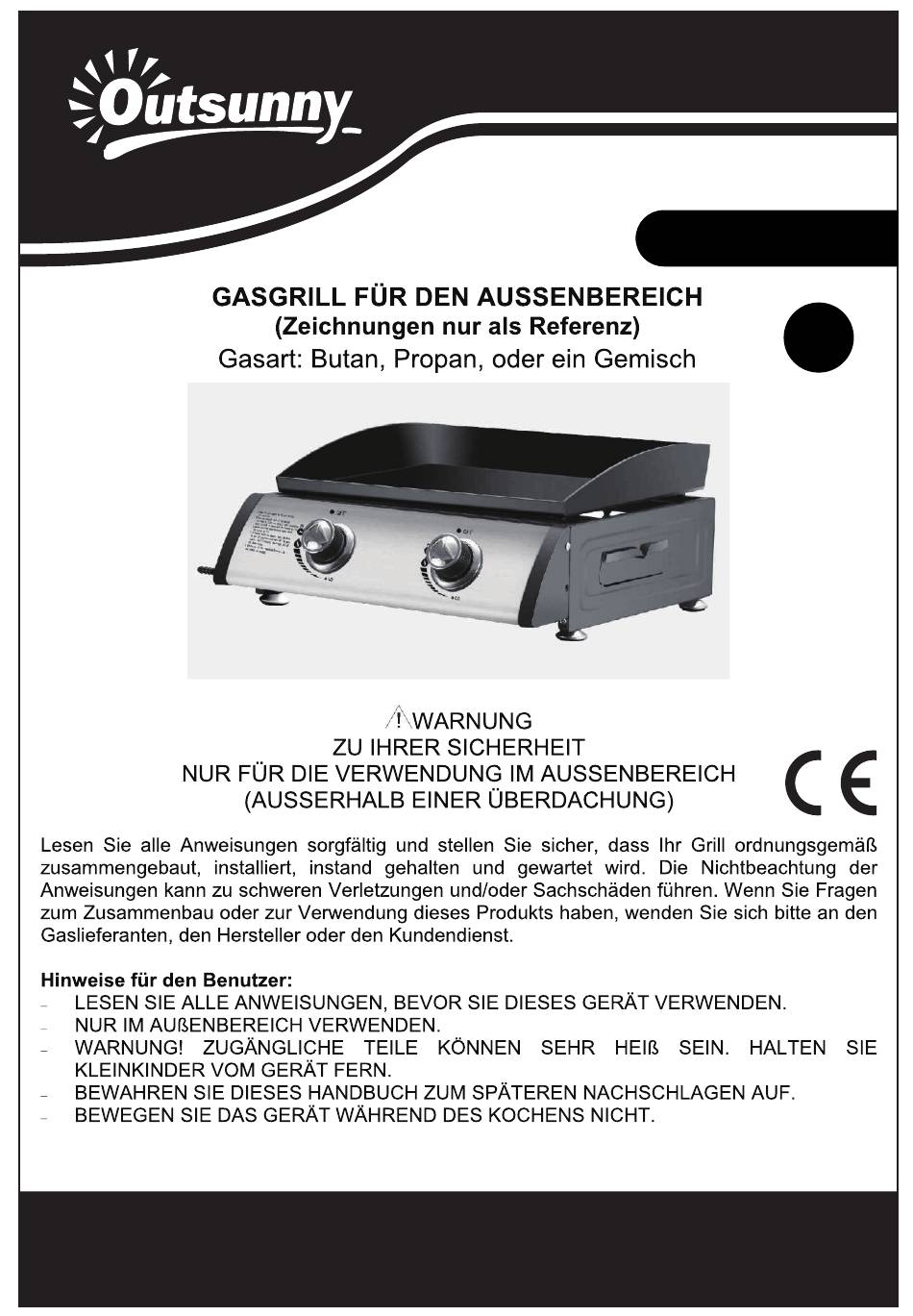

- Page 1 IN221200192V01_DE 846-108V90 WICHTIG - BITTE HEBEN SIE DIESE ANLEITUNG FÜR EINE SPÄTERE BEZUGNAHME AUF: SORGFÄLTIG DURCHLESEN BETRIEBSANLEITUNG...
- Page 2 Sehr geehrter Kunde, Vielen Dank, dass Sie dieses Produkt erworben haben. Damit Ihr Gerät Ihnen gute Dienste leistet, lesen Sie bitte alle Hinweise in diesem Benutzerhandbuch. Wenn Sie Fragen haben, wenden Sie sich bitte an unser Kundendienstzentrum. Unsere Kontaktdaten stehen unten: Country Phone Email...
- Page 3 ADRESSE DES IMPORTEURE: MH Handel GmbH Wendenstraße 309 D-20537 Hamburg Germany IN CHINA HERGESTELLT...

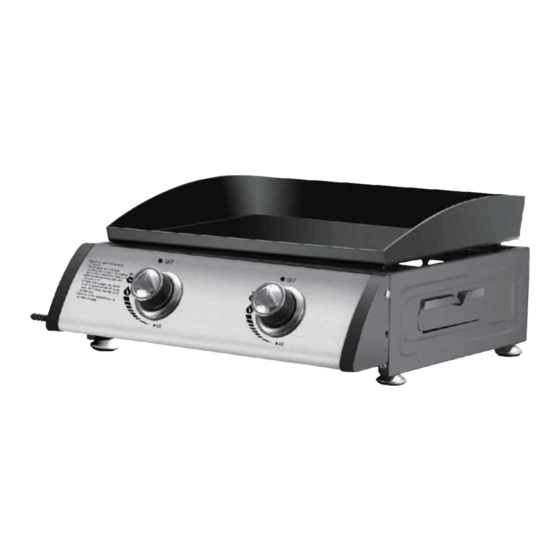

- Page 9 IN221200192V01_EN 846-108V90 OUTDOOR GAS GRILL （Drawings for reference only） Type of gas: Butane, Propane, or a mixture WARNING FOR YOUR SAFETY ONLY USE OUTDOORS (OUTSIDE ANY ENCLOSURE) Read all instructions carefully, ensuring your grill is properly assembled, installed, maintained and serviced. Failure to follow instructions properly may result in serious injury and/or property damage.
- Page 10 Dear customer, Thank you for purchasing this product. So that your appliance serves you well, please read all the instructions in this user's manual. If you have any questions, please contact our customer care center. Our contact details are below: Country Phone Email...
-
Page 11: Technical Information
TECHNICAL INFORMATION Product name: Outdoor Gas Grill Product mode: KD-TB102(846-108V90SR) Pin Number: 2575DM30340 Serial Number: Gas and Supply Pressure Main Burner KD-TB102 KD-TB103 Country of Destination Appliance Category Injector Size Total Nominal Heat Total Nominal Heat Ø Inputs (Hs) Inputs (Hs) Butane(G30) 28-30 mbar 0.76mm 5.0kW 362g/h... -
Page 12: Use And Characteristics
USE AND CHARACTERISTICS The barbecue grill is safe and easy to use. Only use this appliance at the correct pressure it is designed for. Food can be barbecued on the cooking griddle, either with or without the lid being closed. When the lid is closed for five minutes, open it for one minute to release heat. -
Page 13: Lighting Your Barbecue
INSTRUCTIONS FOR USE To avoid damage and/or injury, follow these instructions carefully: 1. Assemble the barbecue by carefully following instructions. 2. Connect the gas hose to the barbecue. Connect the regulator to the hose. 3. Following the regulator instructions supplied, connect the regulator to the cylinder valve. 4. -
Page 14: Connecting The Gas Cylinder To The Appliance
CONNECTING THE GAS CYLINDER TO THE APPLIANCE This appliance is only suitable for use with low-pressure butane, propane or their mixture gas and used with the appropriate low-pressure regulator via a flexible hose. The hose should be secured to the regulator and the appliance with hose clips. -Using 28mbar regulator with category I3+ for butane gas and a 37mbar regulator with category I3+ for propane gas. -
Page 15: Storing The Appliance
The hose should not be twisted or tangled when attached to the regulator and appliance. No part of the hose should touch any part of the appliance. Place the cylinder to the left side – it should be at the maximum distance from the appliance, without straining the hose. STORING THE APPLIANCE If storing the appliance inside, ensure the cylinder is disconnected and removed. -
Page 16: Cleaning The Burner Assembly
Clean with a soft cloth and hot soapy water, then rinse with fresh water. Do not use abrasive cleaners, degreasers or concentrated barbecue cleaners on plastic parts. COOKING GRIDDLE Use a mild soapy water solution. Non-abrasive scouring powder can be used on stubborn stain, then rinse with fresh water.
