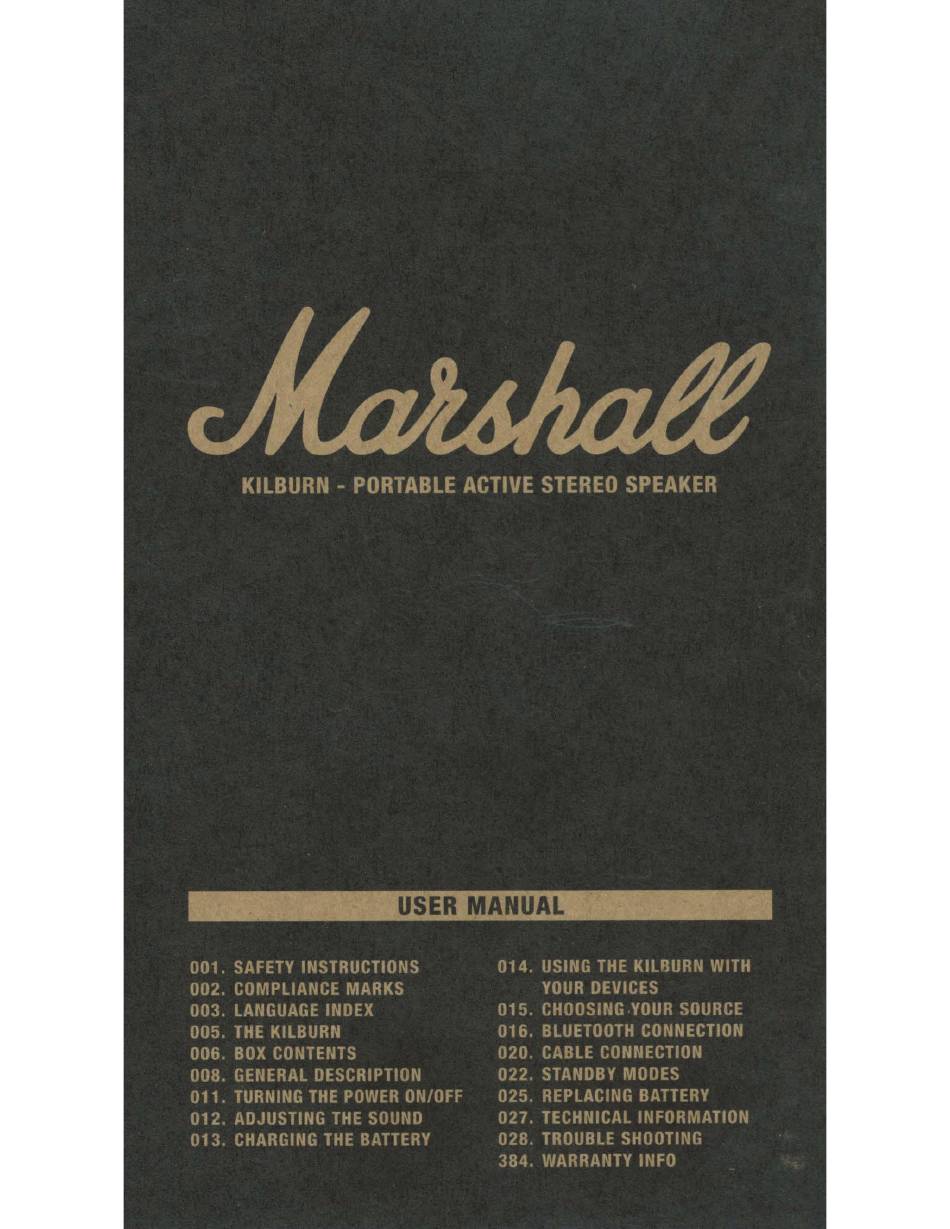

Marshall Amplification KILBURN User Manual
  1. Manuals
  2. Brands
  3. Marshall Amplification Manuals
  4. Speakers
  5. KILBURN
  6. User manual

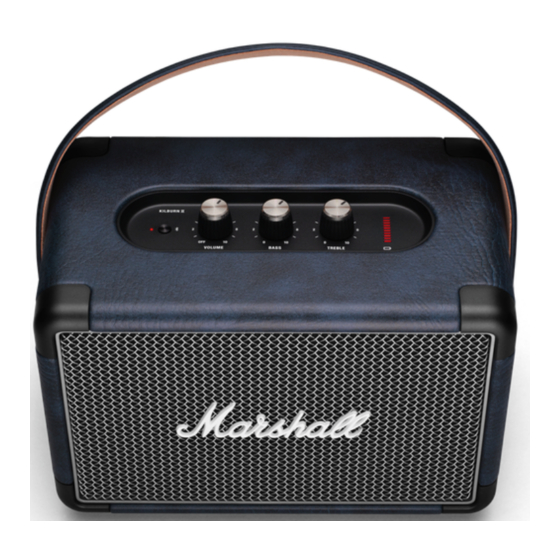

Marshall Amplification KILBURN User Manual

Portable active stereo speaker
Hide thumbs Also See for KILBURN:
Table of Contents

Advertisement

Quick Links

See also: Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KILBURN and is the answer not in the manual?

Questions and answers

Related Manuals for Marshall Amplification KILBURN

Summary of Contents for Marshall Amplification KILBURN

  • Page 4: Safety Instructions

    • The internal battery is user replaceable according to the instructions in this manual. Only use batteries recommended by Zound Industries and intended for the KILBURN active loudspeaker. • CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce...

  • Page 5: Compliance Marks

    COMPLIANCE MARKS CAUTION: To prevent the risk of electric shock, do not remove cover (or back plate). There are no user serviceable parts inside. Refer servicing to qualified service personnel. This appliance may not be treated as regular household waste. Management of WEEE (Waste Electrical and Electronic Equipment) is applicable in member states of the European Union and other European countries with individual national...

  • Page 6: Table Of Contents

    LANGUAGE INDEX ENGLISH SECTIONS PAGE 001. SAFETY INSTRUCTIONS 014. USING THE KILBURN WITH 002. COMPLIANCE MARKS YOUR DEVICES 003. LANGUAGE INDEX 015. CHOOSING YOUR SOURCE 005. THE KILBURN 016. BLUETOOTH CONNECTION 006. BOX CONTENTS 020. CABLE CONNECTION 008. GENERAL DESCRIPTION 022.
  • Page 7 004.

  • Page 8: The Kilburn

    SOUND OF MARSHALL, UNPLUGS THE CHORDS, AND TAKES THE SHOW ON THE ROAD. WEIGHING IN AT A TAUT 3KG, THE KILBURN IS A LIGHTWEIGHT PIECE OF VINTAGE STYLED ENGINEERING. SETTING THE BAR AS ONE OF THE LOUDEST SPEAKERS IN ITS CLASS, THE KILBURN IS A COMPACT STOUT-HEARTED...

  • Page 9: Box Contents

    BOX CONTENTS 001. USER MANUAL AND WARRANTY INFORMATION 002. DOUBLE-ENDED COIL CORD WITH 3.5MM STEREO PLUGS TO CONNECT TO YOUR MUSIC PLAYER 003. POWER CORD 004. MARSHALL KILBURN ACTIVE STEREO LOUDSPEAKER 001. 002. 006.
  • Page 10 KILBURN CAUTION: LIFT THE KILBURN 003. ACTIVE LOUDSPEAKER BY THE CARRY STRAP. DO NOT LIFT BY PROTECTIVE BAG FOR RISK OF DROPPING THE PRODUCT.

  • Page 11: General Description

    GENERAL DESCRIPTION 001. INPUT FOR 3.5MM 009. POWER SWITCH STEREO PLUG 010. BACK PLATE 002. BATTERY LED INDICATOR 011. BASS PORT 003. SOURCE LED INDICATORS 012. DETACHABLE CARRY 004. VOLUME KNOB STRAP 005. BASS KNOB 013. BATTERY HATCH 006. TREBLE KNOB 014.
  • Page 12 KILBURN 012. 010. 011. NOTE: DATE CODE AND SERIAL NUMBER STICKER LOCATED HERE. 013. 014. 015. 014.
  • Page 13 PLUGGING IN THE KILBURN LOUDSPEAKER 001. INSERT THE POWER CORD INTO THE POWER SOCKET ON THE BACK OF THE LOUDSPEAKER. 002. CONNECT THE CORRECT POWER CORD TO THE WALL SOCKET. 001. 002. 001. 002. CAUTION: ALWAYS UNPLUG THE POWER CORD FROM...

  • Page 14: Turning The Power On/Off

    TURNING THE POWER ON/OFF 001. SWITCH THE POWER SWITCH TO ‘ON’ TO TURN ON THE KILBURN. 002. THE LED FOR THE LAST USED SOURCE WILL LIGHT UP. WHEN THE BATTERY IS CHARGING, THE BATTERY LED WILL FLASH. 003. TO TURN THE LOUDSPEAKER OFF, SWITCH OFF THE POWER SWITCH.

  • Page 15: Adjusting The Sound

    ADJUSTING THE SOUND TURN THE KNOB TO ADJUST THE: 001. VOLUME 002. BASS 003. TREBLE 001. 002. 003. 002. 003. 001. 012.

  • Page 16: Charging The Battery

    001. PLUG IN THE LOUDSPEAKER TO MAINS POWER AND SET THE POWER SWITCH TO ‘ON’. 002. THE BATTERY LED STARTS FLASHING TO INDICATE THAT THE BATTERY IS CHARGING. 003. WHEN THE BATTERY LED CHANGES TO A FIXED LIGHT, THE KILBURN IS FULLY CHARGED. 002. 001.

  • Page 17: Using The Kilburn With

    USING THE KILBURN WITH YOUR DEVICES THERE ARE TWO WAYS TO CONNECT YOUR PHONE, TABLET, LAPTOP TO YOUR LOUDSPEAKER, WHETHER USING A PHYSICAL CORD OR VIA WIRELESS BLUETOOTH®. BELOW YOU WILL FIND MORE DETAILS ABOUT THE CONNECTION SOURCES, IN TWO CATEGORIES: •...
  • Page 18 CHOOSING YOUR SOURCE 001. PUSH THE SOURCE/WAKE BUTTON TO CHOOSE YOUR SOURCE OR TO SWITCH BETWEEN CONNECTED SOURCES. 002. A LIT LED INDICATES WHICH SOURCE YOU HAVE SELECTED. ORDER OF CONNECTIONS (FROM TOP TO BOTTOM): • BLUETOOTH • INPUT - 3.5MM STEREO PLUG 002.
  • Page 19 BUTTON UNTIL THE BLUETOOTH LED IS LIT. 003. ACTIVATE THE BLUETOOTH FUNCTIONALITY ON YOUR DEVICE (SMARTPHONE, TABLET, COMPUTER). 004. PUSH THE PAIR BUTTON. THE LED ON THE KILBURN WILL START TO FLASH RAPIDLY IN RED. 005. ON YOUR DEVICE, SELECT THE KILBURN SPEAKER FROM YOUR LIST.
  • Page 20 CONNECTING VIA BLUETOOTH 002. 002. 004. 004. 005. 005. 003. 006.
  • Page 21 FOR THREE MINUTES AFTERWARDS, DURING WHICH TIME, THE LED WILL RAPIDLY FLASH RED. NOTES: • THE AUTO CONNECTION FUNCTION WILL NOT WORK IF THE KILBURN IS TURNED OFF VIA THE MAIN POWER SWITCH AT THE TOP OF THE UNIT • IF A SEVENTH DEVICE IS CONNECTED, DEVICE WILL NO LONGER BE MEMORISED.
  • Page 22 BLUETOOTH AUTO CONNECTION IF A DEVICE IS MOVED OUTSIDE THE RANGE OF THE KILBURN ACTIVE LOUDSPEAKER (APPROXIMATELY 10 METRES WITHOUT OBSTACLES), THAT DEVICE IS THEN DISCONNECTED. THE DEVICE IS AUTOMATICALLY CONNECTED AGAIN WHEN IT IS MOVED BACK WITHIN RANGE. THE KILBURN STORES UP TO SIX DEVICES AND ALWAYS STARTS SEARCHING FOR THE LAST DEVICE THAT HAS BEEN CONNECTED.
  • Page 23 CONNECTING SOURCES BY CABLE THERE IS ANOTHER WAY TO CONNECT TO YOUR KILBURN – THE OLD FASHIONED WAY, USING A CORD AND THE 3.5MM INPUT. INPUT - 3.5MM STEREO PLUG USE THE DOUBLE-ENDED COIL CORD WITH 3.5MM PLUGS TO CONNECT TO AUDIO SOURCES THAT HAVE AUDIO OUTPUT SUCH AS A MOBILE TELEPHONE, IPHONE/IPAD/IPOD, MP3 PLAYER, OR AIRPORT EXPRESS.
  • Page 24 INPUT - 3.5MM STEREO PLUG 001. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE INPUT ON THE LOUDSPEAKER. 002. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE MUSIC PLAYER. 003. SELECT INPUT AS SOURCE BY PUSHING THE SOURCE/WAKE BUTTON UNTIL THE INPUT LED IS LIT (SEE PAGE 015).

  • Page 25: Standby Modes

    STANDBY MODES DEPENDING ON WHETHER THE KILBURN IS RUNNING ON BATTERY OR MAINS POWER IT USES TWO DIFFERENT STANDBY MODES. THIS IS IN ORDER TO COMPLY TO THE EUROPEAN UNION REGULATION THAT STATES THAT ELECTRONIC DEVICES MAY ONLY HAVE 0.5W POWER CONSUMPTION IN STANDBY MODE (THE EUROPEAN DIRECTIVE ON ENERGY RELATED PRODUCTS, OR ERP).

  • Page 26: Bluetooth Connection

    AND IT WILL ALSO NOT SHOW UP AS AN AVAILABLE DEVICE IN YOUR BLUETOOTH CONNECTION LIST. 001. TO ACTIVATE THE KILBURN AFTER THE UNIT HAS GONE TO STANDBY MODE, PUSH THE SOURCE/WAKE BUTTON ONCE. THIS WILL BRING THE KILBURN BACK TO LIFE AND READY TO PLAY AGAIN.
  • Page 27 THE LOUDSPEAKER WAKES UP AUTOMATICALLY WHEN THE CONNECTED SOURCE BEGINS TO PLAY. 002. IF A BLUETOOTH DEVICE WAS USED AS THE LAST SOURCE, USING THE LAST USED BLUETOOTH DEVICE WILL WAKE THE KILBURN UP. 001. 002. NOTE: IF YOU WANT TO...
  • Page 28 WALL SOCKET. 002. DISCONNECTED THE POWER CORD FROM THE KILBURN POWER SOCKET. 003. CAREFULLY PLACE THE KILBURN FRONT DOWN ON A FLAT, CLEAN SURFACE. 004. USING A TORX SCREWDRIVER (SIZE T10), UNSCREW THE TWO SCREWS ON THE BATTERY HATCH ON THE BOTTOM OF THE LOUDSPEAKER.
  • Page 29 007. GENTLY PULL ON THE BATTERY PLUG, AWAY FROM THE LOUDSPEAKER TO DISCONNECT AND REMOVE THE BATTERY. 008. REVERSE THE PROCESS TO INSTALL THE NEW BATTERY. CAUTION: • ONLY USE AUTHENTIC KILBURN LOUDSPEAKER BATTERY. • DO NOT PULL ON THE BATTERY CABLE. 006.

  • Page 30: Technical Information

    TECHNICAL INFORMATION SOUND SPECIFICATION • ACTIVE STEREO LOUDSPEAKER WITH BASS REFLEX SYSTEM • TONE CONTROLS: BASS: 180HZ, +6DB TO -12DB • TREBLE: 3KHZ, +6DB TO -12DB • CLASS D AMPLIFIER: 2X5W+1X15W • WOOFER: 1X 4” • DOME TWEETER: 2X 3/4”, FERROFLUID COOLED •...

  • Page 31: Trouble Shooting

    TROUBLE SHOOTING PROBLEM CAUSE THE LOUDSPEAKER The internal battery is discharged or the WILL NOT TURN ON. power cord is not plugged into a working wall socket or not plugged into the power socket on the back of the loudspeaker. THE SOUND IS WEAK The 3.5mm cord/input cable/signal cable is not OR THERE IS NO...
  • Page 32 KILBURN ACTION Plug the power cord into a working wall socket and plug the connector into the power socket on the back of the loudspeaker to charge the battery. Unplug and re-plug the 3.5mm cord/input cable/signal cable into both the loudspeaker and the music player.
  • Page 33 TROUBLE SHOOTING PROBLEM CAUSE BLUETOOTH WILL NOT The Kilburn is too far away from your CONNECT. device during the pairing process. BLUETOOTH The Bluetooth connection only works CONNECTION IS when it is near the device. The connection BROKEN OR is automatically broken if the Bluetooth DISRUPTED.
  • Page 34 • THIS WIRELESS DEVICE MAY CAUSE ELECTRICAL DISRUPTIONS DURING USE. • YOU DO NOT NEED TO ENTER THE PIN CODE (PASSWORD) WHEN CONNECTING THE BLUETOOTH DEVICE TO THE KILBURN. IF THE WINDOW FOR ENTERING THE PIN CODE IS DISPLAYED, YOU SHOULD ENTER <0000>.
  • Page 35 WARRANTY ENGLISH ONE YEAR LIMITED MANUFACTURER’S WARRANTY LIMITED WARRANTY: Zound Industries In- limit the rights you may have under applica- ternational AB (referred to subsequently as ble statutory product warrantee provisions. Zound Industries) is dedicated to providing You may have other rights based on local laws during or after the warranty period.
