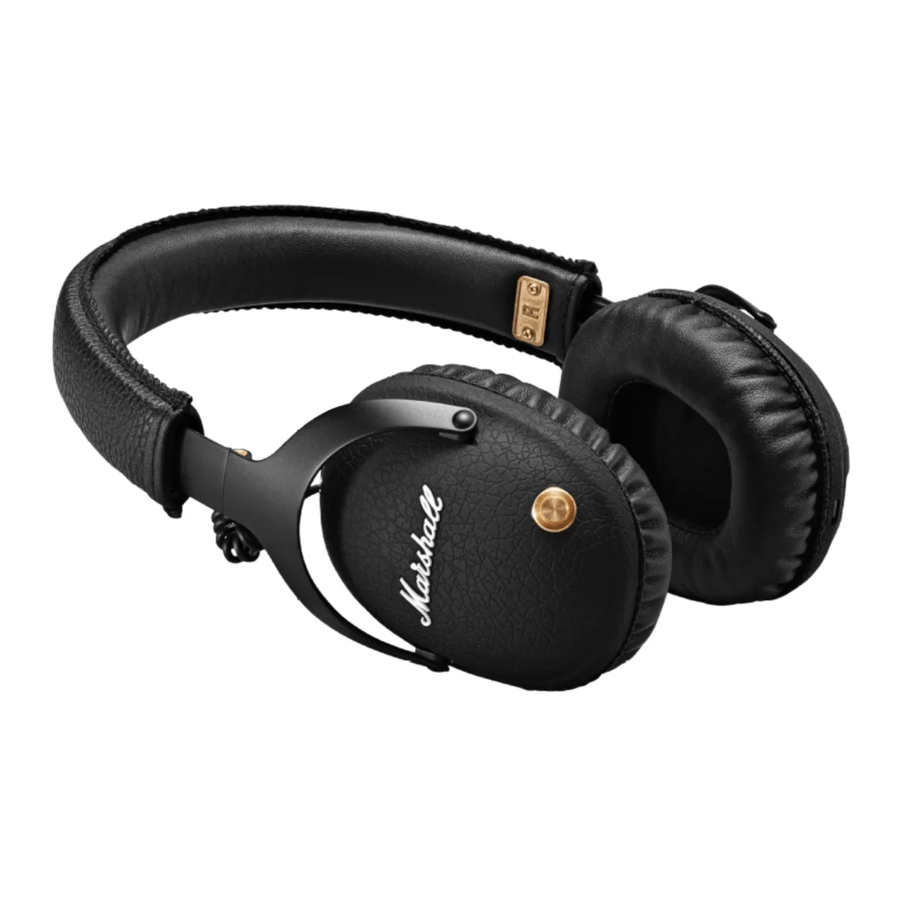

Marshall Monitor Bluetooth - Over Ear Manual

Table of Contents

Contents

1 DEVICE LAYOUT
2 CONTROLS
3 POWER ON/OFF
4 CHARGING
5 BLUETOOTH PAIRING
6 PHONE FUNCTIONALITY
7 SHARING
8 REMOVABLE EAR CUSHIONS
9 COLLAPSIBLE
10 DETACHABLE 3.5 MM CORD
11 TECHNICAL INFO
12 TROUBLESHOOTING
13 USER INFORMATION
14 IMPORTANT SAFETY INSTRUCTIONS
15 Documents / Resources
- 15.1 Download manual

DEVICE LAYOUT

POWER BUTTON / CONTROL KNOB
MICRO USB SOCKET FOR CHARGING
3.5MM INPUT/ OUTPUT SOCKET
LED INDICATOR
MICROPHONE

CONTROLS

ANSWER INCOMING CALL: SINGLE CLICK THE CONTROL KNOB.	PLAY OR PAUSE A SONG: SINGLE CLICK THE CONTROL KNOB.	TURN VOLUME UP: PUSH THE CONTROL KNOB UPWARD.
END CALL: SINGLE CLICK THE CONTROL KNOB.	NEXT SONG: PUSH THE CONTROL KNOB TO THE RIGHT.	TURN VOLUME DOWN: PUSH THE CONTROL KNOB DOWNWARD.
REJECT CALL: DOUBLE CLICK THE CONTROL KNOB.	PREVIOUS SONG: PUSH THE CONTROL KNOB TO THE LEFT.

POWER ON/OFF

PUSH AND HOLD THE POWER BUTTON FOR 3 SECONDS TO TURN ON.
PUSH AND HOLD THE POWER BUTTON FOR 3 SECONDS TO TURN OFF.

NOTE: IF NOT CONNECTED TO A SOUND SOURCE THE HEADPHONES WILL AUTOMATICALLY TURN OFF AFTER 10 MINUTES.

CHARGING

THE LED INDICATOR STARTS BLINKING RED WHEN THE BATTERY LEVEL IS LOW.

PLUG THE INCLUDED USB CABLE INTO THE MICRO USB SOCKET ON THE HEADPHONE.
PLUG THE OTHER END OF THE CABLE INTO A USB POWER SOURCE. THE LED INDICTATOR STAYS LIT WHEN CHARGING.
WHEN THE BATTERY IS FULLY CHARGED, THE LED INDICATOR TURNS WHITE.

NOTE: CHARGE THE BATTERY BEFORE USING THE HEADPHONES THE FIRST TIME. 2 HOURS CHARGE GIVES APPROXIMATELY 8 HOURS OF PLAYBACK AT MEDIUM VOLUME.

BLUETOOTH^® PAIRING

WHEN OFF: PRESS AND HOLD POWER BUTTON FOR 5 SECONDS.
WHEN ON: FIRST POWER OFF, THEN PRESS AND HOLD POWER BUTTON FOR 5 SECONDS.
ENABLE BLUETOOTH ON YOUR DEVICE. SELECT "MONITOR BLUETOOTH" IN THE BLUETOOTH LIST AND ACCEPT PAIRING. THE LED INDICATOR TURNS OFF WHEN THE PAIRING IS COMPLETED.

NOTE: UNIT ENTERS PAIRING MODE WHEN POWERED ON FOR THE FIRST USE. AFTER THE INITIAL PAIRING, THE HEADPHONES WILL AUTOMATICALLY CONNECT TO THE DEVICE WHEN TURNED ON AGAIN.

PHONE FUNCTIONALITY

WIRELESSLY ANSWER, REJECT OR END A CALL USING THE CONTROL KNOB.

SHARING
USE THE EMPTY 3.5MM SOCKET TO SHARE YOUR AUDIO.

REMOVABLE EAR CUSHIONS

SIMPLY HOLD THE EAR CAP AND REMOVE THE MAGNETIC EAR CUSHION.

COLLAPSIBLE

COLLAPSIBLE DESIGN FOR EASY TRANSPORT AND STORAGE.

DETACHABLE 3.5 MM CORD

IF YOU ARE LOW ON POWER, SIMPLY PLUG IN THE DOUBLE-ENDED CORD WITH BUILT IN MICROPHONE AND REMOTE. COMPATIBLE WITH ANY MUSIC PLAYER THAT ACCEPTS A 3.5 MM PLUG.

MICROPHONE:
THE BUILT-IN MICROPHONE ALLOWS YOU TO TAKE CALLS OR RECORD VOICE MEMOS THROUGH YOUR DEVICE.

REMOTE:
CLICK ONCE TO ANSWER INCOMING CALLS OR HANG UP, AS WELL AS TO PLAY AND PAUSE YOUR MUSIC. CLICK TWICE TO FAST FORWARD YOUR MUSIC.
NOTE: TO END A CALL WITH AN ANDROID DEVICE PRESS AND HOLD FOR THREE SECONDS AND RELEASE.

TECHNICAL INFO

TRANSDUCER:

40 MM, DYNAMIC

IMPEDANCE:

28 OHM

FREQUENCY RANGE:

20Hz-20kHz

SENSITIVITY:

100 mV @ 1 kHz = 92 dB SPL

TROUBLESHOOTING

NOT POWERING ON	CHARGE THE HEADPHONES USING THE USB CABLE.
NOT CHARGING	MAKE SURE THE USB POWER SOURCE IS SWITCHED ON.
NOT PAIRING	MOVE THE DEVICES CLOSER TO EACH OTHER AND AWAY FROM ANY INTERFERENCE OR OBSTRUCTION. MAKE SURE THE HEADPHONES ARE NOT CONNECTED TO A DIFFERENT SOUND SOURCE WHEN ENTERING THE PAIRING MODE. DISABLE AND ENABLE BLUETOOTH ® COMMUNICATION ON YOUR SOUND SOURCE.
NO SOUND	MAKE SURE THE HEADPHONES ARE ON AND CONNECTED. MAKE SURE THE SOUND SOURCE IS PLAYING.
POOR SOUND QUALITY	MOVE THE DEVICES CLOSER TO EACH OTHER AND AWAY FROM ANY INTERFERENCE OR OBSTRUCTION

Marshall is a trademark of Marshall Amplification Plc. Permission granted. Design of product and packaging are intellectual properties of Zound Industries International AB. © 2017 Zound Industries. All rights reserved. Produced in China. Zound Industries International AB makes no claims of compatibility of the microphone and remote with any mobile device. For use with electronic devices connected via unprotected two-way standard 3.5 mm plug; Zound Industries International AB makes no claims of this product's compatibility with any electronic devices.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Zound Industries International AB is under license. Qualcomm aptX is a product of Qualcomm Technologies International, Ltd. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission.

USER INFORMATION

This symbol indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. This product was produced after Jan 1 2006.

To prevent possible hearing damage, do not listen at high volume levels for long periods. WBCV – Monitor Bluetooth®: 113 mV

IMPORTANT SAFETY INSTRUCTIONS

Contains small parts which may be a choking hazard. Not suitable for children under age three.
Set a low volume setting before using the headphones.
Long-term exposure to loud music or sounds may cause hearing damage. It is best to avoid high volume levels when using these headphones, especially for extended periods.
Do not use these headphones when operating a motor vehicle, a bicycle, machinery or where your inability to hear outside sounds may present a danger to you or others.
Do not drop, sit on, or allow the headphone to be immersed in water.
Keep away from fire, water, and high voltage equipment.
Do not modify, disassemble, open, drop, crush, puncture, shred the headphone or heat above 140°F (60°C).
Do not short-circuit the included battery or its cells.
In the event of a battery cell leaking, do not allow the liquid to come in contact with the skin or eyes.

Using these headphones limits your ability to hear noises around you, regardless of listening volume. Please use caution when using these headphones.
The pads that accompany these headphones may deteriorate over time. Please make sure to use suitable pads on the headphones at all times.
FCC ID: 2AAGF-MONITOR and IC ID: 11153A-MONITOR, are located under the right ear cushion. To remove, hold the ear cap and remove the magnetic ear cushion.
