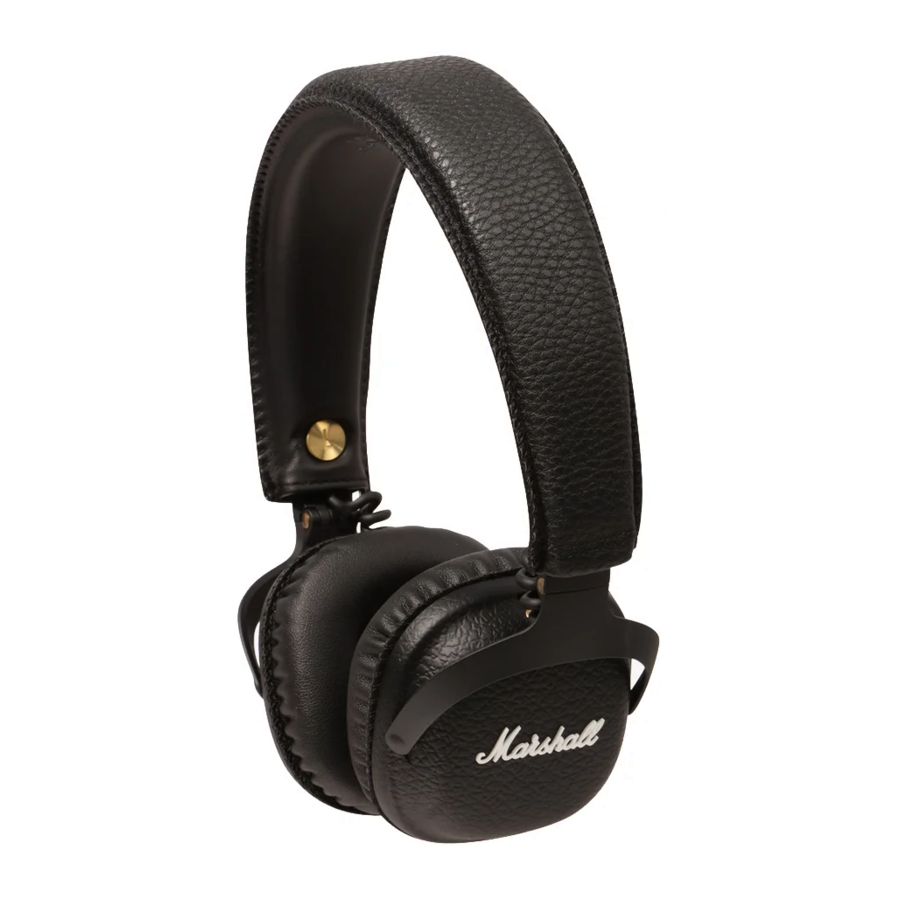

Marshall Mid Bluetooth - On-Ear Manual

DEVICE LAYOUT

1. POWER BUTTON / CONTROL KNOB
2. MICRO USB SOCKET FOR CHARGING
3. 3.5MM INPUT/ OUTPUT SOCKET
4. LED INDICATOR
5. MICROPHONE

CONTROLS

	ANSWER INCOMING CALL: SINGLE CLICK THE CONTROL KNOB.		PLAY OR PAUSE A SONG: SINGLE CLICK THE CONTROL KNOB.		TURN VOLUME UP: PUSH THE CONTROL KNOB UPWARD.
	REJECT OR END CALL: DOUBLE CLICK THE CONTROL KNOB.		NEXT SONG: PUSH THE CONTROL KNOB TO THE RIGHT.		TURN VOLUME DOWN: PUSH THE CONTROL KNOB DOWNWARD.
			PREVIOUS SONG: PUSH THE CONTROL KNOB TO THE LEFT.

POWER ON/OFF

1. PUSH AND HOLD THE POWER BUTTON FOR 4 SECONDS TO TURN ON.

2. PUSH AND HOLD THE POWER BUTTON FOR 4 SECONDS TO TURN OFF.


NOTE: IF NOT CONNECTED TO A SOUND SOURCE THE HEADPHONES WILL AUTOMATICALLY TURN OFF AFTER 10 MINUTES.

BLUETOOTH^® PAIRING

1. WHEN POWERED ON, DOUBLE CLICK THE POWER BUTTON ON THE HEADPHONES.

2. THE BLUETOOTH PAIRING INDICATOR STARTS FLASHING BLUE. ENABLE BLUETOOTH ON YOUR DEVICE. SELECT "MID" IN THE BLUETOOTH LIST AND ACCEPT PAIRING.

3. THE INDICATOR TURNS OFF WHEN THE PAIRING IS COMPLETED.


NOTE: AFTER THE INITIAL PAIRING, THE HEADPHONES WILL AUTOMATICALLY CONNECT TO THE DEVICE WHEN TURNED ON AGAIN.

CHARGING

THE RED BATTERY INDICATOR STARTS BLINKING WHEN THE BATTERY LEVEL IS LOW.

1. PLUG THE INCLUDED USB CABLE INTO THE MICRO USB SOCKET ON THE HEADPHONE.

2. PLUG THE OTHER END OF THE CABLE INTO A USB POWER SOURCE. THE RED BATTERY INDICTATOR STAYS LIT WHEN CHARGING.

3. WHEN THE BATTERY IS FULLY CHARGED, THE BATTERY INDICATOR TURNS WHITE.


NOTE: CHARGE THE BATTERY BEFORE USING THE HEADPHONES THE FIRST TIME. 3 HOURS CHARGE GIVES APPROXIMATELY 30 HOURS OF PLAYBACK AT MEDIUM VOLUME.

PHONE FUNCTIONALITY

WIRELESSLY ANSWER, REJECT OR END A CALL USING THE CONTROL KNOB.

SHARING

USE THE EMPTY 3.5MM SOCKET TO SHARE YOUR AUDIO.

REMOVABLE EAR CUSHIONS

HOLD THE EAR CUSHION AND TURN IT COUNTER-CLOCKWISE.

COLLAPSIBLE

COLLAPSIBLE DESIGN FOR EASY TRANSPORT AND STORAGE.

DETACHABLE 3.5 MM CORD

IF YOU ARE LOW ON POWER, SIMPLY PLUG IN THE DOUBLE-ENDED CORD WITH BUILT IN MICROPHONE AND REMOTE. COMPATIBLE WITH ANY MUSIC PLAYER THAT ACCEPTS A 3.5 MM PLUG.

MICROPHONE:
THE BUILT-IN MICROPHONE ALLOWS YOU TO TAKE CALLS OR RECORD VOICE MEMOS THROUGH YOUR DEVICE.

REMOTE:
CLICK ONCE TO ANSWER INCOMING CALLS OR HANG UP, AS WELL AS TO PLAY AND PAUSE YOUR MUSIC. CLICK TWICE TO FAST FORWARD YOUR MUSIC. CLICK THREE TIMES TO REWIND.

TECHNICAL INFO

TRANSDUCER:

• 40 MM, DYNAMIC

IMPEDANCE:

• 32 OHM

FREQUENCY RANGE:

• 10 Hz-20 kHz

SENSITIVITY:

• 100 mV @ 1 kHz = 95 dB SPL

TROUBLESHOOTING

Marshall is a trademark of Marshall Amplification Plc. Permission granted. Design of product and packaging are intellectual properties of Zound Industries International AB. © 2016 Zound Industries. All rights reserved. Produced in China. Zound Industries International AB makes no claims of compatibility of the microphone and remote with any mobile device. For use with electronic devices connected via unprotected two-way standard 3.5 mm plug; Zound Industries International AB makes no claims of this product's compatibility with any electronic devices.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Zound Industries International AB is under license. Qualcomm aptX is a product of Qualcomm Technologies International, Ltd. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission. USER GUIDE

USER GUIDE

This symbol indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. This product was produced after Jan 1 2006.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

IMPORTANT SAFETY INSTRUCTIONS

•
  Contains small parts which may be a choking hazard. Not suitable for children under age three.
• Set a low volume setting before using the headphones.
• Long-term exposure to loud music or sounds may cause hearing damage. It is best to avoid high volume levels when using these headphones, especially for extended periods.
• Do not use these headphones when operating a motor vehicle, a bicycle, machinery or where your inability to hear outside sounds may present a danger to you or others.
• Do not drop, sit on, or allow the headphone to be immersed in water.
• Keep away from fire, water, and high voltage equipment.
• Do not modify, disassemble, open, drop, crush, puncture, shred the headphone or heat above 140°F (60°C).
• Do not short-circuit the included battery or its cells.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes.

• Using these headphones limits your ability to hear noises around you, regardless of listening volume. Please use caution when using these headphones.
• The pads that accompany these headphones may deteriorate over time. Please make sure to use suitable pads on the headphones at all times..
