- Page 1 Leica LINO L6R / L6G...
-
Page 2: Table Of Contents
Overview Technical data Instrument Set-up Operations How to use the smart adapters Message Codes Accuracy Check Care Warranty Safety instructions Leica Lino L6R/L6G... -
Page 3: Overview

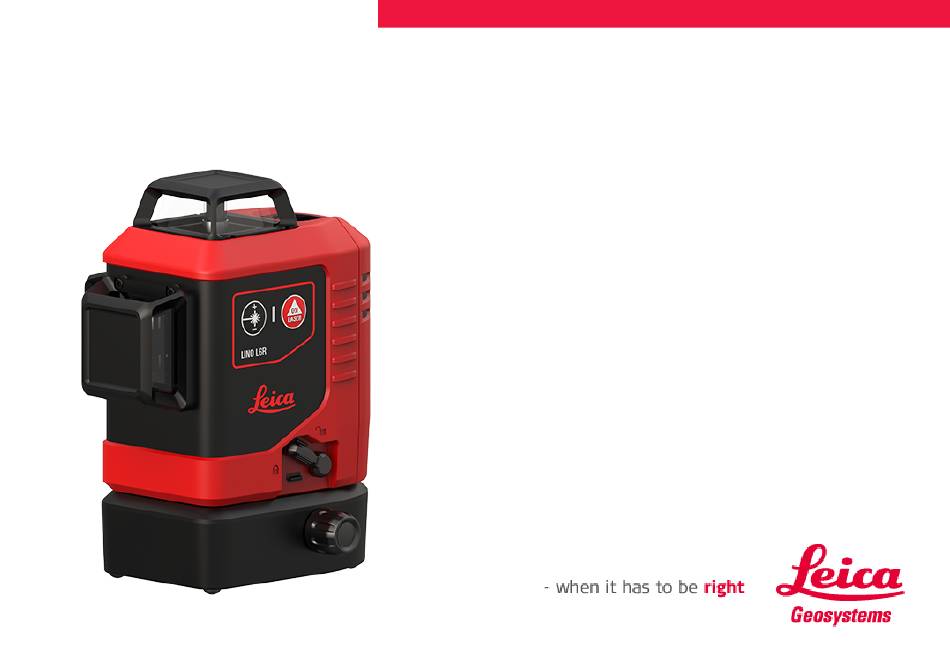

Overview Overview The Leica Lino L6R/L6G is a self-levelling mul- There are 2 different types available: 1 Laser key (on keypad), ON/OFF tifunctional laser. It combines the advantage of three 360° line lasers in one tool and an integ- L6R (red laser) 2 Status LED (on keypad) -
Page 4: Technical Data
1/4’’ (+ 5/8’’ with adapter) Pulse power for receiver Yes, auto * depending on lighting conditions ** with Leica RGR 200 receiver *** accuracy > ± 0.2mm/m (> ± 0.002in/ft), check required **** @20 °C / 68 °F Leica Lino L6R/L6G... -
Page 5: Instrument Set-Up
Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. Leica Lino L6R/L6G... - Page 6 Any damage caused by misuse is not covered by warranty. Use only Leica-approved chargers, bat- We recommend the Leica RGR200 laser teries and cables. Unapproved chargers or receiver.
- Page 7 OFF: charging finished / no charging Number 3 or higher: Insert the battery-pack by pressing it down and then tilting it towards the housing as shown until it snaps in. blinks green: charging battery lights green: charging finished / no charging Leica Lino L6R/L6G...
- Page 8 To ensure a reliable use, we recommend using high quality Alkaline batteries. Insert Alkaline batteries Insert the battery-pack by pressing it down and then tilting it towards the housing as shown until it snaps in. Insert Alkaline batteries in the battery-pack. Leica Lino L6R/L6G...
-
Page 9: Operations
30 min operation press and hold the ON button at start for 5 sec. The status LED blinks 3 times in green colour. To deactivate it again repeat the described steps until the status LED blinks 3 times in red colour. Leica Lino L6R/L6G... - Page 10 Check if self-levelling is required and cor- Horizontal mode Vertical side mode respondingly activated. (See Levelling lock for details) * In very hot environments it can be that max- imum two lines work simultaneously (see Mes- sage Codes). Leica Lino L6R/L6G...
- Page 11 Activate levelling lock and press ON for tilt width. applications. 2x: Power reduction -50%, smallest line width. 3x: Full power 100%, maximum range 2 sec = save actual function and line intensity (default). 5 sec = reset to factory settings Leica Lino L6R/L6G...
-
Page 12: How To Use The Smart Adapters
Snap the device on the Twist 250 adapter. Turn the device 250° to adjust the vertical line. Use the side knob and turn the device around the vertical intersection / plumb point within ± 10°. Leica Lino L6R/L6G... - Page 13 How to use the smart adapters Different fixing applications Leica Lino L6R/L6G...
-
Page 14: Message Codes
5 sec lights red Levelling lock is activated but instrument has Charge Li-Ion battery or change Alkaline bat- low power teries Levelling lock is activated for working without blinks every 5 sec blinks green self-levelling Leica Lino L6R/L6G... -
Page 15: Accuracy Check
(B1). If the difference does not exceed 2 mm, then the instrument is within tolerance. Should your instrument be outside of the specified tolerance, please contact a local dealer or an authorised Leica Geosystems distributor. Leica Lino L6R/L6G... - Page 16 If the difference does not exceed 2 mm, then the instrument is within tolerance. Should your instrument be outside of the specified tolerance, please contact a local dealer or an authorised Leica Geosystems distributor. Leica Lino L6R/L6G...
- Page 17 B1, then the instrument is within tol- from point B1, then the instrument is within tol- erance. erance. Should your instrument be outside of the specified tolerance, please contact a local dealer or an authorised Leica Geosystems distributor. Leica Lino L6R/L6G...
- Page 18 Should your instrument be outside of the Should your instrument be outside of the specified tolerance, please contact a local specified tolerance, please contact a local dealer or an authorised Leica Geosystems dealer or an authorised Leica Geosystems distributor. distributor.
-
Page 19: Care
To clean the magnetic surface you could use compressed air or modelling clay. If the equipment get wet always dry it (max. 70°C/158°F) before repacking it into the case. Leica Lino L6R/L6G... -
Page 20: Warranty
Warranty Warranty International Limited Warranty The Leica Lino comes with a two year warranty from Leica Geosystems AG. To receive an additional year warranty, the product must be registered on our website at www.disto.com/warranty within eight weeks of the pur- chase date. -
Page 21: Safety Instructions
1. To understand the safety instructions on the product and the instructions in the User Manual. 2. To be familiar with local safety reg- ulations relating to accident prevention. 3. Always prevent access to the product by unauthorised personnel. Leica Lino L6R/L6G... - Page 22 (e.g. when measuring on roads, con- struction sites, etc.) WARNING Changes or modifications not expressively approved by Leica Geosystems/manufacturer for compliance could void the user´s authority to operate the equipment. WARNING Laser/adapters should not be used in the vicinity of pacemaker because of integrated magnets which can affect the function of the pacemaker.
- Page 23 When transporting or shipping bat- teries, the person in charge of the product must ensure that the applicable national and inter- national rules are observed. Before trans- portation or shipping, contact your local passenger or freight transport company. Leica Lino L6R/L6G...
- Page 24 4. Consult the dealer or an experienced radio/TV technician for help This instrument complies with part 15 of the FCC rules. Operation is subjected to the following two conditions: Leica Lino L6R/L6G...
- Page 25 It is a Class 2 laser product in accordance with: <2 mW IEC60825-1 : 2014 „Radiation safety of laser products“ Pulse duration 30 - 70 µs Pulse repetition frequency 10 kHz Leica Lino L6R/L6G...
- Page 26 Safety instructions Labelling Subject to change (drawings, descriptions and technical data) without prior notice. Art. No. 913010a Leica Lino L6R/L6G...
