Summary of Contents for Leica LINO P5

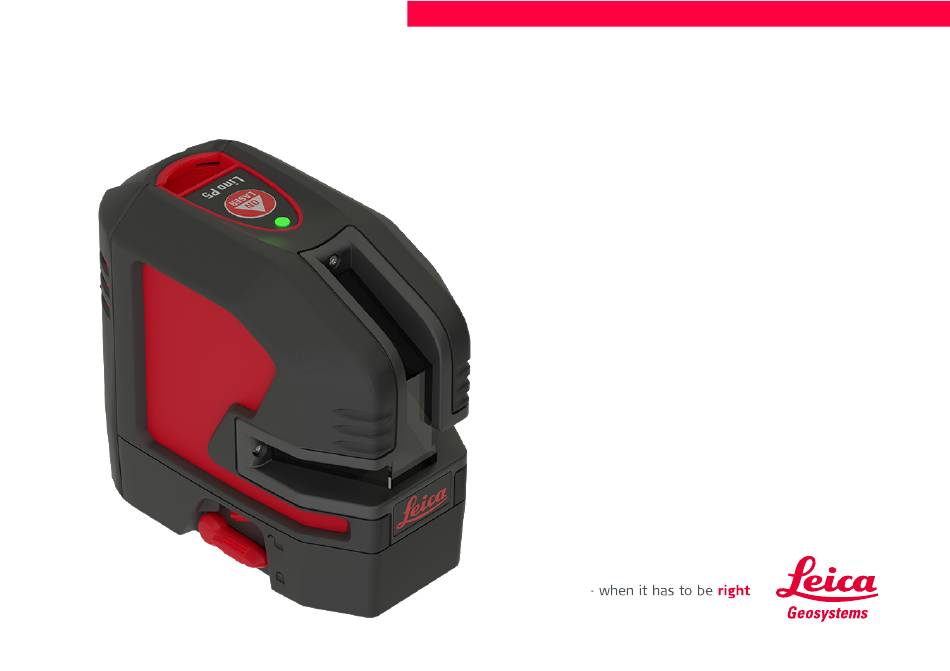

- Page 1 Leica LINO P5...
-
Page 2: Table Of Contents
Overview Technical data Instrument Set-up Operations How to use the smart adapters Message Codes Accuracy Check Care Warranty Safety instructions Leica Lino P5... -
Page 3: Overview
Overview Ov e r v i e w The Leica Lino P5 is a self-levelling multifunctional 1 Window of plumb up point point laser. It is a reliable precision laser for any kind of tasks like levelling, plumbing, transfering 2 Window of horizontal transfer points and setting out right angles. -
Page 4: Technical Data
-10…+50 °C (+14…+122 °F) Storage temperature -25…+70 °C (-13…+158 °F) Laser point diameter at 5m distance < 5 mm (<0.2 in) Tripod thread 1/4’’ (+ 5/8’’ with adapter) Pulse power for receiver Not available * depending on lighting conditions Leica Lino P5... -
Page 5: Instrument Set-Up
Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. Leica Lino P5... - Page 6 Charge Li-Ion battery may cause serious damage to the instrument. Any damage caused by misuse is not covered by war- ranty. Use only Leica-approved chargers, bat- teries and cables. Unapproved chargers or cables can cause the battery to explode or damage the instrument.
- Page 7 To ensure a reliable use, we recommend using high quality Alkaline batteries. Insert Alkaline batteries Insert the battery-pack by pressing it down and then tilting it towards the housing as shown until it snaps in. Insert Alkaline batteries in the battery-pack. Leica Lino P5...
-
Page 8: Operations
30 min operation press and hold the On button at start for 5 sec. The status LED blinks 3 times in green colour. To deactivate it again repeat the described steps until the status LED blinks 3 times in red colour. Leica Lino P5... - Page 9 Operations Functions Check if self-levelling is required and cor- respondingly activated.. (See Levelling lock for details) Horizontal dots on Vertical dots on Vertical dots / horizontal dots on Leica Lino P5...
-
Page 10: How To Use The Smart Adapters
Turn the device 360° around the plumb point to Turn the adjustment knob of UAL130 to fine adjust adjust the vertical line. the horizonal line to the desired reference level. Snap the device on the Twist 360 adapter. Leica Lino P5... - Page 11 How to use the smart adapters Different fixing applications Leica Lino P5...
-
Page 12: Message Codes
5 sec lights red Levelling lock is activated but Charge Li-Ion battery or change instrument has low power Alkaline batteries blinks every 5 sec blinks green Levelling lock is activated for work- ing without self-levelling Leica Lino P5... -
Page 13: Accuracy Check
180° and mark the horizontal laser line or Leica Lino is within tolerance. the laser point in exactly the same way on wall (B1). Should your Leica Lino be outside of the spe- cified tolerance, please contact a local dealer or an authorised Leica Geosystems dis- tributor. - Page 14 A1 exactly. If point B2 is no further than 2 mm away Checking the accuracy of the upper plumb from point B1, then the Leica Lino is within tol- point: erance. Should your Leica Lino be outside of the spe-...
- Page 15 The devi- ation may be max. 3mm between these two points. Should your Leica Lino be outside of the spe- cified tolerance, please contact a local dealer or an authorised Leica Geosystems dis- tributor.
-
Page 16: Care
To clean the magnetic surface you could use compressed air or modelling clay. If the equipment get wet always dry it (max. 70°C/158°F) before repacking it into the case. Leica Lino P5... -
Page 17: Warranty
Warranty Wa r r a n t y International Limited Warranty The Leica Lino comes with a two year warranty from Leica Geosystems AG. To receive an addi- tional year warranty, the product must be registered on our website at http://myworld.leica-... -
Page 18: Safety Instructions
1. To understand the safety instructions on the product and the instructions in the User Manual. 2. To be familiar with local safety regulations relating to accident prevention. 3. Always prevent access to the product by unauthorised personnel. Leica Lino P5... - Page 19 WARNING Changes or modifications not expressively approved by Leica Geosystems/manufacturer for compliance could void the user´s authority to oper- ate the equipment. WARNING Laser/adapters should not be used in the vicinity of pacemaker because of integrated magnets which can affect the function of the pacemaker.
- Page 20 When transporting or shipping bat- teries, the person in charge of the product must ensure that the applicable national and inter- national rules are observed. Before transportation or shipping, contact your local passenger or freight transport company. Leica Lino P5...
- Page 21 4. Consult the dealer or an experienced radi- o/TV technician for help This instrument complies with part 15 of the FCC rules. Operation is subjected to the following two conditions: 1. This instrument may not cause harmful interference, and Leica Lino P5...
- Page 22 2 laser product in accordance with: Wavelength IEC60825-1 : 2014 „Radiation safety of 635 +/- 5 nm (red) laser products“ Maximum radiant output power for classification <1 mW Pulse duration 10 µs Pulse repetition frequency 100 Hz Beam divergence point Leica Lino P5...
- Page 23 Safety instructions Labelling Subject to change (drawings, descriptions and technical data) without prior notice. Leica Lino P5...
