Summary of Contents for Leica LINO L2G

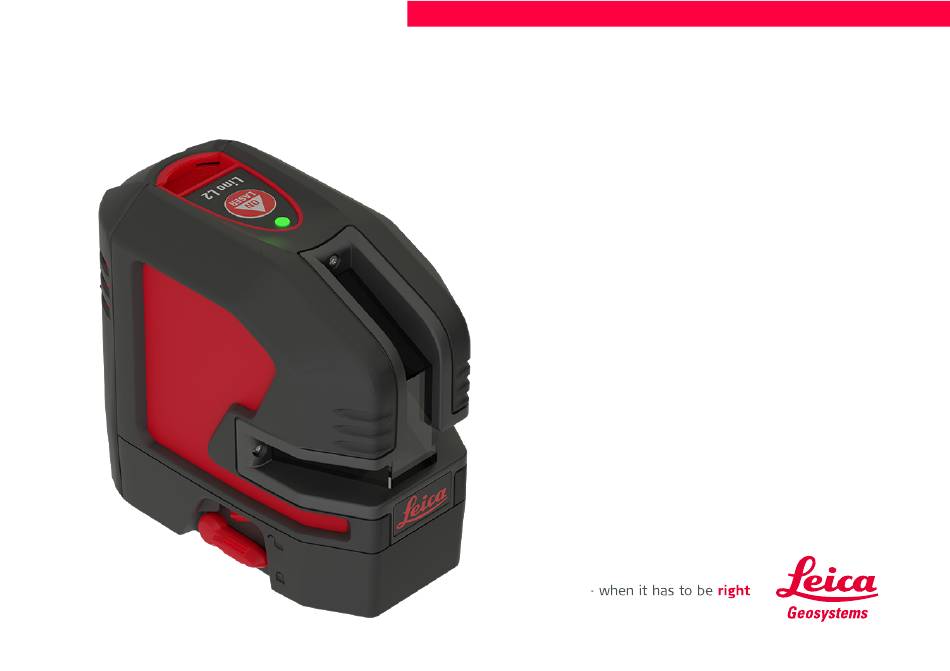

- Page 1 Leica LINO L2 / L2G...
-
Page 2: Table Of Contents
Overview Technical data Instrument Set-up Operations How to use the smart adapters Message Codes Accuracy Check Care Warranty Safety instructions Leica Lino L2/L2G... -
Page 3: Overview

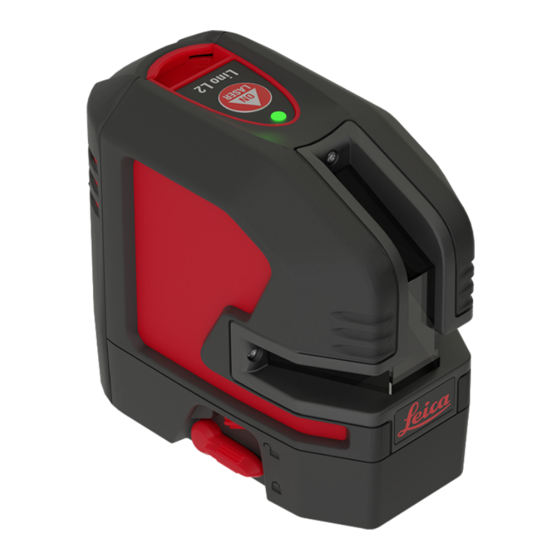

Overview Ov e r v i e w The Leica Lino L2/L2G is a self-levelling cross-line There are 2 different types available: 1 Window of vertical line laser. It is a reliable precision laser for any kind of tasks like levelling, transfering and setting out right L2 (red laser) 2 Window of horizontal line... -
Page 4: Technical Data
-10…+50 °C (+14…+122 °F) Storage temperature -25…+70 °C (-13…+158 °F) Laser line width at 5m distance < 2 mm (<0.08 in) Tripod thread 1/4’’ (+ 5/8’’ with adapter) Pulse power for receiver Yes, auto * depending on lighting conditions Leica Lino L2/L2G... -
Page 5: Instrument Set-Up
Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. Leica Lino L2/L2G... - Page 6 Any laser receiver can be used. damage caused by misuse is not covered by war- ranty. Use only Leica-approved chargers, bat- We recommend the Leica RGR200 laser teries and cables. Unapproved chargers or cables receiver.
- Page 7 Li-Ion status LED lights green: charging battery Insert Alkaline batteries in the battery-pack. OFF: charging finished / no charging Leica Lino L2/L2G...
-
Page 8: Operations
30 min operation press and hold the On button at start for 5 sec. The status LED blinks 3 times in green colour. To deactivate it again repeat the described steps until the status LED blinks 3 times in red colour. Leica Lino L2/L2G... - Page 9 Operations Functions Check if self-levelling is required and cor- respondingly activated.. (See Levelling lock for details) Horizontal line on Vertical line on Vertical lines and horizontal lines on Leica Lino L2/L2G...
-
Page 10: How To Use The Smart Adapters
Alignment of horizontal laser lines Turn the device 250° to adjust the vertical line. Turn the adjustment knob of UAL130 to fine adjust the horizonal line to the desired reference level. Snap the device on the Twist 250 adapter. Leica Lino L2/L2G... - Page 11 How to use the smart adapters Different fixing applications Leica Lino L2/L2G...
-
Page 12: Message Codes
5 sec lights red Levelling lock is activated but Charge Li-Ion battery or change instrument has low power Alkaline batteries blinks every 5 sec blinks green Levelling lock is activated for work- ing without self-levelling Leica Lino L2/L2G... -
Page 13: Accuracy Check
180° and mark the horizontal laser line or Leica Lino is within tolerance. the laser point in exactly the same way on wall (B1). Should your Leica Lino be outside of the spe- cified tolerance, please contact a local dealer or an authorised Leica Geosystems dis- tributor. - Page 14 Leica Lino is within tolerance. ation of the horizontal line from the marking. If the difference does not exceed 3 mm, then the Leica Should your Leica Lino be outside of the spe- Lino is within tolerance.
-
Page 15: Care
To clean the magnetic surface you could use compressed air or modelling clay. If the equipment get wet always dry it (max. 70°C/158°F) before repacking it into the case. Leica Lino L2/L2G... -
Page 16: Warranty
Warranty Wa r r a n t y International Limited Warranty The Leica Lino comes with a two year warranty from Leica Geosystems AG. To receive an addi- tional year warranty, the product must be registered on our website at http://myworld.leica-... -
Page 17: Safety Instructions
1. Projection of horizontal and vertical laser Responsibilities of the manufacturer of the ori- lines and laser points ginal equipment: Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Internet: www.leica-geosystems.com The company above is responsible for supplying the product, including the User Manual in a com- pletely safe condition. - Page 18 WARNING Changes or modifications not expressively approved by Leica Geosystems/manufacturer for compliance could void the user´s authority to oper- ate the equipment. WARNING Laser/adapters should not be used in the vicinity of pacemaker because of integrated magnets which can affect the function of the pacemaker.
- Page 19 When transporting or shipping bat- teries, the person in charge of the product must ensure that the applicable national and inter- national rules are observed. Before transportation or shipping, contact your local passenger or freight transport company. Leica Lino L2/L2G...
- Page 20 4. Consult the dealer or an experienced radi- o/TV technician for help This instrument complies with part 15 of the FCC rules. Operation is subjected to the following two conditions: 1. This instrument may not cause harmful interference, and Leica Lino L2/L2G...
- Page 21 It is a Class <1 mW 2 laser product in accordance with: IEC60825-1 : 2014 „Radiation safety of Pulse duration laser products“ 70 µs, cw (red) / 50 - 70 µs (green) Pulse repetition frequency 10 kHz Beam divergence line Leica Lino L2/L2G...
- Page 22 Safety instructions Labelling Subject to change (drawings, descriptions and technical data) without prior notice. Leica Lino L2/L2G...
