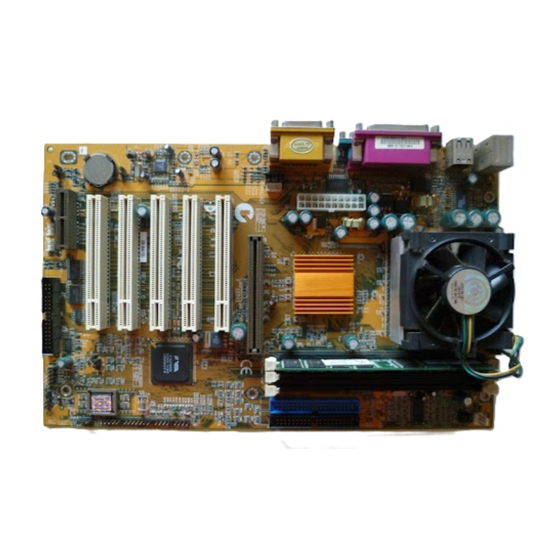

Mercury KOB 694X TFSX Manual
  1. Manuals
  2. Brands
  3. Mercury Manuals
  4. Motherboard
  5. KOB 694X TFSX
  6. Manual

Mercury KOB 694X TFSX Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Copyright
This publication, including all photographs, illustrations and software,
is protected under international copyright laws, with all rights re-
served. Neither this manual, nor any of the material contained herein,
may be reproduced without written consent of the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice.
The manufacturer makes no representations or warranties with re-
spect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose.
The manufacturer reserves the right to revise this publication and to
make changes from time to time in the content hereof without obliga-
tion of the manufacturer to notify any person of such revision or
changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Mi-
crosoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered
trademarks of Intel Corporation.
Other product names used in this manual are the properties of their
respective owners and are acknowledged.
Preface
Copyright © 2001
All Rights Reserved
KOB 694X TFSX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KOB 694X TFSX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mercury KOB 694X TFSX

Summary of Contents for Mercury KOB 694X TFSX

  • Page 1 Microsoft, MS-DOS and Windows are registered trademarks of Mi- crosoft Corp. MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Corporation. Other product names used in this manual are the properties of their respective owners and are acknowledged. Copyright © 2001 All Rights Reserved KOB 694X TFSX...
  • Page 2 Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gen- erates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3 Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is sub- ject to the following conditions: − This device may not cause harmful interference, and − This device must accept any interference received, includ- ing interference that may cause undesired operation. Canadian Department of Communications This class B digital apparatus meets all requirements of the Cana- dian Interference-causing Equipment Regulations.
  • Page 4 About the Manual The manual consists of the following: Chapter 1 Describes features of the main- board, and provides a shipping Introducing the Mainboard checklist. ⇒ Go to page 1 Chapter 2 Describes installation of main- board components. Installing the Mainboard ⇒...

  • Page 5: Table Of Contents

    Preface CHAPTER 1 Introducing the Mainboard Introduction ..................1 Checklist ..................2 Standard Items ..................2 Features...................3 Mainboard Components ..............6 Choosing a Computer Case ............8 CHAPTER 2 Installing the Mainboard Safety Precautions................9 Quick Guide ...................10 Checking Jumper Settings.............11 Setting Jumpers ..................11 Checking Jumper Settings ..............12 Jumper Settings .................
  • Page 6 Standard CMOS Features ..............39 Advanced BIOS Setup Option............42 Advanced Chipset Features Option ........... 46 Integrated Peripherals Option............50 Power Management Setup Option ............. 54 PNP/PCI Configuration Option ............61 Frequency/Voltage Control..............64 Load Fail-Safe Defaults Option............66 Load Optimized Defaults Option ............66 Set Supervisor and User Passwords Options ........

  • Page 7: Introducing The Mainboard

    The KOB 694X TFSX incorporates the VIA technology for its Northbridge and Southbridge chipset which features AC 97 audio codec. The KOB 694X TFSX also uses a 4xAGP slot and two Bus Master Ultra DMA ports that support up to four ATAPI devices.

  • Page 8: Checklist

    Compare the mainboard’s package contents with the following checklists: Standard Items • One mainboard • One diskette drive ribbon cable and bracket • One IDE drive ribbon cable and bracket • Software support CD • This user’s manual...

  • Page 9: Features

    Pentium III/FC-PGA2 Tualatin and VIA C3 proc- essors. Chipset VIA VT82C694T Northbridge The KOB 694X TFSX uses a VIA VT82C694T Northbridge chipset which employs a synchronous and asynchronous frequency exchange between the processor and memory using a broad fre- quency range. This chipset is optimized for the Pentium III processors at 66/100/133 MHz Front- side Bus.
  • Page 10 There is also system monitor support, providing system feedback of voltage, temperature, and fan speed conditions. Memory The KOB 694X TFSX has three DIMM sockets for use with 168-pin, 3.3V non-buffered DIMM mem- ory modules which uses SDRAM or VCM memory chips.
  • Page 11 Integrated I/O The mainboard has a full set of I/O ports and con- nectors: • Two PS/2 ports for mouse and keyboard • Two serial ports • One parallel port • One VGA port • One MIDI/game port • Four USB ports (2 backpanel ports, onboard USB header providing 2 extra ports) •...

  • Page 12: Mainboard Components

    DIMM2 CPUFAN1 DIMM1 DIMM3 PWRFAN1 CPUFAN1 CPU SOCKET ATX1 DIMM1 DIMM2 DIMM3 AGP1 IDE1 IDE2 PCI1 PCI1 PCI2 PCI2 PCI3 PCI3 PANEL1 PCI4 USB2 PCI4 SIR1 SIR1 USB2 AMR1 FDD1 AMR1 FDD1 ISA1 ISA1 ISA2 ISA2 WOL1 WOM1 WOL1 WOM1...
  • Page 13 Table of Mainboard Components Label Component AGP1 Accelerated Graphics Port AMR1 Audio modem riser (AMR) slot ATX1 Power connector Three volt realtime clock battery Primary CD-in connector Secondary CD-in connector CPU Socket PGA370 CPU Socket CPUFAN1 Cooling fan for CPU DIMM1 ~ DIMM3 Three 184-pin DIMM sockets FDD1...

  • Page 14: Choosing A Computer Case

    There are many types of computer cases on the market. The mainboard complies with the specifications for the ATX sys- tem case. Some features on the mainboard are implemented by cabling connectors on the mainboard to indicators and switches on the system case. Ensure that your case supports all the features required.

  • Page 15: Installing The Mainboard

    Installing the Mainboard Follow these safety precautions when installing the main- board: • Wear a grounding strip attached to a grounded device to avoid damage from static electricity. • Discharge static electricity by touching the metal case of a safely grounded object before working on the mainboard.

  • Page 16: Quick Guide

    This Quick Guide suggests the steps you can take to build your system with the mainboards. The following table describes installing specific components: Locating Mainboard Components Go to page 6 Installing Jumpers Go to page 11 Installing the Mainboard in a Case Go to page 15 Go to page 16 Installing Case Components...

  • Page 17: Checking Jumper Settings

    This section explains how to set jumpers for correct configura- tion of the mainboard. Setting Jumpers Use the mainboard jumpers to set system configuration op- tions. Jumpers with more than one pin are numbered. When setting the jumpers, ensure that the jumper caps are placed on the correct pins.

  • Page 18: Checking Jumper Settings

    Checking Jumper Settings In the following illustration, only pin 1 is shown. CPUFAN1 DIMM1 DIMM2 DIMM3 PCI1 PCI2 PCI3 PCI4 SIR1 USB2 AMR1 FDD1 ISA1 ISA2 WOL1 WOM1...

  • Page 19: Jumper Settings

    Jumper Settings Jumper Type Description Setting (default) 3 pin Clear CMOS 1-2: Normal jumper 2-3: Clear CMOS 3 pin BIOS flash 1-2: Unlock protection 2-3: Lock jumper 3 pin Onboard co- 1-2: Onboard co- dec/AMR slot selector 2-3: AMR slot 3 pin AMR Master/ 1-2: Slave AMR...
  • Page 20 JP1: Clear CMOS Jumper This jumper enables you to reset BIOS: 1. Turn the system off. 2. Short pins 2 and 3 on jumper 1. 3. Return the jumper to the normal setting. 4. Turn the system on. The BIOS is returned to the de- fault settings.

  • Page 21: Installing The Mainboard In A Case

    Refer to the following illustration and instructions for installing the mainboard in a case: This illustration shows 2. Secure the screws in the an example of a main- mainboard holes that align board being installed in with the chassis holes a tower-type case: Note: Do not over- tighten the...

  • Page 22: Connecting Case Components

    After you have installed the mainboard into a case, you can begin connecting the mainboard components. Refer to the fol- lowing: CPUFAN1 CPUFAN1 PWRFAN1 ATX1 DIMM1 DIMM2 DIMM3 PCI1 PCI2 PCI3 PCI4 SIR1 AMR1 USB2 FDD1 ISA1 ISA2 PANEL1 WOL1 WOM1 1.

  • Page 23: The Panel Connector

    The Panel Connector The panel connector provides a set of switch and LED con- nectors usually found on ATX or micro-ATX cases. Refer to the table below for information: Device Pins Power switch 22, 23 Power Switch Hard disk LED Indi- +20, -21 (Pins 22, 23) cator...

  • Page 24: Installing Hardware

    Installing the Processor Caution: When installing a CPU heatsink and cooling fan make sure that you DO NOT scratch the mainboard or any of the surface-mount resistors with the clip of the cooling fan. If the clip of the cooling fan scrapes across the main- board, you may cause serious damage to both the mainboard and the processor.
  • Page 25 CPU Installation Procedure The following illustration shows CPU installation components: CPU fan Socket 370 Locking lever Pin-1 corner...
  • Page 26 Follow these instructions to install the CPU: 1. Pull the CPU socket locking lever away from the socket to unhook it and raise the locking lever to the upright position. 2. Identify the pin A-1 corner on the CPU socket and the pin A-1 corner on the processor.

  • Page 27: Install Memory Modules

    Install Memory Modules For this mainboard, you must use 168-pin 3.3V non-buffered Dual In-line Memory Modules (DIMMs). The memory chips must be standard or registered SDRAM and VCM SDRAM memory chips. The memory bus can run at 66 MHz, 100 MHz, or 133 MHz. If your processor operates over a 133 MHz system bus, you can install PC133 or PC100 memory that operates over a 133 or 100 MHz bus.
  • Page 28 The table below shows maximum memory for DIMMs. DRAM Configura- 1 DIMM 2 DIMMs 3 DIMMs tions (MB) (MB) (MB) (MB) (MB) 64 Mbit 8M x 8 64 Mbit 4M x 16 16M x 8 Mbit 32M x 4 1024 1536 Mbit SS = Single Sided...

  • Page 29: Installing A Hard Disk Drive/Cd-Rom

    1. Align the memory module with the slot. The DIMM slots are keyed with notches and the DIMMs are keyed with cutouts so that they can only be installed cor- rectly. Check that the cutouts on the DIMM module edge connector match the notches in the DIMM slot: Latch Cutout Notch...
  • Page 30 to do this. About UDMA This mainboard supports Ultra DMA 66/100. UDMA is a tech- nology that accelerates the performance of devices in the IDE channel. Install IDE devices that support UDMA and use IDE cables that support UDMA for better performance. Installing a Hard Disk Drive 1.
  • Page 31 3. Plug an IDE cable connector into the hard disk drive IDE connector. It doesn't matter which connector on the cable you use. Ensure that the pin-1 side of the cable is matched with the pin-1 side of the connector. Refer to the previous note.

  • Page 32: Installing A Floppy Diskette Drive

    Note: Ribbon cable connectors are usually keyed so that they can only be installed correctly on the device connector. If the connector is not keyed, make sure that you match the pin-1 side of the cable connector with the pin-1 side of the device connector. Each connector has the pin-1 side clearly marked.
  • Page 33 1. Install the FDD into the drive cage in your ATX system case. 2. Plug the FDD cable into FDD1. Pin 1 Note: Ribbon cable connectors are usually keyed so that they can only be installed correctly on the device connector.

  • Page 34: Installing Add-On Cards

    When you first start up your system, go immediately to the Setup Utility and use the Standard page to configure the floppy diskette drives that you have installed. See Chapter 3 for more information. Installing Add-on Cards This mainboard has one 4xAGP slot, four PCI slots, two ISA slots and one AMR slot.
  • Page 35 DIMM1 DIMM2 DIMM3 PCI1 PCI2 PCI3 PCI4 SIR1 USB2 AMR1 FDD1 ISA1 ISA2 WOL1 WOM1 1. Remove a blanking plate from the system case corre- sponding to the slot you are going to use. 2. Install the edge connector of the add-on card into the expansion slot.

  • Page 36: Connecting Optional Devices

    Connecting Optional Devices Refer to the following for information on connecting the main- board’s optional devices: CPUFAN1 DIMM1 DIMM2 DIMM3 USB2 PCI1 PCI2 PCI3 PCI4 SIR1 USB2 AMR1 FDD1 SIR1 ISA1 ISA2 WOL1 WOM1 WOL1 WOM1...
  • Page 37 USB2: USB port The mainboard has one USB port installed on the rear edge I/O port array. However, some computer cases have a special module that mounts USB ports at the front of the case. If you have this kind of case, use auxiliary USB connectors on USB2 to connect the front-mounted ports to the mainboard.
  • Page 38 SIR1: Serial infrared port The mainboard supports a Serial Infrared (SIR) data port. In- frared ports allow the wireless exchange of information between your computer and similarly equipped devices such as printers, laptops, Personal Digital Assistants (PDAs), and other computers. Signal Name IRRX Ground...

  • Page 39: Connecting I/O Devices

    The backplane of the mainboard has a full set of I/O ports: Parallel port (LPT1) Game port PS/2 mouse PS/2 Serial port Serial port Microphone keyboard ports COM 1 COM 2 Line-in Line-out 1. Use the upper PS/2 port to connect a PS/2 pointing device.

  • Page 40: External Connector Color Coding

    External Connector Color Coding Many connectors now use standard colors as shown in the table below. Connector Color Analog VGA Blue Audio line-in Light blue Audio line-out Lime Digital monitor / flat panel White IEEE 1394 Grey Microphone Pink MIDI/Game Gold Parallel Burgundy...

  • Page 41: Using Bios

    Using BIOS The computer uses the latest Award BIOS with support for Windows Plug and Play. The CMOS chip on the mainboard contains the ROM setup instructions for configuring the main- board BIOS. The BIOS (Basic Input and Output System) Setup Utility dis- plays the system's configuration status and provides you with options to set system parameters.

  • Page 42: The Standard Configuration

    The Standard Configuration A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future. This Setup Utility should be used: • when changing the system configuration •...

  • Page 43: Entering The Setup Utility

    Entering the Setup Utility When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diag- nostics performed by the BIOS. After the POST routines are completed, the following message appears: Press DEL to enter SETUP Pressing the delete key accesses the Award BIOS Setup...

  • Page 44: Updating The Bios

    Updating the BIOS You can download and install updated BIOS for this main- board from the manufacturer's web site. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows: 1. If your mainboard has a BIOS protection jumper, change the setting to allow BIOS flashing.

  • Page 45: Using Bios

    When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is cur- rently selected. Use the cursor arrow keys to move the highlight to other options.
  • Page 46 Date and Time The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility. IDE Devices (None) Your computer has two IDE channels (Primary and Secon- dary) and each channel can be installed with one or two...
  • Page 47 Refer to your drive's documentation or look on the drive casing if you need to obtain this information. If no device is installed, change the value to None. Note: Before attempting to configure a hard disk drive, ensure that you have the configuration information supplied by the manufacturer of your hard drive.

  • Page 48: Advanced Bios Setup Option

    Advanced BIOS Setup Option This option displays a table of items that define advanced in- formation about your system. CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software Advanced BIOS Features Anti-Virus Protection [Disabled] Item Help Y2K Monitor [Disabled] H/W Reset Function [Enabled]...
  • Page 49 All processors that can be installed in this mainboard use in- ternal level 1 (L1) cache memory to improve performance. Leave this item at the default value for better performance. External Cache (Enabled) Most processors that can be installed in this system use ex- ternal level 2 (L2) cache memory to improve performance.
  • Page 50 Boot Up Floppy Seek (Enabled) If this item is enabled, it checks the size of the floppy disk drives at start-up time. You don't need to enable this item un- less you have a legacy diskette drive with 360K capacity. Boot Up NumLock Status (On) This item defines if the keyboard Num Lock key is active when your system is started.
  • Page 51 The disk drive software monitors the internal performance of the motors, media, heads, and electronics of the drive. The host software monitors the overall reliability status of the drive. If a device failure is predicted, the host software, through the Client WORKS S.M.A.R.T applet, warns the user of the im- pending condition and advises appropriate action to protect the data.

  • Page 52: Advanced Chipset Features Option

    Advanced Chipset Features Option This option displays a table of items that define critical timing parameters of the mainboard. You should leave the items on this page at their default values unless you are very familiar with the technical specifications of your system hardware. If you change the values incorrectly, you may introduce fatal er- rors or recurring instability into your system.
  • Page 53 Memory Hole (Disabled) This item can be used to reserve memory space for some ISA expansion cards that require it. P2C/C2P Concurrency (Enabled) When disabled, the CPU bus is occupied during the entire PCI operation period. System BIOS Cacheable (Enabled) & Video RAM Cacheable (Enabled) These items allow the video and/or system to be cached in memory for faster execution.
  • Page 54 item. OnChip USB (Enabled) This should be enabled if your system has a USB installed on the system board and you wish to use it. USB Keyboard Support (Disabled) Enable this item if you plan to use a keyboard connected through the USB port in a legacy operating system (such as DOS) that does not support Plug and Play.
  • Page 55 AGP Master 1 WS Write (Disabled) This implements a single delay when writing to the AGP Bus. By default, two-wait states are used by the system, allowing for greater stability. AGP Master 1 WS Read (Disabled) This implements a single delay when reading to the AGP Bus. By default, two-wait states are used by the system, allowing for greater stability.

  • Page 56: Integrated Peripherals Option

    Integrated Peripherals Option This option displays a list of items that defines the operation of peripheral components on the system's input/output ports. CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software Integrated Peripherals OnChip IDE Channel0 Enabled Item Help OnChip IDE Channel1 Enabled IDE Prefetch Mode...
  • Page 57 IDE Primary/Secondary Master/Slave UDMA (Auto) Each IDE channel supports a master device and a slave de- vice. This mainboard supports UltraDMA technology, which provides faster access to IDE devices. If you install a device that supports UltraDMA, change the ap- propriate item on this list to Auto.
  • Page 58 IR Function Duplex (Half) This field is available when UART 2 Mode is set to either ASKIR or HPSIR. This item enables you to determine the in- frared (IR) function of the onboard infrared chip. The options are Full and Half (default). Full-duplex means that you can transmit and send information simultaneously.
  • Page 59 Onboard Legacy Audio (Enable) Enables the onboard legacy audio function. If this item is en- abled the following items become available. Sound Blaster (Disabled) Enables or disables Sound Blaster function. SB I/O Base Address (220H) This item lets you set the I/O base address for the Sound Blaster card.

  • Page 60: Power Management Setup Option

    Power Management Setup Option This option displays items that let you control the system power management. Modern operating systems take care of much of the power management. This mainboard supports ACPI (Advanced Configuration and Power Interface). The sys- tem has various power saving modes including powering down the hard disk, turning off the video, suspending to RAM, and a software power down that allows the system to be automatically resumed by certain events.
  • Page 61 ACPI Function (Enabled) This mainboard supports ACPI (Advanced Configuration and Power management Interface). Use this item to enable or dis- able the ACPI feature. Note: ACPI is a power management specification that makes hardware status information available to the operating system. ACPI enables a PC to turn its pe- ripherals on and off for improved power management.
  • Page 62 ing, power-saving modes occur after a short timeout. If this item is set to Min Saving, power-saving modes occur after a longer timeout. If the item is set to User Define, you can insert your own timeouts for the power-saving modes. HDD Power Down (Disable) The IDE hard drive will spin down if it is not accessed within a specified length of time.
  • Page 63 dem. You might have to connect the fax/modem to the main- board Wake On Modem connector for this feature to work. Soft-Off by PWRBTN (Instant-Off) Under ACPI (Advanced Configuration and Power manage- ment Interface) you can create a software power down. In a software power down, the system can be resumed by Wake Up Alarms.
  • Page 64 CMOS Setup Utility – Copyright (C) 1984 – 2000 Award Software Wake Up Events Item Help LPT & COM LPT/COM Menu Level HDD & FDD PCI Master PowerOn by PCI Card Disabled Wake Up On LAN/Ring Disabled RTC Alarm Resume Disabled Date (of Month) Resume Time (hh:mm:ss)
  • Page 65 RTC Alarm Resume (Disabled) When set to Enabled, the following two fields become avail- able and you can set the date (day of the month), hour, minute and second to turn on your system. When set to 0 (zero) for the day of the month, the alarm will power on your system every day at the specified time.
  • Page 66 IRQ/Event Activity Detect Scroll to this item and press <Enter> to view the following screen: CMOS Setup Utility – Copyright (C) 1984 – 2000 Award Software IRQ/ Activity Detect IRQ 3 (COM2) Enabled Item Help IRQ 4 (COM1) Enabled IRQ 5 (LPT2) Enabled Menu Level...

  • Page 67: Pnp/Pci Configuration Option

    PNP/PCI Configuration Option This option displays a table of items that configures how PnP (Plug and Play) and PCI expansion cards operate in your sys- tem. Both the ISA and PCI buses on the Mainboard use system IRQs (Interrupt ReQuests) and DMAs (Direct Memory Access).
  • Page 68 If you cannot get a legacy ISA (Industry Standard Architecture) expansion card to work properly, you might be able to solve the problem by changing this item to Manual, and then open- ing up the IRQ Resources and Memory Resources submenus. In the IRQ Resources submenu, if you change any of the IRQ assignations to Legacy ISA, then that Interrupt Request Line is reserved for a legacy ISA expansion card.
  • Page 69 PCI Health Status Option On mainboards that support hardware monitoring, this item lets you monitor the parameters for critical voltages, critical temperatures, and fan speeds. You cannot make any changes to these fields. They are for display only: CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software PC Health Status Item Help Shutdown Temperature...

  • Page 70: Frequency/Voltage Control

    Frequency/Voltage Control This item enables you to set the clock speed and system bus for your system. The clock speed and system bus are deter- mined by the kind of processor you have installed in your system. CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software Frequency/Voltage Control Item Help Auto Detect DIMM/PCI Clk...
  • Page 71 For example, if you have a processor that is rated to run at 450 MHz and the system is running a frontside bus frequency of 100 MHz, you should select a multiplier of 4.5 so that: 4.5 (Multiplier) x 100 MHz (frontside bus) = 450 MHz (CPU clock)

  • Page 72: Load Fail-Safe Defaults Option

    Load Fail-Safe Defaults Option This option opens a dialog box that lets you install fail-safe de- faults for all appropriate items in the Setup Utility: Press <Y> and then <Enter> to install the defaults. Press <N> and then <Enter> to not install the defaults. The fail-safe de- faults place no great demands on the system and are generally stable.

  • Page 73: Set Supervisor And User Passwords Options

    Set Supervisor and User Passwords Options These items can be used to install a password. A Supervisor password takes precedence over a User password, and the Supervisor can limit the activities of a User. To install a pass- word, follow these steps: 1.

  • Page 74: Save & Exit Setup Option

    Save & Exit Setup Option Highlight this item and press <Enter> to save the changes that you have made in the Setup Utility and exit the Setup Utility. When the Save and Exit dialog box appears, press <Y> to save and exit, or press <N> to return to the main menu: Exit Without Saving Highlight this item and press <Enter>...

  • Page 75: Using The Mainboard Software

    Using the Mainboard Software The support software CD-ROM that is included in the main- board package contains all the drivers and utility programs needed to properly run the bundled products. For this board, you can install software from the following folders: IDE Folder You can use the software in this folder to install VIA IDE driver for your operating system.

  • Page 76: Ide Folder Installation Notes

    You can use the software in this folder to install VIA IDE driver for your operating system. Use the SETUP.EXE application in the \VIA\IDE folder. This folder has software and drivers for the Realtek codec sound system that is integrated on this mainboard. The Real- tek codec allows the system to generate optimal sound effects.

  • Page 77: Utility Folder Installation Notes

    Award Flash Memory Utility This utility lets you erase the system BIOS stored on a Flash Memory chip on the mainboard, and lets you copy an updated BIOS to the chip. Take care how you use this program. If you erase the current BIOS and fail to write a new BIOS, or write a new BIOS that is incorrect, your system will malfunction.

  • Page 78: Recovery Genius

    Recovery Genius The Recovery Genius software program is an innovative win- dows application system that protects your Hard Disk Drive from virus intrusion, accidental deletions and from system cor- ruption. To install the Recovery Genius software program run SETUP.EXE from the following directory: \UTILITY\RECOVERY GENIUS\ENG\RECOVERYGENIUS WinDVD (optional) Go to the directory \UTILITY\WINDVD;...

  • Page 79: Setting Jumpers

    Setting Jumpers Jumper Settings Jumper Type Description Setting (default) 3 pin Clear CMOS 1-2: Normal jumper 2-3: Clear CMOS 3 pin BIOS flash 1-2: Unlock protection 2-3: Lock jumper 3 pin Onboard co- 1-2: Onboard co- dec/AMR slot selector 2-3: AMR slot 3 pin AMR Master/ 1-2: Slave AMR...
  • Page 80 JP1: Clear CMOS Jumper This jumper enables you to reset BIOS: 1. Turn the system off. 2. Short pins 2 and 3 on jumper 1. 3. Return the jumper to the normal setting. 4. Turn the system on. The BIOS is returned to the de- fault settings.

  • Page 81: The Panel Connector

    The Panel Connector The panel connector provides a set of switch and LED con- nectors usually found on ATX or micro-ATX cases. Refer to the table below for information: Device Pins Power switch 22, 23 Power Switch Hard disk LED +20, -21 (Pins 22, 23) Indicator...
