Welcome
Congratulations on purchasing the KOB 630e CFSFx mainboard.

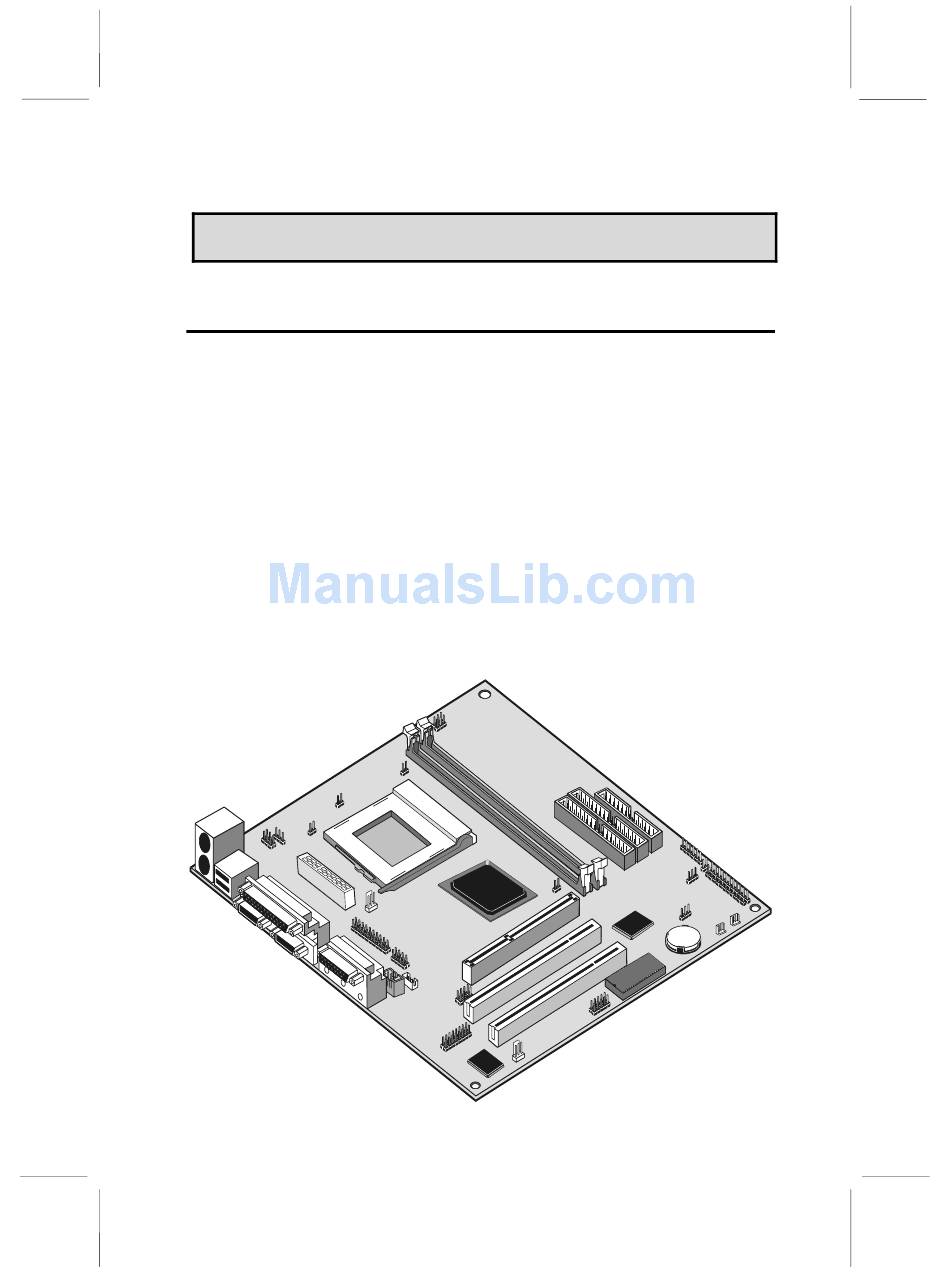

The KOB 630e CFSFx mainboard is a Flex-ATX mainboard that uses 4-
layer printed circuit board and measures 228mm x 190mm. The
mainboard has a PPGA (Plastic Pin Grid Array) PGA370 processor
socket. This feature means that you can install the mainboard with a
PPGA Celeron processor.
The KOB 630e CFSFx is installed with the very powerful SIS630 chipset,
which includes integrated built-in video, audio, networking (optional)
and communications capabilities. Two 32-bit PCI expansion slots are
provided, plus a riser card slot for video expansion capabilities. Two
DIMM sockets are available for the installation of up to 1 GB SDRAM
memory. This mainboard is an ideal platform for an inexpensive entry
level or business class multimedia personal computer.
