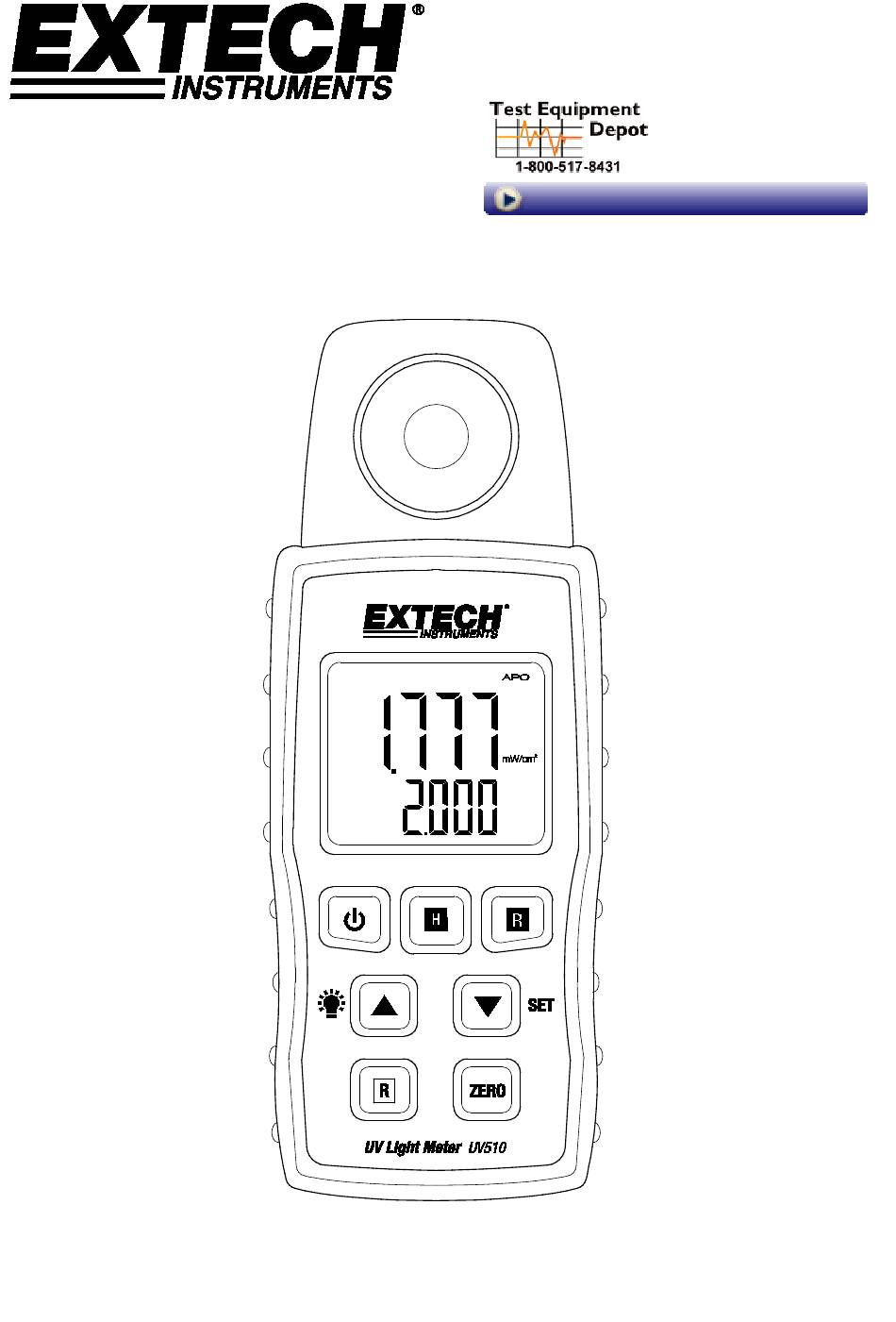

- Page 1 USER MANUAL 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 UV Light Meter Visit us at www.TestEquipmentDepot.com Model UV510...
- Page 2 Introduction Thank you for selecting the Extech Model UV510 UV Light Meter. This device measures UVA ultraviolet light between 320-390nm. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Features • UV sensor with cosine correction filter •...

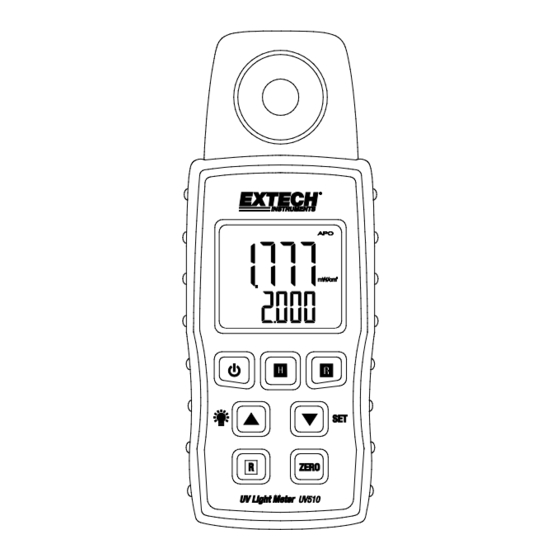

- Page 3 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com Meter Description Light Sensor LCD Display ON-OFF button LCD Backlight button and ▲ button Range button Zero button SET and ▼ button Record button (max/min) Hold button 10.
- Page 4 Operation Taking a Measurement Short press the power button. If the LCD does not switch on, check the batteries located in the rear battery compartment. With the sensor cover attached to the meter, short press the zero button, to zero the display, before taking any measurements.
- Page 5 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com Press the R (record) button again to display the minimum value recorded. The icon will appear on the display. Press the H (hold) button to clear the recorded data. The previous data will be erased and the meter will start recording new data.
- Page 6 Specifications Display Backlit LCD 35 x 30mm (1.4 x 1.2“) Light sensor Photo sensor with cosine correction filter Measurements Ultraviolet Light (UVA) UV sensor spectrum 320 to 390 nm Input Overload Display “----“ Tripod mount On rear panel Power 3 x 1.5V ‘AAA’ batteries Power Consumption Approx.
