EVENT
SERIES:
LED PAR 7x40W
ZOOM IP65
User Manual
Instrukcja Obsługi
Art No F7100334

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVENT Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Flash EVENT Series

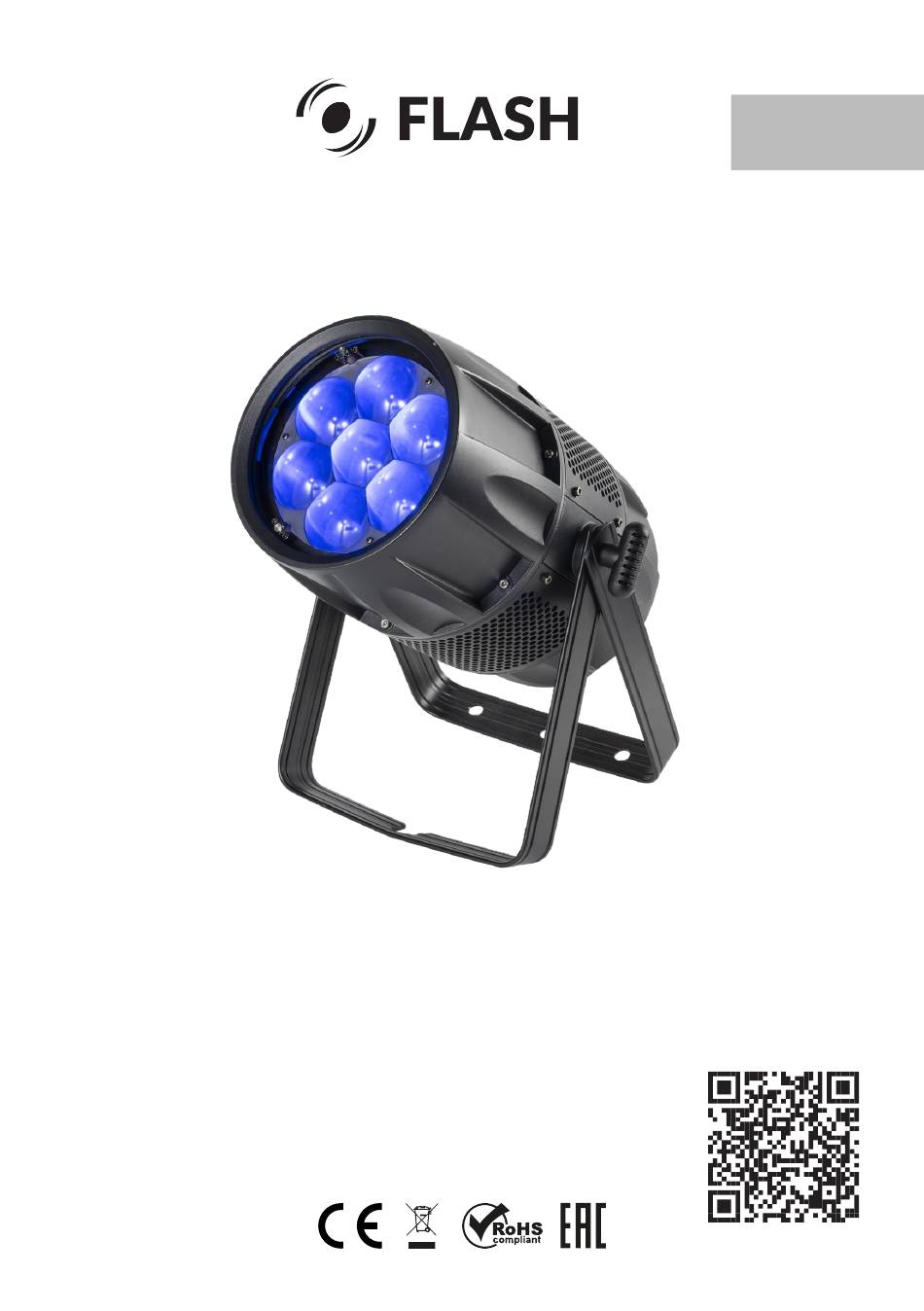

  • Page 1 EVENT SERIES: LED PAR 7x40W ZOOM IP65 User Manual Instrukcja Obsługi Art No F7100334...
  • Page 2: Table Of Contents

    Pages: 2-9 Strony: 10-16 C O N T E N T S INTRODUCTION SAFETY INFORMATION PRODUCT INFORMATION INSTALLATION CONNECTION DMX CHART WARNING! Use clamp to rig the fixture. WARNING! When clamping the fixture to a truss or other structure at any other angle than with the yoke hanging vertically downwards, use two clamps of half-coupler type.
  • Page 3: Introduction

    I N T R O D U C T I O N THANK YOU FOR PURCHASING LED PAR. FOR SAFETY REASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CAREFULLY READ THE INSTRUCTIONS. S A F E T Y I N F O R M AT I O N Please keep this User Manual In the event of serious ope- for future consultation.
  • Page 4: Product Information

    P R O D U C T I N F O R M AT I O N Light Source: IP Rating: IP65 7x40W RGBW LED’s Housing made: Aluminium Power consumption: 300W   Cooling: Active Power supply voltage:   AC IN/OUT: Tru1Con 100-240V, 50/60Hz AC 3-Pin XLR DMX Input/Output Macros (Color, Color + Zoom)
  • Page 5: Connection

    The package includes: ❸ ❶ ❶ - LED PAR (1 pc) User Manual ❷ - Power cable type Tru1CON (1 pc) ❸ - User Manual (1 pc) ❹ - Omega bracket (1 pc) ❷ ❹ C O N N E C T I O N The device is equipped with the following interfaces: 1.
  • Page 6 Diagram of connection of devices by DMX cable. Controller DMX 512 DMX 512 120Ω IMPORTANT! The maximum number of devices connected in series via power cable is 5 pcs. The connection is performed using power cable with powerCON con- nector (included). The device must be operated by qualified personnel. CAUTION! In the case of cable damage do not attempt to repair.
  • Page 7: Dmx Chart

    D M X C H A R T 6 CH 12 CH Dimmer Green Dimmer Fine (16 bit) Blue Strobo White Macro Auto Programm 001-005 Empty 006-040 Prog 1 041-080 Prog 2 081-120 Prog 3 121-160 Prog 4 161-200 Prog 5 201-240 Prog 6 241-255 Empty Zoom...
  • Page 10 S P I S T R E Ś C I WPROWADZENIE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA INFORMACJE O PRODUKCIE INSTALACJA POŁĄCZENIE TABLICA DMX OSTRZEŻENIE! Do zamocowania urządzenia należy użyć zacisku. OSTRZEŻENIE! Podczas mocowania urządzenia do kratownicy lub innej konstrukcji pod innym kątem niż z jarzmem zwisającym pionowo w dół, na- leży użyć...
  • Page 11 W P R O W A D Z E N I E DZIĘKUJEMY ZA ZAKUP LED PAR. ZE WZGLĘDÓW BEZPIECZEŃ- STWA I W CELU ZAPEWNIENIA BEZAWARYJNEJ PRACY NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ. INFORMACJE DOTYC ZĄCE BEZ PIEC Z EŃST WA Niniejszą instrukcję obsługi na- dzenia należy natychmiast za- leży zachować...
  • Page 12 I N F O R M A C J A O P R O D U K C I E Źródło światła:: Stopień ochrony IP: IP65 7x40W RGBW LED’s Obudowa: Aluminium Pobór mocy: 300W   Chłodzenie: Active Napięcie zasilania:   AC IN/OUT: Tru1Con 100-240V, 50/60Hz AC 3-Pin XLR DMX Input/Output Macro (Kolor, Kolor + Zoom)
  • Page 13 Opakowanie zawiera: ❸ ❶ ❶ - LED PAR (1 szt.) ❷ - Kabel zasilający typu User Manual Tru1CON (1 szt.) ❸ - Instrukcja Obsługi (1 szt.) ❹ - Uchwyt mocujący (1 szt.) ❷ ❹ P O Ł A C Z E N I E Urządzenie wyposażone jest w następujące interfejsy: 1.
  • Page 14 Schemat połączenia urządzeń kablem DMX. Controller DMX 512 DMX 512 120Ω WAŻNE! Maksymalna liczba urządzeń podłączonych pomiędzy sobą za pomocą kabla zasilającego wynosi 5 sztuk. Podłączenie odbywa się za pomocą kabla zasilającego ze złączem powerCON (w zestawie). Urządzenie musi być obsługiwane przez wy- kwalifikowany personel.
  • Page 15 D M X C H A R T 6 CH 12 CH Dimmer Czerwony Zielony Dimmer Fine (16 bit) Niebieski Strobo Biały Macro Auto Programm 001-005 Pusty 006-040 Prog 1 041-080 Prog 2 081-120 Prog 3 121-160 Prog 4 161-200 Prog 5 201-240 Prog 6 241-255 Pusty Zoom...
  • Page 16 FLASH-BUTRYM Sp.j. Skarbimierzyce 18 · 72-002 Dołuje · POLAND WWW.FLASH-BUTRYM.PL...
