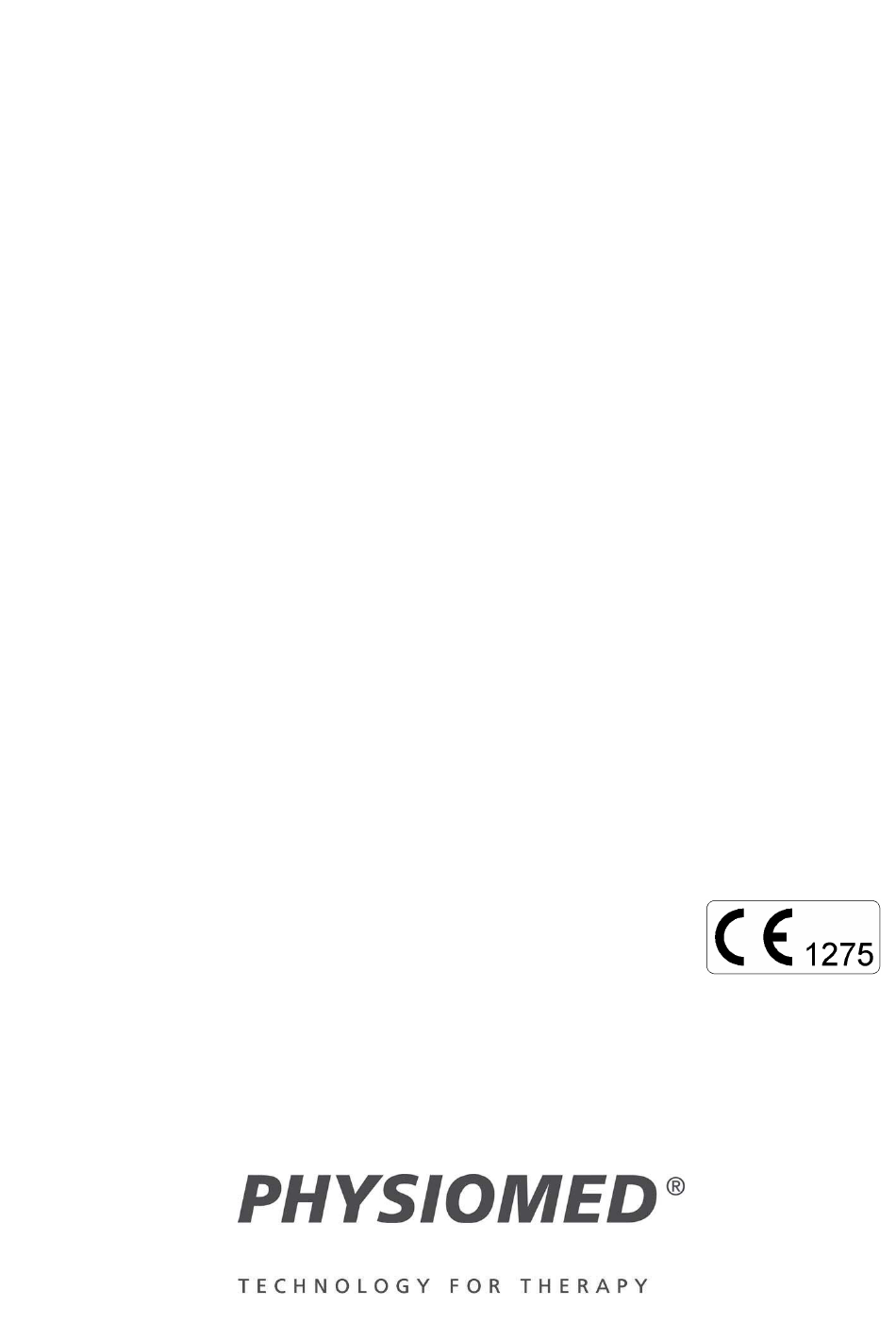

- Page 1 S E R V I C E M A N U A L PHYSIOMED-Expert 2 PHYSIOMED–IF–Expert 2 Revision: 09 / 2008 Valid from Instrument No.: PME 2 - 0300211 And PIE 2 - xx001xx 17900...
-
Page 2: Table Of Contents
Table of Contents TECHNICAL DATA ....................3 HOUSING CONSTRUCTION...................4 GENERAL NOTES ....................4 NOTE ........................4 ADDITIONAL EQUIPMENT REQUIRED..............4 TEST MENU ......................5 Test Menu Stimulation Current ....................5 BALANCING PROCEDURE ..................6 Setting up ...........................6 Checking the Power Supply; PC Board No. 9902-2..............7 7.2.1 Not Stabilized........................7 7.2.2 Stabilized ..........................7 Balancing PC-Board No.: 9902-2 (Stimulation Current)............7... -
Page 3: Technical Data
115 V: T 2 A 75 mAs (maximum) at 500 Ohm Output data STIMULATION + 10°C ... + 40°C Ambient temperature Dimensions 34.5 x 13.3 x 34.8 cm (W x H x D) 5.1 kg Weight PHYSIOMED-Expert 2 - Service Manual... -
Page 4: Housing Construction
* State of calibration B = precision 5% The following documents provide information necessary for the balancing procedure, such as positions of the trimmers or test points: • Wiring Scheme • Parts List • Operating Instructions PHYSIOMED-Expert 2 - Service Manual... -
Page 5: Test Menu
Pc board 9902-2 on position 1+2 and then turn on the instrument. 6.1 Test Menu Stimulation Current Selection Channel 1 Selection Channel 2 Display Circuit: Set Value I Value measured output I Value measured output U PHYSIOMED-Expert 2 - Service Manual... -
Page 6: Balancing Procedure
7.1 Setting up • Check line fuses; refer to technical data and reference labels. • Check fuses F1-F4 of secondary circuit; refer to parts list of power supply and to reference labels. • Connect power cord PHYSIOMED-Expert 2 - Service Manual... -
Page 7: Checking The Power Supply; Pc Board No. 9902-2
• CV1_ON not activated • Turn intensity to maximum • Adjust earth connection of the oscilloscope at TP (0 V) • Measure offset-voltage at housing of V33 Adjust offset-voltage to zero by using pad trimmer R53 PHYSIOMED-Expert 2 - Service Manual... -
Page 8: Adjustment Of Output Current
The special current mode of circuit 2 is to be adjusted by trimmer R251. The value appearing to the right of the intensity display in circuit 2 must be 67 mA To return to regular operation mode, set JP2 to position 2+3. PHYSIOMED-Expert 2 - Service Manual... -
Page 9: Checking The Instrument
• All functions and output values of the stimulation current unit are checked • Pulse indicators are illuminated • Patient current and output indicators are illuminated • An acoustic signal is audible Either the start menu or the display of the last selected current type appears. PHYSIOMED-Expert 2 - Service Manual... -
Page 10: Checking The Therapy Timer
Check all selection fields according to operating instructions. 8.6 Display Wire of Air Gap and Leakage Distance Check air gap and leakage distance (2.5 mm / 4 mm); you should also pay attention to the position of the display wire. PHYSIOMED-Expert 2 - Service Manual... -
Page 11: Error Codes
Reason: control power supply ( +15DCV , out of tolerance) V10, N3, flat ribbon cable main-/front board I80_SOFT_ERROR CH2 Current circuit 2 > 80 mA Software triggered Reason: control power supply ( +15DCV , out of tolerance) V10, N3, flat ribbon cable main-/front board PHYSIOMED-Expert 2 - Service Manual... -
Page 12: Important Service Note
Adapter PCB 0607-1 2CH is the substitute of IC N23 ML2035 and N24 ML2035 Software Versions: ISE2 / PME2 xx.x1 only to use for N23 ML2035 and N24 ML2035 (picture 1) at 9902-2 Rev. 1.10 PHYSIOMED-Expert 2 - Service Manual... - Page 13 Error Codes ISE2 / PME2 xx.x only to use for adapter PCB 0607-1 (picture 2) at 9902-2 Rev. 1.10 This is valid from the SW Ver. 12.3 from May 2006. Picture 1 Picture 2 PHYSIOMED-Expert 2 - Service Manual...
- Page 14 Spare Parts List - PHYSIOMED ELEKTROMEDIZIN AG Date: 30.11.2005 12 Page: part number / O-No description / ND step/cost per pos.no. item notice quantity p.ID: 00091 var./sw: 1/0-0-0 desc 1/2: PHYSIOMED-Expert Reizstromgerät desc 3/4: 00091 desc 5/6: PHYSIOMED EXPERT Ersteller:...
- Page 16 02.09.2003 Grö Datum Name Main Board 02.09.03 Bearb. Bestückungsplan Hauptplatine Gepr. IONOSON-Expert 2 PHYSIOMED-Expert 2 Platine PC-Board Physiomed ELEKTROMEDIZIN Hutweide 10 9902-2 Rev. 1.10 Blatt 91220 Schnaittach / Laipersdorf /Germany Ä n d e r u n g s Datum...
- Page 18 Soldered side Lötseite E1811 Datum Name Component Placement Inverter Board 09.01.06 Bestückungsplan Inverterplatine Physiomed Elektromedizin Platine Hutweide 10 9806-3 91220 Schnaittach / Datum Name Laipersdorf / Germany File Be9806-3.brd...
