Summary of Contents for Total THTLI20018

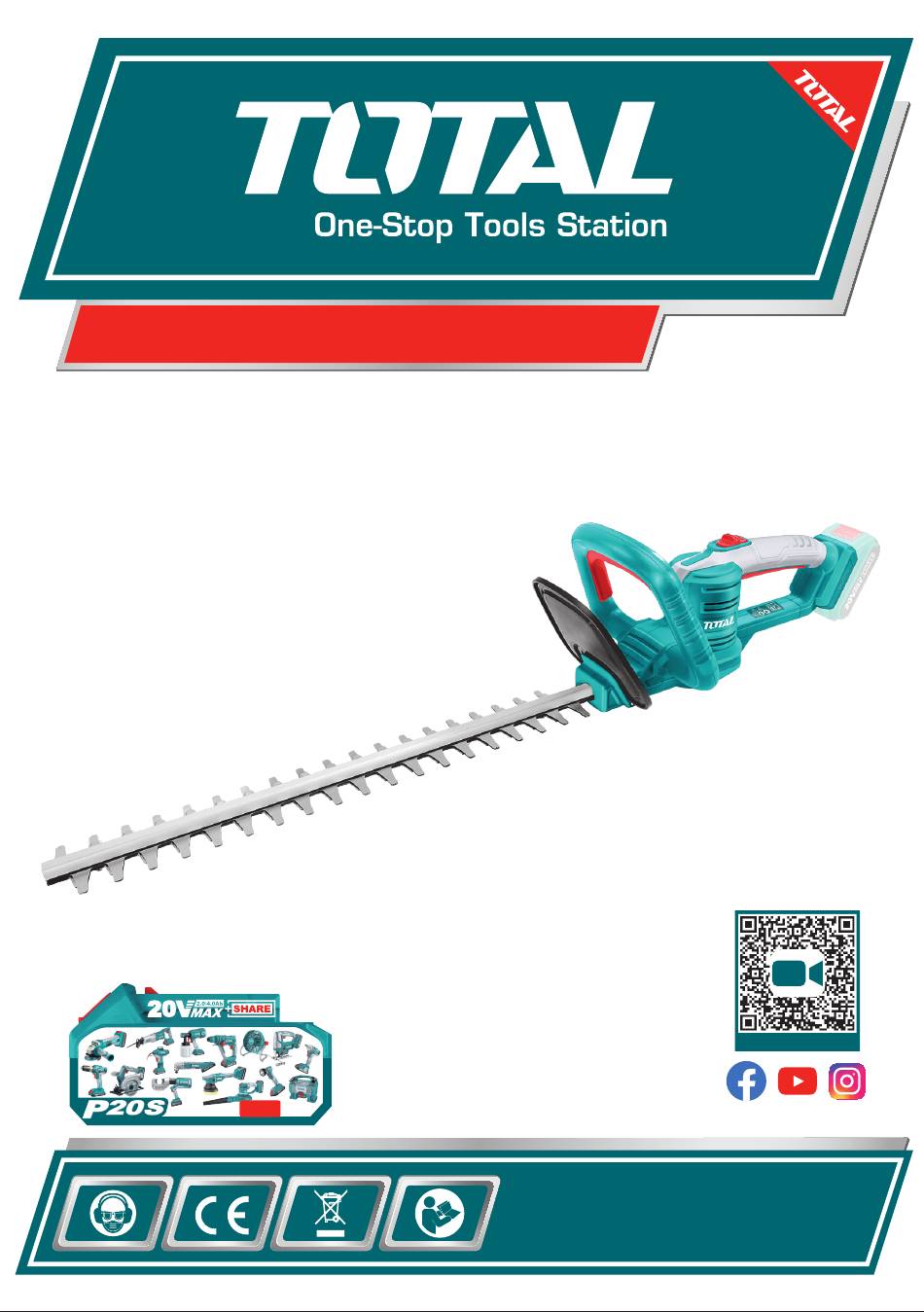

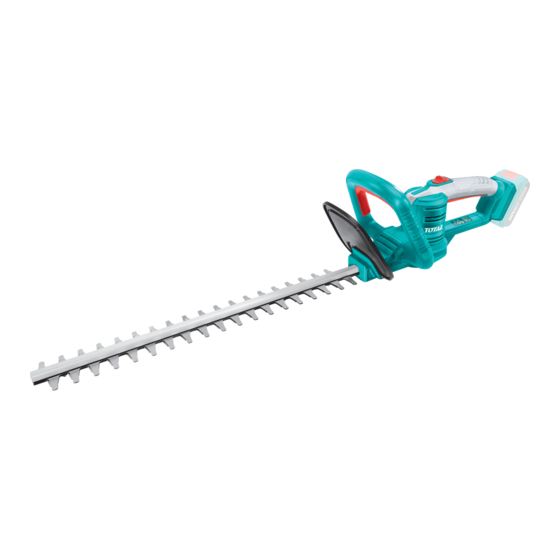

- Page 1 LITHIUM-ION HEDGE TRIMMER THTLI20018,THTLI20461E,THTLI20461X,THTLI20461-X,THTLI20461S, THTLI20461A,THTLI20461H,THTLI20461M,UTHTLI20461X, UTHTLI20461-X (X stands for 1 to 9) SCAN FOR VIDEO 150+ SAME BATTERY TOOLS TOTAL TOOLS WORLD...
-
Page 2: Safety Information
SAFETY INFORMATION W A R N I N G Read all safety warnings and all instruc�ons. Failure to follow the warnings and instruc�ons may result in electric shock, fire, and/or serious injuries. Save all warnings and instruc�ons for future reference. The term “power tool”... - Page 3 SAFETY INFORMATION connected and properly used. Use of these devices can reduce dust-related hazards. Power tool use and care • Do not force the power tool. Use the correct power tool for your applica�on. The correct power tool will do the job be�er and safer at the rate for which it was designed.
- Page 4 SAFETY INFORMATION when blades are moving. Make sure the switch is off when clearing jammed material. Blades coast a�er turn off. A moment of ina�en�on while opera�ng the hedge trimmer may result in serious personal injury. • Carry the hedge trimmer by the handle with the cu�er blade stopped. When transpor�ng or storing the hedge trimmer always fit the cu�ng device cover .Proper handling of the hedge trimmer will reduce possible personal injury from the cu�er blades.
- Page 5 SYMBOLS WARNING! Incorrect or careless use of a hedge trimmer can turn it into a dangerous tool that can cause serious or even fatal injury. It is extremely important that you read and understand the contents of this operator’s manual. Always wear: •...
-
Page 6: Know Your 20V Cordless Hedge Trimmer
KNOW YOUR 20V CORDLESS HEDGE TRIMMER Lock out bu on Auxiliary Handle Rear Handle Auxiliary switch Guard Blade support rod Cu ng Blade Switch Trigger Ba ery pack Blade cover KNOW YOUR 20V CORDLESS HEDGE TRIMMER (see Fig.1) The safe use of this product requires an understanding of the informa on on the product and in this operator’s manual as well as a knowledge of the project you are a emp ng. -
Page 7: Assembly Instruction
ASSEMBLY INSTRUCTION BATTERY IMPORTANT! The ba ery pack is not charged when it is purchased. Before using the hedger for the first me, place the ba ery pack in the ba ery charger and charge. Make sure to read all safety precau ons, and follow the instruc ons in the Ba ery Charger sec on. - Page 8 ASSEMBLY INSTRUCTION W A R N I N G To avoid personal injury: • Handle the blade with care. • Do not place your fingers or hand between the notches in the blade or in any position where they could get pinched or cut.
- Page 9 OPERATNG INSTRUCTION ON/OFF SWITCHES (See Fig. 3) The hedge trimmer has two switches controls and a lock-OFF bu on used together to prevent accidental start-ups or injury. • Place one hand on the trigger handle . Place the other hand on the Auxiliary handle. •...
-
Page 10: Technical Data
TECHNICAL DATA Cu erType Double sided Cu ng width ,/mm Blade speed ,spm Sound Levels 86.6,K=3 Sound pressure level,measured according to EN 60335-1 and EN60745-2-15,dB(A) Sound power level,measured according to ISO22868,dB(A) 94.3, K=3 Guaranteed Sound power level, dB(A) Vibra on Levels ²... - Page 11 THTLI20018,THTLI20461E,THTLI20461X,THTLI20461-X,THTLI20461S, THTLI20461A,THTLI20461H,THTLI20461M,UTHTLI20461X, Exploded view UTHTLI20461-X (X stands for 1 to 9)
- Page 12 THTLI20018,THTLI20461E,THTLI20461X,THTLI20461-X,THTLI20461S, THTLI20461A,THTLI20461H,THTLI20461M,UTHTLI20461X, UTHTLI20461-X (X stands for 1 to 9) Spare part list Part Description Part Description Gear Right Housing Bush Terminal Gear Trigger Eccentric Spring Spacing Block Push button Blade Press Micro Switch Stationary Pin Spring Connection Strap Inductance Edge Case...
- Page 13 LITHIUM-ION HEDGE TRIMMER www.totalbusiness.com TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road , Suzhou Industrial Park , China. MADE IN CHINA T0222.V04...
