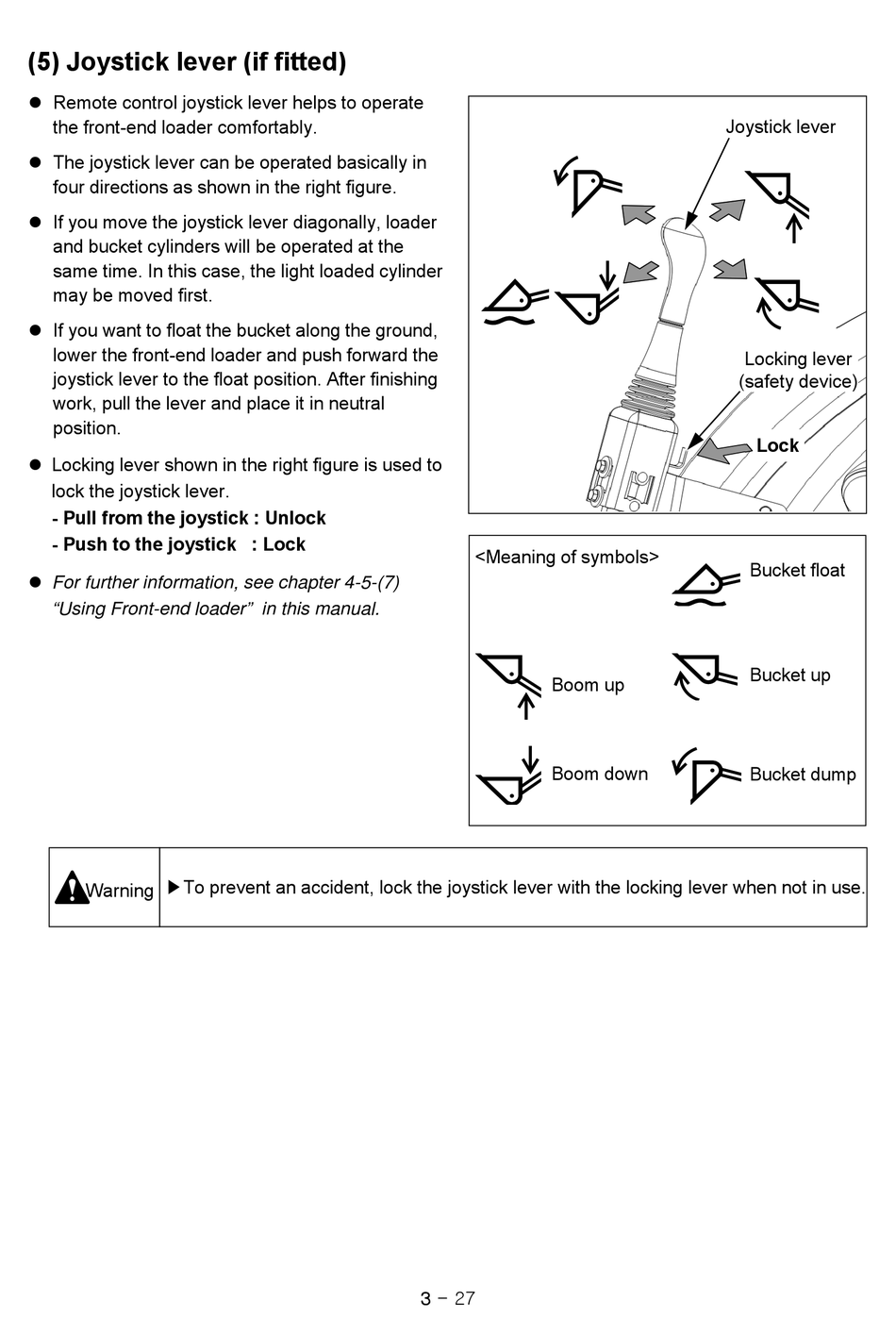

(5) Joystick lever (if fitted)

 Remote control joystick lever helps to operate
the front-end loader comfortably.
 The joystick lever can be operated basically in
four directions as shown in the right figure.
 If you move the joystick lever diagonally, loader
and bucket cylinders will be operated at the
same time. In this case, the light loaded cylinder
may be moved first.
 If you want to float the bucket along the ground,
lower the front-end loader and push forward the
joystick lever to the float position. After finishing
work, pull the lever and place it in neutral
position.
 Locking lever shown in the right figure is used to
lock the joystick lever.
- Pull from the joystick : Unlock
- Push to the joystick : Lock
 For further information, see chapter 4-5-(7)
"Using Front-end loader" in this manual.
▶To prevent an accident, lock the joystick lever with the locking lever when not in use.
Warning
<Meaning of symbols>
Boom up
Boom down
3 - 27
Joystick lever
Locking lever
(safety device)
Lock
Bucket float
Bucket up
Bucket dump
