ENGLISH
SmartSolar Control display
manual
Rev 00 02/2021
This manual is also available in
HTML5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartSolar SCC900650010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Victron energy SmartSolar SCC900650010

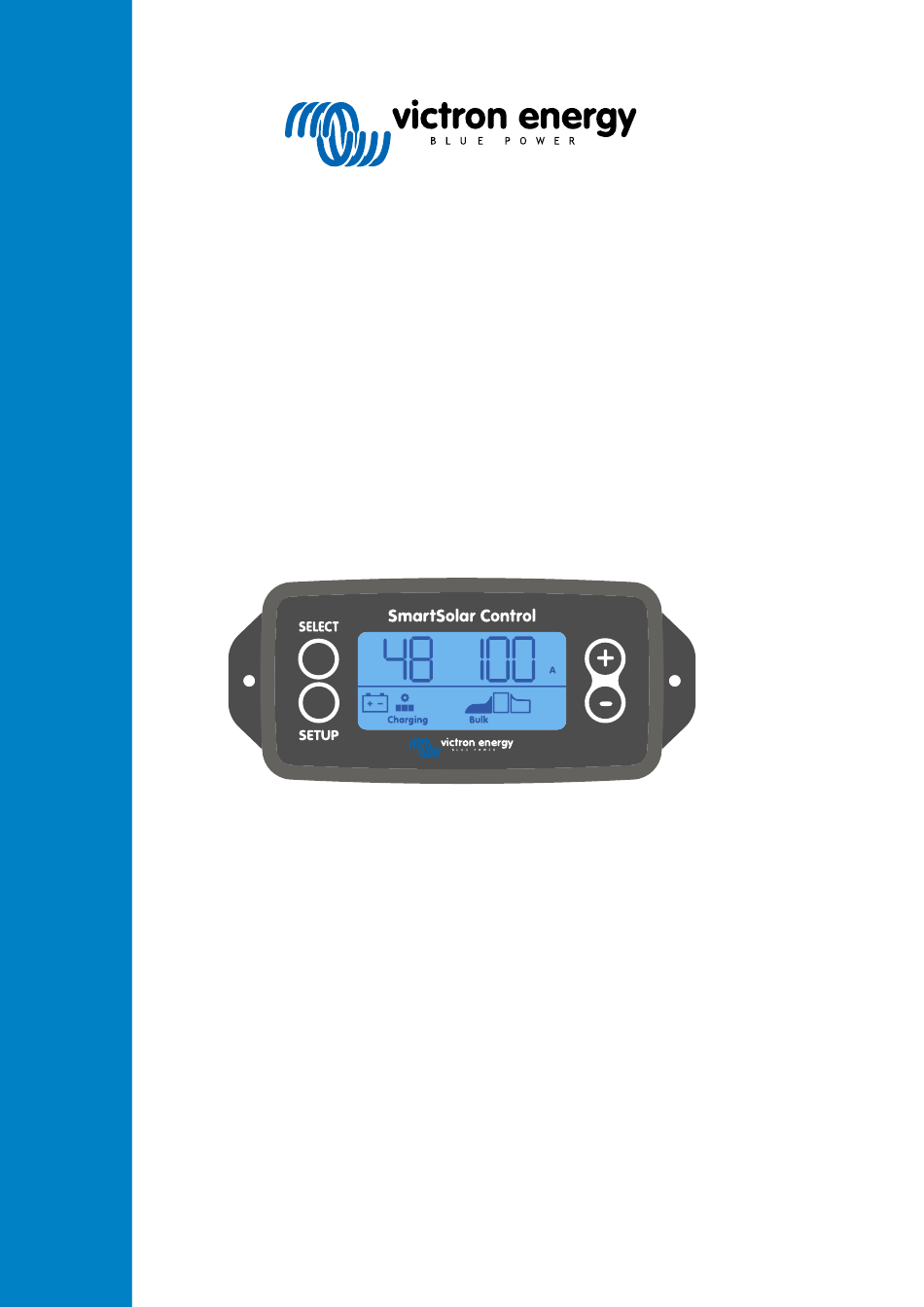

  • Page 1 ENGLISH SmartSolar Control display manual Rev 00 02/2021 This manual is also available in HTML5...
  • Page 2: Table Of Contents

    SmartSolar Control display manual Table of Contents 1. Introduction ........................... 1 2. Installation ..........................2 3. Operation ..........................3 3.1. Status menu ........................4 3.2. History menu ......................... 5 3.3. Setup menu ........................7 4. Troubleshooting and Support ....................12 4.1.
  • Page 3: Introduction

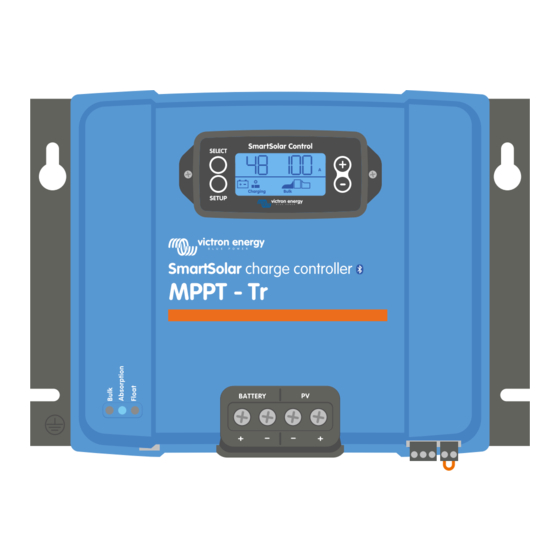

    SmartSolar Control display manual 1. Introduction The SmartSolar Control display is a dedicated display for the following MPPT solar charger ranges: • SmartSolar MPPT 150/45 up to 250/100 • SmartSolar MPPT 150/70 up to 250/100 VE.Can • BlueSolar MPPT 150/70 up to 250/100 VE.Can These solar chargers can also be recognised by a small plastic cover on the front face with the text "display option".
  • Page 4: Installation

    SmartSolar Control display manual 2. Installation The display connects to the display terminal on the front of the solar charger. The display terminal is located behind the plastic cover with the text: "display option". To install the SmartSolar Control display do the following: 1.
  • Page 5: Operation

    SmartSolar Control display manual 3. Operation The LCD screen displays the following information: • A number reading. • The unit of the reading: V, A, W, kWh, h or °C/°F. • The type of reading: battery, PV or temperature. • State: charge and charge stage indication. •...
  • Page 6: Status Menu

    SmartSolar Control display manual 3.1. Status menu This menu shows the live solar charger readings. The SmartSolar Control display always starts up in this menu. Press the - and + button to cycle through all menu items. Press the - button to see the live data of the solar charger. Each time the - button is pressed, the next parameter will be displayed. If the + and - button is pressed at the same time for 4 seconds, the auto scroll mode will be activated.
  • Page 7: History Menu

    SmartSolar Control display manual LCD display Menu item Description and notes PV voltage Solar array output voltage PV power Solar array output power In addition to above menu items, the following menu items will appear when special conditions occur: LCD display Menu item Description and notes "Inf"...
  • Page 8 SmartSolar Control display manual • To go back to the main history menu, press the SETUP button. • To go back to the status menu, press the SETUP button again. All available history menu items are listed in below table, in the order they appear when scrolling through the items. Scrolling text Description YIELD TOTAL...
  • Page 9: Setup Menu

    Do not change settings unless you know what they are and what the effect of changing these setting can be. Incorrect settings may cause system problems including damage to batteries. When in doubt, seek advice from and experienced Victron Energy installer, dealer or distributor. To navigate the settings menu: •...
  • Page 10 SmartSolar Control display manual Any settings change via the display or the VictronConnect App will override the rotary switch setting. Turning the rotary switch will override settings made with the display or via the VictronConnect App. All available settings are indicated in below table, in the order they appear when scrolling through the menu, together with a basic description and notes for each setting.
  • Page 11 SmartSolar Control display manual Scrolling text Desription and notes Sets the relay function: • 0 - Relay always off. • 1 - High PV voltage, see setup items 16 and 17. • 2 - High internal temperature solar charger, above 85°C. •...
  • Page 12 SmartSolar Control display manual Scrolling text Desription and notes Sets low temperature level at which charging has to stop (°C or TEMPERATURE °F). LEVEL Sets if BMS is present (Y or N). This setting is automatically set to Y when a compatible BMS is detected.
  • Page 13 SmartSolar Control display manual Scrolling text Desription and notes Sets the VE.Direct port RX pin mode: • 0 - The VE.Direct port is used for on/off control by an external device, such as a BMS. It is an option to connect a BMS to the VE.Direct port, (instead of connecting the BMS to the remote on/off terminal).
  • Page 14: Troubleshooting And Support

    The correct troubleshooting and support process is to first consult the common issues as described in this chapter. Should this fail to resolve the issue, contact the point of purchase for technical support. If the point of purchase is unknown, refer to the Victron Energy Support webpage. 4.1. The display does not power up The display does not power up.
  • Page 15: Warranty

    Victron Energy to make such repairs. Non-compliance with the instructions in this manual will render the warranty void. Victron Energy is not liable for any consequential damages arising from the use of this product. The maximum liability of Victron Energy under this limited warranty shall not exceed the actual purchase price of the product.
  • Page 16: Specifications

    Technical specifications Installation type Inserts into the display port on the front of a solar charger. Suitable for the Victron Energy 150V and 250V BlueSolar and SmartSolar MPPT solar charger Suitability range that are equipped with a display port. Display port connector...
