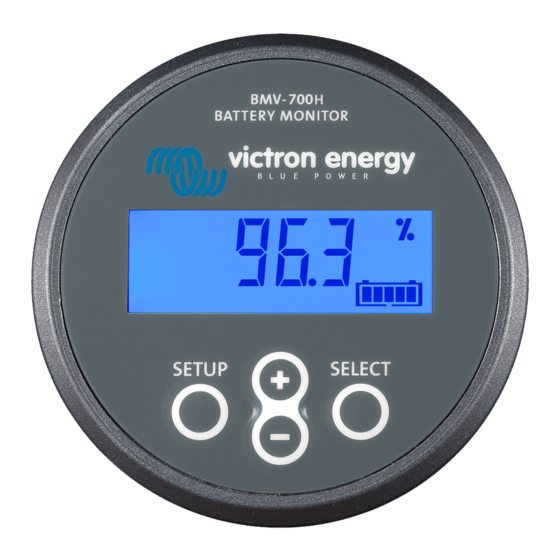

Battery monitor

Advertisement

Battery monitor
BMV-7XX
quick installation guide
FIRST TIMERS
In case of Li-Ion batteries, several settings
may have to be changed after the setup
wizard is completed.
Please refer to the manual.
The BMV will automatically adjust itself
to the nominal voltage of commonly
used battery systems.
Please refer to the manual.
1

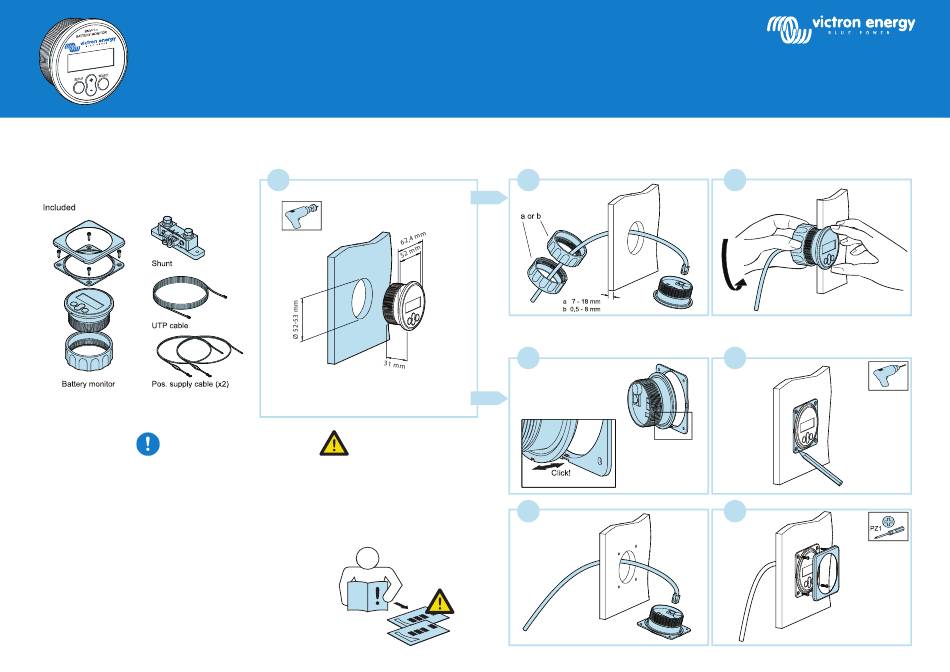

Method A
Method B
WARNING
Please read this guide carefully to avoid incor-
rect connections that can cause the battery
monitor to malfunction and/or create a fire
hazard.
Disconnect the negative pole of the battery
before installation.
2
2
4
3
3
5
V2.0 01-01-2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMV-7 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Victron energy BMV-7 Series

  • Page 1 Battery monitor BMV-7XX quick installation guide Method A Method B FIRST TIMERS WARNING In case of Li-Ion batteries, several settings Please read this guide carefully to avoid incor- may have to be changed after the setup rect connections that can cause the battery wizard is completed.
  • Page 2 quick installation guide Connect the negative pole of the battery last!
  • Page 3 Connecting multiple batteries without midpoint voltage monitoring : 24 V WRONG Fig. 5 Fig. 6 Due to voltage drop over the + and - cables midpoint voltages are not identical Applying midpoint voltage monitoring : 24 V Always use busbars when applying midpoint voltage monitoring! Cables to busbars must all have the same length! This cable should be short.
  • Page 4 Connecting multiple batteries without midpoint voltage monitoring : 48 V WRONG Fig. 9 Fig. 10 Due to voltage drop over the + and - cables midpoint voltages are not identical Applying midpoint voltage monitoring : 48 V Always use busbars when applying midpoint voltage monitoring! Cables to busbars must all have the same length! This cable should be short.

This manual is also suitable for:

Bmv-700hBmv-710h
