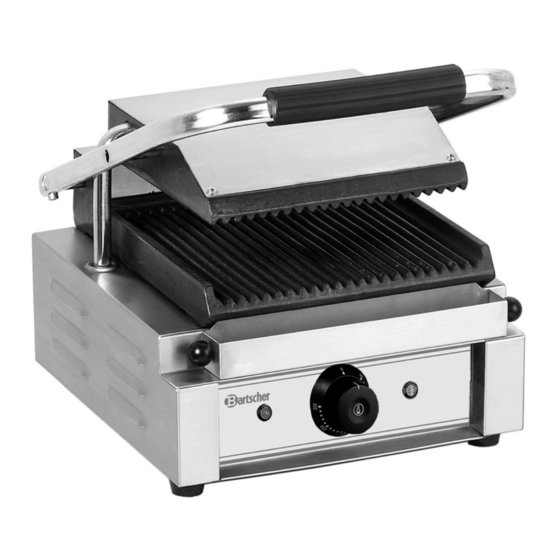

Bartscher A150670 Instruction Manual
Electric contact grill
Hide thumbs
Also See for A150670:
- Instruction manual (71 pages) ,
- Instruction manual (15 pages) ,
- Manual (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for Bartscher A150670
Summary of Contents for Bartscher A150670
- Page 1 A150670 A150669 A150668 A150671 A150672 A150673 Original-Gebrauchsanleitung V7/1116...
-
Page 2: Table Of Contents
5. Installation and operation ..................30 5.1 Installation ......................30 5.2 Operation ......................32 6. Cleaning and maintenance ..................34 7. Possible Malfunctions .................... 35 8. Waste disposal ......................36 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. - Page 5 • Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. • Do not use any accessory or spare parts that have not been recommended by the manufacturer.
- Page 6 • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. •...
- Page 7 • Also after switching off, the device remains hot for some time. Before cleaning or moving it to another place wait until the device cools down first. • Never move this appliance during operation. WARNING! Fire or explosion hazard! Follow the safety instructions listed in order to avoid the hazard: •...
-
Page 8: Proper Use
1.3 Proper use CAUTION! The device has been designed and built for commercial use and should be operated only by qualified personnel in kitchen facilities. The operational safety of the device is assured only in case of proper use, according to the operation manual. -
Page 9: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 10: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 11: Technical Data
4. Technical data 4.1 Technical data Description Electric contact grill A150670 A150669 A150668 Code-no.: upper grooved, Grill plates performance: grooved smooth lower smooth The housing made of chromium and nickel steel, Material: plates made of cast iron Temperature range: 50 ° C - 300 ° C... -
Page 12: Overview Of Parts
4.2 Overview of parts 3 2 1 Temperature indicator light (red) Temperature control knob Network connection indicator light (green) Bottom casing Fat collection compartment Bottom grill plate Cable duct Top grill plate Handle Mains connection cable Rubber feet Cleaning brush - 29 -... -
Page 13: Installation And Operation
5. Installation and operation 5.1 Installation CAUTION! Any installation, connection and maintenance work related to the device must be performed by the qualified and certified technician in accordance with the applicable international, national and local regulations. Positioning • Unpack the device and discard the entire packaging material according to the regulations valid in the country of installation. - Page 14 Connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! •...
-
Page 15: Operation
5.2 Operation • Connect the device to a single outlet. • A green network connection indicator light is on. • The device is equipped with a temperature control knob. The adjustable temperature is between 50 ° C -300 ° C. We recommend maintaining the maximum operating temperature between 200 °... - Page 16 • Do not use any hard or sharp object on the grill to prevent damage to the surface or the operating elements. • Put the temperature control knob to „0“ once you are finished grilling. Remove the grilled food and pull the mains plug. CAUTION! The device is equipped in the overheat protection system.
-
Page 17: Cleaning And Maintenance
6. Cleaning and maintenance WARNING Before cleaning the device, turn the device off with ON/OFF switch and disconnect it from the power supply. Let the device to cool down. Never clean he device with any kind of pressure water jets! Make sure that no water gets into the device. -
Page 18: Possible Malfunctions
7. Possible Malfunctions In case of failure turn the device off with the main switch and disconnect the device from the power supply (pull the plug!). Before calling the technician or informing the vendor check the possibility of removing the failure by yourself according to the table below. Problem Cause Solution... -
Page 19: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
