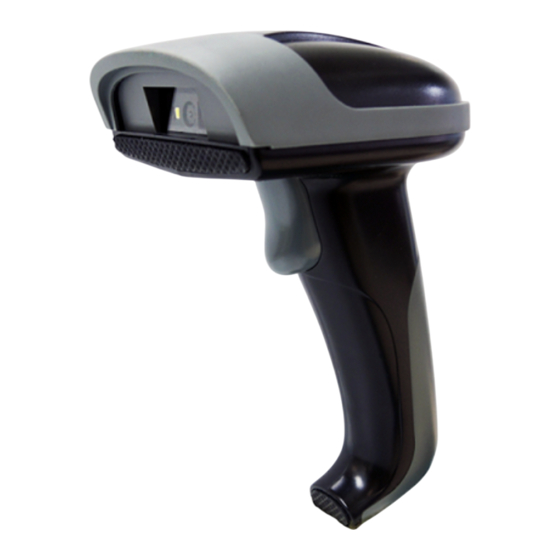

- Page 1 MT8250P User’s Manual V1.3 MT8250P 2D Handheld Scanner User’s Manual Version 1.3 DATE: 2022/12/27...
-
Page 2: Table Of Contents
MT8250P User’s Manual V1.3 Table of Content CHAPTER 1 GENERAL SETTINGS ............................6 ................................. 6 ARCODE ONFIGURABILITY ..................................6 ACTORY EFAULT .................................... 6 HECK ERSION ................................7 NDICATOR Beep Tone ....................................7 Vibrator ..................................... 7 Indicator LED ................................... 7 ....................................8 ORMAT UTF-8/Shift-JIS to Unicode Conversion .......................... - Page 3 MT8250P User’s Manual V1.3 ....................................22 REAMBLE ....................................23 OSTAMBLE Clear Preamble/Postamble ..............................23 ....................................23 ERMINATOR CHAPTER 5 SYMBOLOGIES .............................. 24 ..................................24 ENERAL ETTINGS UPC-A ......................................25 Enable/Disable UPC-A ................................. 25 Check Digit .................................... 25 UPC-A to EAN-13 ................................. 25 UPC-E0 .......................................
- Page 4 MT8250P User’s Manual V1.3 Verification ..................................... 36 Check Digit .................................... 36 Code 11 Min/Max Length ..............................37 (NW-7)..................................38 ODABAR Enable/Disable Codabar ..............................38 Start/Stop ....................................38 Codabar Min/Max Length ..............................38 5 ..................................39 NTERLEAVED Enable/Disable Interleaved 2 of 5 ............................39 Verification .....................................
- Page 5 MT8250P User’s Manual V1.3 ................................. 49 PPENDIX UMBERS ............................50 PPENDIX PPER LPHABETS ............................52 PPENDIX OWER LPHABETS – C ..............................54 PPENDIX ONTROL ODES – S ................................. 56 PPENDIX YMBOLS – F ..............................59 PPENDIX UNCTION – N ..............................60...
-
Page 6: Chapter 1 General Settings
MT8250P User’s Manual V1.3 Chapter 1 General Settings Barcode Configurability Scanning below configuration barcodes will allow/prohibit user to change settings by scanning configuration barcodes in this manual. Enable Barcode Configurability* Disable Barcode Configurability Factory Default Scanning below configuration barcode will reset all parameters to factory default settings (the ones... -
Page 7: Good Read Indicator
MT8250P User’s Manual V1.3 Good Read Indicator Beep Tone Beep Low (2.0KHz) Beep Medium (2.7KHz)* Beep High (4.0KHz) Vibrator Off* Indicator LED... -
Page 8: Data Format
MT8250P User’s Manual V1.3 Data Format UTF-8/Shift-JIS to Unicode Conversion Disable* UTF-8 to Unicode (Word) Shift-JIS Shift-JIS to Unicode (Notepad) (Word) HT/CR/ESC Converts to TAB/ENTER/ESCAPE Off* Note: 1. By default, HT [$I], CR [$M] and ESC [%A] is transmitted as <0x09>, <0x0D> and <0x1B>... -
Page 9: Function Code Conversion
MT8250P User’s Manual V1.3 Function Code Conversion Note: Once disabled, the scanner will output the original encoded data of the barcodes in Appendix - Function/Navigation/Modifier Keys. Control Code Output Method Ctrl Mode* Alt Mode Disable Output Note: Control code (0x01 ~ 0x1A) can be sent by two methods: (1) Ctrl Mode: A barcode of “A<HT>F”... - Page 10 MT8250P User’s Manual V1.3 Since “Ctrl+I” is shortcut for italicizing text in some software applications, the result of above output sequence can be a regular A plus an italic F. (2) Alt Mode: For <HT>, the output sequence of virtual keyboard is: Enter “Alt + 0 + 0 + 0 + 9”...
-
Page 11: Numeric Key
MT8250P User’s Manual V1.3 28 Alt+0+0+2+8 Alt+0+0+2+8 29 Alt+0+0+2+9 Alt+0+0+2+9 30 Alt+0+0+3+0 Alt+0+0+3+0 31 Alt+0+0+3+1 Alt+0+0+3+1 Numeric Key Numeric Key Alphanumeric Key* Note: 1. By default, the alphanumeric key is used for trasmitting digits. Scan NUMERIC KEY if you want to use the keys on the numeric keypad. -
Page 12: Imaging Settings
MT8250P User’s Manual V1.3 Capslock Free Note: When barcode scanner is set to Capslock Free mode, no matter keyboard Capslock LED indicator is ON or OFF, output will be always the same as the Original barcode. In other words, what you see is what output is. -
Page 13: Chapter 2 Interface
MT8250P User’s Manual V1.3 Chapter 2 Interface USB HID USB HID Keyboard Layout English (US)* English (UK) Danish Spanish Hungarian (QWERTZ) Hungarian (QWERTY) Canadian French Dutch... - Page 14 MT8250P User’s Manual V1.3 Italian French German Swiss German Swiss French Swedish Czech (QWERTZ) Czech (QWERTY) Norwegian Belgian Portuguese Slovak Brazilian (QWERTY) Canadian (Traditional)
-
Page 15: Intercharacter Delay
MT8250P User’s Manual V1.3 Japanese Alt Code Intercharacter Delay The configurable range is from 0 to 255ms. The larger the number, the longer the delay. Set Intercharacter Delay (Default = 0ms) Example: Set Intercharacter Delay to 8ms Step1: Scan Set Intercharacter Delay Step2: Scan “0”... -
Page 16: Usb Vcp
MT8250P User’s Manual V1.3 USB VCP USB VCP RS232 RS232 Baud Rate 1200 2400 4800 9600* 19200 38400... -
Page 17: Data Bits & Parity
MT8250P User’s Manual V1.3 57600 115200 Data Bits & Parity 8 Bits Even 8 Bits Odd 8 Bits Space 8 Bits Mark 8 Bits None* 7 Bits Even 7 Bits Odd 7 Bits Space 7 Bits Mark... -
Page 18: Stop Bits
MT8250P User’s Manual V1.3 Stop Bits 1 Stop Bit* 2 Stop Bits Handshaking None* RTS enable at Power On RTS enable with Communication ACK/NAK Off*... -
Page 19: Chapter 3 Reading Mode
MT8250P User’s Manual V1.3 Chapter 3 Reading Mode Trigger Mode Trigger Mode Auto-sensing Mode Auto-sensing Mode* Auto-sensing Mode – Magnetic Switch When magnetic switch is on, the scanner automatically enters Auto-sensing Mode when placed on Auto Stand (w/ magnet), and resumes Trigger Mode when held on hand. When magnetic switch is... -
Page 20: Chapter 4 Data Format
MT8250P User’s Manual V1.3 Chapter 4 Data Format By default data format is as follows: <Preamble> <Code ID> <Barcode Length> <Barcode Data> <Postamble> <Terminator> Code ID Disable Code ID* Enable Factory ID Enable Set ID Set ID Set ID can be 0 ~ 2 alphanumerics for each symbology. - Page 21 MT8250P User’s Manual V1.3 Set ID – EAN-8 Set ID – UPC-A Set ID – UPC-E0 Set ID – Interleaved 2 of 5 Set ID – Matrix 2 of 5 Set ID – Industrial 2 of 5 Set ID – Code93 Set ID –...
-
Page 22: Data Length
MT8250P User’s Manual V1.3 Set ID – Aztec Set ID – MaxiCode Example: Set Code39 Set ID as XY" Step1: Scan “Set ID – Code39” Step2: Scan “X” “Y” in Appendix - Upper Case Alphabets Step3: Scan “Set ID – Code39”... -
Page 23: Postamble
MT8250P User’s Manual V1.3 Postamble Postamble can be up to 16 bytes of data. Set Postamble Example: Set XYZ123 as Postamble Step 1: Scan “Set Postamble” Step 2: Scan “X” “Y” “Z” “1” “2” “3” in Appendix - Upper Case Alphabets & Numbers Step 3: Scan “Set Postamble”... -
Page 24: Chapter 5 Symbologies
MT8250P User’s Manual V1.3 <TAB> <Space> <ESC> Chapter 5 Symbologies General Settings Enable All Symbologies Disable All Symbologies Enable All 1D Symbologies Disable All 1D Symbologies Enable All 2D Symbologies Disable All 2D Symbologies Note: When all symbologies are disabled, configuration barcodes are still readable. -
Page 25: Upc-A
MT8250P User’s Manual V1.3 UPC-A Enable/Disable UPC-A Enable UPC-A* Disable UPC-A Check Digit Send Check Digit* Not Send Check Digit UPC-A to EAN-13 Enable UPC-A to EAN-13 Disable UPC-A to EAN-13*... -
Page 26: Upc-E0
MT8250P User’s Manual V1.3 UPC-E0 Enable/Disable UPC-E0 Enable UPC-E0* Disable UPC-E0 Check Digit Send Check Digit* Not Send Check Digit UPC-E0 to UPC-A Enable UPC-E0 to UPC-A Disable UPC-E0 to UPC-A*... -
Page 27: Ean-8
MT8250P User’s Manual V1.3 EAN-8 Enable/Disable EAN-8 Enable EAN-8* Disable EAN-8 Check Digit Not Send Check Digit Send Check Digit*... -
Page 28: Ean-13
MT8250P User’s Manual V1.3 EAN-13 Enable/Disable EAN-13 Enable EAN-13* Disable EAN-13 Check Digit Not Send Check Digit Send Check Digit* ISBN Off* ISSN Off*... -
Page 29: Upc/Ean Supplement
MT8250P User’s Manual V1.3 UPC/EAN Supplement Enable 2/5-digit Supplement Disable 2/5-digit Supplement* Auto 2/5-digit Supplement... -
Page 30: Code 128
MT8250P User’s Manual V1.3 Code 128 Enable/Disable Code 128 Enable Code 128* Disable Code 128 GS1-128(UCC/EAN 128) Enable/Disable GS1-128 Enable GS1-128* Disable GS1-128... -
Page 31: Code128/Gs1-128 Min/Max Length
MT8250P User’s Manual V1.3 Code128/GS1-128 Min/Max Length Set Min Length Set Max Length (Default = 04) (Default = 50) Example: Set Min Length as 8, Max Length as 12 for Code128/GS1-128 Step1: Scan “Set Min Length” Step2: Scan “0” “8” in Appendix - Numbers Step3: Scan “Set Min Length”... -
Page 32: Code 39
MT8250P User’s Manual V1.3 Code 39 Enable/Disable Code 39 Enable Code 39* Disable Code 39 Verification Disable CDV* CDV & Send CD CDV & Not Send CD Start/Stop Not Send Start/Stop* Send Start/Stop*... -
Page 33: Full Ascii Code39
MT8250P User’s Manual V1.3 Full ASCII Code39 Enable Full ASCII Code39* Disable Full ASCII Code39 Code39 Min/Max Length Set Min Length Set Max Length (Default = 01) (Default = 50) Example: Set Min Length as 8, Max Length as 12 for Code39 Step1: Scan “Set Min Length”... -
Page 34: Code 32
MT8250P User’s Manual V1.3 Code 32 Enable/Disable Code 32 Enable Code 32 Disable Code 32* Notw: Please make sure Code39 is enabled with verification disabled before enabling Code32. Leading/Tailing Not Send Leading & Tailing Send Leading Only Send Tailing Only... -
Page 35: Code 93
MT8250P User’s Manual V1.3 Code 93 Enable/Disable Code 93 Enable Code 93* Disable Code 93 Code 93 Min/Max Length Set Min Length Set Max Length (Default = 04) (Default = 50) Example: Set Min Length as 8, Max Length as 12 for Code93 Step1: Scan “Set Min Length”... -
Page 36: Code 11
MT8250P User’s Manual V1.3 Code 11 Enable/Disable Code 11 Enable Code 11 Disable Code 11* Verification Disable CDV* Single Digit Double Digits Check Digit Send Check Digit Not Send Check Digit*... -
Page 37: Code 11 Min/Max Length
MT8250P User’s Manual V1.3 Code 11 Min/Max Length Set Min Length Set Max Length (Default = 04) (Default = 50) Example: Set Min Length as 8, Max Length as 12 for Code11 Step1: Scan “Set Min Length” Step2: Scan “0” “8” in Appendix - Numbers Step3: Scan “Set Min Length”... -
Page 38: Codabar (Nw-7)
MT8250P User’s Manual V1.3 Codabar (NW-7) Enable/Disable Codabar Enable Codabar* Disable Codabar Start/Stop Send Start/Stop Not Send Start/Stop* Codabar Min/Max Length Set Min Length Set Max Length (Default = 04) (Default = 50) Example: Set Min Length as 8, Max Length as 12 for Codabar Step1: Scan “Set Min Length”... -
Page 39: Interleaved 2 Of 5
MT8250P User’s Manual V1.3 Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 Enable Interleaved 2 of 5* Disable Interleaved 2 of 5 Verification Disable CDV* CDV & Send CD CDV & Not Send CD... -
Page 40: Interleaved 2 Of 5 Min/Max Length
MT8250P User’s Manual V1.3 Interleaved 2 of 5 Min/Max Length Set Min Length Set Max Length (Default = 05) (Default = 50) Example: Set Min Length as 8, Max Length as 12 for Interleaved 2 of 5 Step1: Scan “Set Min Length”... -
Page 41: Matrix 2 Of 5
MT8250P User’s Manual V1.3 Matrix 2 of 5 Enable Disable Matrix 2 of 5 Enable Matrix 2 of 5* Disable Matrix 2 of 5 Matrix2 of 5 Min/Max Length Set Min Length Set Max Length (Default = 04) (Default = 24) Example: Set Min Length as 8, Max Length as 12 for Matrix 2 of 5 Step1: Scan “Set Min Length”... -
Page 42: Industrial 2 Of 5
MT8250P User’s Manual V1.3 Industrial 2 of 5 Enable/Disable Industrial 2 of 5 Enable Industrial 2 of 5* Disable Industrial 2 of 5 Industrial 2 of 5 Min/Max Length Set Min Length Set Max Length (Default = 04) (Default = 24) Example: Set Min Length as 8, Max Length as 12 for Industrial 2 of 5 Step1: Scan “Set Min Length”... -
Page 43: Msi Plessey
MT8250P User’s Manual V1.3 MSI Plessey Enable/Disable MSI Plessey Enable MSI Plessey Disable MSI Plessey* Verification Send Check Digit* Not Send Check Digit Single Check Digit MOD10* Double Check Digits MOD10 Double Check Digits MOD10/MOD11... -
Page 44: Msi Plessey Min/Max Length
MT8250P User’s Manual V1.3 MSI Plessey Min/Max Length Set Min Length Set Max Length (Default = 04) (Default = 50) Example: Set Min Length as 8, Max Length as 12 for MSI Plessey Step1: Scan “Set Min Length” Step2: Scan “0” “8” in Appendix - Numbers Step3: Scan “Set Min Length”... -
Page 45: Gs1 Databar (Rss-14)
MT8250P User’s Manual V1.3 GS1 DataBar (RSS-14) Enable/Disable GS1 DataBar Enable GS1 DataBar* Disable GS1 DataBar GS1 DataBar Limited (RSS-Limited) Enable/Disable GS1 DataBar Limited Enable GS1 DataBar Limited* Disable GS1 DataBar Limited GS1 DataBar Expanded (RSS-Expanded) Enable/Disable GS1 DataBar Expanded... -
Page 46: Qr Code
MT8250P User’s Manual V1.3 QR Code Enable/Disable QR Code Enable QR Code* Disable QR Code Micro QR Code Enable/Disable Micro QR Code Enable Micro QR Code* Disable Micro QR Code Data Matrix Enable/Disable Data Matrix Enable Data Matrix* Disable Data Matrix... -
Page 47: Pdf417
MT8250P User’s Manual V1.3 PDF417 Enable/Disable PDF417 Enable PDF417* Disable PDF417 MicroPDF417 Enable/Disable MicroPDF417 Enable MicroPDF417* Disable MicroPDF417 Aztec Enable/Disable Aztec Enable Aztec* Disable Aztec... -
Page 48: Maxicode
MT8250P User’s Manual V1.3 MaxiCode Enable/Disable MaxiCode Enable MaxiCode Disable MaxiCode*... -
Page 49: Chapter 6 Appendix
MT8250P User’s Manual V1.3 Chapter 6 Appendix Appendix - Numbers... -
Page 50: Appendix - Upper Case Alphabets
MT8250P User’s Manual V1.3 Appendix - Upper Case Alphabets... - Page 51 MT8250P User’s Manual V1.3...
-
Page 52: Appendix - Lower Case Alphabets
MT8250P User’s Manual V1.3 Appendix - Lower Case Alphabets... - Page 53 MT8250P User’s Manual V1.3...
-
Page 54: Appendix - Control Codes
MT8250P User’s Manual V1.3 Appendix – Control Codes... - Page 55 MT8250P User’s Manual V1.3...
-
Page 56: Appendix - Symbols
MT8250P User’s Manual V1.3 Appendix – Symbols &... - Page 57 MT8250P User’s Manual V1.3 < > “ ‘...
- Page 58 MT8250P User’s Manual V1.3...
-
Page 59: Appendix - Function Keys
MT8250P User’s Manual V1.3 Appendix – Function Keys Home Enter (Numeric Key) -
Page 60: Appendix - Navigation Keys
MT8250P User’s Manual V1.3 Appendix – Navigation Keys Cursor Left Cursor Right Cursor Up Cursor Down Page Up Page Down Back Tab Enter... -
Page 61: Appendix - Modifier Keys
MT8250P User’s Manual V1.3 Appendix – Modifier Keys Alt (Left) make *1 Alt (Left) break Alt (Right) make Alt (Right) break Shift (Left) make *2 Shift (Left) break Shift (Right) make Shift (Right) break Win (Left) make Win (Left) break... -
Page 62: Appendix - Abort
MT8250P User’s Manual V1.3 Ctrl (Left) make *3 Ctrl (Left) break Ctrl (Right) make Ctrl (Right) break Note: *1: When “Alt (Left) make” is programmed, please scan “Alt (Left) break” to resume barcode setting. *2: When “Shift (Left) make” is programmed, please scan “Shift (Left) break” to resume barcode setting. -
Page 63: Appendix - Default Table
MT8250P User’s Manual V1.3 Appendix - Default Table Function Default Remark General Settings Barcode Configurability Beep Tone Medium (2.7KHz) Vibrator Indicator LED Data Format UTF-8/Shift-JIS to Unicode Conversion HT/CR/ESC Converts to TAB/ENTER/ESCAPE Function Code Conversion Numeric Key Control Code Output Method... - Page 64 MT8250P User’s Manual V1.3 Set ID Data Length Preamble Postamble Terminator Symbologies General Settings UPC-A Enable/Disable Check Digit Send UPC-A to EAN-13 UPC-E0 Enable/Disable Check Digit Send UPC-E0 to UPC-A EAN-8 Enable/Disable Check Digit Send EAN-13 Enable/Disable Check Digit Send...
- Page 65 MT8250P User’s Manual V1.3 Code 93 Enable/Disable Min Length Max Length Code 11 Enable/Disable Verification Disable CDV Check Digit Not Send Min Length Max Length Codabar Enable/Disable Start/Stop Not Send Min Length Max Length Interleaved 2 of 5 Enable/Disable Verification...
- Page 66 MT8250P User’s Manual V1.3 Enable/Disable QR Code Enable/Disable Micro QR Code Enable/Disable Data Matrix Enable/Disable PDF417 Enable/Disable MicroPDF417 Enable/Disable Aztec Enable/Disable MaxiCode Enable/Disable...
-
Page 67: Appendix - Factory Id
MT8250P User’s Manual V1.3 Appendix - Factory ID Symbology Code ID UPC-E0 UPC-A EAN-8 EAN-13 Code 128/GS1-128/ISBT 128 Code 39/Code32 Code 93 Code 11 Codabar Interleaved 2 of 5 Matrix 2 of 5 Industrial 2 of 5 GS1 DataBar MSI Plessey... -
Page 68: Appendix - Ascii Table
MT8250P User’s Manual V1.3 Appendix - ASCII Table Note: ASCII 0~31 are non-printable characters, ASCII 32~127 are printable characters. ASCII NUL (Null char.) SOH (Start of Header) STX (Start of Text) ETX (End of Text) EOT (End of Transmission) ENQ (Enquiry) - Page 69 MT8250P User’s Manual V1.3 # (Number Sign) $ (Dollar Sign) % (Percent) & (Ampersand) ` (Single Quote) ( (Right / Closing Parenthesis) ) (Right / Closing Parenthesis) * (Asterisk) + (Plus) , (Comma) - (Minus / Dash) . (Dot) / (Forward Slash) : (Colon) ;...
- Page 70 MT8250P User’s Manual V1.3 [ (Left / Opening Bracket) \ (Back Slash) ] (Right / Closing Bracket) ^ (Caret / Circumflex) _ (Underscore) ' (Grave Accent)
- Page 71 MT8250P User’s Manual V1.3 { (Left/ Opening Brace) | (Vertical Bar) } (Right/Closing Brace) ~ (Tilde) DEL (Delete)
-
Page 72: Version History
MT8250P User’s Manual V1.3 Version History Date Description Issued 2021.07.12 Initial Release Shaw 2021.08.31 Revised configurable range for Min/Max length Shaw 2022.07.05 Added Control Code Output Method Shaw Added MaxiCode Deleted BCC (Binary Check Character) 2022.12.27 FW: HM3-r-1.03.G1 Shaw Added Shift-JIS to Unicode Conversion...
