MT8230B User's Manual V1.5

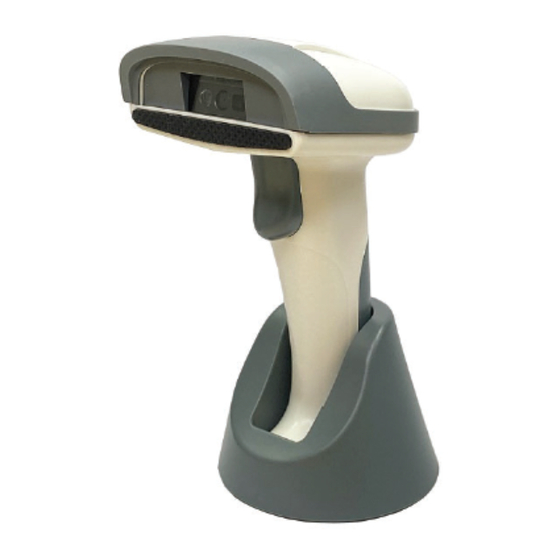

MT8230B
2D Wireless Scanner
User's Manual
Version 1.5
DATE: 2021/12/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT8230B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marson MT8230B

Summary of Contents for Marson MT8230B

  • Page 1 MT8230B User’s Manual V1.5 MT8230B 2D Wireless Scanner User’s Manual Version 1.5 DATE: 2021/12/23...

  • Page 2: Table Of Contents

    MT8230B User’s Manual V1.5 Table of Content CHAPTER 1 INTRODUCTION ............................... 6 ................................6 RODUCT EQUIREMENTS .................................... 7 PECIFICATIONS ..................................9 EEPER NDICATION LED I .................................... 9 NDICATION CHAPTER 2 GENERAL SETTINGS ............................ 10 ..................................10 ACTORY EFAULT ..................................10...
  • Page 3 MT8230B User’s Manual V1.5 ................................27 DENTICAL NTERVAL ................................28 LLUMINATION AND IMER Illumination ..................................... 28 Aimer ...................................... 29 CHAPTER 4 SYMBOLOGIES .............................. 30 ..................................30 ENERAL ETTINGS ..................................30 NVERSE ARCODE .................................. 31 IRRORED ARCODE UPC-A ......................................31 Enable/Disable UPC-A ................................. 31 UPC-A to EAN-13 .................................
  • Page 4 MT8230B User’s Manual V1.5 Enable/Disable Matrix 2/5 ..............................38 Length ..................................... 39 Verification ..................................... 39 Check Digit .................................... 39 2/5 .................................... 39 NDUSTRIAL Enable/Disable Industrial 2/5 .............................. 39 Length ..................................... 40 2/5 ..................................... 40 TANDARD Enable/Disable Standard 2/5 .............................. 40 Length .....................................
  • Page 5 MT8230B User’s Manual V1.5 ......................................47 ZTEC ....................................47 ) ............................47 HINESE ENSIBLE CHAPTER 5 CONFIGURATION BARCODE ........................48 ..................................48 UMERIC ARCODE ......................................49 ANCEL ................................50 ISPLAYABLE HARACTER ................................55 ONTROL HARACTER APPENDIX....................................59 A – D ..............................

  • Page 6: Chapter 1 Introduction

    USB HID interface without the need of any driver. Supported by a 1620mAh battery, MT8230B helps user operate around the clock with less downtime ensuring mobile productivity during the entire busy shift.

  • Page 7: Specifications

    MT8230B User’s Manual V1.5 Specifications Optic & Performance White LED Light Source Visible red LED Sensor 640 x 480 Scan Rate 60 Frames/Sec Resolution 4mil / 0.1mm Horizontal 38° Scan Angle Vertical 29° Pitch Angle ±55° Skew Angle ±55° Roll Angle 360°...
  • Page 8 MT8230B User’s Manual V1.5 Connectivity Radio Bluetooth 4.2 & 3.0 (Class 2) Range 33 ft/ 10m (line of sight) Scanner: BT HID / BT SPP / Cradle Mode / Interface / Profile Memory Mode Cradle: USB HID / RS232 (Factory configured)

  • Page 9: Beeper Indication

    MT8230B User’s Manual V1.5 Beeper Indication Beeper Status Wireless connection Single short beep Good read Single long beep Power down Two beeps Wireless disconnection Two beeps (high-low) Succesful configuration Two beeps (low-high) Good read (Memory Mode) Three short beeps Reads a barcode while disconnected...

  • Page 10: Chapter 2 General Settings

    MT8230B User’s Manual V1.5 Chapter 2 General Settings Factory Default Scanning below configuration barcode will reset all parameters to factory default settings (the ones with asterisk mark). Please note that scanning the left Factory Default (Chapter 2) will reset all General Settings to default, and scanning the right Factory Default (Chapter 3~4) will reset all Reading Mode and Symbologies settings to default.

  • Page 11: Bluetooth Profile

    MT8230B User’s Manual V1.5 Bluetooth Profile Cradle Mode (USB version) Cradle Mode allows barcode data to be transmitted to host device via the built-in Bluetooth transponder in charging cradle with a cable, providing wireless connectivity to the host deivce that does not have built-in Bluetooth adapter.

  • Page 12: Cradle Mode (Rs232 Version)

    MT8230B User’s Manual V1.5 Cradle Mode (RS232 version) Cradle Mode allows barcode data to be transmitted to host device via the built-in Bluetooth transponder in charging cradle with a cable, providing wireless connectivity to the host deivce that does not have built-in Bluetooth adapter. Follow below steps: 1.

  • Page 13: Bt Hid

    MT8230B User’s Manual V1.5 BT HID BT HID is compatible with iOS, Android and Windows and requires applications that accept keyboard data. After scanning BT HID, press and hold the trigger until two beeps & blue/green LED flashing to make the scanner discoverable. Folllow below steps: 1.

  • Page 14: Disconnect

    MT8230B User’s Manual V1.5 Disconnect Scanning Disconnect allows the scanner to disconnect from the host, or become discoverable, which helps the host to find the scanner in the discovered device list (in BT SPP, BT HID mode) or prompts the charging cradle to connect to the scanner (in Cradle Mode).

  • Page 15: Memory Mode

    MT8230B User’s Manual V1.5 Memory Mode Memory Mode enables the scanner to store barcode data (20,000 EAN-13 barcode) and transmit it in batch to the host device when needed. Memory Mode can be used among all the Bluetooth profiles (Cradle Mode, BT HID, BT SPP). Follow below steps: 1.

  • Page 16: Sleep Timeout

    MT8230B User’s Manual V1.5 Sleep Timeout Sleep Timeout = 30 seconds Sleep Timeout = 1 minute Sleep Timeout = 2 minutes Sleep Timeout = 5 minutes* Sleep Timeout = 10 minutes Sleep Timeout = 30 minutes Sleep Timeout = Never...

  • Page 17: Good Read Indicator

    MT8230B User’s Manual V1.5 Set Bluetooth Device ID Check Bluetooth Device ID Good Read Indicator Buzzer Low Volume Medium Volume High Volume* Vibrator Vibrator On* Vibrator Off...

  • Page 18: Data Format

    MT8230B User’s Manual V1.5 Data Format Upper / Lower Case All Lower Case All Upper Case Invert Case As Is* Keyboard Layout English (US)* English (UK) German German (iOS keyboard) French French (Belgian)
  • Page 19 MT8230B User’s Manual V1.5 French (Canadian) Spanish Spanish (Mexican) Italian Italian (142) Japanese Universal Portuguese Portuguese (Brazilian) Russian Czech Turkish Q...
  • Page 20 MT8230B User’s Manual V1.5 Turkish F Swedish / Finnish Danish Norwegian Croatian Swiss (German) Swiss (French) Dutch Hungarian Polish Argentine Slovak...

  • Page 21: Data Transmission Speed

    MT8230B User’s Manual V1.5 Data Transmission Speed Data Transmission Speed only applies to BT HID interface. Data Transmission Speed = High Data Transmission Speed = Medium* Data Transmission Speed = Low Data Transmission Speed = Ultra Low Encoding Format 1. Big 5 (Notepad, Excel).

  • Page 22: Terminator

    MT8230B User’s Manual V1.5 Input format = Auto* Output format 1 = Unicode Output format 2 = UTF8 3. Shift JIS (Word). To output double-byte characters (Japanese only) encoded in Shift JIS to Word, Please scan below 3 configuration barcodes:...

  • Page 23: Gs Replacement

    MT8230B User’s Manual V1.5 Terminator = Tab Terminator = None Terminator = CR + LF GS Replacement GS Replacement enables the scanner to replace GS <0x1D> in barcode data by a specific character. Set GS Replacement Clear GS Replacement To set GS Replacement, please follow below steps: 1.

  • Page 24: Preamble / Postamble

    MT8230B User’s Manual V1.5 Preamble / Postamble Up to 32 bytes of characters can be set as Preamble / Postamble. Set Preamble Set Postamble Exit Setup To set Preamble / Postamble, please follow below steps: 1. Scan Set Preamble or Set Postamble 2.

  • Page 25: Chapter 3 Reading Mode

    Trigger Mode* Toggle Mode In toggle mode, MT8230B starts scanning barcode when trigger is pressed, and keeps scanning barcode after trigger is released. When a barcode is successfully scanned or LED timeout expires, the scanning stops. Toggle Mode Continuous Mode In continuous mode, MT8230B keeps scanning barcodes continuously.

  • Page 26: Auto-Sensing Mode

    Set Scan Interval Auto-sensing Mode In auto-sensing mode, MT8230B automatically starts scanning barcode when image change is detected within its field of view. When a barcode is successfully scanned or LED timeout expires, the scanning stops and will restarts scanning if any image change is detected.

  • Page 27: Led Timeout

    MT8230B User’s Manual V1.5 LED Timeout LED timeout is the maximum scanning duration. When LED timeout expires, the scanning operation stops automatically. The configurable range is from 0.5 to 25.5s (unit = 0.1s); default is 3s. To configure LED timeout, scan Set LED Timeout, scan three numeric barcodes (see Chapter 5).

  • Page 28: Illumination And Aimer

    MT8230B User’s Manual V1.5 default is 500ms. To configure identical read interval, scan Set Identical Read Interval, scan two numeric barcodes (see Chapter 5). For example, scan ‘0’ ‘5’ respectively for 500ms. Unlimited Set Identical Read Interval Illumination and Aimer...

  • Page 29: Aimer

    MT8230B User’s Manual V1.5 Aimer Normal* Always Off Always On Flash Not Flash...

  • Page 30: Chapter 4 Symbologies

    MT8230B User’s Manual V1.5 Chapter 4 Symbologies General Settings Enable All Symbologies Disable All Symbologies Enable All 1D Symbologies Disable All 1D Symbologies Enable All 2D Symbologies Disable All 2D Symbologies Inverse Barcode Enable All 1D Inverse Barcodes Disable All 1D Inverse Barcodes*...

  • Page 31: Mirrored Barcode

    MT8230B User’s Manual V1.5 Enable Inverse QR Code Disable Inverse QR Code* Mirrored Barcode Enable Mirrored Data Matrix Disable Mirrored Data Matrix* Enable Mirrored QR Code Disable Mirrored QR Code* UPC-A Enable/Disable UPC-A Enable UPC-A* Disable UPC-A UPC-A to EAN-13...

  • Page 32: System Number

    MT8230B User’s Manual V1.5 Send Check Digit* Not Send Check Digit System Number Send System Number* Not Send System Number Supplement Disable 2-digit Supplement* Enable 2-digit Supplement Disable 5-digit Supplement* Enable 5-digit Supplement Supplement Required Disable Supplement Required* Enable Supplement Required...

  • Page 33: Upc-E

    MT8230B User’s Manual V1.5 UPC-E Enable/Disable UPC-E Enable UPC-E* Disable UPC-E UPC-E to UPC-A Disable UPC-E to UPC-A* Enable UPC-E to UPC-A Enable/Disable UPC-E1 Enable UPC-E1* Disable UPC-E1 Check Digit Send Check Digit* Not Send Check Digit...

  • Page 34: System Number

    MT8230B User’s Manual V1.5 System Number Send System Number* Not Send System Number Supplement Disable 2-digit Supplement* Enable 2-digit Supplement Disable 5-digit Supplement* Enable 5-digit Supplement Supplement Required Disable Supplement Required* Enable Supplement Required EAN-8 Enable/Disable EAN-8...

  • Page 35: Check Digit

    MT8230B User’s Manual V1.5 Enable EAN-8* Disable EAN-8 Check Digit Send Check Digit* Not Send Check Digit Supplement Disable 2-digit Supplement* Enable 2-digit Supplement Disable 5-digit Supplement* Enable 5-digit Supplement Supplement Required Disable Supplement Required* Enable Supplement Required...

  • Page 36: Ean-13

    MT8230B User’s Manual V1.5 EAN-13 Enable/Disable EAN-13 Enable EAN-13* Disable EAN-13 Check Digit Send Check Digit* Not Send Check Digit Supplement Disable 2-digit Supplement* Enable 2-digit Supplement Disable 5-digit Supplement* Enable 5-digit Supplement Bookland EAN (ISBN)

  • Page 37: Supplement Required

    MT8230B User’s Manual V1.5 Disable Bookland EAN* Enable Bookland EAN Supplement Required Disable Supplement Required* Enable Supplement Required Code128 Enable Code128* Disable Code128 GS1-128 (UCC/EAN-128) Enable GS1-128* Disable GS1-128 Interleaved 2/5 Enable/Disable Interleaved 2/5...

  • Page 38: Min/Max Length

    MT8230B User’s Manual V1.5 Enable Interleaved 2/5* Disable Interleaved 2/5 Min/Max Length To configure specific length, please scan Set Length, and scan four numeric barcodes (see Chapter 5). For example, if you want minimum length of 4 digits and maximum length of 20 digits, scan ‘0’, ‘4’, ‘2’, ‘0’...

  • Page 39: Length

    MT8230B User’s Manual V1.5 Enable Matrix 2/5 Disable Matrix 2/5* Length To configure specific length, please scan Set Length, and scan four numeric barcodes (see Chapter 5). For example, if you want minimum length of 4 digits and maximum length of 20 digits, scan ‘0’, ‘4’, ‘2’, ‘0’...

  • Page 40: Length

    MT8230B User’s Manual V1.5 Enable Industrial 2/5 Disable Industrial 2/5* Length To configure specific length, please scan Set Length, and scan four numeric barcodes (see Chapter 5). For example, if you want minimum length of 4 digits and maximum length of 20 digits, scan ‘0’, ‘4’, ‘2’, ‘0’...

  • Page 41: Code39

    MT8230B User’s Manual V1.5 Code39 Enable/Disable Code39 Enable Code39* Disable Code39 Send Start & Stop Send Start & Stop Not Send Start & Stop* Length Any Length* Verification Enable Verification Disable Verification*...

  • Page 42: Check Digit

    MT8230B User’s Manual V1.5 Check Digit Send Check Digit Not Send Check Digit* Full ASCII Code39 Enable/Disable Full ASCII Code39 Enable Full ASCII Code39 Disable Full ASCII Code39* Code32 Enable/Disable Code32 Disable Code32* Enable Code32 Code32 Preamble (‘A’) Disable* Enable...

  • Page 43: Code93

    MT8230B User’s Manual V1.5 Code93 Enable/Disable Code93 Enable Code93 Disable Code93* Length Any Length* Code11 Enable/Disable Code11 Enable Code11 Disable Code11* Length Any Length*...

  • Page 44: Verification

    MT8230B User’s Manual V1.5 Verification Enable Verification 1-Digit Verification 2-Digit Verification Check Digit Send Check Digit Not Send Check Digit* Codabar Enable/Disable Codabar Enable Codabar Disable Codabar* Length Any Length*...

  • Page 45: Start & Stop Format

    MT8230B User’s Manual V1.5 Start & Stop Format Start & Stop = ABCD/ABCD* Start & Stop = ABCD/TN*E Send Start & Stop Send Start & Stop* Not Send Start & Stop MSI Plessey Enable/Disable Plessey Enable MSI Plessey Disable MSI Plessey*...

  • Page 46: Gs1 Databar

    MT8230B User’s Manual V1.5 GS1 Databar Enable GS1 Databar Disable GS1 Databar* GS1 Composite Enable GS1 Composite Disable GS1 Composite* QR Code (incl. Micro QR Code) Enable QR Code* Disable QR Code Data Matrix Enable Data Matrix* Disable Data Matrix...

  • Page 47: Aztec

    MT8230B User’s Manual V1.5 Enable PDF417* Disable PDF417 Aztec Enable Aztec Disable Aztec* MaxiCode Enable MaxiCode Disable MaxiCode* Chinese Sensible Code (Han Xin) Enable Disable*...

  • Page 48: Chapter 5 Configuration Barcode

    MT8230B User’s Manual V1.5 Chapter 5 Configuration Barcode Numeric Barcode Below configuration barcodes are only applicable for Length configuration.

  • Page 49: Cancel

    MT8230B User’s Manual V1.5 Cancel To cancel the wrong data input during configuration process (e.g. ), scan Cancel. Cancel...

  • Page 50: Displayable Character

    MT8230B User’s Manual V1.5 Displayable Character Below configuration barcodes are only applicable for GS Replacement and Preamble / Postamble configuration. Configuration Configuration Configuration Character Character Character barcode barcode barcode Space “ &...
  • Page 51 MT8230B User’s Manual V1.5 < >...
  • Page 52 MT8230B User’s Manual V1.5...
  • Page 53 MT8230B User’s Manual V1.5 ‘...
  • Page 54 MT8230B User’s Manual V1.5 Ç ç...

  • Page 55: Control Character

    MT8230B User’s Manual V1.5 Control Character Below configuration barcodes are only applicable for GS Replacement and Preamble / Postamble configuration. Four types of Character Set are available. Each set has different definition for each configuration barcode. Default is Character Set 0.
  • Page 56 MT8230B User’s Manual V1.5 Right Ctrl+C Ctrl+C Alt+003 Arrow Arrow Down NULL Ctrl+D Alt+004 Arrow Arrow Left NULL Ctrl+E NULL Alt+005 Arrow Right NULL Ctrl+F NULL Alt+006 Arrow Shift+ NULL Ctrl+G Enter Alt+007 Back Back Back Left Alt+008 Space Space...
  • Page 57 MT8230B User’s Manual V1.5 Enter Enter Enter Enter Alt+013 Page Ctrl+N Insert Alt+014 Page Ctrl+O Alt+015 Down Ctrl+P Alt+016 NULL Ctrl+Q Home Alt+017 Print NULL Ctrl+R Alt+018 Screen Back NULL Ctrl+S Alt+019 Space Shift NULL Ctrl+T Alt+020 Ctrl+U Alt+021 Ctrl+V...
  • Page 58 MT8230B User’s Manual V1.5 Ctrl+W Alt+023 Ctrl+X Alt+024 Ctrl+Y Alt+025 NULL Ctrl+Z Alt+026 Ctrl+[ Alt+027 ALT+0 Ctrl+\ Alt+028 ALT+0 Ctrl+] Alt+029 NULL Ctrl+^ Alt+030 NULL Ctrl+_ Alt+031...

  • Page 59: Appendix

    MT8230B User’s Manual V1.5 Appendix Appendix A – Default Table Function Default Remark Bluetooth Profile USB HID Cradle Mode iOS Touch Keyboard Enable Memory Mode Sleep Timeout 5 minutes Bluetooth Device ID BarCode Scanner Good Read Indicator Buzzer High Volume...
  • Page 60 MT8230B User’s Manual V1.5 Inverse QR Code Disable Mirrored Data Matrix Disable Mirrored QR Code Disable UPC-A Enable/Disable Enable UPC-A to EAN13 Disable Check Digit Send System Number Send 2-digit Supplement Disable 5-digit Supplement Disable Supplement Required Disable UPC-E Enable/Disable...
  • Page 61 MT8230B User’s Manual V1.5 Check Digit Not Send Matrix 2/5 Enable/Disable Disable Length Any Length Verification Disable Check Digit Not Send Industrial 2/5 Enable/Disable Disable Length Any Length Standard 2/5 Enable/Disable Disable Length Any Length Code39 Enable/Disable Enable Start & Stop...
  • Page 62 MT8230B User’s Manual V1.5 GS1 Composite Enable/Disable Disable QR Code Enable/Disable Enable Data Matrix Enable/Disable Enable PDF417 Enable/Disable Enable Aztec Enable/Disable Disable MaxiCode Enable/Disable Disable Chinese Sensible Code (Han Xin) Enable/Disable Disable...

  • Page 63: Version History

    MT8230B User’s Manual V1.5 Version History Date Description Issued 2021.09.27 Initial Release Shaw 2021.10.21 Added Disconnect Shaw 2021.11.03 Updated Scan Rate Shaw 2021.11.17 Added USB VCP & RS232 Cradle Mode Shaw 2021.12.16 Updated wireless description, Beeper Indication Shaw Removed Code ID 2021.12.23...
