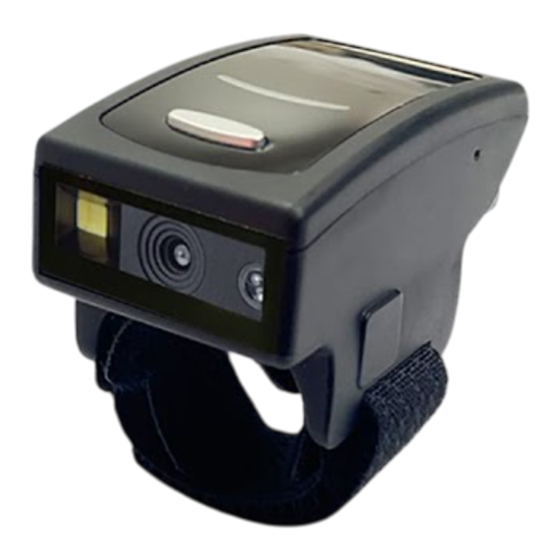

2d ring scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MT582W User's Manual V1.0
MT582W
2D Ring Scanner
User's Manual
Version 1.0
DATE: 2023/02/01
___________________________________________________________________________________
1

Advertisement

Table of Contents
loading

Related Manuals for Marson MT582W

Summary of Contents for Marson MT582W

  • Page 1 MT582W User’s Manual V1.0 MT582W 2D Ring Scanner User’s Manual Version 1.0 DATE: 2023/02/01 ___________________________________________________________________________________...

  • Page 2: Table Of Contents

    MT582W User’s Manual V1.0 Table of Content Introduction ....................12 1.1 Manual Description ....................12 1.2 Product Requirements ....................12 1.3 Specifications ......................13 1.4 Beeper Indication ....................... 14 1.5 LED Indication ......................15 1.6 Barcode Configurability ..................... 16 1.7 Factory Default ......................16 1.8 Custom Default ......................
  • Page 3 MT582W User’s Manual V1.0 3.2 Trigger Mode ....................... 27 3.2.1 Trigger Condition ....................27 3.2.2 LED Timeout ......................28 3.2.3 Sleep Mode ......................28 3.2.4 Sleep Timeout ..................... 28 3.2.5 Identical Read Interval ..................29 3.3 Auto-sensing Mode ....................30 3.3.1 LED Timeout ......................
  • Page 4 MT582W User’s Manual V1.0 5.5 Good Read LED and Duration ................. 41 5.6 Good Read LED Mode ....................41 5.7 Not Good Read (NGR) Message ................42 Data Format ....................43 6.1 General Settings ......................43 6.2 Data Length ......................... 43 6.3 STX (0x02) ........................
  • Page 5 MT582W User’s Manual V1.0 6.9.1 Data Output ......................52 6.9.2 Set Data Length ....................53 6.9.3 Hide Start/Center/End ..................53 6.9.4 Set Data Length of a Symbology ..............54 6.9.5 Clear Data Length ....................56 6.10 Encoding Format ...................... 56 6.10.1 Input Encoding Format ..................
  • Page 6 MT582W User’s Manual V1.0 7.5.2 Enable/Disable EAN-8 ..................63 7.5.3 Check Digit ......................64 7.5.4 Supplement ......................64 7.5.5 Supplement Required ..................64 7.5.6 EAN-8 Expand to EAN-13 ................. 65 7.6 EAN-13 ........................65 7.6.1 Reset to Default ....................65 7.6.2 Enable/Disable EAN-13 ..................
  • Page 7 MT582W User’s Manual V1.0 7.8.5 Supplement ......................70 7.8.6 Supplement Required ..................70 7.8.7 UPC-E1 Expand to UPC-A ................71 7.9 UPC-A .......................... 71 7.9.1 Reset to Default ....................71 7.9.2 Enable/Disable UPC-A ..................71 7.9.3 UPC-A Expand to EAN-13 ................71 7.9.4 Check Digit ......................
  • Page 8 MT582W User’s Manual V1.0 7.13 IATA 2/5........................78 7.13.1 Reset to Default ....................78 7.13.2 Enable/Disable IATA 2/5 ................. 78 7.13.3 Min/Max Length ....................79 7.13.4 Verification ......................79 7.14 Code39 ........................80 7.14.1 Reset to Default ....................80 7.14.2 Enable/Disable Code39 ................... 80 7.14.3 Send Start &...
  • Page 9 MT582W User’s Manual V1.0 7.17.1 Reset to Default ....................86 7.17.2 Enable/Disable Code11 ................... 86 7.17.3 Min/Max Length ....................87 7.17.4 Verification ......................87 7.18 MSI Plessey ......................88 7.18.1 Reset to Default ....................88 7.18.2 Enable/Disable MSI Plessey ................88 7.18.3 Min/Max Length ....................
  • Page 10 MT582W User’s Manual V1.0 7.29 MicroPDF417 ......................94 7.30 Aztec .......................... 95 7.31 MaxiCode ........................95 7.32 HanXin ........................95 7.33 DotCode ........................95 Configuration Barcode .................. 97 8.1 Data 0~F ........................97 8.2 Save & Abort ....................... 98 Appendix ........................ 99 Appendix A - Default Table .....................
  • Page 11 MT582W User’s Manual V1.0 Appendix E – Control Code Table................115 Appendix F – Symbology Index Table ................. 116 Version History ....................118 ___________________________________________________________________________________...

  • Page 12: Introduction

    1. Introduction 1.1 Manual Description A wearable scanner weighing at 14g, MT582W 2D Wearable Ring Scanner is the most lightweight in the world. When paired with the mobile platform, MT582W provides hands-free freedom to the user who needs to perform multi-tasks while always on the move.

  • Page 13: Specifications

    MT582W User’s Manual V1.0 1.3 Specifications Optic & Performance White LED Light Source Visible red LED Sensor 640 x 480 Resolution 3mil/ 0.075mm Horizontal 43° Scan Angle Vertical 23° Pitch Angle ±55° Skew Angle ±55° Roll Angle 360° Print Contrast Ratio...

  • Page 14: Beeper Indication

    MT582W User’s Manual V1.0 USB HID Interface/ Profile USB VCP User Environment Operating Temperature -20 ~ 60˚C Storage Temperature -40 ~ 70˚C Humidity 0% ~ 95%RH (Non-condensing) Drop Durability 1.5M Sealing IP42 Ambient Light 100,000 Lux (Sunlight) Code 128, EAN-13, EAN8-, UPC-E, UPC-A,...

  • Page 15: Led Indication

    MT582W User’s Manual V1.0 1.5 LED Indication During scanning operation (pressing touch-activated buttons): Status Green Good read During button preference configuration (pressing function button): Status Enable Left Button Only (Right-handed User) Blue Enable Right Button Only (Left-handed User) Purple Enable Both Button...

  • Page 16: Barcode Configurability

    1.8 Custom Default You can create your own custom default. Scan Save Custom Default configuration barcode below and all the current settings of MT582W will be saved to your custom default, overwriting, if any, the previous one. Scan Custom Default to reset MT582W to the custom default settings.

  • Page 17: Check Version

    MT582W User’s Manual V1.0 Save Custom Default Custom Default 1.9 Check Version To check firmware version, please scan below configuration barcode. Check Version ___________________________________________________________________________________...

  • Page 18: Interface

    2. Interface MT582W provides UART serial interface and multiple USB interfaces to communicate with the host. Through communication interface, it is possible to receive barcode data and send command to control MT582W at the same time. 2.1 USB HID Scanning below configuration barcode will set MT582W to USB HID interface, in which MT582W becomes an HID keyboard device.

  • Page 19: Polling Rate

    MT582W User’s Manual V1.0 Set Intercharacter Delay 2.1.2 Polling Rate The smaller the value, the faster MT582W sends characters to the host. If the host loses characters, please increase polling rate. 1ms* 10ms ___________________________________________________________________________________...

  • Page 20: Keyboard Layout

    MT582W User’s Manual V1.0 2.1.3 Keyboard Layout English (USA)* French Italian German Spanish Turkish Q English (UK) Belgian Portuguese (Portugal) Portuguese (Brazil) Hungarian Turkish F ___________________________________________________________________________________...
  • Page 21 MT582W User’s Manual V1.0 Greek Swedish Finnish Danish Czech Austrian Italian (142) Russian Russian (Typewriter) Arabian Irish Polish (214) Polish (Programmers) Dutch Japanese Thai ___________________________________________________________________________________...

  • Page 22: Alt Code

    MT582W User’s Manual V1.0 Croatian Romanian Bulgarian Slovak North Korean Ukrainian Swiss French Hebrew Vietnamese 2.1.4 Alt Code To ensure that all ASCII code (0x00~0xFF) can be transmitted correctly regardless of keyboard layout, Alt Code can be enabled. When Alt Code is enabled, transmission speed will be slower because all keyboard data is sent by key combinations.

  • Page 23: Control Mode

    MT582W User’s Manual V1.0 Mode 3: Send all ASCII code (0x00~0xFF) by Alt Code. Note: When Mode 3 and Control Mode are enabled at the same time, Control Code (0x00~0x1F) will be sent by Ctrl key combinations. Disable Alt Code*...

  • Page 24: Capslock Mode

    All Upper Case All Lower Case 2.1.7 End of Data Symbol When enabled, MT582W terminates the data output beyond “\0” symbol within a barcode. Disable “\0” as End of Data Symbol Enable “\0” as End of Data Symbol* 2.1.8 GS Replacement GS (0x1D) stands for Group Separator and is used as delimiters to mark fields of data structures.

  • Page 25: Crlf Replacement

    MT582W User’s Manual V1.0 Disable GS Replacement* Replaced by Ç Replaced by | Replaced by ^] Replaced by ] Replaced by <GS> 2.1.9 CRLF Replacement Letter case of all alphabets (A~Z) can be altered by below configurations. Disable CRLF Replacement*...

  • Page 26: Usb Vcp

    MT582W User’s Manual V1.0 2.2 USB VCP When configured to USB VCP interface, MT582W can communicate with the host via USB Virtual COM, which requires VCP driver to be installed. USB VCP 2.3 HID POS When configured to USB HID POS interface, MT582W can communicate with the host via USB HID, which requires no driver.

  • Page 27: Reading Mode

    3. Reading Mode 3.1 Batch Mode In batch mode, MT582W starts scanning barcode when trigger pin = low. If trigger stays low, the scanning continues, with each barcode scanned once. To restart a new batch reading, the host must reset trigger level first and then pull trigger low again.

  • Page 28: Led Timeout

    Set LED Timeout 3.2.3 Sleep Mode In trigger mode, MT582W can enter sleep mode after sleep timeout expires, where MT582W consumes much less power. Hardware trigger signal or communication from the host can wake up MT582W. Please note that sleep mode is only applicable for UART interface.

  • Page 29: Identical Read Interval

    MT582W User’s Manual V1.0 500ms* 1000ms Set Sleep Timeout 3.2.5 Identical Read Interval When identical read interval = 0ms, a barcode can be scanned only once. When identical read interval > 0ms, a barcode (or an identical one) can be re-scanned after the defined amount of interval expires.

  • Page 30: Auto-Sensing Mode

    3.3 Auto-sensing Mode In auto-sensing mode, MT582W automatically starts scanning barcode when image change is detected within its field of view. MT582W can still be triggered if trigger is pull low. When trigger level is reset or LED timeout expires, the scanning stops.

  • Page 31: Identical Read Interval

    MT582W User’s Manual V1.0 3000ms* 5000ms Set LED Timeout 3.3.2 Identical Read Interval When identical read interval = 0ms, a barcode can be scanned only once. When identical read interval > 0ms, a barcode (or an identical one) can be re-scanned after the defined amount of interval expires.

  • Page 32: Image Stabilization Timeout

    MT582W User’s Manual V1.0 1000ms 1500ms* 3000ms 5000ms Set Identical Read Interval 3.3.3 Image Stabilization Timeout The configurable range is from 0 to 1600ms; default is 60ms. Please refer to Appendix D for configuration method of Set Image Stabilization Timeout.

  • Page 33: Stop Mode

    Mode 1: In auto-sensing mode, the LEDs turn off immediately after a barcode is read. MT582W then continues to detect image change. Mode 2: In auto-sensing mode, MT582W keeps scanning and will not try to detect image change when no barcode is read until LED timeout expires...

  • Page 34: Led Timeout

    MT582W User’s Manual V1.0 Continuous Mode 3.4.1 LED Timeout LED timeout is the maximum scanning duration. When LED timeout expires, the scanning operation stops automatically. The configurable range is from 1000 to 3600000ms; default is 3000ms. Please refer to Appendix D for configuration method of Set LED Timeout.

  • Page 35: Identical Read Interval

    MT582W User’s Manual V1.0 Set Scan Interval 3.4.3 Identical Read Interval When identical read interval = 0ms, a barcode can be scanned only once. When identical read interval > 0ms, a barcode (or an identical one) can be re-scanned after the defined amount of interval expires. When identical read...
  • Page 36 MT582W User’s Manual V1.0 1500ms* 3000ms 5000ms Set Identical Read Interval ___________________________________________________________________________________...

  • Page 37: Illumination And Aimer

    4.2 Aimer Aimer LED is designed to provide an aiming pattern at the center of illumination area for MT582W in order to help user target barcode with ease. The behavior of aimer LED can be configured to: Normal: Aimer LED only turns on during scanning.
  • Page 38 MT582W User’s Manual V1.0 Always Off Always On ___________________________________________________________________________________...

  • Page 39: Indicator

    Power-up beep is emitted as indication that MT582W powers up successfully. 5.3 Good Read Beep Good read beep is emitted as indication that MT582W scans a barcode successfully. The type and volume of good read beep can also be configured in the following sections.

  • Page 40: Indicator Beep Type

    MT582W User’s Manual V1.0 5.3.1 Indicator Beep Type Type 1 Type 2 Type 3* 5.3.2 Beep Volume High* Medium 5.4 Configuration Barcode Beep Configuration barcode beep is emitted as indication that MT582W scans a configuration barcode successfully. ___________________________________________________________________________________...

  • Page 41: Good Read Led And Duration

    MT582W User’s Manual V1.0 5.5 Good Read LED and Duration Good read LED signal is transmitted when MT582W scans a barcode successfully. The following configurations determine the duration of good read LED. 100ms 200ms* 500ms Set Good Read LED Duration The configurable range is from 0 to 3600000ms;...

  • Page 42: Not Good Read (Ngr) Message

    Mode 2 5.7 Not Good Read (NGR) Message When enabeld, Not Good Read (NGR) message is transmitted to the host when MT582W fails to scan a barcode after LED timeout expires. Off* Set NGR Message The NGR message is N/A by default, and can be 0 to 7 bytes of data, ranging from 00 to FF.

  • Page 43: Data Format

    MT582W User’s Manual V1.0 6. Data Format Barcode data can be divided into various parts. Code ID is often used to differentiate barcode data. Sometimes Preamble and Postamble are used. Data Format can achieve the following:  Add [STX], [Code ID], [Preamble] to the beginning of barcode data.

  • Page 44: Stx (0X02)

    MT582W User’s Manual V1.0 Disable Data Length* Enable Data Length 6.3 STX (0x02) When STX is enabeld, STX (0x02) will be added to the beginning of barcode data. Disable STX* Enable STX 6.4 Preamble + Code ID When Preamble and Code + ID are enabeld at the same time, the following configurations can determine their displayed order.

  • Page 45: Set Preamble

    MT582W User’s Manual V1.0 6.5.2 Set Preamble Set Preamble Preamble can be 0 to 16 bytes of data, ranging from 00 to FF. Please refer to Appendix D for configuration method of Set Preamble. Example: to set Preamble as “CODE”...

  • Page 46: Clear Preamble

    MT582W User’s Manual V1.0 Alternatively, please follow the rule S_CMD_051P[X][Y] to generate a single configuration barcode, in which [X] represents the Symbology index from Appendix F; [Y] represents Preamble in Hex equivalent. For example: S_CMD_051P1A434F4445 6.5.4 Clear Preamble Clear Preamble 6.6 Code ID...
  • Page 47 MT582W User’s Manual V1.0 Set PDF417 Code ID Set Code128 Code ID Set QR Code ID Set Data Matrix Code ID Set EAN-8 Code ID Set EAN-13 Code ID Set UPC-E0 Code ID Set UPC-E1 Code ID Set UPC-A Code ID...
  • Page 48 MT582W User’s Manual V1.0 Set Industrial 2/5 Code ID Set Matrix 2/5 Code ID Set Code11 Code ID Set MSI Plessey Code ID Set Micro QR Code ID Set Code32 Code ID Set ISBN Code ID Set ISSN Code ID...

  • Page 49: Postamble

    MT582W User’s Manual V1.0 Set GS1 DataBar Limited Code ID Set GS1 DataBar Expanded Code ID Set Plessey Code ID Set MaxiCode Code ID Set HanXin Code ID Set DotCode Code ID Set Composite Code ID 6.7 Postamble 6.7.1 Enable/Disable Postamble When Postamble is enabeld, a user-defined suffix will be added to the end of barcode data.

  • Page 50: Set Postamble Of A Symbology

    MT582W User’s Manual V1.0 Set Postamble Postamble can be 0 to 16 bytes of data, ranging from 00 to FF. Please refer to Appendix D for configuration method of Set Postamble. Example: to set Preamble as “CODE” 1. Convert “CODE” to Hex equivalent as 43, 4F, 44, 45 2.

  • Page 51: Clear Postamble

    MT582W User’s Manual V1.0 For example: S_CMD_057S1A434F4445 6.7.4 Clear Postamble Clear Postamble 6.8 Terminator 6.8.1 Enable/Disable Terminator When Terminator is enabeld, an often used or user-defined terminating character will be added to the end of barcode data. Enable Terminator* Disable Terminator 6.8.2 Set Terminator...

  • Page 52: Quick Terminator Options

    MT582W User’s Manual V1.0 Terminator can be 0 to 7 bytes of data, ranging from 00 to FF. Please refer to Appendix D for configuration method of Set Terminator. Example: to set Terminator as 0x0D 1. Scan Set Terminator 2. Scan 0, D respectively from 8.1 Data 0~F 3.

  • Page 53: Set Data Length

    MT582W User’s Manual V1.0 Send End Only Send Center Only 6.9.2 Set Data Length Set Start Length Set End Length Start/End Length can be 0 to 255 digits, converted into 00 to FF during configuration. Please refer to Appendix D for configuration method of Set Start/End Length.

  • Page 54: Set Data Length Of A Symbology

    MT582W User’s Manual V1.0 Unhide Center* Hide Center Unhide End* Hide End 6.9.4 Set Data Length of a Symbology DATA of specific type of Symbology can be divided into [Start] + [Center] + [End] by the following configurations. (1) Set Start Length of a Symbology...
  • Page 55 MT582W User’s Manual V1.0 For example: S_CMD_05CS1A02 (2) Set Center Length of a Symbology Set Center Length of a Symbology Center Length must be defined with Start Length in order to take effect. Please note that Center Length and End Length cannot co-exist, with the latest configuration overriding the previous one.

  • Page 56: Clear Data Length

    MT582W User’s Manual V1.0 4. Scan 1, A, 0, 2 respectively from 8.1 Data 0~F 5. Scan Save Configuration from 8.2 Save & Abort Alternatively, please follow the rule S_CMD_05CE[X][Y] to generate a single configuration barcode, in which [X] represents the Symbology index from Appendix F;...

  • Page 57: Output Encoding Format

    MT582W User’s Manual V1.0 6.10.2 Output Encoding Format Output Encoding Format enables various output format for different applications, including GBK, UNICODE, BIG5 and Shift-JIS. Default is GBK. GBK* UNICODE (Notepad, Excel) (Word) BIG5 Shift-JIS (Traditional Chinese) (Japanese) In some applications, below configurations are needed. For other keyboard layout, Output Encoding Format should be configured to raw data.

  • Page 58: Qr Code With Url

    MT582W User’s Manual V1.0 6.12 QR Code with URL Disable QR Code with URL Enable QR Code with URL* ___________________________________________________________________________________...

  • Page 59: Symbologies

    MT582W User’s Manual V1.0 7. Symbologies 7.1 General Settings 7.1.1 All Symbologies Enable All Symbologies Disable All Symbologies Enable Default Symbologies 7.1.2 1D Symbologies Enable All 1D Symbologies Disable All 1D Symbologies 7.1.3 2D Symbologies Enable All 2D Symbologies Disable All 2D Symbologies 7.2 Surround GS1 Application Identifiers (AI’s) with...

  • Page 60: Inverse Barcode

    MT582W User’s Manual V1.0 Parentheses When enabled, all GS1 AI in barcode(GS1-128, GS1-DataMatrix, UDI…) will be surrounded with parentheses. Surround AI’s with Parentheses Not Surround AI’s with Parentheses* 7.3 Inverse Barcode When Inverse Barcode is enabled, the scanning speed may slow down.
  • Page 61 MT582W User’s Manual V1.0 Enable Inverse Data Matrix Disable Inverse Data Matrix* Enable Inverse QR Code Disable Inverse QR Code* Enable Inverse MicroPDF417 Disable Inverse MicroPDF417* Enable Inverse Aztec Disable Inverse Aztec* Enable Inverse MaxiCode Disable Inverse MaxiCode* Enable Inverse HanXin...

  • Page 62: Code128

    MT582W User’s Manual V1.0 Enable Inverse DotCode Disable Inverse DotCode* 7.4 Code128 7.4.1 Reset to Default Reset Code128 to Default 7.4.2 Enable/Disable Code128 Enable Code128* Disable Code128 7.4.3 Min/Max Length Min Length = 00* Min Length = 04 ___________________________________________________________________________________...

  • Page 63: Ean-8

    MT582W User’s Manual V1.0 Max Length = 32 Max Length = 255* Set Min Length Set Max Length Min/Max Length can be 0 to 255 digits, converted into 00 to FF during configuration. Please refer to Appendix D for configuration method of Set Min/Max Length.

  • Page 64: Check Digit

    MT582W User’s Manual V1.0 7.5.3 Check Digit EAN-8 has a fixed length of 8 digits, with the last one as check digit. Send Check Digit* Not Send Check Digit 7.5.4 Supplement When 2-digit or 5-digit Supplement is enabled, supplement (if any) will be included in barcode data.

  • Page 65: Expand To Ean-13

    MT582W User’s Manual V1.0 7.5.6 EAN-8 Expand to EAN-13 Disable EAN-8 Expand to EAN-13* Enable EAN-8 Expand to EAN-13 7.6 EAN-13 7.6.1 Reset to Default Reset EAN-13 to Default 7.6.2 Enable/Disable EAN-13 Enable EAN-13* Disable EAN-13 7.6.3 Check Digit EAN-13 has a fixed length of 13 digits, with the last one as check digit.

  • Page 66: Supplement

    MT582W User’s Manual V1.0 7.6.4 Supplement When 2-digit or 5-digit Supplement is enabled, supplement (if any) will be included in barcode data. When disabled, supplement will be excluded in barcode data. Disable 2-digit Supplement* Enable 2-digit Supplement Disable 5-digit Supplement* Enable 5-digit Supplement 7.6.5 Supplement Required...

  • Page 67: Convert To Issn

    MT582W User’s Manual V1.0 7.6.7 EAN-13 Convert to ISSN Disable EAN-13 Convert to ISSN* Enable EAN-13 Convert to ISSN 7.7 UPC-E0 7.7.1 Reset to Default Reset UPC-E0 to Default 7.7.2 Enable/Disable UPC-E0 Enable UPC-E0* Disable UPC-E0 7.7.3 Check Digit Send Check Digit*...

  • Page 68: System Number

    MT582W User’s Manual V1.0 7.7.4 System Number Send System Number* Not Send System Number 7.7.5 Supplement When 2-digit or 5-digit Supplement is enabled, supplement (if any) will be included in barcode data. When disabled, supplement will be excluded in barcode data.

  • Page 69: Upc-E0 Expand To Upc-A

    MT582W User’s Manual V1.0 7.7.7 UPC-E0 Expand to UPC-A Disable UPC-E0 Expand to UPC-A* Enable UPC-E0 Expand to UPC-A 7.8 UPC-E1 7.8.1 Reset to Default Reset UPC-E1 to Default 7.8.2 Enable/Disable UPC-E1 Enable UPC-E1* Disable UPC-E1 7.8.3 Check Digit Send Check Digit*...

  • Page 70: System Number

    MT582W User’s Manual V1.0 7.8.4 System Number Send System Number* Not Send System Number 7.8.5 Supplement When 2-digit or 5-digit Supplement is enabled, supplement (if any) will be included in barcode data. When disabled, supplement will be excluded in barcode data.

  • Page 71: Upc-E1 Expand To Upc-A

    MT582W User’s Manual V1.0 7.8.7 UPC-E1 Expand to UPC-A Disable UPC-E1 Expand to UPC-A* Enable UPC-E1 Expand to UPC-A 7.9 UPC-A 7.9.1 Reset to Default Reset UPC-A to Default 7.9.2 Enable/Disable UPC-A Enable UPC-A* Disable UPC-A 7.9.3 UPC-A Expand to EAN-13...

  • Page 72: Check Digit

    MT582W User’s Manual V1.0 7.9.4 Check Digit Send Check Digit* Not Send Check Digit 7.9.5 System Number Send System Number* Not Send System Number 7.9.6 Supplement When 2-digit or 5-digit Supplement is enabled, supplement (if any) will be included in barcode data. When disabled, supplement will be excluded in barcode data.

  • Page 73: Supplement Required

    MT582W User’s Manual V1.0 7.9.7 Supplement Required When Supplement Required is enabled, only the barcode with 2-digit or 5-digit supplement can be read. Disable Supplement Required* Enable Supplement Required 7.10 Interleaved 2/5 7.10.1 Reset to Default Reset Interleaved 2/5 to Default 7.10.2 Enable/Disable Interleaved 2/5...

  • Page 74: Verification

    MT582W User’s Manual V1.0 Min Length = 00* Min Length = 04 Max Length = 32 Max Length = 255* Set Min Length Set Max Length Min/Max Length can be 0 to 255 digits, converted into 00 to FF during configuration.

  • Page 75: Matrix 2/5

    MT582W User’s Manual V1.0 Enable OPCC Verification Enable OPCC Verification Not Send Check Digit Send Check Digit 7.11 Matrix 2/5 7.11.1 Reset to Default Reset Matrix 2/5 to Default 7.11.2 Enable/Disable Matrix 2/5 Enable Matrix 2/5 Disable Matrix 2/5* 7.11.3 Min/Max Length...

  • Page 76: Verification

    MT582W User’s Manual V1.0 Max Length = 32 Max Length = 255* Set Min Length Set Max Length Min/Max Length can be 0 to 255 digits, converted into 00 to FF during configuration. Please refer to Appendix D for configuration method of Set Min/Max Length.

  • Page 77: Enable/Disable Industrial 2/5

    MT582W User’s Manual V1.0 Reset Industrial 2/5 to Default 7.12.2 Enable/Disable Industrial 2/5 Enable Industrial 2/5 Disable Industrial 2/5* 7.12.3 Min/Max Length Min Length = 00* Min Length = 04 Max Length = 32 Max Length = 255* Set Min Length...

  • Page 78: Verification

    MT582W User’s Manual V1.0 7.12.4 Verification Disable Verification* Enable Verification Enable Verification Not Send Check Digit Send Check Digit 7.13 IATA 2/5 7.13.1 Reset to Default Reset IATA 2/5 to Default 7.13.2 Enable/Disable IATA 2/5 Enable IATA 2/5 Disable IATA 2/5*...

  • Page 79: Min/Max Length

    MT582W User’s Manual V1.0 7.13.3 Min/Max Length Min Length = 00* Min Length = 04 Max Length = 32 Max Length = 255* Set Min Length Set Max Length Min/Max Length can be 0 to 255 digits, converted into 00 to FF during configuration.

  • Page 80: Code39

    MT582W User’s Manual V1.0 7.14 Code39 7.14.1 Reset to Default Reset Code39 to Default 7.14.2 Enable/Disable Code39 Enable Code39* Disable Code39 7.14.3 Send Start & Stop Send Start & Stop Not Send Start & Stop* 7.14.4 Min/Max Length ___________________________________________________________________________________...

  • Page 81: Verification

    MT582W User’s Manual V1.0 Min Length = 00* Min Length = 04 Max Length = 32 Max Length = 255* Set Min Length Set Max Length Min/Max Length can be 0 to 255 digits, converted into 00 to FF during configuration.

  • Page 82: Code32 Preamble

    MT582W User’s Manual V1.0 Disable Code32* Enable Code32 7.14.7 Code32 Preamble Code32 Preamble is applicable when Code32 is enabled. Send Code32 Preamble* Not Send Code32 Preamble 7.14.8 Code32 Check Digit Code32 Check Digit is applicable when Code32 is enabled. Send Code32 Check Digit* Not Send Code32 Check Digit 7.14.9 Full ASCII Code39...

  • Page 83: Enable/Disable Codabar

    MT582W User’s Manual V1.0 Reset Codabar to Default 7.15.2 Enable/Disable Codabar Enable Codabar* Disable Codabar 7.15.3 Min/Max Length Min Length = 00* Min Length = 04 Max Length = 32 Max Length = 255* Set Min Length Set Max Length Min/Max Length can be 0 to 255 digits, converted into 00 to FF during configuration.

  • Page 84: Verification

    MT582W User’s Manual V1.0 7.15.4 Verification Disable Verification* Mod10 Verification Mod10 Verification Send Check Digit Not Send Check Digit Mod16 Verification Mod16 Verification Send Check Digit Not Send Check Digit 7.15.5 Send Start & Stop Not Send Start & Stop* Start &...

  • Page 85: Code93

    MT582W User’s Manual V1.0 Start & Stop = abcd/abcd Start & Stop = abcd/tn*e 7.16 Code93 7.16.1 Reset to Default Reset Code93 to Default 7.16.2 Enable/Disable Code93 Enable Code93* Disable Code93 7.16.3 Min/Max Length Min Length = 00* Min Length = 04...

  • Page 86: Code11

    MT582W User’s Manual V1.0 Max Length = 32 Max Length = 255* Set Min Length Set Max Length Min/Max Length can be 0 to 255 digits, converted into 00 to FF during configuration. Please refer to Appendix D for configuration method of Set Min/Max Length.

  • Page 87: Min/Max Length

    MT582W User’s Manual V1.0 7.17.3 Min/Max Length Min Length = 00* Min Length = 04 Max Length = 32 Max Length = 255* Set Min Length Set Max Length Min/Max Length can be 0 to 255 digits, converted into 00 to FF during configuration.

  • Page 88: Msi Plessey

    MT582W User’s Manual V1.0 2-Digit Verification for Code11 of 2-Digit Verification for Code11 of More than 10 Digits More than 10 Digits Send Check Digit Not Send Check Digit 1-Digit Verification 1-Digit Verification Send Check Digit Not Send Check Digit...

  • Page 89: Min/Max Length

    MT582W User’s Manual V1.0 Enable MSI Plessey Disable MSI Plessey* 7.18.3 Min/Max Length Min Length = 00* Min Length = 04 Max Length = 32 Max Length = 255* Set Min Length Set Max Length Min/Max Length can be 0 to 255 digits, converted into 00 to FF during configuration.

  • Page 90: Gs1 Databar

    MT582W User’s Manual V1.0 Mod 10 Verification Mod 10 Verification Send Check Digit Not Send Check Digit* Mod 11 Verification Mod 11 Verification Send Check Digit Not Send Check Digit Mod 10/10 Verification Mod 10/10 Verification Send Check Digit Not Send Check Digit...

  • Page 91: Gs1 Databar Expanded

    MT582W User’s Manual V1.0 Enable GS1 DataBar Limited* Disable GS1 DataBar Limited 7.21 GS1 DataBar Expanded Enable GS1 DataBar Expanded* Disable GS1 DataBar Expanded 7.22 Plessey 7.22.1 Reset to Default Reset Plessey to Default 7.22.2 Enable/Disable Plessey Enable Plessey Disable Plessey*...

  • Page 92: Min/Max Length

    MT582W User’s Manual V1.0 7.22.3 Min/Max Length Min Length = 00* Min Length = 04 Max Length = 32 Max Length = 255* Set Min Length Set Max Length Min/Max Length can be 0 to 255 digits, converted into 00 to FF during configuration.

  • Page 93: Enable/Disable Code128 Febraban

    MT582W User’s Manual V1.0 Enable ITF25 Febraban Disable ITF25 Febraban* 7.23.2 Enable/Disable Code128 Febraban Enable Code128 Febraban Disable Code128 Febraban* 7.23.3 Verification Enable Verification Disable Verification* 7.24 Composite Enable Composite Disable Composite* 7.25 PDF417 ___________________________________________________________________________________...

  • Page 94: Qr Code

    MT582W User’s Manual V1.0 Enable PDF417* Disable PDF417 7.26 QR Code Enable QR Code* Disable QR Code 7.27 Micro QR Code Enable Micro QR Code Disable Micro QR Code* 7.28 Data Matrix Enable Data Matrix* Disable Data Matrix 7.29 MicroPDF417...

  • Page 95: Aztec

    MT582W User’s Manual V1.0 Enable MicroPDF417 Disable MicroPDF417* 7.30 Aztec Enable Aztec* Disable Aztec 7.31 MaxiCode Enable MaxiCode Disable MaxiCode* 7.32 HanXin Enable HanXin Disable HanXin* 7.33 DotCode ___________________________________________________________________________________...
  • Page 96 MT582W User’s Manual V1.0 Enable DotCode Disable DotCode* ___________________________________________________________________________________...

  • Page 97: Configuration Barcode

    MT582W User’s Manual V1.0 8. Configuration Barcode 8.1 Data 0~F ___________________________________________________________________________________...

  • Page 98: Save & Abort

    MT582W User’s Manual V1.0 8.2 Save & Abort If there is an error reading barcode in 8.1 Data 0~F during configuration, you may cancel 1 or all data by scanning below configuration barcodes. For example, barcode data ‘1’, ‘2’ ,’3’ have been scanned respectively during configuration.

  • Page 99: Appendix

    MT582W User’s Manual V1.0 Appendix Appendix A - Default Table Function Default Remark Barcode Configurability Enable Config Barcode Data Output Disable Interface USB HID Intercharacter Delay Polling Rate Keyboard Layout English (USA) Alt Code Disable USB HID Control Mode Capslock Mode...
  • Page 100 MT582W User’s Manual V1.0 Image Stabilization 60ms Timeout Auto-sensing Sensitivity High Range: 1~50 Auto-sensing Threshold Stop Mode Mode 1 Range: 1000~3600000ms LED Timeout 3000ms Range: 0~65535ms Scan Interval 500ms Identical Read Interval Disable Continuous Identical Read Interval Disable Mode Reset...
  • Page 101 MT582W User’s Manual V1.0 Set Postamble of a Symbology None Terminator Enable Quick Terminator Options Set Terminator 0x0D Data Output Send Data Range: 0~255 Data Length Hide Start/Center/End Unhide Start/Center/End Data Length of a Symbology Input Encoding Format GBK and UTF8...
  • Page 102 MT582W User’s Manual V1.0 UPC-E0 Enable/Disable Enable Check Digit Send System Number Send 2-digit Supplement Disable 5-digit Supplement Disable Supplement Required Disable UPC-E0 Expand to UPC-A Disable UPC-E1 Enable/Disable Enable Check Digit Send System Number Send 2-digit Supplement Disable 5-digit Supplement...
  • Page 103 MT582W User’s Manual V1.0 Max Length Min Length Verification Disable IATA 2/5 Enable/Disable Disable Max Length Min Length Verification Disable Code39 Enable/Disable Enable Start & Stop Not Send Max Length Min Length Verification Disable Enable/Disable Code32 Disable Code32 Preamble Not Send...
  • Page 104 MT582W User’s Manual V1.0 Max Length Min Length Verification Disable GS1 DataBar Enable/Disable Enable GS1 DataBar Limited Enable/Disable Enable GS1 DataBar Expanded Enable/Disable Enable Plessey Enable/Disable Disable Max Length Min Length Check Digit Not Send Febraban Enable/Disable ITF25 Febraban Disable...
  • Page 105 MT582W User’s Manual V1.0 DotCode Enable/Disable Disable ___________________________________________________________________________________...

  • Page 106: Appendix B - Code Id

    MT582W User’s Manual V1.0 Appendix B - Code ID Symbology Code ID Code128 EAN-8 EAN-13 UPC-E0 UPC-E1 UPC-A Interleaved 2/5 Matrix 2/5 Industrial 2/5 IATA 2/5 Code39 Codabar Code93 PDF417 QR Code Data Matrix Code 11 MSI Plessey Micro QR Code...
  • Page 107 MT582W User’s Manual V1.0 DotCode Composite ___________________________________________________________________________________...

  • Page 108: Appendix C - Ascii Table

    MT582W User’s Manual V1.0 Appendix C - ASCII Table ASCII (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out)
  • Page 109 MT582W User’s Manual V1.0 (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Right/Closing Parenthesis) (Right/Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus/Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) < (Less Than) (Equal Sign) > (Greater Than) (Question Mark)
  • Page 110 MT582W User’s Manual V1.0 (Left/Opening Bracket) (Back Slash) (Right/Closing Bracket) (Caret/Circumflex) (Underscore) (Grave Accent) ___________________________________________________________________________________...
  • Page 111 MT582W User’s Manual V1.0 (Left/Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) DEL (Delete) ___________________________________________________________________________________...

  • Page 112: Appendix D - Configuration Method

    MT582W User’s Manual V1.0 Appendix D - Configuration Method LED Timeout Example: to set LED Timeout as 1500ms 1. Scan Set LED Timeout 2. Scan 1, 5, 0, 0 respectively from 8.1 Data 0~F 3. Scan Save Configuration from 8.2 Save & Abort...

  • Page 113: Scan Interval

    MT582W User’s Manual V1.0 Scan Interval Example: to set Scan Interval as 500ms 1. Scan Set Scan Interval 2. Scan 5, 0, 0 respectively from 8.1 Data 0~F 3. Scan Save Configuration from 8.2 Save & Abort Preamble/Postamble Example: to set Preamble/Postamble as “CODE”...

  • Page 114: Min/Max Length

    MT582W User’s Manual V1.0 Min/Max Length Note: The maximum length of any 1D Symbology cannot exceed 127. When Max Length is shorter than Min Length, only these two specific lengths of barcode can be read. When Max Length equals to Min Length, only one specific length of barcode can be read.
  • Page 115 MT582W User’s Manual V1.0 Appendix E – Control Code Table Key Code (Ctrl Mode Off) Key Code (Ctrl Mode On) Null Ctrl+2 Keypad Enter Ctrl+A Caps Lock Ctrl+B Null Ctrl+C Null Ctrl+D Null Ctrl+E Null Ctrl+F Enter Ctrl+G Left Arrow...
  • Page 116 MT582W User’s Manual V1.0 Appendix F – Symbology Index Table Symbology Index EAN-13 0x01 EAN-8 0x02 UPC-A 0x03 UPC-E0 0x04 UPC-E1 0x05 Code128 0x06 Code39 0x07 Code93 0x08 Codabar 0x09 Interleaved 2/5 0x0A Industrial 2/5 0x0B Matrix 2/5 0x0C IATA 2/5...
  • Page 117 MT582W User’s Manual V1.0 HanXin 0x22 DotCode 0x23 All Symbologies 0xFF ___________________________________________________________________________________...
  • Page 118 MT582W User’s Manual V1.0 Version History Date Description Issued 2023.02.01 Initial Release Shaw Marson Technology Co., Ltd. 9F., 108-3, Minquan Rd., Xindian Dist., New Taipei City, Taiwan TEL: 886-2-2218-1633 FAX: 886-2-2218-6638 E-mail: info@marson.com.tw Web: www.marson.com.tw ___________________________________________________________________________________...

Table of Contents
