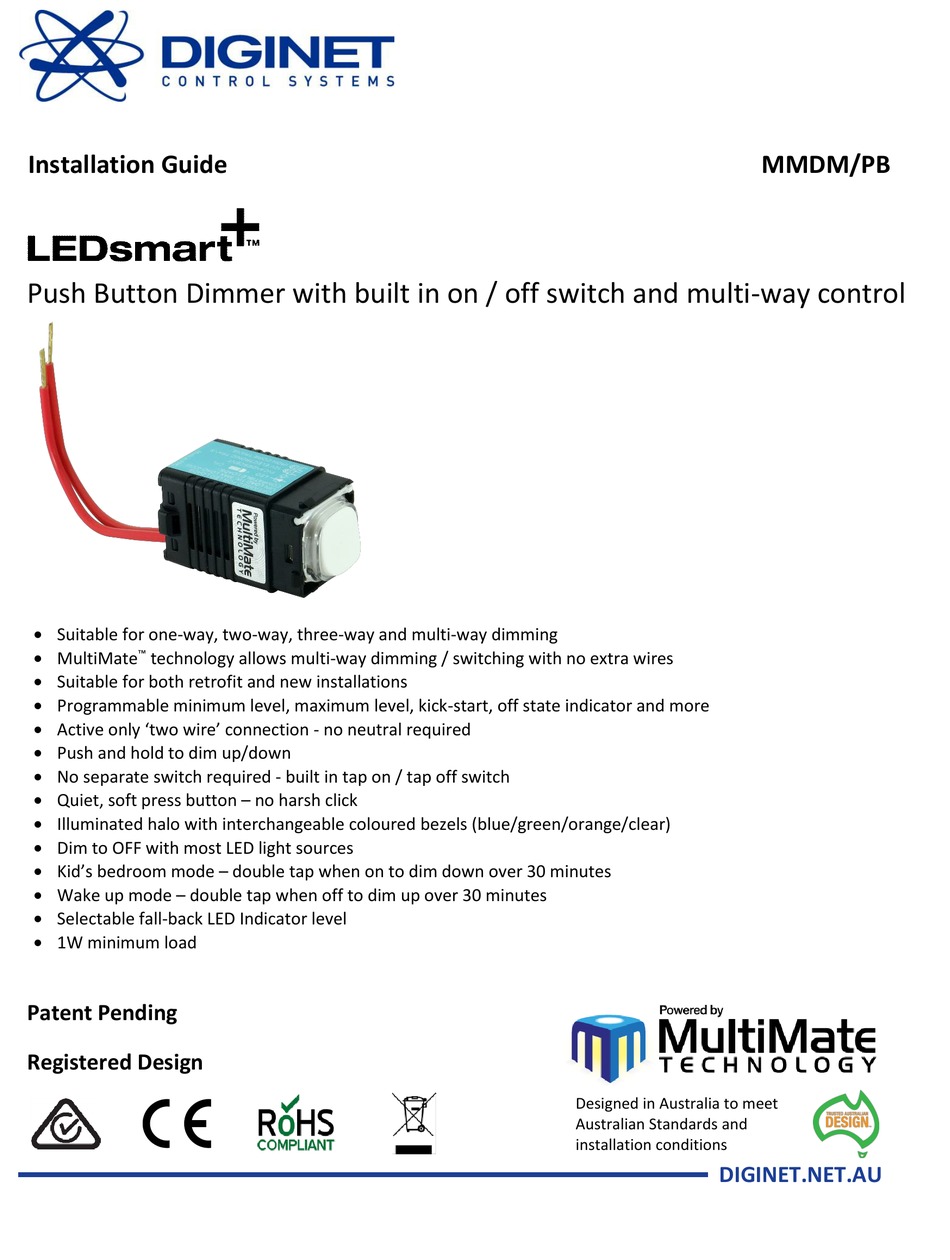

Installation Guide
Push Button Dimmer with built in on / off switch and multi-way control
Suitable for one-way, two-way, three-way and multi-way dimming
MultiMate
™
technology allows multi-way dimming / switching with no extra wires
Suitable for both retrofit and new installations
Programmable minimum level, maximum level, kick-start, off state indicator and more
Active only 'two wire' connection - no neutral required
Push and hold to dim up/down
No separate switch required - built in tap on / tap off switch
Quiet, soft press button – no harsh click
Illuminated halo with interchangeable coloured bezels (blue/green/orange/clear)
Dim to OFF with most LED light sources
Kid's bedroom mode – double tap when on to dim down over 30 minutes
Wake up mode – double tap when off to dim up over 30 minutes
Selectable fall-back LED Indicator level
1W minimum load
Patent Pending
Registered Design
Designed in Australia to meet
Australian Standards and
installation conditions
DIGINET.NET.AU
MMDM/PB
Advertisement
Related Manuals for Diginet LEDsmart MMDM/PB
Summary of Contents for Diginet LEDsmart MMDM/PB
- Page 1 Wake up mode – double tap when off to dim up over 30 minutes Selectable fall-back LED Indicator level 1W minimum load Patent Pending Registered Design Designed in Australia to meet Australian Standards and installation conditions DIGINET.NET.AU...
- Page 2 When switching on, the LED/CFL lights have difficulty switch on and the dimmer indicators flicker or pulse It is recommended to install a Diginet ‘Load by-pass’ device (Diginet item number MMBP) across Load and Neutral terminals to provide improved performance of these lamps.
- Page 3 Multimate technology ™ MultiMate is a technology inside Diginet’s range of high quality LEDsmart dimmers, timers and electronic light switches. It ™ allows multi-way control of lighting without the need for an expensive control system. MultiMate technology is suitable for both new and retrofit installations.
-
Page 4: Dimmer Installation
Push Button Dimmer/Switch Dimmer installation WARNING – This product must be installed by a suitably qualified installer Electric shock may result in serious injury or death. Follow all warnings in this guide and on the product while working in accordance with the latest electrical safety practices for mains-powered electrical equipment. The terminal block included with the dimmer should be used to carry out the electrical connections, as shown below Once the connections have been made, the terminal cover is closed to ensure the screw terminals are not exposed The terminal block can then be cable-tied to the rear of the dimmer housing utilising the two loop holes... - Page 5 Push Button Dimmer/Switch Wiring for one-way dimming and switching The dimmer has a built in tap on / tap off switch. Therefore, to provide both dimming and on/off control, no separate switch is required. New Installation – one-way dimming and switching Replacing existing one-way switch with one-way switching/dimming Existing one-way switching Replacement one way dimming/switching...
- Page 6 Push Button Dimmer/Switch Wiring for two-way dimming and switching To achieve two-way dimming and switching using LEDsmart dimmers, the two dimmers are connected in parallel. Note that the dimmers have an integrated switch, therefore no separate switches or additional strappers are required for two-way on/off control.
- Page 7 Push Button Dimmer/Switch Wiring for multi-way (three-way or more) dimming and switching To achieve multi-way dimming and switching using LEDsmart dimmers, the required number of dimmers can be connected in parallel. Note that each LEDsmart dimmer has an integrated switch, therefore no separate switches or additional strappers are required to provide multi-way dimming and on/off control.
-
Page 8: Dimmer Setup
Push Button Dimmer/Switch Rocker and flat push buttons Two different styles of push buttons are included in the dimmer packaging, rocker and flat push button styles. These are interchangeable, depending on customer preferences. Coloured Bezels The dimmer’s LED indicators are white and the pre-fitted bezel provides a white glow around the dimmer button. - Page 9 Push Button Dimmer/Switch A: Entering Setup Mode If the dimmer has been powered up for LESS THAN 30 MINUTES see A1 below. If the dimmer has been powered up for MORE THAN 30 MINUTES see A2 below. Once in Setup Mode, options are selected by a series of ‘clicks’ of the dimmer push button. Each ‘click’ should be approximately 1 second after the previous click.
- Page 10 Push Button Dimmer/Switch B: Setting Minimum Brightness The minimum brightness level provided by the dimmer can be set to suit specific lamps and/or customer requirements. For the majority of lamps a minimum level as low as 0% can be set if required. However, some lamps can become unstable at low dimming levels, in particular CFL’s.
-
Page 11: Specifications
LED light sources can be a small amount of light output when the LEDsmart is in the off position. If this occurs, it is recommended that a Diginet ‘Load by-pass’ device (Item MMBP) is added to the lights / dimmer installation. Compatible Load Types... - Page 12 96-112 Gow Street Padstow NSW 2211 Contact General Enquiries: 1300 95 DALI (3254) or sales@diginet.net.au Technical Services: 1300 95 3244 or support@diginet.net.au Fax: 1300 95 3257 Diginet is a brand of the Gerard Lighting Group Version: Issue 1 June 2016 Item 14-14-013D-03-01...
-
Page 13: Troubleshooting
LEDsmart+ / MultiMate™ Troubleshooting Guide INTRODUCTION LEDsmart+ dimmers, timers, switches and occupancy sensors include MultiMate™ technology. These devices have revolutionised multiple point control of lighting whilst using conventional wiring practices. Even when not used for multi-way control, their superior compatibility with LED lighting loads makes them the best wall plate lighting controls in the market. - Page 14 LEDsmart+ / MultiMate™ Troubleshooting Guide FLICKERING OR FLASHING WHEN OFF OR AT LOW DIMMING LEVELS Modern LED lighting has revolutionised high brightness low power lighting. Unfortunately, some LED loads can have problems with dimmer compatibility. This can be observed when lamps flicker or flash when set to low dimming levels or when a MultiMate™...
- Page 15 LEDsmart+ / MultiMate™ Troubleshooting Guide CROSSTALK Crosstalk happens when several MultiMate™ circuits are installed in the same building, and adjustments on one circuit cause interference on another circuit. The interference may be observed as: Lighting changes on one circuit cause lighting changes (on / off / change of level) on some other circuit;...
- Page 16 LEDsmart+ / MultiMate™ Troubleshooting Guide FANS, FLUORESCENT LIGHTING AND NON-DIMMABLE LOADS MultiMate™ dimmers, timers, switches and occupancy sensors are designed to control dimmable lighting loads. Sometimes these products need to control non-dimmable loads, for example fluorescent lighting, non- dimmable LED lamps, or bathroom exhaust fans. Direct wiring of these loads to MultiMate™...
