Original operator's guide

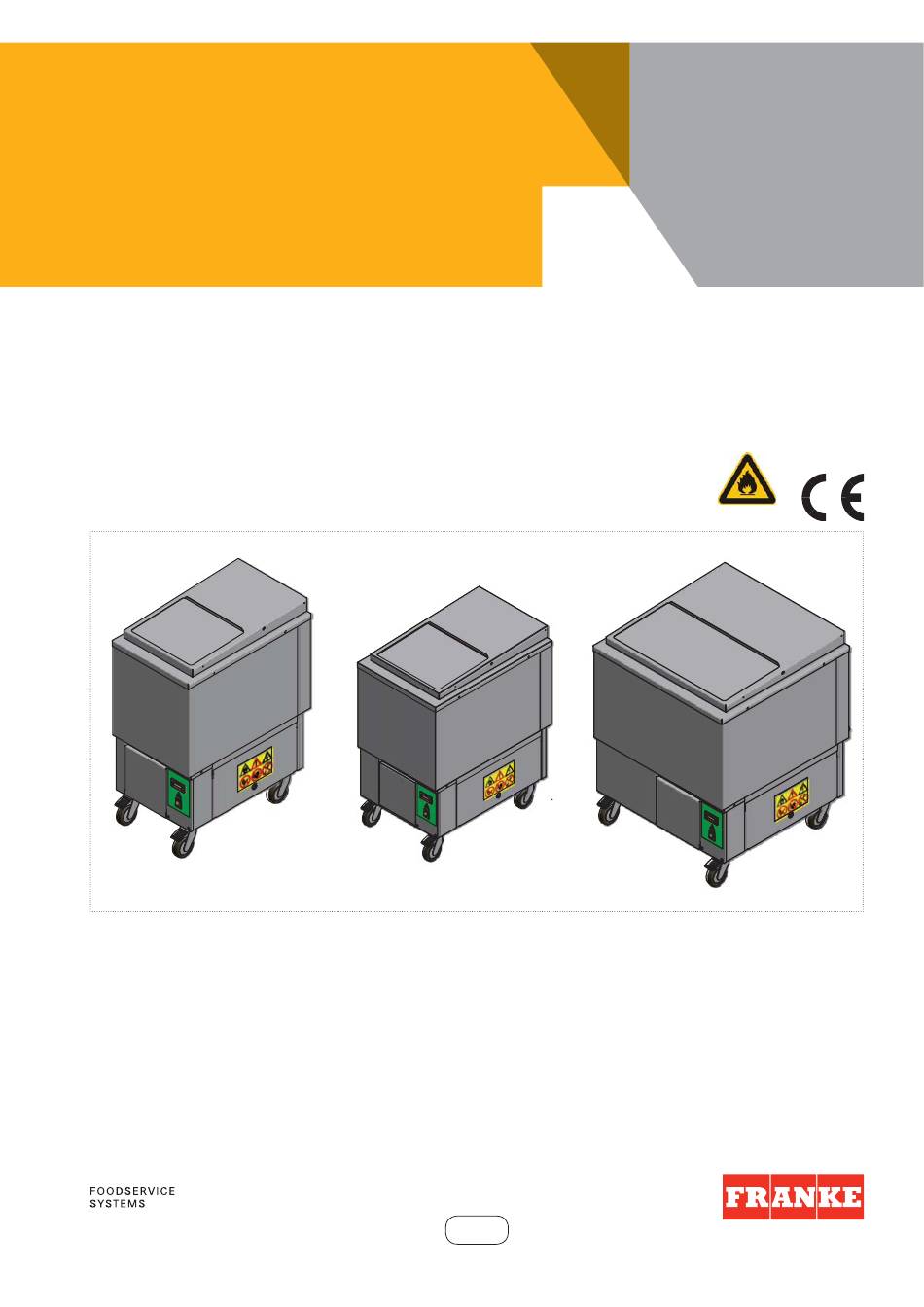

FREEZER GSFP (R290)
Embraco, with/without sliding cover
IP 44
Part no.:
725.113.402
725.113.403
725.113.404
725.114.560
725.114.561
725.114.562
IP 67
725.113.461
GSFP 450 R290
725.113.462
GSFP 520 R290
725.113.463
GSFP 780 R290
725.114.563
GSFP 450 R290
725.114.564
GSFP 520 R290
725.114.565
GSFP 780 R290
en
R290
with cover
with cover
with cover
without cover
without cover
without cover

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSFP 450 R290 and is the answer not in the manual?

Questions and answers

Summary of Contents for Franke GSFP 450 R290

  • Page 1 Original operator’s guide FREEZER GSFP (R290) Embraco, with/without sliding cover R290 IP 44 IP 67 Part no.: 725.113.402 725.113.461 GSFP 450 R290 with cover 725.113.403 725.113.462 GSFP 520 R290 with cover 725.113.404 725.113.463 GSFP 780 R290 with cover 725.114.560 725.114.563...
  • Page 2: Table Of Contents

    Read these instructions through carefully and keep them safe for future reference. Copyright for these User Instructions remains the property of Franke Foodservice Systems GmbH. These User Instructions are intended to be used only by those operating the equipment and qualified personnel. They contain instructions, pictures and diagrams, which, in their entirety or in part, must not be copied, circulated, or be used for competition purposes without authorisation or disclosed to others.
  • Page 3: Environmentally Friendly Coolant

    An analysis or repair of the coolant system is expressly forbidden. The cooling circuit is filled with R 290 (propane). ATTENTION: Propane is highly flammable! In the event of problems, please contact the Franke hotline. The freezer will be picked up and taken to the Franke factory for repair.
  • Page 4: General Notes

    GENERAL NOTES The unit must be installed by qualified personnel in accordance with the manufacturer’s instructions. If there is a fault or malfunction, disconnect the unit from the power supply. Any necessary repairs must be carried out by qualified technicians. Only use original spare parts.
  • Page 5: Technical Data And Installation

    TECHNICAL DATA AND INSTALLATION Dimensions mm 450.0 520.0 780.0 723.0 775.0 807.0 982.5 982.5 982.4 404.0 456.0 724.0 357.0 409.0 677.0 755.0 312.7 337.7 337.8 776.2 820.0 915.0 915.0 915.0 Weight kg with cover 73.0 80.0 108.0 Shipping weight 98.0 105.0 133.0 without cover...
  • Page 6: Electrical Connection

    The installation must be carried out by trained technicians in accordance with the manufacturer’s instructions. Do not clean the cooling unit with a direct or high-pressure water jet. Install in a well-ventilated room, well away from sources of heat. Ensure that the air can circulate properly in the vicinity of the refrigerating aggregate.
  • Page 7: Instructions For The User

    INSTRUCTIONS FOR THE USER OPERATING INSTRUCTIONS - Only persons older than 15 years old may use the equipment after instruction. - Do not place warm foods or steaming liquids in the cooling unit. - Cover or wrap up all foods. - Maintain the spacing between grilles to ensure that the air can circulate properly.
  • Page 8: Operation Of The Temperature Controller

    The target value and the setup parameters can both be adjusted. These adjustments should only be made if the equipment is oper- ating in unfavourable conditions. These setup parameters may only be changed with the express consent of FRANKE FOODSERVICE SYSTEMS GMBH.
  • Page 9 Evco Thermostat under construction Technical modifications excepted! Last revised: 07 / 2011...
  • Page 10: Cleaning And Maintenance

    CLEANING AND MAINTENANCE WARNING! Before carrying out any cleaning or maintenance procedures, disconnect the equipment from the mains. The equipment must be completely cool before starting any of these procedures. CAUTION! There should be no food in the areas to be cleaned. IMPORTANT! The appliance must be defrosted daily.
  • Page 11: Long Periods Of Non-Operation

    Important: clean the cooling fins on the condenser (C-2) of the cooling unit with a vacuum cleaner every 6 months. They can be accessed by removing the ventilation grille (C-3). Do not use any sharp instruments to clean it. It is usually sufficient to clean the fins with a vacuum cleaner or with a fin comb (C-4). However, if you can see that the condenser is very dirty, it should be cleaned by specialists (refrigeration engineers).
  • Page 12: Customer Service For The Electronic Components

    In the event of a fault or a malfunction, disconnect the unit from the mains. Any necessary repairs must be carried out by qualified technicians. Repairs must be carried out by an authorised service technician. Should the unit malfunction, please contact your nearest Franke service dealer.
  • Page 13: Spare Parts

    SPARE PARTS POS. PART NO. DESCRIPTION 385.151 On-Off switch 725.109.323 Temperature controller Jumo 725.114.966 Filter 240 x 10 x 240 mm (GSFP 450/520) 725.106.011 Filter 265x10x255 (aluminium) (GSFP 780) 725.113.561 Cooling aggregate ASPERA (GSFP 450/520) 1525800 Cooling aggregate ASPERA (GSFP 780) 1525804 Plug CEE 230V IP 44 385.641...
  • Page 14: Dismantling, Disposal

    In the case that the customer wants Franke to take on the product disposal, Franke GmbH will give the customer a quotation for taking the goods back and disposing of them, at the time of the disposal. Costs for transport and disposal will be invoiced to the customer.
  • Page 15: Electrical Diagram

    ELECTRICAL DIAGRAM Technical modifications excepted! Last revised: 07 / 2011...
  • Page 16 Technical modifications excepted! Last revised: 07 / 2011...
  • Page 17: Declaration Of Conformity
