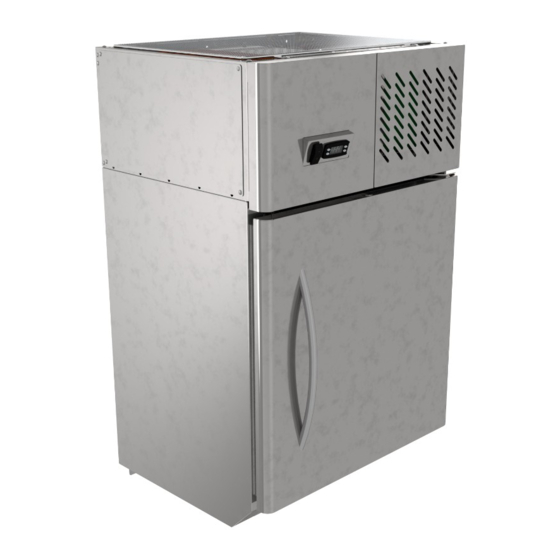

- Page 1 OPERATION & INSTALLATION MANUAL HIGH CAPACITY WALL FREEZER MODEL: HCWF-P PART NUMBER: 18014457 High Capacity Wall Freezer...
-
Page 2: Important Safety Information
- NEVER make ANY modifications to the unit that are damage to the refrigeration circuit. not authorized by documentation provided by Franke. - ALWAYS perform repairs on the unit in a well - NEVER remove any labels from the unit. - Page 3 IMPORTANT SAFETY INFORMATION - NEVER operate with factory installed parts or - NEVER lift or move equipment without proper tools components removed. or assistance. - NEVER use for other than intended use. Failure to follow these safety instructions COULD result in minor to moderate injury. Failure to follow these safety instructions COULD result in death or serious injury.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Important Safety Information ................. 2 Key Components ...................... 5 Overview .........................5 Installation ........................ 6 Installing the HCWF-P......................6 Reversing the Freezer Door ...................10 Controls & Settings ....................12 Power ON/OFF Switch ....................12 Factory Preset Temperature and Adjustable Range ............12 Unit Temperature Adjustment ..................12... -
Page 5: Key Components
The HCWF-P also point-of-use. Designed to be wall-mounted near the features a reversible freezer door, easy-to-clean Fryer Station to save space, the HCWF-P is currently stainless steel surfaces throughout, and a digital available in a 28" wide, single door model. -
Page 6: Installation
High Capacity Wall Freezers (HCWF-P) are designed for wall installation to either left or right side of fry station. Unit must be installed within 10' of an appropriately rated electrical receptacle, per the specifications listed on the unit’s data label. - Page 7 Use appropriate help, tools, and techniques when holes into marked locations. lifting or moving heavy objects. With appropriate assistance, lift HCWF-P to a height that clears previously installed mounting strip. Lower freezer until top-rear flange of freezer rests completely on mounting strip. Continue to support weight of freezer (Fig.
- Page 8 Screw all-thread support rod into nutsert attached screws, based on wall materials and weight-bearing at top of freezer compartment, behind evaporator requirements noted on page 4, through HCWF-P top housing (Fig. 10). brace (Fig. 8). Drill pilot holes as needed.
- Page 9 INSTALLATION STEP 11 STEP 12 Cover exposed all-thread rod using provided length of Uncoil power cord from within evaporator housing. split plastic tubing. Trim tubing as needed (Fig. 12). Plug unit into appropriately-rated electrical receptacle, per specifications noted on unit data label (Fig. 13). Restrain excess cord length using plastic wire ties.
-
Page 10: Reversing The Freezer Door
RISK OF PERSONAL INJURY Use caution when removing door to avoid dropping heavy components onto feet. The HCWF-P freezer door is field-reversible and designed for right- or left-handed swing. Use the following procedure to reverse the door if required due to installation location. - Page 11 INSTALLATION STEP 5 Turn freezer door upside-down. Place door onto bottom-left hinge (Fig. 19). Fig. 19 STEP 6 Continue to support door. Turn bottom-right hinge upside-down and install to top-left position using pre-installed screws (Fig. 20). Confirm that door opens smoothly and that door gasket seals fully against freezer compartment. Fig.
-
Page 12: Controls & Settings
Adjustable Range The temperatures for the High Capacity Wall Freezer Fig. 23 (HCWF-P) are preset at the factory. The preset tem- peratures are recommended for normal operation. If 2. Press SET again. The current setpoint is displayed. needed, the temperatures can be adjusted. The fac-... -
Page 13: Manual Defrost
NOTICE compartment temperature. IMPORTANT OPERATION INFORMATION The High Capacity Wall Freezer (HCWF-P) is designed for automatic evaporator coil defrosting. Under normal operating conditions, NO MANUAL DEFROSTING is required by the operator. To initiate a manual defrost: Fig. - Page 14 OPERATION 2. Remove shoulder bolts securing shelf rails to 3. Loosely install shoulder bolts at desired shelf interior walls of freezer (Fig. 29). Set rails aside. height (Fig. 31). Rest shelf rail keyholes onto Remove pre-installed screws at desired shelf shoulder bolts, and tighten bolts until fully secure height and replace with shoulder bolts (Fig.
-
Page 15: Product Loading Guidelines
Do NOT let plastic bags, cartons, or other containers to obstruct or block evaporator intake openings inside of freezer compartment. Care should be taken when loading frozen product into the High Capacity Wall Freezer (HCWF-P), to ensure that freezer compartment temperatures remain within safe product storage range. -
Page 16: Troubleshooting
If following these steps does not fix the problem, contact Franke at (800) 537-2653 and press 2 for Technical Support. 19011713 - Rev. A - November 29, 2018... -
Page 17: Warranty
- Compressor - 5 Years (parts only years 3-5) Exclusions: Certain Franke parts that are expendable by nature and need to be replaced frequently may not be covered. Franke is not liable under these warranties for repairs or damages due to improper operation, maintenance or cleaning, attempted repairs or installation by unauthorized persons, alterations, water quality, abuse, fire, flood or acts of God. -
Page 18: Notes
NOTES 19011713 - Rev. A - November 29, 2018... - Page 19 NOTES 19011713 - Rev. A - November 29, 2018...
- Page 20 © 2018 Franke Foodservice Solutions, Inc. This media is the confidential and proprietary property of Franke Foodservice Solutions, Inc. and shall not be reproduced in any form of media without the express written permission of Franke. Due to continuous product development, Franke reserves the right to make changes in design and specifications without prior notice.
