- Page 1 OPERATION & INSTALLATION MANUAL HIGH CAPACITY MEAT FREEZER MODEL: HCMF-30P HCMF-18P PART NUMBER: 18014427 18014424 High Capacity Meat Freezer ( HCMF-30P shown )
-
Page 2: Important Safety Information
- NEVER make ANY modifications to the unit that are explosion. All refrigeration systems present a not authorized by documentation provided by Franke. hazard of flash freezing and oxygen displacement. - NEVER remove any labels from the unit. - Page 3 IMPORTANT SAFETY INFORMATION result in death or serious injury. Failure to follow these safety instructions COULD result in minor to moderate injury. These instructions are intended for qualified persons ONLY. Use by others creates an unsafe Steel surfaces may have sharp edges which pose condition.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Important Safety Information ................. 2 Key Components ...................... 5 Overview .........................5 Installation ........................ 6 Installing the HCMF-P ......................6 Reversing the Front Loading Door ...................8 Controls & Settings ....................10 Power ON/OFF Switch ....................10 Factory Preset Temperature & Adjustable Range ............10 Unit Temperature Adjustment ..................10 Manual Defrost ......................11 Operation ........................ -
Page 5: Key Components

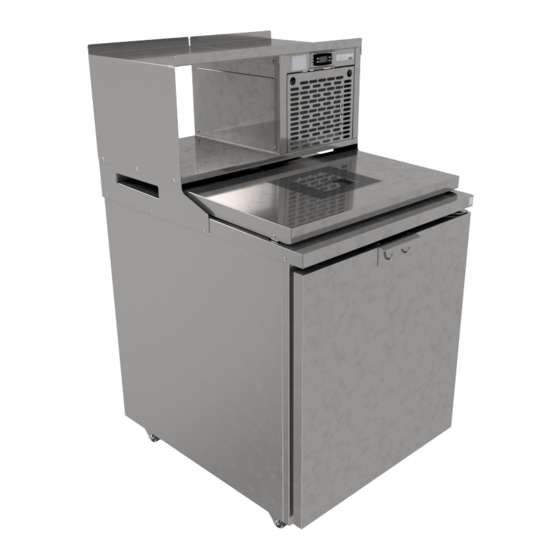

KEY COMPONENTS Overview The High Capacity Meat Freezer (HCMF-P) is designed the unit, and removable panels to allow access to for use at the kitchen grill station. The freezer provides internal refrigeration components for maintenance. quick and easily access storage to frozen proteins. The HCMF-P is available in both 18"... -
Page 6: Installation
INSTALLATION Installing the HCMF-P CAUTI ON LIFTING HAZARD Use appropriate help, tools, and techniques when lifting or moving heavy objects. NOTICE IMPORTANT INSTALLATION INFORMATION Remove all tape, protective film, and foam blocking from the unit before installation. Wash, rinse, and sanitize wire shelves before use. - Page 7 INSTALLATION STEP 3 STEP 5 If needed, remove, rotate, and reinstall front loading Load glove holder bracket with disposable gloves by door (refer to Reversing the Front Loading Door , page positioning attachment holes on disposable glove 8). Door should open towards grill station. pack over pins on front of bracket (Fig.
-
Page 8: Reversing The Front Loading Door
INSTALLATION Reversing the Front Loading Door CAUTI ON RISK OF PERSONAL INJURY Use caution when removing door to avoid dropping heavy components onto feet. The HCMF-P front loading door is field-reversible and designed for right- or left-handed swing. Use the following procedure to reverse the door if required due to installation location. - Page 9 INSTALLATION STEP 5 STEP 7 Turn top-right hinge upside-down and install to bottom- Continue to support door. Turn bottom-right hinge left position using pre-installed screws (Fig. 12). upside-down and install to top-left position using pre- installed screws (Fig. 14). Confirm that door opens smoothly and that door gasket seals fully against freezer compartment.
-
Page 10: Controls & Settings
CONTROLS & SETTINGS Power ON/OFF Switch Unit Temperature Adjustment The High Capacity Meat Freezer (HCMF-P) is provided To adjust the temperature of the unit: with a main power ON/OFF switch, located above the 1. Locate temperature controller, above front louvered access panel at the back of the unit (Fig. 16). louvered access panel (Fig. -
Page 11: Manual Defrost
CONTROLS & SETTINGS 3. Press the POWER button twice to save the new setting. 1. Press and hold down arrow button on display for The current temperature will be displayed (Fig. 20). five (5) seconds (Fig. 21). Fig. 20 Fig. 21 4. - Page 12 OPERATION 2. Loosen three (3) screws fastening each middle 3. Reinstall rails by placing keyholes at intended shelf rail to interior freezer wall. Slide rail forward shelf height on screws in freezer wall (Fig. 26). (Fig. 24) and then away from wall to release from Slide rails back, then tighten screws to fasten rail screws (Fig.
-
Page 13: Storing Frozen Product
- HCMF-18P: Up to three (3) 10:1 or 4:1 cases than required to remove frozen product for immediate - HCMF-30P: Up to six (6) 10:1 or 4:1 cases use. Do NOT obstruct the roll-back lid’s ability to When loading cases, open top flaps and fold down side automatically close. -
Page 14: Troubleshooting
If following these steps does not fix the problem, contact Franke at (800) 537-2653 and press 2 for Technical Support. 19011739 - Rev. A - November 30, 2018... -
Page 15: Warranty
- Compressor - 5 Years (parts only years 3-5) Exclusions: Certain Franke parts that are expendable by nature and need to be replaced frequently may not be covered. Franke is not liable under these warranties for repairs or damages due to improper operation, maintenance or cleaning, attempted repairs or installation by unauthorized persons, alterations, water quality, abuse, fire, flood or acts of God. - Page 16 © 2018 Franke Foodservice Solutions, Inc. This media is the confidential and proprietary property of Franke Foodservice Solutions, Inc. and shall not be reproduced in any form of media without the express written permission of Franke. Due to continuous product development, Franke reserves the right to make changes in design and specifications without prior notice.
