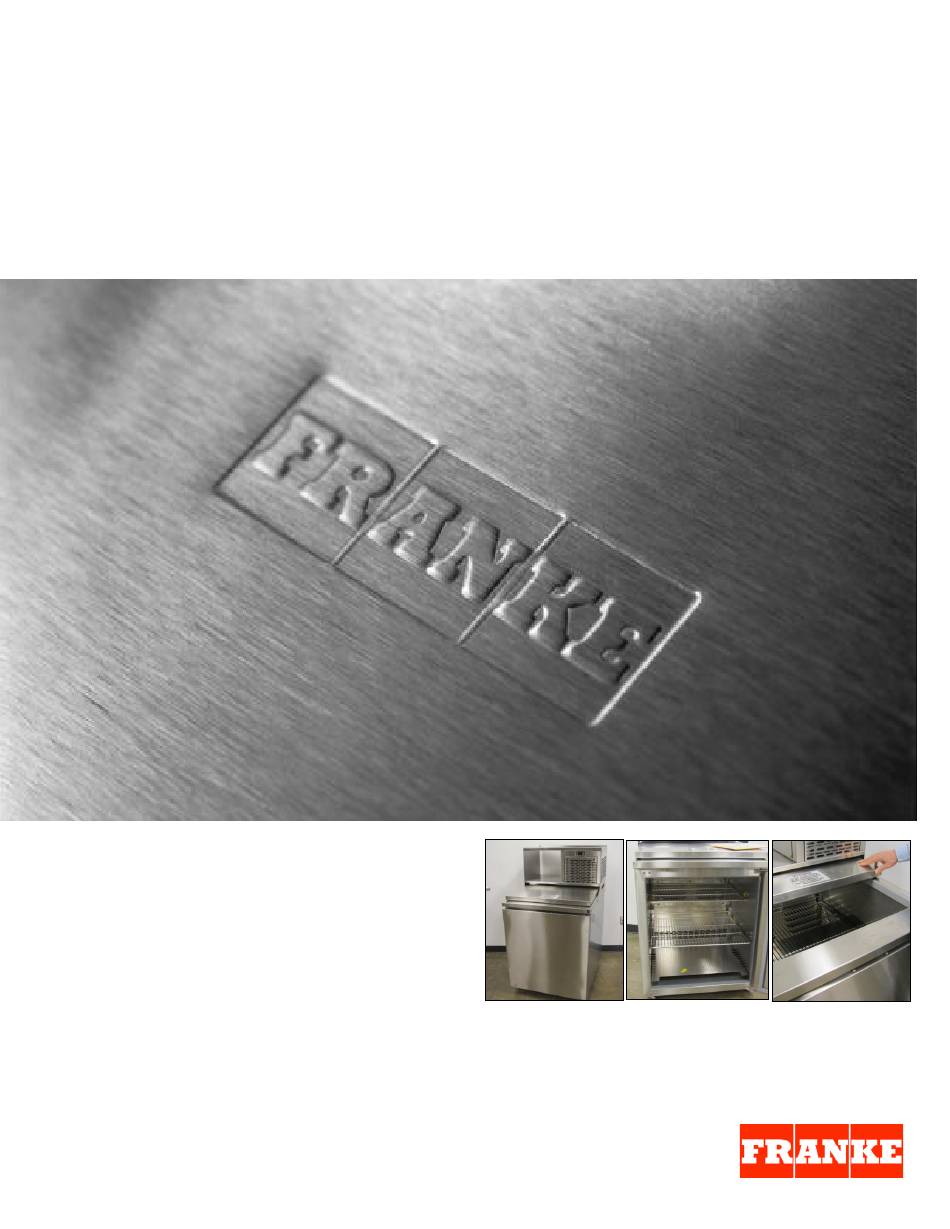

HCMF-18 & HCMF-30 High Capacity Meat Freezers
Operating Manual
[P/N 19004316]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCMF-18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Franke HCMF-18

Summary of Contents for Franke HCMF-18

  • Page 1 HCMF-18 & HCMF-30 High Capacity Meat Freezers Operating Manual [P/N 19004316]...

  • Page 2: Important Cautions & Warnings

    2. The HCMF is designed for the temporary frozen storage and easy (at-Grill- Station) access to frozen hamburger patties and other grilled product at commercial restaurants only. Franke authorizes no other use. 3. The HCMF may NOT be used for long term storage, only temporary storage of frozen product between the walk-in freezer and grill station production.
  • Page 3 Section 7 of this manual. 2. For any other service or performance problem not covered or corrected by Basic Troubleshooting procedures, call: Franke Technical Support at (800) 537-2653 (press 2) in North America. 3. All service or repair work must be done by a licensed professional trained and authorized to perform service on Franke products.

  • Page 4: Table Of Contents

    Table of Contents Important CAUTIONS & WARNINGS Page 2 Equipment Diagram: Key Components Page 5 1 Installation Page 6 2 Disposable Gloves Holder Page 9 3 Operating Controls Page 10 4 Loading the Freezer Page 12 5 Store-Closing Procedure Page 14 6 Preventative Maintenance Page 15 7 Basic Troubleshooting...

  • Page 5: Equipment Diagram: Key Components

    Franke HCMF Key Components HCMF-30 [18005519 – Condenser-Right] Model Shown Front Vented Condenser Coil Remote Access Panel Temperature Display/Control Grill Tool Shelf Top Roll-Back Product Access Door Right Side Disposable Glove Service Access Bracket Panel Front Door (Hinged Right) Power ON/OFF...

  • Page 6: Installation

     Lift cardboard carton straight up and off unit. 2 Roll Unit Off Skid CAUTION! The HCMF-18 model weighs 265 lbs. [120 kg] and the HCMF-30 weighs 365 lbs. [165 kg]. Do not attempt to remove this unit from the shipping skid without assistance.
  • Page 7  Close the freezer door. 5 Check Door Swing/Hinge Location High Capacity Meat Freezers are typically shipped from Franke with the front loading door hinged right, so it opens from the left and swings right. When in position, it is best if the door swings toward the front of the store, so that it isn’t in the way...
  • Page 8 Grill Station  Provide the following clearance from walls and other equipment: Side Clearance Rear Clearance Front & Top Model Clearance Minimum Rec. Minimum Rec. HCMF-18 0” 2” 1” 2” Keep Open HCMF-30 0” 2” 1” 2” Keep Open HCMF Operating Manual...

  • Page 9: Disposable Gloves Holder

    IMPORTANT: Failure to provide the recommended rear or side clearance may shorten the Freezer life, increase compressor running time, increase energy usage and impact unit warranty coverage.  Before you roll the unit into place, locate the nearest grounded 120-volt/60 Hz power outlet, per unit data plate requirements.

  • Page 10: Operating Controls

    0° to –10° F [-18 to -23° C]. This thermostat is calibrated, set and tested at the factory, prior to shipment from Franke. Bring Freezer Down to Holding Temperature: As soon as the unit is plugged in, the compressor will start and the unit will begin to chill.
  • Page 11 Under normal operating conditions, NO MANUAL DEFROSTING is required by the operator. *However, if the compartment temperature remains above set point and ice is visible on the evaporator coil, Franke Technical Services may advise starting a manual defrost cycle. HCMF Operating Manual...

  • Page 12: Loading The Freezer

    1. To initiate a manual defrost cycle, push and hold the down arrow button on the display for 5 seconds, until digital display reads: 2. The compressor will shut off and the evaporator heater coil will come on to melt any excess ice buildup. At the end of the manual defrost cycle, the heater will shut off, the compressor will start and the display will return to the actual freezer compartment temperature.
  • Page 13 1 Loading Full Cases of 4:1 or 10:1 Hamburger Patties Remove hamburger patty case(s) from bulk frozen storage. Franke High Capacity Meat Freezers are designed to hold the following: HCMF-18 Model: ...

  • Page 14: Store-Closing Procedure

    2 Position Open Grilled Product Cases Open one of two product cases needed for immediate production and place them on the top wire shelf, where they can be reached through the roll-back top. 3 Remove Product for Grilling, As Needed Remove and slip on one or two plastic gloves, as needed.

  • Page 15: Preventative Maintenance

    6 Preventive Maintenance WARNING! Verify the freezer is disconnected from the power source before attempting any preventive maintenance. Failure to disconnect the electric power could result in electric shock, burns, injuries or death. CAUTION! The fins on a condenser coil are very sharp, and some refrigeration lines can be very hot, resulting in possible cuts and/or burns.
  • Page 16 3 Remove Shelf for Cleaning While freezer compartment is defrosting, remove the middle wire shelf. This wire rack can be washed and sanitized in the main pot sink. 4 Inside Freezer/Compartment Cleaning Allow freezer to completely defrost and warm up to a surface temperature above freezing (32F/0°C), before cleaning the freezer interior.
  • Page 17 Quarterly/Every Three Months - Clean the Condenser Coil (Also See PMM Page: RF 12 Q1) Open the vented front access panel to inspect and access  the condenser coil. Just pull to release from the two magnetic catches and lift out. Use a soft-bristle cleaning brush to gently remove dust and ...

  • Page 18: Basic Troubleshooting

    Use a soft bristle brush to clean coils, per 23 C]. clogged with debris. Preventive Maintenance instructions in Section 6. If these steps do not fix problem, call Franke at (800) 537-2653 and press 2 for Technical Services. HCMF Operating Manual Page 18...

  • Page 19: Unit Specifications

    HCMF Models have the following specifications and utility requirements: Key Performance Specifications Product Model: HCMF-18 HCMF-30 Part Number: 18005560 18005519* Capacity: Cubic Feet 13.1...

  • Page 20: Product Warranty

    Exclusions: Certain Franke parts that are expendable by nature and that need to be replaced frequently may not be covered. Franke is not liable under these warranties for repairs or damages due to improper operation, attempted repairs or installation by unauthorized persons, alterations, poor water quality, abuse, fire, flood or acts of God.

  • Page 21: Service Commitment & Contact Information

    Performance of service agents, including their parts stocking abilities, call response time, service rates and customer satisfaction are monitored by the Franke Field Service Department via online, written and phone surveys. This Service Network list is updated annually by Franke Technical Support.
  • Page 22 Franke Foodservice Systems 800 Aviation Parkway Smyrna, TN 37167 800-537-2653 www.frankefs.com [P/N 19004316] HCMF Operating Manual (Issued 4/2012) HCMF Operating Manual Page 22...
