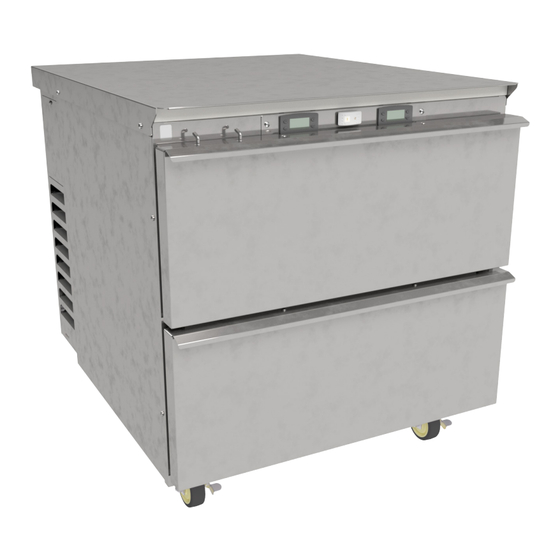

- Page 1 OPERATION & INSTALLATION MANUAL CONVERTIBLE COOLER FREEZER MODEL: 2DCV-30 2DCV-18 PART NUMBER: 18012498 18014345 Convertible Cooler Freezer (2DCV-30 shown)
-
Page 2: Important Safety Information
Failure to follow these safety instructions WILL result - NEVER make ANY modifications to the unit that are in death or serious injury. not authorized by documentation provided by Franke . Refrigeration systems that use R-290 (Propane) - NEVER remove any labels from the unit. -
Page 3: Table Of Contents
IMPORTANT SAFETY INFORMATION Steel surfaces may have sharp edges which pose training, MUST perform service or installation work. a hazard of injury - ALWAYS keep out of the reach of children. - ALWAYS wear appropriate personal protective - ONLY allow access to unit by trained personnel who equipment (PPE) when moving or handling equipment. -
Page 4: Key Components
30" will be shown for steps that apply to can be switched from refrigerator to freezer mode by both models. flipping a toggle switch. When in refrigerator mode, 2DCV-30 Fig. 1 -19011150- • Rev. C • June 14, 2018... - Page 5 KEY COMPONENTS 2DCV-18 Fig. 2 ITEM PART NAME Locking Casters Condenser Access Panel Refrigerator/Freezer Toggle Switch Access Panel Refrigerator/Freezer Toggle Switch Convertible Cooler Freezer Temperature Controller, Refrigerator Power ON/OFF Switch Temperature Controller, Freezer Glove Holder Upper Drawer Lower Drawer Table 1 -19011150- •...
-
Page 6: Controls & Settings
FREEZER REFRIGERATOR main power ON/OFF switch, mounted to the front of CONTROLLER CONTROLLER the unit, above the two drawers (Fig. 3). POWER ON/OFF SWITCH Fig. 4 Temperature Controls (2DCV-30) Fig. 3 Factory Preset Temperature and REFRIGERATOR FREEZER CONTROLLER CONTROLLER Adjustable Range The temperatures for the Convertible Cooler Freezer are preset at the factory. -
Page 7: Manual Defrost
CONTROLS & SETTINGS 2. The display will read “dEF” (Fig. 10). The unit will enter defrost mode and begin warming the evaporator coil. The controller will display the current temperature once defrosting is complete. Fig. 7 3. Press the POWER button twice to save the new setting. The current temperature will be displayed (Fig. -
Page 8: Operation
CONTROLS & SETTINGS 3. Locate toggle switch on the electrical box inside of toggle switch compartment (Fig. 12, Detail A). FREEZER MODE Toggle the switch to the UP position for Freezer mode and to the DOWN position for Refrigerator mode. Reinstall previously removed access panel and screw. -
Page 9: Drawer Installation
OPERATION 3. Locate drawer lock on the front of each drawer 6. Push back on the slider lock to release the lock slider. Push down and pull the drawer locks (Fig. 18). toward front of the drawers until they pivot upward (Fig. -
Page 10: Troubleshooting
OPERATION 2. Gently set the drawer rails back onto the rollers on the end of the drawer sliders, and push the drawer in until completely closed (Fig. 21). Fig. 22 4. Inspect to ensure both locks are firmly secured. Fig. 21 Close both drawers. -
Page 11: Warranty
- Service by a non-authorized service company. - Use of non-OEM (Original Equipment Manufacturer) parts. This warranty is conditional upon Franke receiving notice of any defect subject to this warranty within thirty (30) days of its original discovery by the Buyer. - Page 12 © 2018 Franke Foodservice Solutions, Inc. This media is the confidential and proprietary property of Franke Foodservice Solutions, Inc. and shall not be reproduced in any form of media without the express written permission of Franke. Due to continuous product development, Franke reserves the right to make changes in design and specifications without prior notice.
