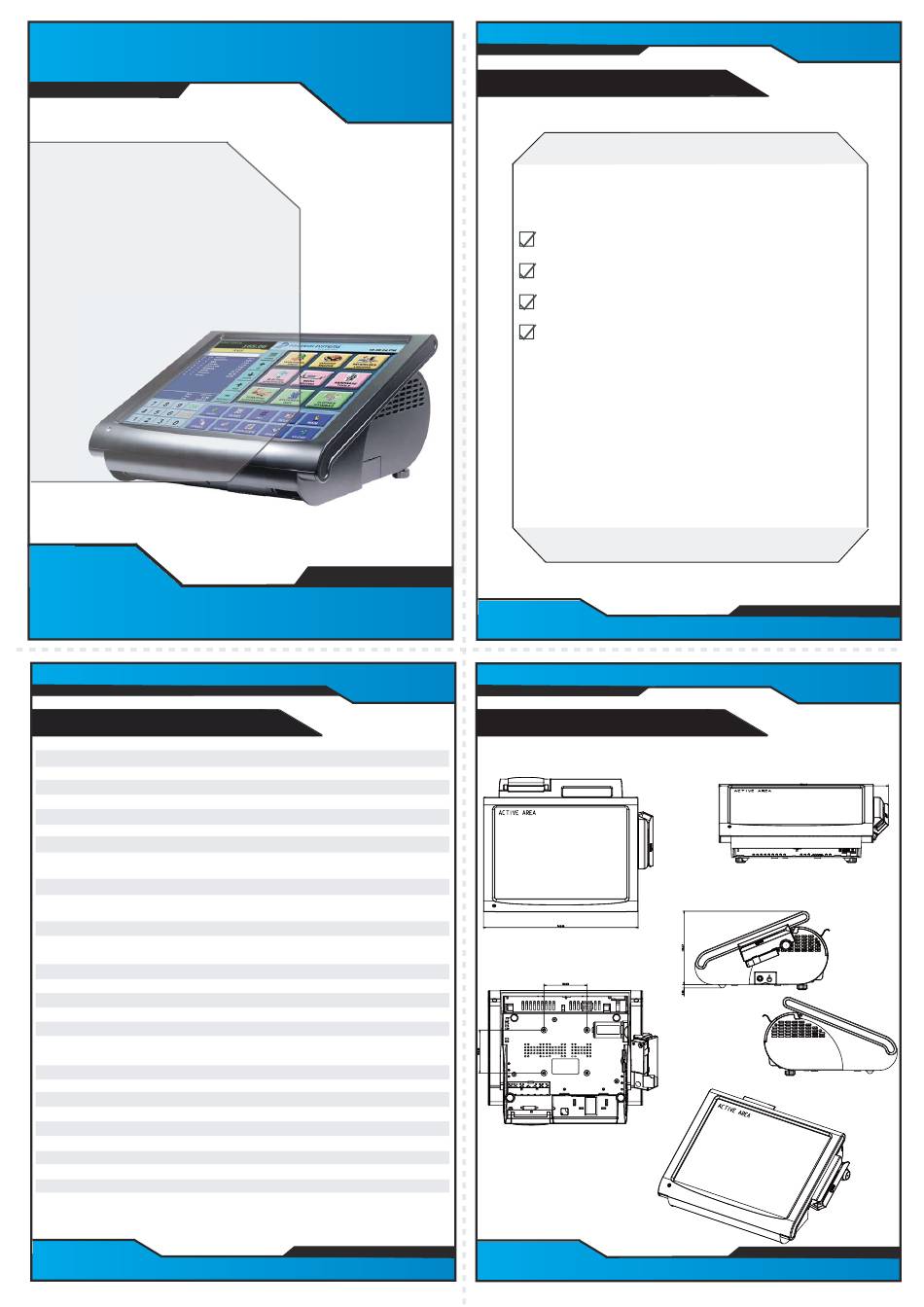

Protech Systems POS-3520 Quick Reference Manual

POS-3520
Quick
Reference
Guide

Specifications

System
®
CPU Support Intel ATOM Pineview D525 CPU
Memory Support 2 x DDR3 SO-DIMM Slot, 1GB DDR3 SO-DIMM (up to 4GB)
Core Logic Intel ® ICH8M
Network 10/100/1000 Base-T Fast Ethernet
Power Supply 120 Watt power adapter
System Weight 5.7 kg
Dimension (WxHxD) 356 x 309 x 167 mm (14.02" x 12.19" x 6.57")
O.S. Support Windows XP/ XPE, WEPOS, POSReady 2009
Storage
HDD 1 x 2.5" SATA HDD
CF Bootable Compact Flash slot for CF type I/II storage
I/O Ports
USB 4 x USB 2.0 port/ 1 x USB 2.0 on side bezel
Serial Port 3 x DB-9 (COM 1/2/4), 1 x RJ45 (COM 3),
+5V/12V selectable (COM1 ~ COM3)
PS/2 1 x PS/2 ports (default at keyboard)
LAN 1 x 10/100/1000 Mbps
VGA 1 x DB-15 VGA interface
Audio 1 x 2W speaker
Cash Drawer 1 x RJ11 Cash Drawer port (12V/24V)
Printer 2" or 3" easy loading thermal printer with auto cutter
Display
LCD 15" TFT LCD
Max. Resolution 1024 x 768
Brightness 250 cd/m²
Touch Screen 5-wire analog resistive
Viewing Angle +80° ~ -80° horizontal, +70° ~ -60° vertical
Environment
EMC & Safety CE, FCC
Operating Temp. 0 °C ~ 35 °C
Storage Temp. -20 °C ~ 60 °C
Humidity 20% ~ 90%
Manual ver Q4
All Right Reserved Copyright 2011
POS-3520
Bottom View

Packing Checklist

If you discover any item below was damaged
or lost, please contact your vendor.
POS-3520
This Quick Reference Guide
AC Power Adaptor
Driver CD

System View

Front View
POS-3520
X 1
X 1
X 1
X 1
POS-3520
PIP1230
Rear View
Side View
Quarter View
Unit: mm
