Protech Systems POS-6920 Quick Reference Manual

POS-6920
Quick
Reference
Guide
Specifications
System
CPU Support Intel ® Atom
®
Core logic Intel ICH8M
Memory 1 x DDRIII SO-DIMM slot, up to 4GB
HDD 1 x 2.5" serial ATA Hard Disk
CF 1 x Compact Flash slot for CF type I/II storage
Network 1 x Giga LAN Base-T Fast Ethernet
Power Supply 72W power adaptor
Speaker 1 x 2W
System Weight 9kg
Dimension (WxHxD) 368 x 327 x 238 mm
I/O Ports
USB 4 on rear I/O port, 1 on the left side of back cover
Keyboard/Mouse 1 x PS/2 port (default: Keyboard)
Serial Ports 1 x RJ45 (COM1), 2 x DB-9 (COM 2/3)
Audio 1 x Line-out
VGA 1 x DB-15 VGA Interface
Cash Drawer 1 x RJ11 port, 12/24V selectable
Display
LCD 15" TFT LCD/24bit, 250nits, 1024 x 768 resolution
Touch Screen True Flat Resistive
Viewing Angle 0 ~ 68 degree
Environment
Operating Temp. 0 °C ~ 35 °C
Storage Temp. -20 °C ~ 60 °C
Humidity 20% ~ 90%
Manual ver Q2
All Rights Reserved. Copyright 2014
POS-6920
® D525 1.8G
Packing Checklist
If you discover any item below was damaged
or lost, please contact your vendor.
POS-6920
This Quick Reference Guide
72W Power Adaptor
AC Power Cord
Driver CD
VFD (Optional)

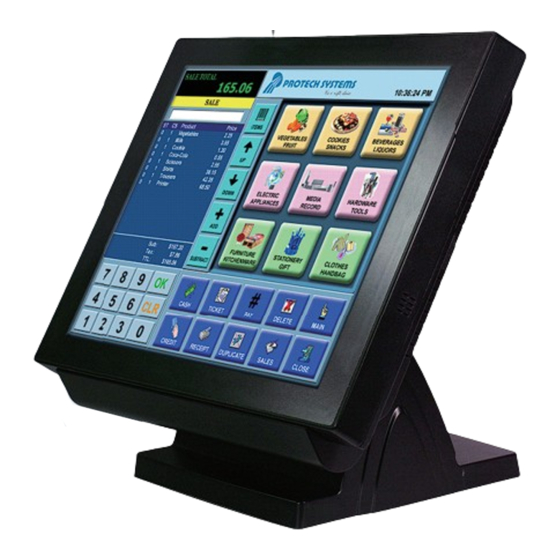

System View
POS-6920
Front View
I/O View
POS-6920
X 1
X 1
X 1
X 1
X 1
X 1
POS-6920
PIP1230
Side View
Unit: mm
