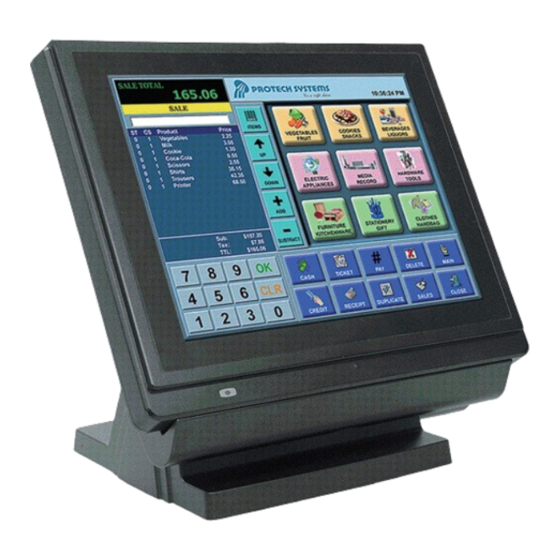

Protech Systems PA-6222 Quick Reference Manual

PA- 6222
Qui k c
Ref ere nce
Gui e d

Specifications

System CPU
Memory
Network
Power Supply
Audio
System Weight
Dimension(WxHxD)
OS support
Mounting Type
Storage SATA
I/O Ports USB
Serial Ports
LAN
VGA
Line Out
Cash Drawer
DC-in
Peripheral Customer Display
MSR & iButton
2 nd Display
Fingerprint
Display Resolution
Brightness
Touch Screen
Environment EMC & Safety
Operating Temp.
Storage Temp.
Humidity

I/O View

Version Q2
All Rights Reserved. Copyright 2017
All Right Reserved Copyright 2014
PA-6222
Intel® Celeron® Processor J1900
DDR3L SO-DIMM(up to 8GB)
10/100/1000Mbps
72 Watt power adaptor
2W speaker
Approx. 5kg
320 x 303 x 236 mm
POSReady7 / Win8 / Win10
Support VESA 75 / 100
1 x 2.5" HDD or SSD
4 x USB on rear, 1 x USB on side bezel
3 x RJ45, 1 x RJ45 optional(+5V/12V selectable)
1 x RJ45
1 x DB15
1 x phone jack
1 x RJ11(+12/24V selectable)
1 x 4pin DC Power Jack
VFD, 20 columns and 2 lines, 5 x 7 dots per column
JIS-I or II, ISO Track1+2+3
8" or 10.4" LCD
8-bit grayscale, reader
1024 x 768
2
500 cd/m LED Backlight
Bezel-Free 5-wire resistive
CE / FCC
0 ~ 35℃
-5 ~ 60℃
20 ~ 90%

Packing Checklist

If you discover any item below was damaged
or lost, please contact your vendor.
PA-6222 [stand-less or Normal-stand]
This Quick Reference Guide
Power Adaptor
Power Cord
Driver CD
VFD (Optional)

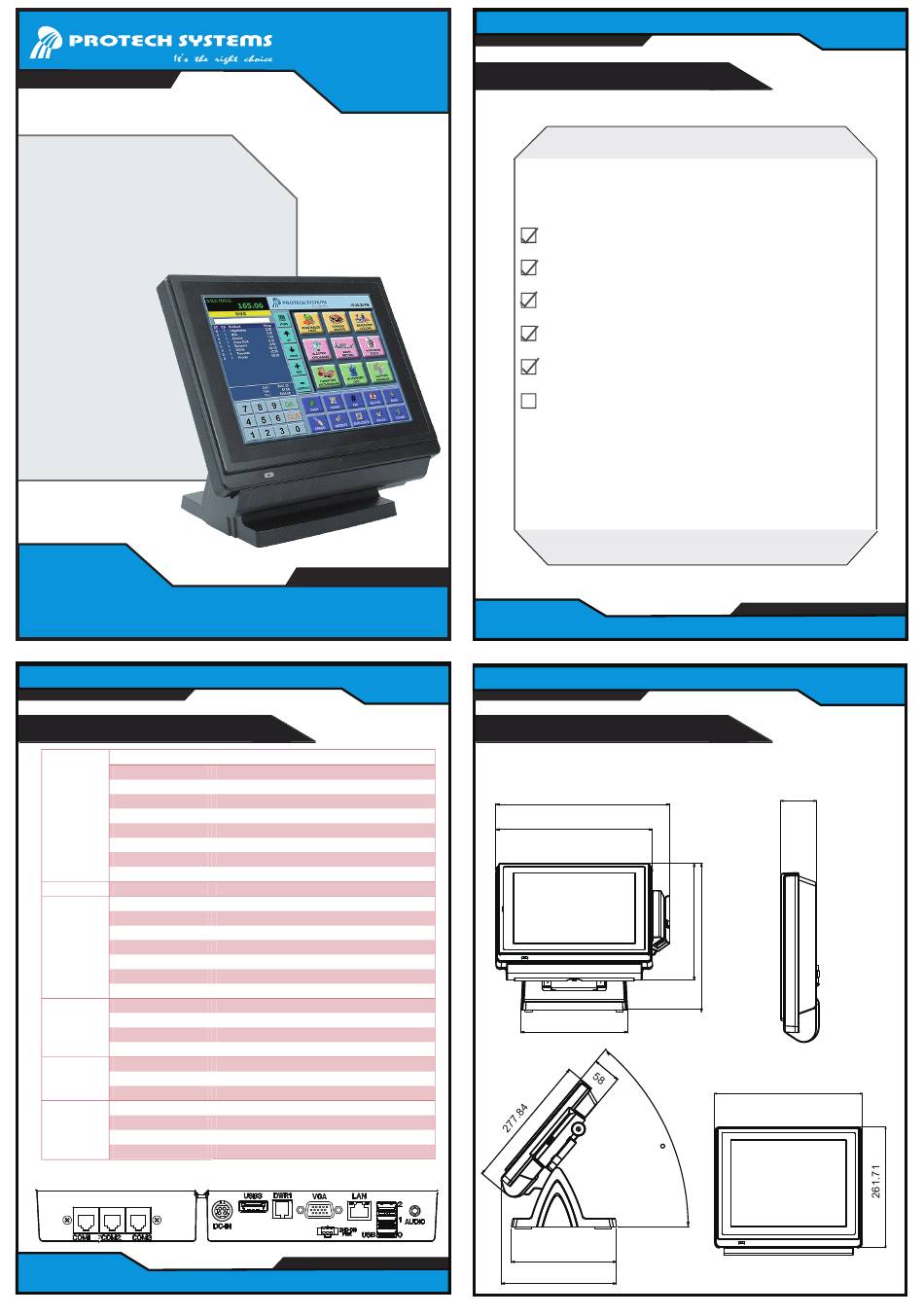

System View

Normal Stand Type
355.19
320
238.95
303.85
218
50
215.31
236.18
PA-6222
PA-6222
PA-6222
PI230
Stand-less Type
58
320
