Protech Systems PA-3522 Quick Reference Manual

PA-3522
Quick
Reference
Guide
Specifications
CPU Support Intel
Memory DDR3L SO-DIMM (1 slot, up to 8GB)
Network 10/100/1000 Base-T Fast Ethernet
Power Supply 72~120Watt power adapter
System
Audio 2W speaker
System Weight with power adaptor approx. 6kg
Dimension 356 x 309 x 167mm
O.S. Support WIN8 /POSReady7
SATA 1 x 2.5" HDD or SSD
Storage
mSATA 1 x SSD
USB 4 x USB on rear, 1 x USB on side bezel
Serial Port 3 + 1(option) x DB9 (+5V/ 12V selectable)
LAN 1 x RJ45
VGA 1 x DB15
I/O Ports
Line Out 1 x phone jack
Cash Drawer 1 + 1(option, with Y cable) x RJ11 (+12V or +24V selectable)
DC-in 1 x 4pin DC Power Jack
LPT 1 x DB25(option)
Customer Display VFD, 20 columns and 2 lines, each column is 5 x 7 dots
Printer 2" or 3" easy loading thermal printer with Auto cutter
Peripheral
MSR & iButton ISO I,II,III; JIS I,II and support information key
Fingerprint
8-bit grayscale, reader
LCD 15" TFT LCD
Resolution 1024 x 768
Display
Brightness 250 cd/m²
Touch Screen 5-wire Analog resistive
EMC & Safety CE / FCC
Operating Temp. 0 ~ 35° C
Environment
Storage Temp. -5 ~ 60° C
Humidity 20 ~ 90%
Manual ver Q1
All Rights Reserved. Copyright 2014
PA-3522
® ®
Celeron J1900
Packing Checklist
If you discover any item below was damaged
or lost, please contact your vendor.
PA-3522
This Quick Reference Guide
AC Power Cord (Optional)
Driver CD
MSR Card Reader (Optional)
i-Button + MSR Card Reader (Optional)
System View
Front View
Rear View
Bottom View
100
Unit: mm
PA-3522
X 1
X 1
X 1
X 1
X 1
X 1
PA-3522
PIP1230
Side View
22°
Top View
360

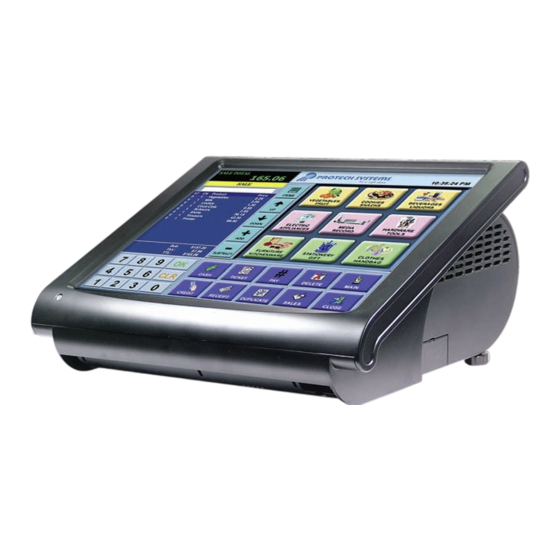

Quarter View
