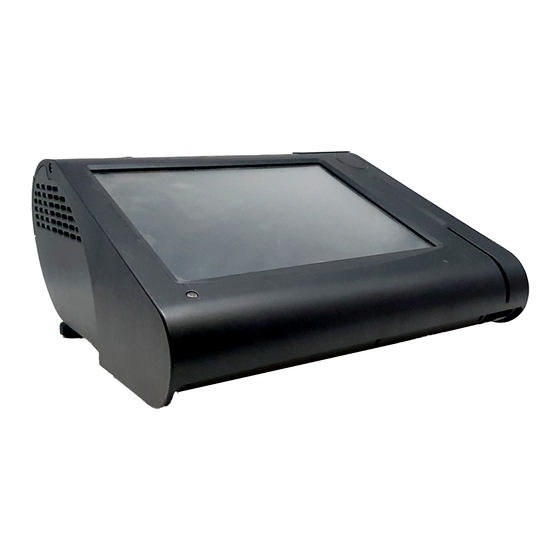

Protech Systems POS-3120 Quick Reference Manual

POS-3120
Quick
Reference
Guide
Specifications
System
CPU Support Intel® ATOM Pineview D525 CPU
Memory Support 2 x DDR3 SO-DIMM Slot, 1GB DDR3 SO-DIMM (up to 4GB)
Core Logic Intel® ICH8M
Network 10/100/1000 Base-T Fast Ethernet
Power Supply 120 Watt power adapter
System Weight 4.5 kg
Dimension (WxHxD) 300 x 299 x 135 mm (11.81" x 11.77" x 5.31")
O.S. Support Windows XP/ XPE, WEPOS, POSReady 2009
Storage
HDD 1 x 2.5" SATA HDD
CF Bootable Compact Flash slot for CF type I/II storage
I/O Ports
USB 4 x USB 2.0 port/ 1 x USB 2.0 on side bezel
Serial Port 3 x DB-9 (COM 1/2/4), 1 x RJ45 (COM 3),
+5V/12V selectable (COM1 ~ COM3)
PS/2 1 x PS/2 ports (default at keyboard)
LAN 1 x 10/100/1000 Mbps
VGA 1 x DB-15 VGA interface
Audio 1 x 2W speaker
Cash Drawer 1 x RJ11 Cash Drawer port (12V/24V)
Printer 2" or 3" easy loading thermal printer with auto cutter
Display
LCD 10.4" TFT LCD
Max. Resolution 1024 x 768 / 800 x 600
Brightness 300/230 cd/m²
Touch Screen 5-wire analog resistive
Viewing Angle +70° ~ -70° horizontal, +60° ~ -60° vertical
Environment
EMC & Safety CE, FCC
Operating Temp. 0 °C~ 35 °C
Storage Temp. -20 °C ~ 60 °C
Humidity 20% ~ 90%
Manual ver Q2
All Right Reserved Copyright 2011
POS-3120
Packing Checklist
If you discover any item below was damaged
or lost, please contact your vendor.
POS-3120
This Quick Reference Guide
AC Power Adaptor
Driver CD

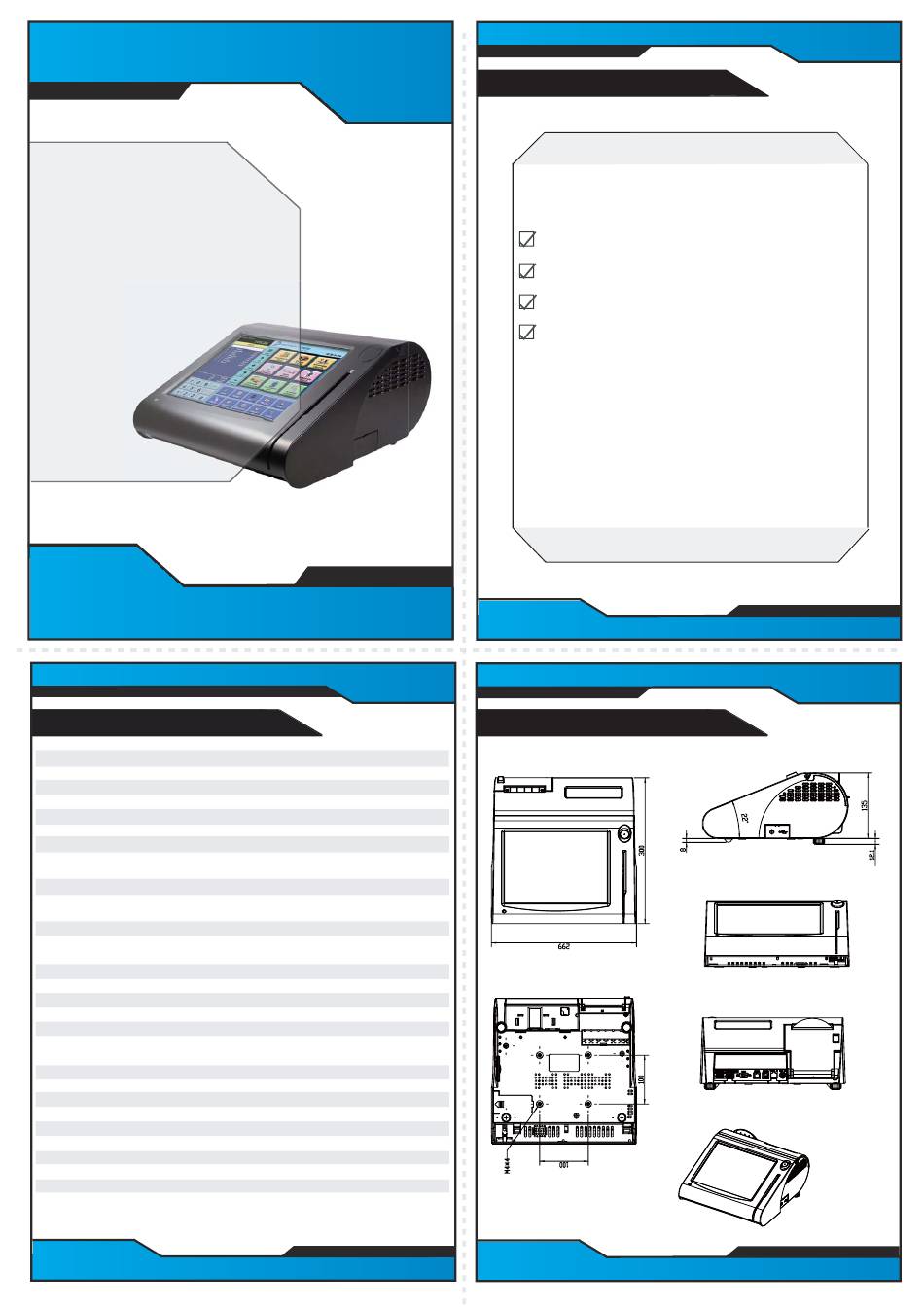

System View
Front View
Bottom View
POS-3120
X 1
X 1
X 1
X 1
POS-3120
PIP1230
Side View
Top View
Rear View
Quarter View
Unit: mm
