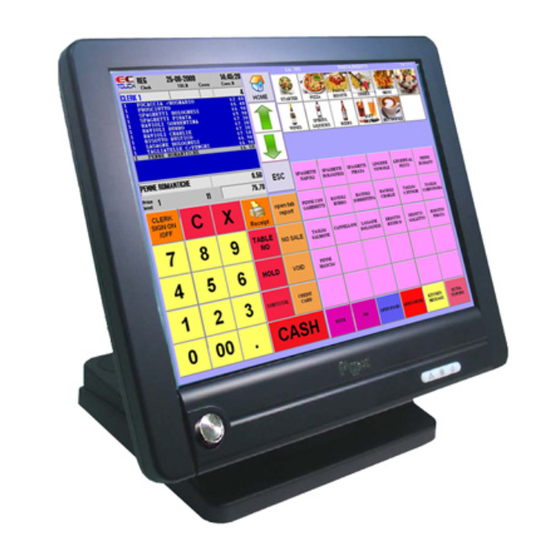

Protech Systems PS6508 Quick Reference Manual

PS6508
Quick
Reference
Guide
Specifications
System
CPU Support Intel® Celeron® M CPU up to 1.5GHz/
Intel® Celeron® M ULV CPU up to 1.0GHz/
Pentium® M CPU up to 1.8GHz
Memory Support 1 x SO-DIMM, DDRII SDRAM up to 1GHz max.
Communication Integrated Mini-PCI Intel Wireless 802.11b/g card (optional)
Power Supply 120W power adapter
O.S. Support Windows XP/XPE, Linux, WEPOS
System Weight 9kg
Dimension (WxHxD) 365 x 347 x 270 mm
Certificate CE, FCC, UL, CCC
I/O Ports
Drive Bays 1 x 2.5" SATA HDD
USB 4 x USB 2.0 ports
Serial Ports 4 x COM ports
Parallel 1 x parallel port (SPP/EPP/ECP)
Keyboard/Mouse 2 x PS/2 ports
LAN 1 x Giga Fast Ethernet
Others 1 x CF card slot (optional), 1 x RJ11 port for cash drawer
Option MSR Card reader, i-Button, Customer display
Display
LCD 15" TFT LCD
Touch Screen Analog resistive
Viewing Angle 0 ~ 60 degree
Environment
Operating Temp. 0 °C ~ 35 °C
Storage Temp. -20 °C ~ 60 °C
Humidity 20% ~ 90%
Manual ver Q6
All Right Reserved Copyright 2010
PS6508
Packing Checklist
If you discover any item below was damaged
or lost, please contact your vendor.
PS6508
This Quick Reference Guide
AC Power Cord (Optional)
Driver CD
MSR Card Reader (Optional)
i-Button + MSR Card Reader (Optional)
Wireless LAN (IEEE 802.11 b+g) (Optional)
CF-KIT (Optional)
VFD (Optional)
System View
PS6508
Front View
365
I/O View
PS6508
X 1
X 1
X 1
X 1
X 1
X 1
X 1
X 1
X 1
PS6508
PIP1230
Side View
(45 )
24 270
Unit: mm
