Protech Systems PS3100 Quick Reference Manual

PS3100
Quick
Reference
Guide
Specifications
System
CPU Support Intel® ATOM N270 CPU
Memory Support 1 x DDR2 SO-DIMM Slot, 512MB DDR2 SO-DIMM (up to 1GB)
Core Logic Intel® 945GSE + ICH7M
Network 10/100/1000 Base-T Fast Ethernet
Power Supply 120 Watt power adapter
System Weight 4.5 kg (Fanless)
Dimension (WxHxD) 300 x 299 x 135 mm (11.81" x 11.77" x 5.31")
O.S. Support Windows XP/ XPE, WEPOS, POSReady 2009
Storage
HDD 1 x 2.5" SATA HDD (standard 160GB)
CF Bootable Compact Flash slot for CF type I/II storage
I/O Ports
USB 4 x USB 2.0 port/ 1 x USB 2.0 on side bezel
Serial Port 3 x DB-9 (COM1/2/4), 1 x RJ45 (COM3),
+5V/12V selectable (COM1~3)
PS/2 1 x PS/2 ports (default at keyboard)
LAN 1 x 10/100/1000 Mbps
VGA 1 x DB-15 VGA interface
Audio 1 x 2W speaker
Cash Drawer 1 x RJ11 Cash Drawer port (12V/24V)
Printer 2" or 3" easy loading thermal printer with auto cutter
Display
LCD 10.4" TFT LCD
Max. Resolution 1024 x 768/ 800 x 600
Brightness 300/ 230 cd/m²
Touch Screen 5-wire analog resistive
Viewing Angle 0 ~ 65°
Environment
EMC & Safety CE, FCC, cUL, CB
Temperature Operating: 0 ~ 35°C; Storage: -20 ~ 60°C
Humidity 20 ~ 90%
Ver. Q5
All Rights Reserved. Copyright 2014
PS3100
Packing Checklist
If you discover any item below damaged or lost,
please contact your vendor.
PS3100
This Quick Reference Guide
AC Power Adaptor
Driver CD
Accessories Installation Guide

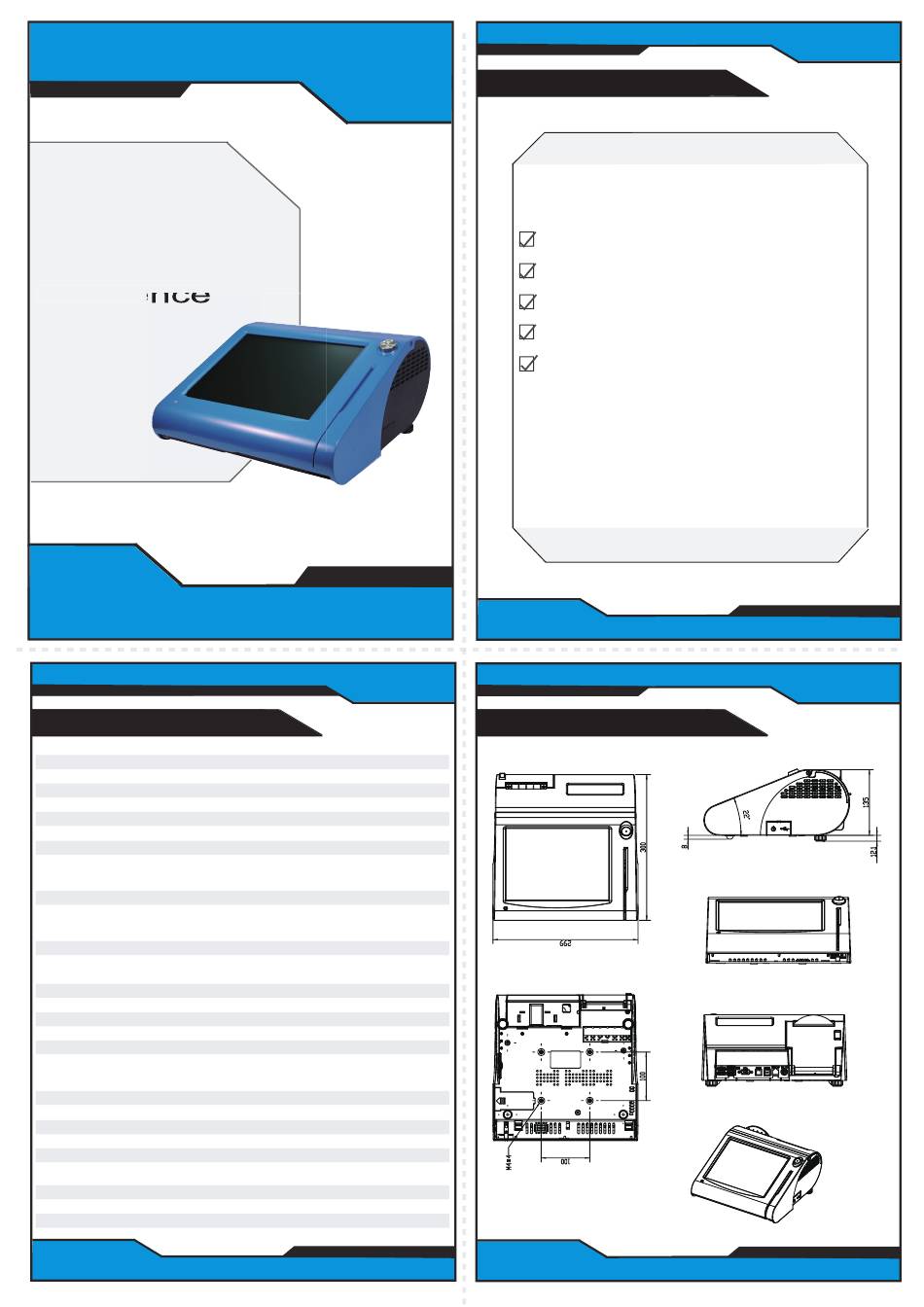

System View
Front View
Bottom View
PS3100
X 1
X 1
X 1
X 1
X 1
PS3100
PIP1230
Side View
Top View
Rear View
Quarter View
Unit: mm
