Model Hslg Single Phase Control Box Exploded View And Parts List - Linear HSLG-421 Installation Manual

HSLG OPERATOR INSTALLATION GUIDE
HSLG
MODEL
REF
NO. PART NO. DESCRIPTION
1 2100-1778 Control Box Wrapper
2 2100-1757 Control Box Mounting Plate
3 2100-1762 Terminal Strip Bracket, Output Side
4 2100-1761 Terminal Strip Bracket, Input Side
5 2200-122 Heyco Bushing, .87 diameter
6 2500-1948 Control Board Standoff
7 2510-268 Control Board
8 2500-1946 AC Motor Drive Board
2510-244 Control Board with AC Motor Board
9 2510-253 Limit Switch Harness Assembly
10 2510-249 Input Wire Harness Assembly
11 2510-250 Output Wire Harness Assembly
12 2510-261 Control Box Motor Harness Assembly
13 2500-071 Terminal Strip, 16-141
14 2500-212 Transformer, 115/24VAC 40VA
2500-791 Transformer, 230/24VAC 40VA

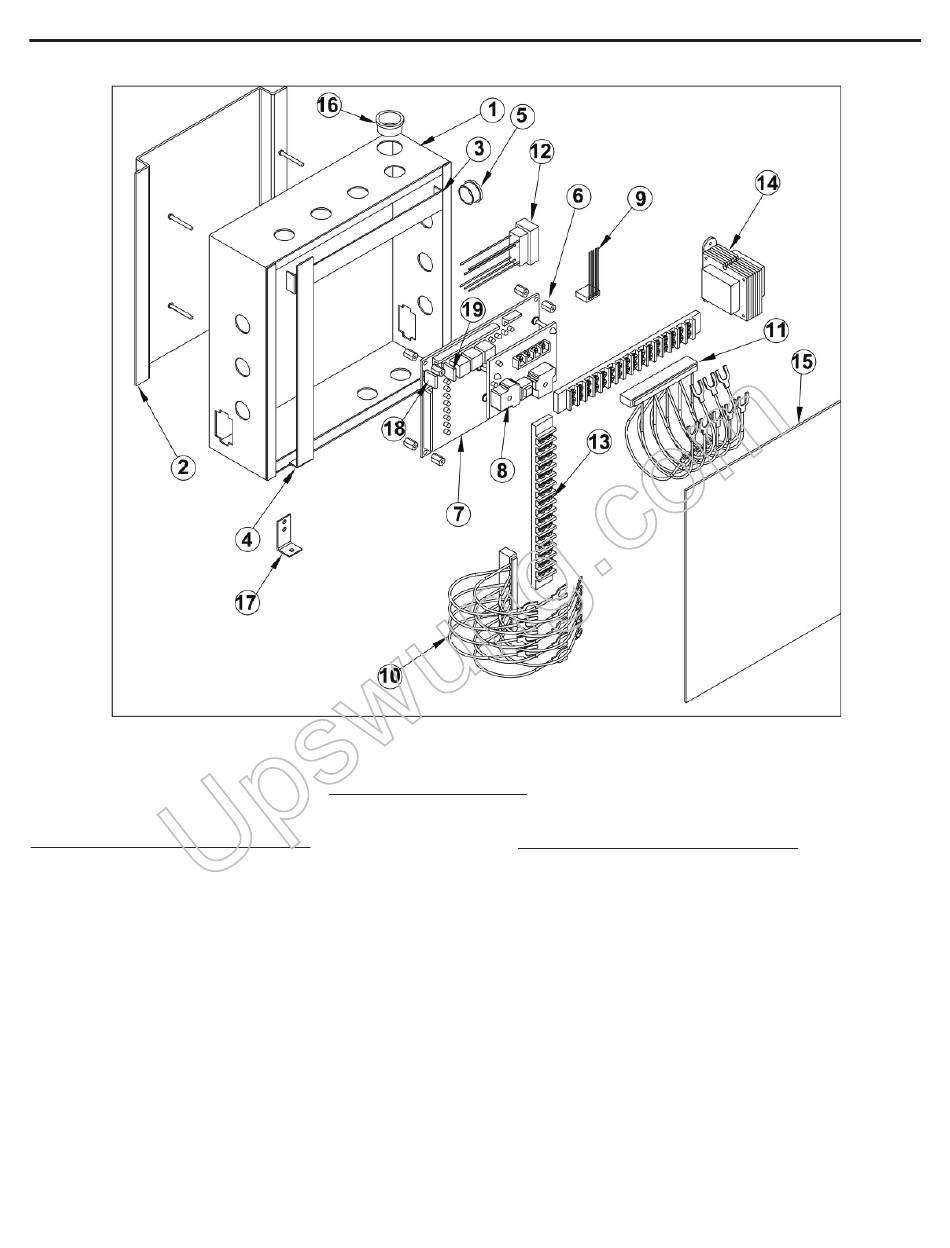

SINGLE PHASE CONTROL BOX PARTS LIST
- 27 -
REF
NO. PART NO. DESCRIPTION
15 2300-696 Clear Control Box Cover
16 2300-735 Heyco Bushing, 1.09 diameter
17 2200-876 Plunger, Spring Loaded
2500-867 Alarm, 24VAC (not shown)
18 2500-1966 2 Amp Fuse for Control Board
19 2500-1975 3 Amp Fuse for Control Board
2520-391-D Complete Controller Assembly
115VAC (order limit harness and
mounting brackets separately)
2520-392-D Complete Controller Assembly
230VAC (order limit harness and
mounting brackets separately)
