Software Manual
Applicable Models
TSP100IIIU
■
TSP100IIIBI
■
TSP100IIILAN
■
TSP100IIIW
■
TSP100ECO
■
Rev. 7.7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSP100IIIU and is the answer not in the manual?

Questions and answers

Related Manuals for Star Micronics TSP100IIIU

Summary of Contents for Star Micronics TSP100IIIU

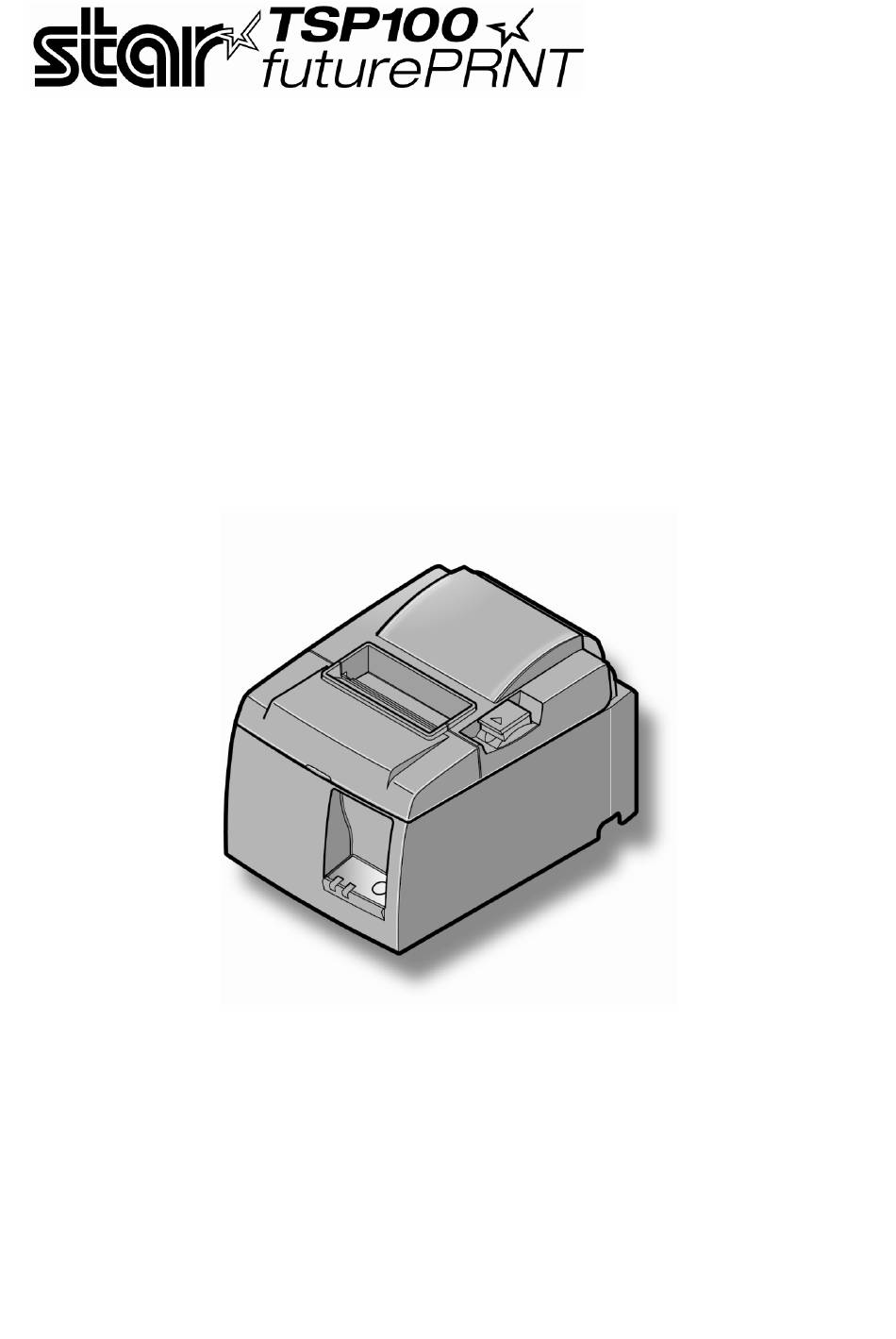

  • Page 1 Software Manual Applicable Models TSP100IIIU ■ TSP100IIIBI ■ TSP100IIILAN ■ TSP100IIIW ■ TSP100ECO ■ Rev. 7.7...

  • Page 2: Table Of Contents

    Contents 1. Installation and Uninstallation ................6 Installing futurePRNT Software ....................6 1.1. Adding a Printer (TSP100ECO/IIIU) ..................10 1.2. Adding a Printer (TSP100IIIW) ....................11 1.3. Printer LAN Settings ........................11 1.3.1. Creating a Printer Queue .......................19 1.3.2. Adding a Printer (TSP100IIILAN) .................... 21 1.4.
  • Page 3 Information ..........................91 4.2. General Settings ......................... 92 4.3. Default Text Settings ........................93 4.3.1. Default Print Settings ........................95 4.3.2. Star Micronics Cloud Services ....................98 4.4. Device Registration .........................99 4.4.1. Setting of Registration........................100 4.4.2. ECO Settings ..........................101 4.5. Auto Reduction Setting ........................101 4.5.1.
  • Page 4 SDK ...............................135 4.9.5. 4.10. Image List ..........................136 Adding an Image ...........................136 4.10.1. Renaming an Image ........................138 4.10.2. Deleting an Image ........................138 4.10.3. 4.11. Logos & Cropping ........................139 Logo Printing ..........................140 4.11.1. Logo Cropping ..........................144 4.11.2. 4.12. Text Processing ........................145 Text Triggers ..........................146 4.12.1.
  • Page 5 If you are using the TSP100ECO which does not have a power switch, please unplug the power ・ cable or the USB cable. ・ All company and product names are trademarks or registered trademarks of their respective owners. (https://www.star-m.jp/eng/trademarks.html) Copyright 2005 - 2022 Star Micronics Co., Ltd.

  • Page 6: Installation And Uninstallation

    Software Manual 1. Installation and Uninstallation To use the TSP100 futurePRNT product in a Windows environment, you need to install this printer driver in advance. Notes: 1) If the TSP100GT (version 1.0a or earlier) or TSP100LAN (version 1.1a or earlier) driver utility application is installed, uninstall it before starting operations.
  • Page 7 Software Manual Click “Next” to continue. The Software License Agreement, an agreement for installing the software, appears. Read the agreement. If you agree with the terms, select the “I accept the terms in the license agreement” check box, and then click “Next”.
  • Page 8 Software Manual Choose the “Typical” installation option to be sure that all of the TSP100 futurePRNT’s options are installed and then click “Next” to continue. Click “Install” to begin the installation process.
  • Page 9 Software Manual The files and programs are now being installed on the computer. At this point, all drivers and programs have been installed. Click “Finish” to close the wizard. (10) The subsequent steps vary depending on the model you are using. 1.2 Adding a Printer (TSP100ECO/IIIU) 1.3 Adding a Printer (TSP100IIIW) 1.4 Adding a Printer (TSP100IIILAN)

  • Page 10: Adding A Printer (Tsp100Eco/Iiiu)

    Load roll paper in the TSP100 futurePRNT, and connect to a computer. For information about how to load paper and connect to a computer, refer to the Online Manual for TSP100IIIU , and the Hardware Manual from Star’s web site for other models.

  • Page 11: Adding A Printer (Tsp100Iiiw)

    Software Manual 1.3. Adding a Printer (TSP100IIIW) This manual describes how to connect the printer using WPS. If you are using Windows 7, you can also connect over an Ad-Hoc network. For details, see the Online manual (Setup - Connect Tablet/PC).
  • Page 12 Software Manual If the "Windows Security Alert" screen is displayed, click [Allow access]. Notes: If you click [Cancel], you will not be able to search for the LAN printer. (6) The TSP100 LAN / Bluetooth Setup Tool screen is displayed. If the printer you want to install is not listed in the LAN printer list, click [Discovery].
  • Page 13 Software Manual (7) The TSP100 LAN printer on the network and the paired TSP100 Bluetooth ® printer are listed in the printer list. If multiple TSP100IIIW printers are listed, click [Check connection] to check whether you can communicate with the printer. The connected printer's LED (blue) will blink. If you wish to use the IP address assigned by the DHCP server, then proceed to Section 1.3.2, "Creating a Printer...
  • Page 14 Software Manual When the IP address cannot be obtained from the DHCP server : ■ When the DHCP server is not available, "Did not obtain" is displayed in the ‘IP address’ field for a printer that is not assigned to any IP address. To use such a printer, follow the steps below to specify the IP address.
  • Page 15 Software Manual (8) Open [Login] from the menu displayed on the left side of the setting screen, or the menu button displayed on the upper left, and login with: Login name: root / password: [Changed password or the default password (public)]. The default login name and password are as follows: Login name: root...
  • Page 16 Software Manual (10) From the menu displayed on the left side of the setting screen or the menu button displayed on the upper left, open [IP Parameters] , select “Static” and enter the IP Address, Subnet Mask, and tap [Submit]. Ask your network administrator about the static IP address and subnet mask to use in the settings.
  • Page 17 Software Manual ◆ When the printer is not listed If the printer is not listed on the printer list, for example, you are using multiple networks and you want to set up a printer that is on another network, follow the steps below to set a static IP address. Click [Temporary IP Address Assignment].
  • Page 18 Software Manual Click [Yes], then open the configure of the printer network settings. Enter the IP Address, Subnet Mask, and click [Apply]. Ask your network administrator about the static IP address and subnet mask to use in the settings. The settings are saved in the printer, printed, and the connection settings are complete. Then proceed to Section 1.3.2, "Creating a Printer Queue."...

  • Page 19: Creating A Printer Queue

    Software Manual 1.3.2. Creating a Printer Queue Select the printer to create a printer queue from the printer list, and then click [Printer Queue]. The following dialog now appears. The dialog shows the queue name and the port name for the printer you are setting up.
  • Page 20 Software Manual (3) Click [Yes] on the screen asking to confirm application. The printer queue is created. A message is displayed indicating that setup is complete. If you want to start TSP100 Configuration Utility next, click [Yes]. (4) In Control Panel, select “Devices and Printers”. If the Star TSP100IIIW printer is found in the window, installation is completed.

  • Page 21: Adding A Printer (Tsp100Iiilan)

    Software Manual 1.4. Adding a Printer (TSP100IIILAN) Prior to installation, use an Ethernet cable to connect the printer and an access point that can connect to the same network the PC that will be used for configuration is on. For details, see the Online hardware manual (Setup –...
  • Page 22 Software Manual (5) The TSP100 LAN / Bluetooth Setup Tool screen is displayed. If the printer you want to install is not listed in the printer list, click [Discovery]. The factory network settings of the TSP100IIILAN printer are as follows. IP address: 0.0.0.0 (Unassigned) Subnet mask:...
  • Page 23 Software Manual (6) The TSP100 LAN printer on the network and the paired TSP100 Bluetooth printer are listed in the printer list. If multiple TSP100IIILAN printers are listed, click [Check connection] to check whether you can communicate with the printer. The connected printer's LED (blue) will blink. If you wish to use the IP address assigned by the DHCP server, then proceed to Section 1.4.2, "Creating a Printer...
  • Page 24 Software Manual ■ When the IP address cannot be obtained from the DHCP server : When the DHCP server is not available, "Did not obtain" is displayed in the ‘IP address’ field for a printer that is not assigned to any IP address. To use such a printer, follow the steps below to specify the IP address.
  • Page 25 Software Manual (7) Open [Login] from the menu displayed on the left side of the setting screen, or the menu button displayed on the upper left, and login with: Login name: root / password: [Changed password or the default password (public)]. The default login name and password are as follows: Login name: root Password: public...
  • Page 26 Software Manual (9) From the menu displayed on the left side of the setting screen or the menu button displayed on the upper left, open [IP Parameters] , select “Static” and enter the IP Address, Subnet Mask, and tap [Submit]. Ask your network administrator about the static IP address and subnet mask to use in the settings.
  • Page 27 Software Manual ◆ When the printer is not listed If the printer is not listed on the printer list, for example, you are using multiple networks and you want to set up a printer that is on another network, follow the steps below to set a static IP address. 1) Click [Temporary IP Address Assignment].
  • Page 28 Software Manual 3) Click [Yes], then open the configure of the printer network settings. 4) Enter the IP Address, Subnet Mask, and click [Apply]. Ask your network administrator about the static IP address and subnet mask to use in the settings. 5) The settings are saved in the printer, printed, and the connection settings are complete.

  • Page 29: Creating A Printer Queue

    Software Manual 1.4.2. Creating a Printer Queue Select the printer to create a printer queue from the printer list, and then click [Printer Queue]. The following dialog now appears. The dialog shows the queue name and port name for the printer you are setting up.
  • Page 30 Software Manual (3) Click [Yes] on the screen asking to confirm application. The printer queue is created. A message is displayed indicating that setup is complete. If you want to start TSP100 Configuration Utility next, click [Yes]. In Control Panel, select “Devices and Printers”. If the Star TSP100IIILAN printer is found in the window, installation is completed.

  • Page 31: Adding A Printer (Tsp100Iiibi)

    Software Manual 1.5. Adding a Printer (TSP100IIIBI) The device name displayed during pairing varies depending on the product. It can be checked from the [Dev Name] that is printed when printer self-printing is performed (power is turned ON while depressing the FEED button).
  • Page 32 Software Manual (3) Select [ Printers & scanners ], and click [ Add a printer or scanner ]. (4) Select the desired device name (TSP100-XXXXX), and click [ Add device ]. If the device name was changed, then select the device name that it was changed to. (5) When the device appears in “Printers &...
  • Page 33 Software Manual ◆ Windows 7 / 8.1 (1) Turn the printer on. (2) Start "Device and Printers" and tap or click "Add a device". (3) Select the device name (TSP100-XXXXX) to be removed and tap or click "Next". If the device name was changed, then select the device name that it was changed to.
  • Page 34 Software Manual (4) Pairing is then performed. (5) When pairing is completed, the name of device added will be displayed in “Devices and Printers”. Depending on the display method, "Driver is unavailable" will be displayed, however pairing is completed. The device name created here cannot be used for the destination specified when printing from a Windows application.

  • Page 35: Creating A Printer Queue

    Software Manual 1.5.2. Creating a Printer Queue (1) From the Windows Start menu, select “Programs / Apps / All apps” - “StarMicronics” - “LAN & Bluetooth Setup Tool”. (2) "User Account Control" window will appear. Click "Yes". (3) If the "Windows Security Alert" screen is displayed, click [Allow access]. Notes: If you click [Cancel], you will not be able to search for the LAN printer.
  • Page 36 Software Manual (5) The TSP100 LAN printer on the network and the paired TSP100 Bluetooth printer are listed in the printer list. If changing or confirming a printer's Bluetooth Settings, select a printer, and then click [Configuration]. Go to Bluetooth setting (Next Page) Go to step6 If multiple TSP100IIILAN printers are listed, click [Check connection] to check whether...
  • Page 37 Software Manual ◆Changing the TSP100III Printer's Bluetooth Settings 1) When changing the configuration of the Bluetooth printer, click [Apply]. Device Name - The Bluetooth Device Name can use a combination of letters, characters and symbols. - Supported characters are: “a“ - “z”, “A" - “Z”, “0“ - “9”, and Various symbols. - A maximum of 16 characters can be used for the Bluetooth Device Name.
  • Page 38 Software Manual 3) If "New Pairing Permission" is enabled, click [Yes] on the screen asking to confirm application. To prevent illegal connections from any tablets and PCs other than the one which you have connected and to improve security, it is recommended to change the "New Pairing Permission"...
  • Page 39 Software Manual (7) Click [Yes] on the screen asking to confirm application. The printer queue is created. A message is displayed indicating that setup is complete. (8) In Control Panel, select “Devices and Printers”. If the Star TSP100IIIBI printer is found in the window, installation is completed.

  • Page 40: Uninstallation

    Software Manual 1.6. Uninstallation (1) Turn the printer off. (2) From the Windows Start menu, select “Program / All apps / Apps” → “StarMicronics” → “Uninstall TSP100”. (3) In the User Account Control dialog box, click the “Yes”. (4) When the following confirmation dialog box appears, click “Yes” to continue.
  • Page 41 Software Manual If the following window appears, select “Do not close applications” and click “OK”. If the following window appears, click “OK”. The uninstaller launches to remove all of the TSP100 futurePRNT software form your computer.

  • Page 42: Features

    Software Manual 2. Features 2.1. Star Windows Printer Driver The Star Windows Printer Driver is used to apply the futurePRNT series in Windows 11, 10, 8.1 or Windows 7. Using this printer driver allows you to handle basic printing functions in many Windows applications. It also allows you to configure graphic logo and peripheral unit (buzzers and cash drawers) settings.

  • Page 43: Javapos Driver

    Software Manual 2.3. JavaPOS Driver JavaPOS (Java for Point of Sale Devices) is an architecture used to access Java-based POS peripheral units. It has a feature that enables operations in a platform-independent environment, taking advantage of the OPOS standard. Also, in a Java virtual computer, the minimum system requirements are lowered, thus reducing overall system costs as well.

  • Page 44: Esc/Pos Mode

    Software Manual 2.5. ESC/POS Mode The TSP100 futurePRNT provides ESC/POS mode emulation, which can be configured in “TSP100 Configuration Utility”. Thus, even if your current software is designed for the ESC/POS mode, you will be able to use it as is, without making changes. The functions (logo printing, journal, etc.) of the TSP100 futurePRNT remain usable even when you print in the ESC/POS mode.

  • Page 45: Windows Printer Driver Usage

    Software Manual 3. Windows Printer Driver Usage 3.1. Device Settings Various functions of this driver can be configured in “Properties” menu of the printer. In case of using Windows 8.1, change the setting from “Desktop UI” in order to change settings. First, follow the steps shown below to open the Properties window.
  • Page 46 Software Manual Paper Type You can choose the length of each printed page. Value Default Details Receipt Pages have variable length (printed to last line). Ticket All printed pages have same length. Page Cut Type (Cutter Model only) You can choose the cut type that is performed at the end of all intermediate pages (all pages up to the last page).
  • Page 47 Software Manual Peripheral Unit Type Use this setting to select the type of peripheral to be used with the printer. Value Default Details Buzzer Use buzzers as peripheral device. Cash Drawer Use buzzers as peripheral device. Caution: When using a peripheral unit such as a cash drawer other than a buzzer, do not select "Buzzer". If selected, it may result in damage to a peripheral unit.
  • Page 48 Software Manual Cash Drawer 1 Pulse Width You can choose the length of the open drawer signal that is sent from the printer to Cash Drawer 1. Value Default Details 10 milliseconds Pulse width is set as 0.01 sec. 100 milliseconds Pulse width is set as 0.1 sec.
  • Page 49 Software Manual Buzzer1 - Off Time If the Peripheral Unit Type is set to Buzzer, this setting selects the beep OFF time for the buzzer operating as peripheral unit 1. Value Default Details 20 milliseconds Silent on for 0.02 sec. 40 milliseconds Silent on for 0.04 sec.
  • Page 50 Software Manual Buzzer2 - On Time If the Peripheral Unit Type is set to Buzzer, this setting selects the beep ON time for the buzzer operating as peripheral unit 2. Value Default Details 20 milliseconds Sound on for 0.02 sec. 40 milliseconds Sound on for 0.04 sec.
  • Page 51 Software Manual Buzzer2 - Repeat If the Peripheral Unit Type is set to Buzzer, this setting selects the number of beeps produced by buzzer #2 when it is activated. (Each beep will sound for the specified ON time, followed by silence for the specified OFF time).

  • Page 52: Paper Size Settings

    Software Manual 3.2. Paper Size Settings This driver allows you to use both the predefined and user-defined paper sizes. Each paper size is defined by "width" and "length", enabling printing of all the area in the defined range. Margin setting is not required in a document. To print on a variable-length sheet such as a receipt, select the paper size that includes "Receipt"...

  • Page 53: Standard Paper Sizes

    Software Manual 3.2.1. Standard Paper Sizes The following table is the list of the paper sizes supported by this printer driver. Built-in paper sizes Width Length 51 mm x 200 mm 51 mm 200 mm 51 mm x Receipt 51 mm 3,000 mm 72 mm x 200 mm 72 mm...

  • Page 54: User-Defined Paper Size

    Software Manual 3.2.2. User-Defined Paper Size Follow the steps below to specify a user-defined paper size using a Windows standard function. In Control Panel, select “Devices and Printers”. Select a target printer, and click "Print Server Properties". Click the "Forms" tab. Check the "Create a new form"...

  • Page 55: Device Font Usage

    Software Manual 3.3. Device Font Usage This driver supports various device fonts. Printer fonts provide some font sizes, enabling clearer printing than for the TrueType font. Using barcode and 2D code fonts allow you to generate and print barcodes and 2D codes of various standards and sizes you entered.
  • Page 56 Software Manual Number of Width Height Device Font Name Details digits, 72 mm (Pixels) (Pixels) (576 dots) Printer font Printer Front B 8.5cpi (ANK font B) Printer Front B 8.5cpi Tall Printer Front B 10cpi Printer Front B 10cpi Tall Printer Front B 11cpi Printer Front B 11cpi Tall Printer Front B 17cpi...
  • Page 57 Software Manual Digit number Width Height Device Font Name Details 72 mm (Pixels) (Pixels) (576 dots) Control Device control font ESC_FONT UPC-E UPC-A JAN/EAN-8 JAN/EAN-13 Barcode device font CODE39 NW-7 (Codaber) QR_CNTL PDF417 DATA1 2D code font DATA2 DATA3...

  • Page 58: Control Font Usage

    Software Manual 3.4. Control Font Usage The Control device font is used to provide for control within the span of a single document. This font is not used for character printing. 3.4.1. Control Font list The following table is the list of the supported control device fonts. Character Function Open cash drawer 1 for 50 mSec.
  • Page 59 Software Manual Character Function Select the customer display Deselect the customer display Clear the customer display Notes: The settings above will be ignored if a specified control character is not supported by the printer.

  • Page 60: Control Font Usage

    Software Manual 3.4.2. Control Font Usage Usage of the Control font must be done as follows: - Select Control Font 1. Choose the control font from your editor’s font menu. - Input Control Font 2. Enter the characters for the printer actions which you want to use.

  • Page 61: Barcode Font

    Software Manual 3.5. Barcode Font After printing Barcode, small characters are printed under barcode. But the barcode image data is not displayed. This action is only available when Print mode option is set to Line mode. On Raster Mode, this setting is not available. 3.5.1.
  • Page 62 Software Manual Barcode Device Font Parameter Function Character UPC-E, UPC-A, for Barcode Details CODE39 JAN/EAN-8, printing NW-7 JAN/EAN-13 2 dot 2 dot (6) 2 dot (5) Minimum module width 3 dot 3 dot (9) 4 dot (10) Minimum module width 4 dot 4 dot (12) 6 dot (15)

  • Page 63: Barcode Font Usage

    Software Manual 3.5.3. Barcode Font Usage Usage of the Barcode device font must be done as follows: - Select Barcode Font 1. Choose the barcode device font from your editor’s menu...
  • Page 64 Software Manual - Input Barcode font 2. Input code. The specified function is performed by printing. <Print result sample> Please set the barcode device font's character size to the standard value (8.5 points).

  • Page 65: Code Printing Function (2D Code Fonts)

    Software Manual 3.6. 2D Code Printing Function (2D Code Fonts) The 2D code printing function performs QR code or PDF417 printing using device fonts supported in this driver. QR code or PDF417 printing is realized with a combination of 2D code fonts (”QR_CNTL”, ”PDF417”, ”DATA1”, ”DATA2”, and ”DATA3”) and control fonts (”ESC_FONT”...

  • Page 66: Entering A 2D Code Font (Qr Code)

    Software Manual 3.6.1. Entering a 2D Code Font (QR Code) Follow the steps below to describe a QR code. (1) 2D code type setting Only describe the parameters to be changed because the default value is set to each setting item. (2) 2D code data setting Describe parameters and 2D code data following a 2D code data setting command.

  • Page 67: Code Command Setting Font

    Software Manual 3.6.2. 2D Code Command Setting Font QR code setting fonts (QR_CNTL) QR_CNTL Fonts Function Output Code Use for Parameter \x00 Use for Parameter \x01 Use for Parameter \x02 Use for Parameter \x03 Use for Parameter \x04 Use for Parameter \x05 Use for Parameter \x06...
  • Page 68 Software Manual PDF417 setting fonts (PDF417) Character Function Driver-output code Used for parameter of each PDF417 setting \x00 command Used for parameter of each PDF417 setting \x01 command Used for parameter of each PDF417 setting \x02 command Used for parameter of each PDF417 setting \x03 command Used for parameter of each PDF417 setting...

  • Page 69: Code Data Setting Font (Data1, Data2, Data3, Esc_Font)

    Software Manual 3.6.3. 2D Code Data Setting Font (DATA1, DATA2, DATA3, ESC_FONT) Input Data Output Data On applications (Word, VB, etc), Output code for printer user specified characters Character Code ESC_FONT DATA1 DATA2 DATA3 <SP> \x20 \x20 \x00 \x60 \xC0 \x21 \x21 \x01...
  • Page 70 Software Manual Input Data Output Data On applications (Word, VB, etc), Output code for printer user specified characters Character Code ESC_FONT DATA1 DATA2 DATA3 \x4E \x4E \x2E \x8E \xEE \x4F \x4F \x2F \x8F \xEF \x50 \x50 \x30 \x90 \xF0 \x51 \x51 \x31 \x91...
  • Page 71 Software Manual Input Data Output Data On applications (Word, VB, etc), Output code for printer user specified characters Character Code ESC_FONT DATA1 DATA2 DATA3 \x7F \x7F \x5F \xBF * Cannot be entered using a character.

  • Page 72: Code Font Usage

    Software Manual 3.6.4. 2D Code Font Usage QR code can be specified up to 500 bytes. (It includes input data and punctuated marks in 500bytes.) Sample programs of Visual Basic using 2D code is as follows; QR Code Print Sample1: Private Sub Command1_Click() Printer.Font.Name = "Printer 17cpi Tall Printer.Print "QR Code Test Print for VB 6.0"...
  • Page 73 Software Manual QR Code Print Sample2: Private Sub Command2_Click() Printer.Font.Name = "Printer 17cpi Tall" Printer.Print "QR Code Test Print for VB 6.0" Printer.Font.Name = "Printer 17cpi" Printer.Print Printer.Print "DATA:" Printer.Print "http://www.star-m.jp/" Printer.Print Printer.Print "QR code:"; Printer.Font.Name = "QR_CNTL" ' QR_CNTL font setting Printer.Print "M1";...
  • Page 74 Software Manual ■ PDF417 printing - Sample 1 Private Sub Command4_Click() Printer.Font.Name = "Printer 17cpi Tall" Printer.Print "PDF417 Test Print for VB 6.0" Printer.Font.Name = "Printer 17cpi" Printer.Print Printer.Print "DATA:" Printer.Print "1234567890" Printer.Print Printer.Print "PDF417: "; Printer.Font.Name = "PDF417" Printer.Print "S023"; ' Specifies the barcode size.
  • Page 75 Software Manual ■ PDF417 printing - Sample 2 Private Sub Command5_Click() Printer.Font.Name = "Printer 17cpi Tall" Printer.Print "PDF417 Test Print for VB 6.0" Printer.Font.Name = "Printer 17cpi" Printer.Print Printer.Print "DATA:" Printer.Print " http://.star-m.jp/" Printer.Print Printer.Print "PDF417:"; Printer.Font.Name = "PDF417" Printer.Print "S023"; ' Specifies the barcode size.

  • Page 76: 2-Tone Color Printing And Paper Type Settings

    Software Manual 3.7. 2-Tone Color Printing and Paper Type Settings This driver supports two-tone color printing. To perform two-tone color printing and use special paper, load the appropriate thermal paper in the printer, and configure the following setting. In Control Panel, select “Devices and Printers”. Right-click on the icon of the target printer queue, and select “Printing preferences”...
  • Page 77 Software Manual When the “Printing Preferences ... ” window opens, click the “Paper/Quality” tab. Then, select the type of paper that suits the print color that has been specified. Paper Type and Print Color Configuration Window Select paper type Specify print color For normal gray scale printing For gray scale printing on normal thermal paper, select the following:...

  • Page 78: Tsp100 Configuration Application

    Software Manual 4. TSP100 Configuration Application The TSP100 configuration application lets you control the look and content of printed receipts. You can set up separate configurations for Star Line mode and for ESC/POS mode. Notes: TSP100 configuration application settings require computer administrator privileges. There are the following two methods to launch the TSP100 configuration application.
  • Page 79 Software Manual Click “Launch Configuration Application” in the "TSP100 Config" tab. (4) The "User Account Control" window will appear. Click "Yes". (5) When the LAN and Bluetooth functions are installed with the standard setup, if an avaliable printer is not found, the following window will appear.
  • Page 80 Software Manual (6) If the application is launched from the Start menu while there are multiple available printer queues, the following window will appear. Select a target printer, and click “OK”. If the LAN and Bluetooth functions are installed, you can select the "Add TSP100 LAN/Bluetooth" checkbox to start the TSP100 LAN / Bluetooth Setup Tool.
  • Page 81 Software Manual IMPORTANT: After changing any setting in the "TSP100 Configuration" window, be sure to click “Apply Changes”. The changed setting is enabled by clicking “Apply Changes”.

  • Page 82: Menu Functions

    1. The settings for the Star Line mode and ESC/POS mode are saved separately. When importing the settings, confirm the selected mode, and then import the setting file. 2. The following settings made using the “TSP Configuration” cannot be imported or exported. • Star Micronics Cloud Services • OPOS • JavaPOS •...
  • Page 83 Software Manual When importing data using an operating system or user different from that for exporting data, execute the following steps to use the HexDump mode, ECO settings - on-demand function, and journal function.  HexDump Mode 1. Change the folder where to save data in the HexDump mode setting window. 2.
  • Page 84 Software Manual 3. HexDump Mode All of the data transmitted to the printer from the computer is printed or output as a file using hexadecimal code. The data transmitted to the printer can be checked for correctness and the causes of errors can be investigated.

  • Page 85: View

    Software Manual 4.1.2. View 1. List display/Icon display The setting items for the “TSP Configuration” can be displayed as a list or as icons. 2. Language selection The display language can be selected. STEP 1: On the “View” menu, select “Language selection” to display the list of available languages.
  • Page 86 Software Manual STEP 2: Select the language, and then click “Select”. STEP 3: Click “Select”, and then temporarily close the “TSP Configuration”. By opening the “TSP Configuration” again, the selected language will be displayed. Note: If the characters are corrupted, change the settings in the Advanced tab in Regional Options in Control Panel in Windows.

  • Page 87: Eco

    Software Manual 4.1.3. ECO When using the printer with the ECO settings, the percentage of paper saved can be confirmed by enabling this function. ECO indicator setting Select "Enabled" checkbox in the "ECO Indicator" window to start measurement. Check the result. After printing, open the "ECO Indicator"...

  • Page 88: Management

    Software Manual 4.1.4. Management (1) Log output settings This is used to record logs and identify causes when communication errors occur. (2) Clone Serial Number Settings << TSP100IIIW / TSP100IIILAN only >> If the clone serial number is set for the printer, the clone serial number is treated as the product serial number by the printer's system that identifies it using the product serial number.
  • Page 89 Software Manual (3) Printer Connection Settings << TSP100IIIBI only>> If you enable the "Always enabled" setting, the printer will remain constantly connected. Because the processing of port-open and port-close for each printing process is no longer required, the time until the printer starts printing will be reduced. If the following conditions all apply, it is recommended to use this setting.

  • Page 90: Help

    Software Manual 4.1.5. Help The software version can be confirmed using the “Help” menu.

  • Page 91: Information

    Software Manual 4.2. Information The Information window displays device information of the printer to be configured.

  • Page 92: General Settings

    Software Manual 4.3. General Settings Click the "General Settings" tab in the left pane of the window. When the printer driver is used for printing, text and line spacing settings are available only when device fonts are used.

  • Page 93: Default Text Settings

    Software Manual 4.3.1. Default Text Settings ■ Zero Style The default zero style is "Standard". Selects whether the printer prints zeros in non-slashed form or slashed form. Select either “Standard” (O) or “Slashed” (Ø). ■ International Character Set The default international character set is "USA". Changing the international character set will change certain characters in the character table to match those characters fitting the selected location.
  • Page 94 Software Manual ■ Character Encoding The default character encoding is "Single Byte Characters". Selects the character encoding used by the printer. You can select either single-byte encoding (common for all non-Asian languages) or any of the four available double-byte encodings (for the corresponding Asian languages).

  • Page 95: Default Print Settings

    Software Manual 4.3.2. Default Print Settings ■ Line Spacing The default line spacing is "4 mm". If the spacing is set to 4 mm (the initial setting), the printer will add a 1-mm line space between each 3-mm- tall line of characters. If the spacing is set to 3 mm, the added spacing is omitted and receipts are correspondingly shorter.
  • Page 96 Software Manual ■ Print Width The print width should be set according to the size of paper used. The default (recommended print width) is 72 mm.The standard default print width is 72 mm, which provides 4-mm margins on both sides of 80- mm paper.
  • Page 97 Software Manual ■ Resolution Pitch <ESC/POS mode only> Star Line standard: Uses Star Line mode’s standard resolution. (Characters are smaller than on true ESC/POS printers, so the printer receipt is smaller and the right margin is larger.) ESC/POS compatible (default): Margins and line widths are the same as on a typical ESC/POS printer.

  • Page 98: Star Micronics Cloud Services

    Software Manual 4.4. Star Micronics Cloud Services This function is only available for users who registered with Star Micronics Cloud before September 30, 2021. Click the Star Micronics Cloud Services tab on the left side of the dialog box.

  • Page 99: Device Registration

    Once you have registered the device, you can use the service of uploading print data to the cloud server and manage the registered device from the Star Micronics Cloud Services dashboard. (1) Enter the username and the password of your registered Star Micronics Cloud Services account and click “Register Device”.

  • Page 100: Setting Of Registration

    Software Manual 4.4.2. Setting of Registration When “Print Data Upload” is checked, the data of printed receipt is uploaded on Star Micronics Cloud Server. Note: To upload data on Star Micronics Cloud Server, the host device must be connected to the network.

  • Page 101: Eco Settings

    Software Manual 4.5. ECO Settings Click the ECO Settings tab on the left side of the dialog box. The contents displayed differ depending on the connected model. 4.5.1. Auto Reduction Setting This function reduces the overall size of the printing. However, to prevent any scanning errors, the size of printed barcodes is not reduced even if the reduction settings are selected.

  • Page 102: Top Margin To First Line

    If the printed barcode will be wider than 80mm->58mm, the barcode data will not be printed. ■ Receipt length reduction <TSP100ECO, TSP100IIIU> The default setting is Original (no reduction). The printing area can be compressed 50% reduction or 25% reduction lengthwise.

  • Page 103: On Demand

    Software Manual 4.5.3. On demand This function reduces the amount of paper wasted on unnecessary printings by prompting the user to select whether or not to print the data. ■ Enable on demand To enable the on demand function, select the check box. When the on demand function is enabled, the following confirmation dialog box will appear each time data is sent from the computer to the printer.
  • Page 104 Software Manual ■ Saving Canceled Data When the on demand function is enabled, the data for the canceled printing can be saved or deleted. When Don’t Save is selected, the data for the canceled printing will be deleted. When Save is selected, the data for the canceled printing will be saved in the following folder. <System Drive>\Star\TSP100\Ondemand Note: When the driver utility application is updated from future PRNT CD 5.5 or earlier, the stored data for canceled printing is transferred to the above folder.
  • Page 105 Software Manual ■ View Save Data The data for canceled printings can be viewed. In addition, to print data that was saved from a canceled printing, perform the following procedure. Click View Save Data. The Journal tool window appears. Click “Search” to search for the saved data. Enter the date to start searching, and click “OK”.
  • Page 106 Software Manual Enter the date to end searching, and click “OK”. This will search for the data saved in the specified period. Click the date to check data details in the preview screen. The saved data appears. Click Print to print the data.
  • Page 107 Software Manual Caution When using the on demand function, check the following information. When the on demand function is enabled, the time that the confirmation dialog box appears may vary according to the printing channel that is used. The time that the confirmation dialog box appears for each channel is as follows: Printer Driver Immediately after a cut command is sent...

  • Page 108: Printer Tests

    Software Manual 4.6. Printer Tests The page lets you generate various sample receipt printouts. Use this feature to test or demonstrate the TSP100 futurePRNT’s printing capabilities. 4.6.1. Test Prints ■ Default Character Set Prints a table exhibiting the entire TSP100 futurePRNT default single byte character table. ■...

  • Page 109: Cashdrawer/Peripheral Device Test

    Refer to the printer’s owner’s manual for further instructions regarding routine maintenance. ■ Star Micronics Cloud Services Prints the services information from Star Micronics. More details on Star Micronics Cloud Services website: https://www.starmicronicscloud.com 4.6.2. CashDrawer/Peripheral Device Test ■ Open Cash Drawer 1 Tests cash drawer 1.

  • Page 110: Opos Installation

    Software Manual 4.7. OPOS Installation <Star Line mode only> The OPOS printer driver is included with the Windows driver installation. However, before it can be used with an OPOS application, the printer must be registered. If a cash drawer is connected to the printer, the cash drawer must also be registered.

  • Page 111: Adding A Printer

    Software Manual 4.7.1. Adding a Printer ● When no control object is registered: “Not Selected” is selected in the ‘Control Object Registration’ field. Click “Add New”. The following dialog box appears. Enter the name of the printer to be added, select the print width and click “OK”.
  • Page 112 Software Manual ● When "OPOS CCO" or "Star CO" is registered as a control object: "OPOS CCO" or "Star CO" is selected in the ‘Control Object Registration’ field. Click “Add New”. <When "Star CO" is selected> The following dialog box appears. Enter the name of the printer to be added, select the print width and click “OK”.
  • Page 113 Software Manual ● When a non-Star control object is registered: "Others" is grayed out in the ‘Control Object Registration’ field. Click “Add New”. The following confirmation dialog box appears. To register the recommended common control object (OPOS CCO), click “Yes”, and proceed to step (3).
  • Page 114 Software Manual The following dialog box appears. Enter the name of the printer to be added, select the print width and click “OK”. ■ 180dpi compatible mode When 180dpi compatible mode is checked, the left and right margins are automatically adjusted.

  • Page 115: Configuring A Printer

    Software Manual 4.7.2. Configuring a Printer Click “Configure” for OPOS POSPrinter to specify a logical device name for a target printer. Select a target printer, and click “Configure”. The following window appears. Click “Add New”. The setting value is displayed only when the print width of the printer is set to 51 mm. Enter the name, and click “OK”.
  • Page 116 Software Manual To check the printing status in the specified range, select the "Do Checked Block Printing" checkbox. Click “Accept”.

  • Page 117: Adding A Cash Drawer

    Software Manual 4.7.3. Adding a Cash Drawer ● When no control object is registered: “Not Selected” is selected in the ‘Control Object Registration’ field. Click “Add New”. The following dialog box appears. Enter the name of the cash drawer to be added, and click “OK”. The cash drawer is added, and "OPOS CCO (OPOS common control object)"...
  • Page 118 Software Manual ● When "OPOS CCO" or "Star CO" is registered as a control object: "OPOS CCO" or "Star CO" is selected in the ‘Control Object Registration’ field. Click “Add New”. <When "Star CO" is selected> The following dialog box appears. Enter the name of the cash drawer to be added Click “OK”...
  • Page 119 Software Manual ● When a non-Star control object is registered: "Others" is grayed out in the ‘Control Object Registration’ field. Click “Add New”. The following confirmation dialog box appears. To register the common control object (OPOS CCO), click “Yes”, and proceed to step (3). To use a non-Star control object, click “No”, and proceed to step (4).
  • Page 120 Software Manual The following confirmation dialog box appears to check with you if you want to delete the currently registered control object. To continue, click “Yes”. Notes: Once a control object is deleted, it cannot be recovered. The following dialog box appears. Enter the name of the cash drawer to be added. Click “OK”.

  • Page 121: Configuring A Cash Drawer

    Software Manual 4.7.4. Configuring a Cash Drawer Click “Configure” in the OPOS CashDrawer window to specify a logical device name for a target cash drawer. When necessary, you can configure cash drawer operations. Select a target cash drawer, and click “Configure”. The following window appears.

  • Page 122: Delete

    Software Manual Configure cash drawer operations. ■ Status Selecting the "Status" checkbox notifies the open-close state of the cash drawer. If the "Status" checkbox is not selected, it will not be possible to notify the open-close state of the cash drawer. Notes: This function is available only when the selected cash drawer supports the open-close detector switch.

  • Page 123: Check Health

    Software Manual 4.7.6. Check Health The “Check Health” button performs a system check to ensure that the printer is connected and working properly under OPOS. After the initial check, a sample receipt will be printed to show the printer is printing with its full capability.

  • Page 124: Sample Application

    Software Manual 4.7.7. Sample Application The sample application performs some demonstration printing but also serves to educate the operator on the capabilities of the TSP100 futurePRNT in an OPOS application. To begin the sample application, first select the device from the drop-down menu. Next follow the steps below: 1.

  • Page 125: Javapos™ Installation

    Software Manual 4.8. JavaPOS™ Installation <Star Line mode only> The JavaPOS printer driver is included with the Windows driver installation. However, before it can be used with a JavaPOS application, the printer must be registered. If a cash drawer is connected to the printer, the cash drawer must also be registered.

  • Page 126: Add A New Printer Device

    Software Manual 4.8.1. Add a New Printer Device Click “Add New” next to the POSPrinter textbox Enter a logical name for your JavaPOS™ printer device in the resulting dialog. 4.8.2. Configure a Printer Device Click “Configure” next to the POSPrinter textbox with the desired device highlighted.

  • Page 127: Add A New Cash Drawer Device

    Software Manual 4.8.3. Add a New Cash Drawer Device Click “Add New” next to the Cash Drawer textbox. Enter a logical name for your JavaPOS™ cash drawer in the resulting dialog.

  • Page 128: Configure A Cash Drawer Device

    Software Manual 4.8.4. Configure a Cash Drawer Device Click “Configure” on the right of the text box in the JavaPOS CashDrawer window to configure cash drawer operations. ■ Status Select the “Status” checkbox to enable monitoring of the compulsion switch if the cash drawer supports it. Notes: This function is available only when the selected cash drawer supports the open-close detector switch.

  • Page 129: Deleting A Printer Or Cash Drawer

    Software Manual ■ Activation Pulse Width Select how long the signal to open the cash drawer will be sent. ■ Post Activation Pause Select how long the pause between cash drawer open signals will be. For cash drawer 2, the power distribution and delay times are fixed to 200 msec. 4.8.5.

  • Page 130: Check Health

    Software Manual 4.8.6. Check Health Click “Check Health” next to each text box to perform a system check about whether the printer or cash drawer is connected normally or it is working properly under JavaPOS. After the initial printer check, the results of all printer functions are printed on a sample receipt. If the initial check succeeds, the following window appears.
  • Page 131 Software Manual Refer to the following information for setting the environment variables when using JavaPOS. 1. At the Windows Start menu, right-click Computer, and then select Properties. 2. The System dialog box appears. Click Change settings. 3. At the System Properties dialog box, click the Advanced tab, and then click Environment Variables. 4.

  • Page 132: Seral Port (Star Serial Port Emulator)

    4.9. Seral Port (Star Serial Port Emulator) This function generates a virtual serial port (COM port). Using this function allows you to use the TSP100ECO/TSP100IIIU with the USB interface equipped , the TSP100IIIW/TSP100IIILAN with the Ethernet interface equipped and theTSP100IIIBI with the Bluetooth interface equipped using applications for a serial printer.

  • Page 133: Creating A Virtual Serial Port

    Software Manual 4.9.1. Creating a Virtual Serial Port The procedure for creating a virtual serial port varies depending on the model you are using and the firmware version of the printer. ● For TSP100ECO (firmware version 2.0 or later) and TSP100IIIBI Click “Add Port”.
  • Page 134 Software Manual ● For TSP100ECO (firmware versions earlier than firmware version 2.0), TSP100IIIW, TSP100IIILAN and TSP100IIIBI. Click “Add Port”. The following window appears. Enter the port name, and click “OK”. For Input Port Name, enter the name of the output destination port of the currently used POS application.

  • Page 135: Configuring The Port Emulator Service

    Software Manual 4.9.2. Configuring the Port Emulator Service By default, the port emulator service is disabled. To use the port emulator, the service must be set to either manual or automatic operation. Automatic is the most common usage as it will start each time the system is booted.

  • Page 136: Image List

    Software Manual 4.10.Image List The image list allows for the queuing of bitmap images (jpg, gif, bmp format) for later automatic printing. An infinite number of images can be queued at any given time for fast and easy recall during printing. 4.10.1.
  • Page 137 Software Manual Click “Add New” to browse for an image to add to the list. The following "Image Import" window appears.

  • Page 138: Renaming An Image

    Software Manual Use the image importer to: • Give your image a unique name using the Image ID Name field • Adjust image width in 1/8 mm increments using the image width slider • Select the preferred dithering method • Adjust dither settings to desired image quality Note: Each dither method offers different adjustment options.

  • Page 139: Logos & Cropping

    Software Manual 4.11.Logos & Cropping Logos & Cropping allows for the selection of images to be printed at the top of each receipt (logos) and images to be printed at the bottom of each receipt (coupons). The ability to crop a receipt for white space or logo/coupon removal can also be configured here.

  • Page 140: Logo Printing

    Software Manual 4.11.1. Logo Printing The following shows the setting required to print an image on a receipt.
  • Page 141 Software Manual ■ Top image setting Print the selected image at the top of a receipt. Click “Add” next to the “Top Image List” text box. Select the desired image from the image list registered in "4.10.1 Adding an Image", and specify the image printing position in Alignment.
  • Page 142 Software Manual  Bottom image setting Print the selected image at the bottom of a receipt. Click “Add” next to the “Bottom Image List” text box. Select the desired image from the image list registered in "4.10.1 Adding an Image", and specify the image printing position in Alignment.
  • Page 143 Software Manual  Merge image setting Print the selected image in the background of a receipt. Click “Select” in the ‘Merge Image’ field. Select the desired image from the image list registered in "4.10.1. Adding an Image". Click “Use”. Select the "Include logos and coupons when merging" checkbox to apply the selected merge image to the entire printing area.

  • Page 144: Logo Cropping

    Software Manual 4.11.2. Logo Cropping Specify the top and bottom crop lengths of a receipt. Using this function performs printing while leaving the blank spaces specified with the top and bottom crop lengths. This function is available when not printing the top and bottom images that are pre-specified in a higher- level application.

  • Page 145: Text Processing

    Software Manual 4.12.Text Processing The Text Processing configuration panel allows for setting options that enable the TSP100 to detect certain “Text Keys” and modify each receipt based on them. This panel also allows for configuring how the TSP100 futurePRNT will detect the end of page so that receipts can be properly buffered and modified in full.

  • Page 146: Text Triggers

    Software Manual 4.12.1. Text Triggers In order to modify receipts based on their contents, Text Keys that will serve as triggers must be inputted. 1 Click the “Add Key” button to input a new Text Key. 2 When satisfied with the contents of the Text Key, click “OK” to add it to the Text Key list.
  • Page 147 Software Manual 3 The default character code is 1252 (Windows Latin 1). If you cannot do a search or the replaced character string has become corrupted, change the character code as necessary. * See Windows 1252 Code Table in “4.16 Printer Font”. 4 With the proper Text Key selected, Configuration options are enabled.
  • Page 148 Software Manual Depending on the option that you select, the printer performs one of the following operations. Add Multiple Coupons: Multiple coupons are added. The number of coupons that are added equals the number of text keys that are detected. Add Single Coupon: When multiple text keys are detected, only a single coupon is added for multiple copies of the same graphic data.

  • Page 149: End

    Software Manual 4.12.2. End Page Detect It is possible to change how the TSP100 futurePRNT detects the end of the receipt. ■ Cut or Feed to Tearbar Commands Select this option if the TSP100 futurePRNT should treat the “Cut” command as a signal that the receipt has ended.

  • Page 150: Barcodes

    Software Manual 4.13.Barcodes Printing of barcodes can be accomplished using any of three methods. The preferred method is to print barcodes using control codes by programming directly to the printer. The second method is to print barcodes using the embedded printer font for the barcode. The final method is to print barcodes using a barcode font that resides on the host PC.

  • Page 151: Itf Bearer Bars

    Software Manual 4.13.1. ITF Bearer Bars Bearer bars help to insure that a barcode is not misread by preventing partial scanning. ITF Barcode without Bearer Bars ITF Barcode with Bearer Bars 4.13.2. UPC-A Guard Bar Length Guard bars act as reference points for the scanner to aid in proper reading of the barcode. UPC-A Barcode without Guard UPC-A Barcode with Guard Bars Extended...

  • Page 152: Jan/Ean-13 Guard Bar Length

    Software Manual 4.13.3. JAN/EAN-13 Guard Bar Length Guard bars act as reference points for the scanner to aid in proper reading of the barcode. JAN/EAN-13 Barcode without JAN/EAN-13 Barcode with Guard Bars Extended Guard Bars Extended 2 mm 4.13.4. CODE39 Guard Bar Length <Star Line Mode Only> Guard bars act as reference points for the scanner to aid in proper reading of the barcode.

  • Page 153: Journaling, And Printing Of Multiple Customized Copies

    Software Manual 4.14.Journaling, and Printing of Multiple Customized Copies Use this page to set up journaling and multi-copy printing.

  • Page 154: Multi-Copy

    Software Manual 4.14.1. Multi-Copy Select the "Automatic Multiple Copies" checkbox when copying a receipt separately from the master. This function is helpful when issuing a receipt as a shop's or customer's copy. You can print up to four copies, and specify the header, footer, or merge image for each copy. Furthermore, you can only select the images that are pre-registered in "4.8.1 Adding an Image".

  • Page 155: Journal

    Software Manual 4.14.2. Journal A journal is a function that saves printed data. To use this function, select the "Enable Journal" checkbox. Follow the steps below to display and print saved data. Click “View Journal”. The following Journal window appears. Click “Search”...
  • Page 156 Software Manual The following dialog box then appears. Enter the date to end searching, and click “OK”. This will search for the data printed in the specified period when the journal function is enabled. Dates will appear as shown in the following window. Click a desired date to check data details in the preview screen.

  • Page 157: Vertical Mounting

    Software Manual 4.15.Vertical Mounting If you are setting the printer upright or mounting it on the wall, check this checkbox to invert the printing. If the button is checked, receipts are printed bottom-to-top so that they are easier to present correctly to the customer.

  • Page 158: Printer Font

    Software Manual 4.16.Printer Font <Star Line mode only> You can convert device fonts of the printer into a standard Windows font for printing. Also, you can increase the default 24-dot character height to 35-dot for printing. Click the “Printer Font” tab on the left side of the window.
  • Page 159 Software Manual Windows 1252 Code Table Windows-1252 (CP1252) x1 x2 x3 x4 x5 x6 x7 x8 x9 xA xB xC xD xE xF NUL SOH STX ETX EOT ENQ ACK BEL BS TAB LF DLE DC1 DC2 DC3 DC4 NAK SYN ETB CAN EM SUB ESC FS "...

  • Page 160: Virtual Tcp/Ip Ports < Tsp100Iiiw / Tsp100Iiilan Only

    Software Manual 4.17.Virtual TCP/IP Ports < TSP100IIIW / TSP100IIILAN Only> By setting up virtual TCP/IP ports, you make it possible for your applications to directly designate TCP/IP sockets. Virtual ports are registered under the operating mode under which they are generated. Virtual ports created under Star Line mode are registered as Star Line ports;...

  • Page 161: Creating A Virtual Tcp/Ip Port

    Software Manual 4.17.1. Creating a Virtual TCP/IP Port Use the following procedure to create a virtual TCP/IP port. 1. Click Add Port. 2. At the following dialog, enter the output port number used by the application. (If the output port number is 9100, for example, enter "9100".) Then click [OK].

  • Page 162: Tcp/Ip Port Emulator Service Setting

    Software Manual 4.17.2. TCP/IP Port Emulator Service Setting Select the Startup Type for the emulator service. To enable use of the emulator service, set the Startup Type to either Manual or Automatic. If you select Automatic, the port emulator service will start automatically when the system starts up. If you select Manual, the service will not start until you click the [Start] button.

  • Page 163: Print Job Routing (Write Printer)

    Software Manual 4.18.Print Job Routing (Write Printer) <ESC/POS Mode Only> Click the “Write Printer API” tab in the left pane of the window. When printing in the ESC/POS mode, use one of the following methods. ・ Select the "Enable ESC/POS Routing" checkbox on "Print Job Routing". ・...

  • Page 164: Usb Serial Number Setting Tool

    Software Manual 5. USB Serial Number Setting Tool Use the USB Serial Number Setting Tool to switch the settings of the USB serial number to enabled or disabled. If the USB serial number is enabled, the printer can be recognized as the same printer even when connected to different USB ports on the PC or tablet.
  • Page 165  Except TSP100IIIU As the current value cannot be acquired for models other than TSP100IIIU, a test print is performed at the same time the window is displayed. Check the printed "USB-ID" value for the current USB serial number set to the printer.
  • Page 166 Software Manual Click [ OK ]. The following message will appear if the rewrite is successful. Click [ OK ]. Close the USB Serial Number Setting Tool.
  • Page 167 Software Manual (7) Delete the printer queue that has become unusable due to the change of the USB serial number. From the Windows Start menu, open [Settings]-[Devices]-[Printers & scanners], select the printer queue that has changed the USB serial number and click [Remove device]-[Yes]. Turn the printer off.

  • Page 168: Guidelines For Printing Documents

    Software Manual 6. Guidelines for Printing Documents ○ There is no need to set paper margins with this driver. Set all margins to 0. ○ This driver supports 4 predefined custom paper sizes and user-defined paper sizes. Feel free to use user- defined sizes as needed.

  • Page 169: Restrictions And Cautions

    Software Manual Select the “Use printer metrics to lay out document” check box. Then click the “OK” button. Open Word’s File menu, and select Save to save the document. When the page settings are changed, the option settings may return to the original settings. 6.2.

  • Page 170: Guidelines For Using Ethernet Environment

    Software Manual 7. Guidelines for Using Ethernet Environment 7.1. Manually Setting a Temporary IP Address You can use the following procedure to set a temporary IP address for a TSP100IIIW/TSP100IIILAN printer. Use of a temporary address will allow you to connect to a printer that does not yet have an IP address setting.

  • Page 171: Manually Setting An Ip Address (Using The Tsp100Iii Telnet Utility)

    Software Manual 7.2. Manually Setting an IP Address (Using the TSP100III Telnet Utility) You can use the telnet command to connect directly to a TSP100IIIW/TSP100IIILAN printer. ■ Begin with the following preliminary steps to ensure that Telnet is enabled. 1. From the [Start] menu, open the [Control Panel]. 2.
  • Page 172 Software Manual To manually set the IP address, proceed as follows. Open a Command Prompt window. Windows 10/11: [All Apps]  [Windows System/Windows Tools] click [Command Prompt]. Windows7/8.1: At the Windows Start menu, select [All Programs]  [Accessories] click [Command Prompt] . Use the telnet command to connect to the printer you wish to set.
  • Page 173 Software Manual The following menu appears. 1) IP Parameters Configuration 2) System Configuration 3) Change Password 96) Display Status 97) Reset Settings to Defaults 98) Save & Restart 99) Quit Enter Selection: Enter the number corresponding to the action you wish to carry out. When you have finished making settings, select 98 (Save and Restart) and then select either 1 (Save &...

  • Page 174: Restrictions And Cautions

    Software Manual 8. Restrictions and Cautions Below is the restrictions and cautions for this version. Please read through and have well understanding before use. ■ Emulation: Star Line mode - Barcode Printing when Horizontal Compress & Two Color Printing is selected. In this case, please do not print Barcode and Text within the same line.
  • Page 175 Software Manual ■ Emulation in common - Text Triggers in Text Processing When you register multiple text keys, character strings that you can use when you select "Replace with alternate text" have the following limitations. - You cannot use strings that have already been used. - You cannot use substrings of strings that have already been used.
  • Page 176 Software Manual - Time out value using Virtual Serial Port Depending on the setting of theVirtual Serial Port, the time out value willl be different. Refer to the SDK of the Virtual Serial Port in this CD to change it. - Virtual Serial Ports The Virtual Serial Port Emulator is not suppoprted by OPOS.
  • Page 177 Software Manual - Preview and On Demand When On Demand is in use, Preview function cannot be used. - Ethernet Setup Tool After generating the printer queue using the Ethernet Setup Tool, the "Complete" message may appear behind other windows. Star recommeds to close other windows first before using the Ethernet Setup Tool.

  • Page 178: Release History

    Windows XP and Windows Vista end of support - Added TSP100IIIBI - Function addition of TSP100LAN & Bluetooth setting tool Rev. 7.1 6/27/2016 (Added Bluetooth support) - Added Micro Receipt function support for Star Micronics Cloud Rev. 7.2 1/13/2017 Services...
  • Page 179 Rev. 7.3a 9/6/2017 - Changed a CD start screen Rev. 7.4 12/21/2017 - Added to print Star Micronics Cloud Services information - Added support for software package 7.5 Rev. 7.5 8/21/2020 - Windows8 end of support - TSP100U/TSP100PU/TSP100LAN/TSP100GT end of support - Added support for software package 7.6...
  • Page 180 https://www.star-m.jp/eng...
