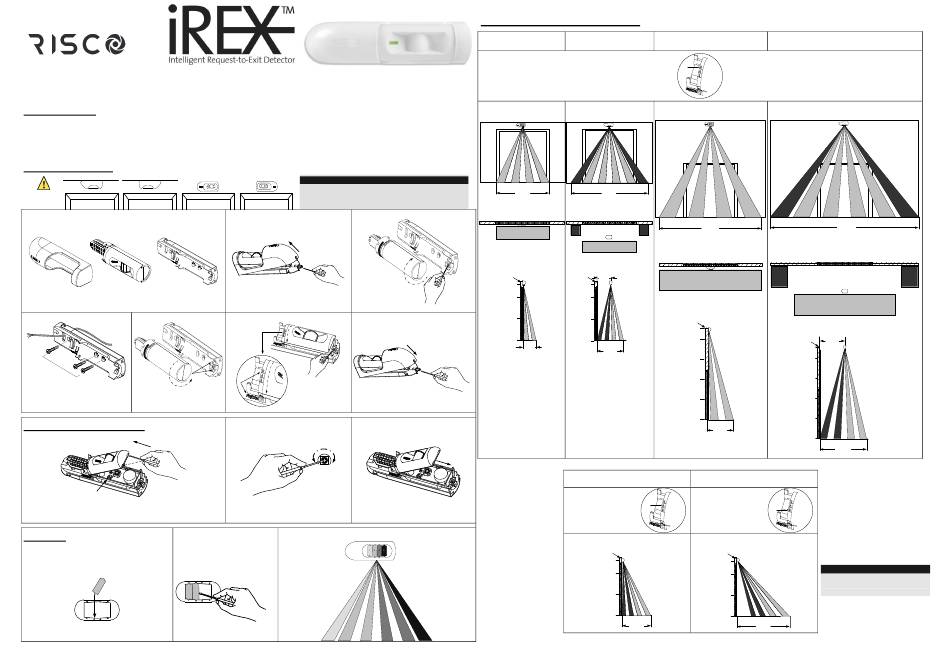

Risco iREX Installation Instructions

with the IQ feature
INSTALLATION INSTRUCTIONS
DESCRIPTION

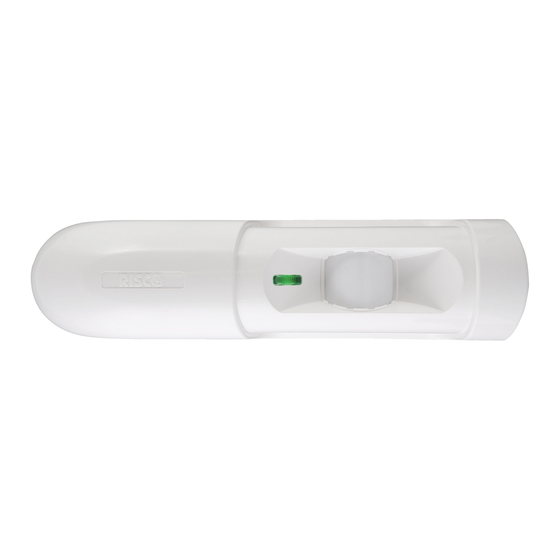

iREX and iREX Plus are PIR detectors specifically designed for request-to-exit (REX) and request-to-enter (REN) applications.
The iREX detectors are designed with the IQ feature (Intelligent Queuing) used to remotely enable or disable the iREX.
The iREX detectors can be installed as stand alone units or in conjunction with Access Control systems.
The iREX can be mounted on both walls and ceilings and are designed with flexible adjustment to cover the specific needs of each secured area.
1. INSTALLATION
X
iREX Components:
Detector Base
Cover
(Tube)
Unit
5
6
7
8
Adjusting Buzzer Volume:
1
Buzzer Volume
Adjustment
Masking:
To insert a masking wedge:
To remove a masking wedge:
Masking Wedge
IMPORTANT:
X
The iREX should always be installed with the rounded
side of the detector pointing to your left side when you
are facing the iREX.
2
1
4
11
10
9
2
MIN MAX
Masking Coverage:
1 2 2 3 3 4
Y X X X X
2. MOUNTING AND DETECTION
Wall Mounting 2.3m Ceiling Mounting 2.3m
Position 0 Position 0
Front View Front View
X X X X
X
Y
2.4m
7.8ft
Top View Top View
Wall Door Wall Wall
Y
X
Side View
Side View
Wall Wall
0.6m
2.3m 2.3m (1.9ft)
(7.5ft) (7.5ft)
2m 2m
3 (6.6ft) (6.6ft)
Door Door
1m 1m
(3.3ft)
(3.3ft)
0m 0m
(0ft) (0ft)
0.6m
(1.9ft)
12
3
Wall Mounting 2.3m
Y
Wall Mounting 4.6m
Position 0
0
Front View
X X X
Y
3.5m
11.5ft
C C
X X X X
Door Wall
4.7m
Y
15.4ft
Top View
X
Wall Door Wall
Y
X
Side View
Wall
4.6m
(15ft)
4m
(13.2ft)
1.2m
3.9ft
3m
(9.9ft)
2m
(6.6ft)
1m
(3.3ft)
0m
(0ft)
1.2m
3.9ft
Wall Mounting 2.3m
Position A Position B
A
B
Side View Side View
Wall Wall
2.3m
2.3m
(7.5ft)
(7.5ft)
2m
2m
(6.6ft)
(6.6ft)
Door Door
1m
1m
(3.3ft) (3.3ft)
0m
0m
(0ft) (0ft)
1.3m
2.4m
4.3ft
7.9ft
Ceiling Mounting 4.6m
Position 0
Front View
X X X X
Y Y
6.8m
22.3ft
Top View
Wall Door Wall
Y
X
Side View
Wall
1.2m
4.6m
(15ft)
4m
(13.2ft)
3m
(9.9ft)
2m
(6.6ft)
1m
(3.3ft)
0m
(0ft)
2.4m
7.9ft
NOTE:
Do not mount the detector in direct
sunlight or near heated sources and
metal objects.
