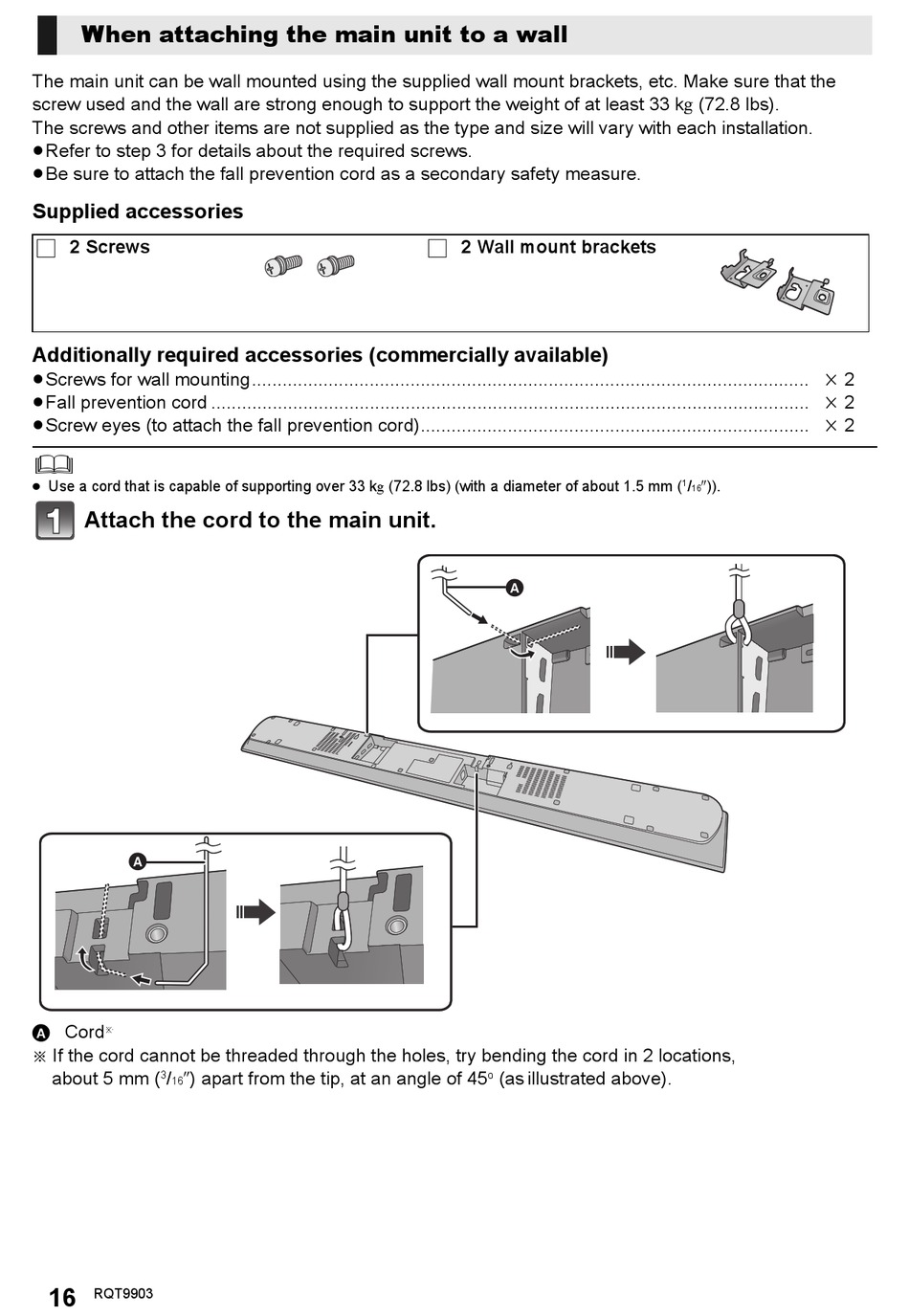

When attaching the main unit to a wall

The main unit can be wall mounted using the supplied wall mount brackets, etc. Make sure that the
screw used and the wall are strong enough to support the weight of at least 33 kg (72.8 lbs).
The screws and other items are not supplied as the type and size will vary with each installation.
≥Refer to step 3 for details about the required screws.
≥Be sure to attach the fall prevention cord as a secondary safety measure.
Supplied accessories
∏ 2 Screws ∏ 2 Wall mount brackets
Additionally required accessories (commercially available)
≥Screws for wall mounting............................................................................................................. k 2
≥Fall prevention cord ..................................................................................................................... k 2
≥Screw eyes (to attach the fall prevention cord)............................................................................ k 2
≥ Use a cord that is capable of supporting over 33 kg (72.8 lbs) (with a diameter of about 1.5 mm ( /
1 q)).
16
Attach the cord to the main unit.


A Cord
§
§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm ( / q) apart from the tip, at an angle of 45 (as illustrated above).
3 o
16
16
RQT9903
