Connection From An Hdmi Compatible Device - Panasonic SC-HTB880 Owner's Manual

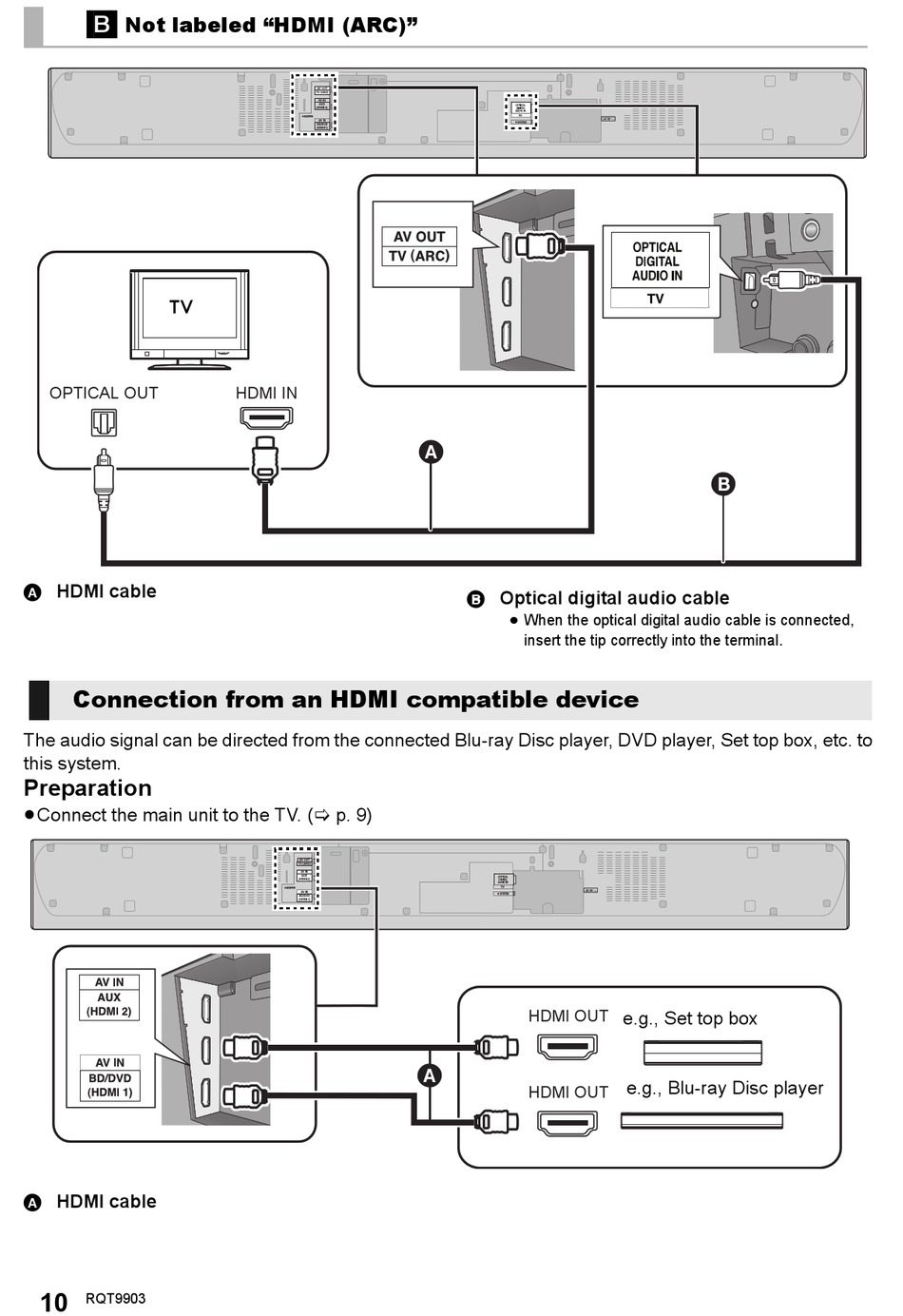

[B] Not labeled "HDMI (ARC)"
TV
OPTICAL OUT
A HDMI cable

Connection from an HDMI compatible device

The audio signal can be directed from the connected Blu-ray Disc player, DVD player, Set top box, etc. to
this system.
Preparation
≥Connect the main unit to the TV. (
A HDMI cable
10
RQT9903
HDMI IN
p. 9)
A
B Optical digital audio cable
≥ When the optical digital audio cable is connected,
insert the tip correctly into the terminal.
HDMI OUT
A
HDMI OUT
B
e.g., Set top box
e.g., Blu-ray Disc player
