COLLECTION SPECIFICATIONS

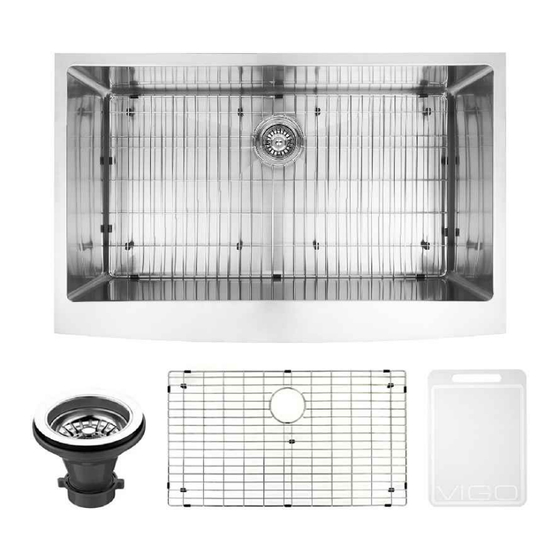

SINGLE BOWL Farmhouse Stainless Steel Kitchen Sink, Grid and Strainer
VGR3620CK1
Model
FEATURED MODEL VGR3620CK1
SINK FEATURES
16 gauge, stainless steel
304 Nickel - Bearing Content
15mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, satin finish
Sound-deadening insulation
Rear drain placement
Round apron front
PACKING LIST
Sink
Cut-out Template
Mounting Hardware
Strainer
Grid
NOTE:
THESE SINKS ARE INTENDED FOR
INDOOR KITCHEN USE ONLY. THEY ARE NOT
RATED FOR OUTDOOR USE. INSTALLATION OF
THIS SINK IN AN OUTDOOR SETTING WILL VOID
ANY WARRANTY ON THIS PRODUCT.
This Sink Kitchen Collection (VGR3620CK1)
comes with Sink VGR3620C, Grid VGG3318
and Strainer VGSTRAINER. For return
purposes, all 3 pieces must be returned to
receive credit. No partial credit will be given
on any partial kits received.

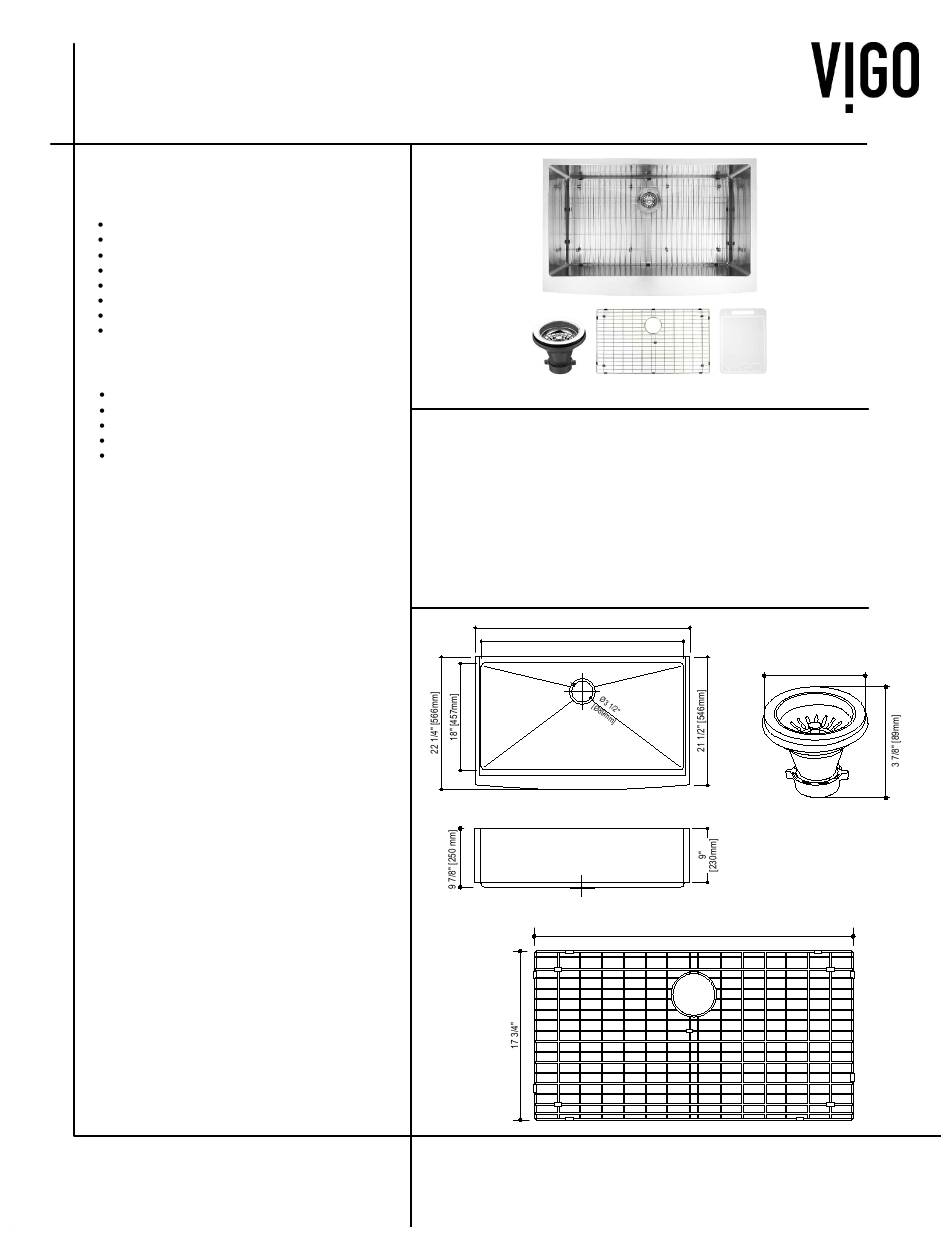

NOMINAL DIMENSIONS
MODEL #
BOWL SIZE
VGR3620C
34" X 18"
MODEL #
WIDTH
LENGTH
VGG3318
33 3/4"
MODEL #
DIAMETER
VGSTRAINER
4 1/2"
36" [915mm]
34" [862mm]
TOP VIEW
FRONT VIEW
SINK DEPTH
EXTERIOR DIM. GAUGE
9 7/8"
36" X 22 1/4"
HEIGHT
17 3/4"
1"
DEPTH
3 7/8"
33 3/4"
16
4 1/2" [114mm]
1
Advertisement
Table of Contents
Related Manuals for VIGO VGR3620CK1
Summary of Contents for VIGO VGR3620CK1
- Page 1 ANY WARRANTY ON THIS PRODUCT. TOP VIEW FRONT VIEW 33 3/4" This Sink Kitchen Collection (VGR3620CK1) comes with Sink VGR3620C, Grid VGG3318 and Strainer VGSTRAINER. For return purposes, all 3 pieces must be returned to receive credit. No partial credit will be given...
-
Page 2: Tools And Materials Needed
Please take extra care in this regard. Vigo Farmhouse series sinks require custom order cabinets. Consult your cabinet dealer. Vigo does not accept any liability for damage to countertop, sink fixture, faucets or personal injury during installation. Warranty is void if installation instructions are not followed. -
Page 3: Installation Options
Installation Options: Vigo Farmhouse series sinks offer installation options depending on your design. Undermount Installation Flush mount Installation Above counter Installation Figure 1 Figure 2 Figure 3 Caution: All installation types need to allow room for faucet installation. Ensure adequate clearance behind the sink for any faucet and backsplash, as well as full range of motion for faucet spouts and handles. - Page 4 For a flush mount or above counter installation, cut countertop along with outside of sink profile. Front end of Vigo Farmhouse sinks are designed to be installed 3/4" extended out beyond the front end of the countertop. Cut countertop accordingly.
-
Page 5: Care And Maintenance
Care and Maintenance ALWAYS preventative cleaning. affect the appearance of your sink. abrasive such as Comet. up over time with a mild solution of vinegar and water followed by a thorough flushing with water. grain. NOT RECOMMENDED FOR MIRROR FINISH. NEVER develop rust spots in the stainless steel surface. - Page 6 Subject to the Warranty Service provision below, any product reported to the authorized dealer or to VIGO as being defective within the warranty period will be repaired or replaced (with a product of equal value) at the option of VIGO. This warranty extends to the original owner or end-user and is not transferable to a subsequent owner.
- Page 7 VGR3620CK1 VGR3620CK1 Acier inoxydable de calibre 16 Contenant du nickel 304 Isolation sonore Avant du tablier arrondi LISTE DES ARTICLES Quincaillerie de montage DIMENSIONS NOMINALES TAILLE DE PROFONDEUR DIM. Grille VGR3620C 34" X 18" 9 7/8" 36" X 22 1/4"...
- Page 8 ayant une surface solide. La pose de comptoir sur des blocs de boucher, du granite, du marbre ou de revendeur d'armoires. des robinets, ni des blessures physiques lors de l'installation. La garantie s'annule si les instructions Attaches pour bois Crayon (PAS d'encre) Protection pour les oreilles Protection pour les yeux Cales...
- Page 9 voulu. Installation avec Installation sur un comptoir Figure 1 Figure 2 Figure 3 Mur fini Typique avant du comptoir Armoire Ligne avant Figure 4 Figure 5 Mur fini Typique avant du comptoir Armoire Ligne avant Figure 7 Figure 6...
- Page 10 10''. Construisez des supports de structure sur le cadre au comptoir. Vigo recommande de laisser un rebord de 1/4'' sur suffisamment d'espace pour les robinets et les jets d'eau, utilisez 4. Installez le comptoir...
- Page 11 Entretien TOUJOURS et essuyez-le bien. produit abrasif doux (Comet, par exemple). vinaigre et d'eau, puis rincez minutieusement avec de l'eau. JAMAIS en acier inoxydable.
- Page 12 D'autres limitations s'appliquent en cas d'usage commercial. constructeur. tiers. Limitations directement ou indirectement. blessures, voire la mort. constructeur. Limitations commerciales Service de garantie proposition par le client met fin aux obligations de VIGO au titre de la garantie.
- Page 13 PARA USO DE COCINA EN INTERIORES. NO SON FREGADERO EN UN ESCENARIO AL AIRE LIBRE PRODUCTO. VISTA SUPERIOR VISTA FRONTAL 33 3/4" El juego de fregadero (VGR3620CK1) viene con el fregadero VGR3620C, la rejilla VGG3318 y el colador VGSTRAINER. A los reciban incompletos.
-
Page 14: Herramientas Y Materiales Necesarios
Recomendaciones generales: coloquen instaladores profesionales y con experiencia. Para realizar cortes e instalaciones especiales aspecto. distribuidor de armarios. Herramientas y Materiales necesarios: Alcohol Desnaturalizado Abrazaderas para madera Sellador adhesivo de silicona Trapos para protegerse. - Page 15 del fregadero Figura 1 Figura 2 Figura 3 como para el movimiento completo de la boca del grifo y sus llaves. Pared terminada Perfil del fregadero desde el extremo delantero de la encimera Extremo delantero del fregadero delantera del armario Figura 4 Figura 5 encimera.
- Page 16 especial con un corte delantero para fregaderos de 10" de profundidad. Construya apoyos estructurales en el bastidor interior del armario de la base del fregadero. Los apoyos estructurales deben sostener el peso del fregadero y todos sus el embutido de su parte superior contra el fondo de la encimera 2.
-
Page 17: Cuidado Y Mantenimiento
Cuidado y Mantenimiento SIEMPRE mayor limpieza preventiva. minerales que pueden afectar su aspecto. RECOMIENDA HACERLO EN ACABADOS BRILLANTES. NUNCA pues puede arruinar el acabado. demasiado largo pues pueden arruinar el acabado. fregadero. - Page 18 VIGO INDUSTRIES, LLC ("VIGO") la fecha de compra inicial por parte del propietario/ usuario final, contratista o constructor a VIGO o a un distribuidor autorizado de VIGO y durante toda la vida del propietario o usuario final originales. otras personas.
-
Page 19: Packing List
FAUCET SPECIFICATIONS Pull-Out Spray Kitchen Faucet Model VG02007 MODEL VG02007 FEATURES PACKING LIST DIMENSIONS MODEL # HOLE FAUCET SPOUT DIAMETER HEIGHT REACH VG02007 1 3/8" 27 1/4" 9" 8 1/8" 9" NOTE: All faucets are compliant to CEC 2016 regulations. If you have inquiries about your water flow, please email techmail@vigoindustries.com. - Page 20 8 1/8" 9" 3/4" 1 7/8" 2 3/8" VG02007 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 3/8"...
-
Page 21: Maintenance
Always turn off the main valve at the handle. Failure to SPRAYER AND SPRAYER HOSE. THIS WILL STOP DEBRIS FROM do so can shorten the lifetime expectancy of your Vigo faucet. It can also cause TRAVELING INTO THE SPRAYER HEAD AND EFFECTING ITS FUNCTIONALITY. -
Page 22: Troubleshooting
Make sure the faucet is perpendicular to the counter. PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support SUPPLY DATE INDICATOR (INTERNAL USE ONLY) PART PART #... - Page 23 VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
- Page 24 ESPECIFICACIONES DEL GRIFO Grifo de cocina con rociador extensible Modelo VG02007 MODELO VG02007 LISTA DE CONTENIDO DIMENSIONES ORIFICIO GRIFO PICO VG02007 1 3/8" 27 1/4" 9" 8 1/8" 9" NOTA: Todos los grifos cumplen con CEC 2016 regulaciones. Si usted tiene preguntas acerca de su flujo de agua, por favor escriba techmail@vigoindustries.com.
- Page 25 8 1/8" 9" 3/4" 1 7/8" 2 3/8" VG02007...
-
Page 26: Contenido De La Caja
CONTENIDO DE LA CAJA MONTAJE Cuello en espiral 1. CIERRE EL SUMINISTRO DE AGUA. RETIRE EL GRIFO VIEJO Y LAS MANGUERAS FLEXIBLES. LIMPIE LA SUPERFICIE DEL LAVABO CON UN LIMPIADOR NO ABRASIVO PARA LLAVE SOPORTE INGLESA COLOCAR EL GRIFO NUEVO. DE SUMINISTRO EN EXCESO, YA QUE SOPORTE DEL ROCIADOR DEL GRIFO. -
Page 27: Lista De Piezas
2 - Caudal insuficiente 2.A - Suciedad en el aireador de Vigo para el reemplazo 4 - Cuello en espiral flojo 2.A - Retire y remoje o limpie con un producto no abrasivo (p. ej.,... - Page 28 JA PARTIR DEL 1 DE ABRIL DE 2013 partir de la fecha inicial de compra por parte del propietario, contratista o constructor a VIGO o a un distribuidor autorizado de VIGO, de por vida para el propietario original o usuario final.
-
Page 29: Liste D'emballage
LISTE D'EMBALLAGE DIMENSIONS TROU ROBINET VG02007 1 3/8" 27 1/4" 9" 8 1/8" 9" de la CEC de 2016. Si vous avez des questions au sujet de votre * = +/- 1"... - Page 30 8 1/8" 9" 3/4" 1 7/8" 2 3/8" VG02007...
-
Page 31: Entretien
CONTENU DE L'EMBALLAGE ASSEMBLAGE 1. COUPEZ L'ALIMENTATION EN EAU. ENLEVEZ L'ANCIEN ROBINET ET LES ANNEAU TUYAUX FLEXIBLES. NETTOYEZ LA NOUVEAU ROBINET. ASSUREZ-VOUS D'UTILISER DU RUBAN POUR TUYAU ET NE DE LA CONDUITE D'ALIMENTATION PUISQUE CELA SUPPORT DU VAPORISATEUR POURRAIT CAUSER UNE VAPORISATEUR . - Page 32 MESURE CORRECTIVE 1.A - Cartouche non assise de l'eau chaude et bien asseoir dans le logement. 1.B - Communiquer avec le Soutien technique de Vigo pour un 3 - Fuite aux points de connexion remplacement. 2.B - Encrassement dans tuyau/conduite d'alimentation 2.A - Enlever et faire tremper/nettoyer avec un agent non abrasif (par...
- Page 33 VIGO INDUSTRIES, LLC ("VIGO") EN VIGUEUR LE 1er AVRIL 2013 original pour usage domestique personnel. Des restrictions additionnelles s'appliquent aux utilisations commerciales. de la vente des produits en cause. Restrictions verre qui pourrait causer des blessures corporelles ou la mort.] constructeur.
-
Page 34: Herramientas Necesarias
SOAP DISPENSER FEATURES DISTRIBUTEUR DE SAVON CARACT RISTIQUES CARACTER STICAS PLEASE CONTACT VIGO TOOLS NEEDED HERRAMIENTAS NECESARIAS MEASUREMENTS/DES MESURES/MEDICIONES... - Page 35 KITCHEN ACCESSORIES LIMITED LIFETIME WARRANTY/ACCESSOIRES DE CUISINE GARANTIE VIE LIMIT E/GARANT A LIMITADA DE POR VIDA DE ACCESORIOS DE COCINA...
