SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
VGRA3018FL
Model
FEATURED MODEL VGRA3018FL
9 5/8" BOWL DEPTH
FEATURES
Solid surface, matte stone
10mm radius corners
Long-lasting, easy-to-clean, glossy interior and
matte exterior finish
Center drain placement
Reversible for flat apron front or grooved apron front
PACKING LIST
-
SINK
-
STRAINER
NOTE: Due to the nature of the material,
models can differ up to 5 mm from the listed
dimensions. We advise that you do not cut
your countertop based off of the dimensions
in the specifications area of the website, but
instead wait until your sink arrives to
measure and cut the countertop to ensure a
perfect fit.
This Sink comes with Sink VGRA3018CS and
Strainer VGSTRAINERFH.
NOTE: Customer needs to select the flat or
grooved front and proceed accordingly.

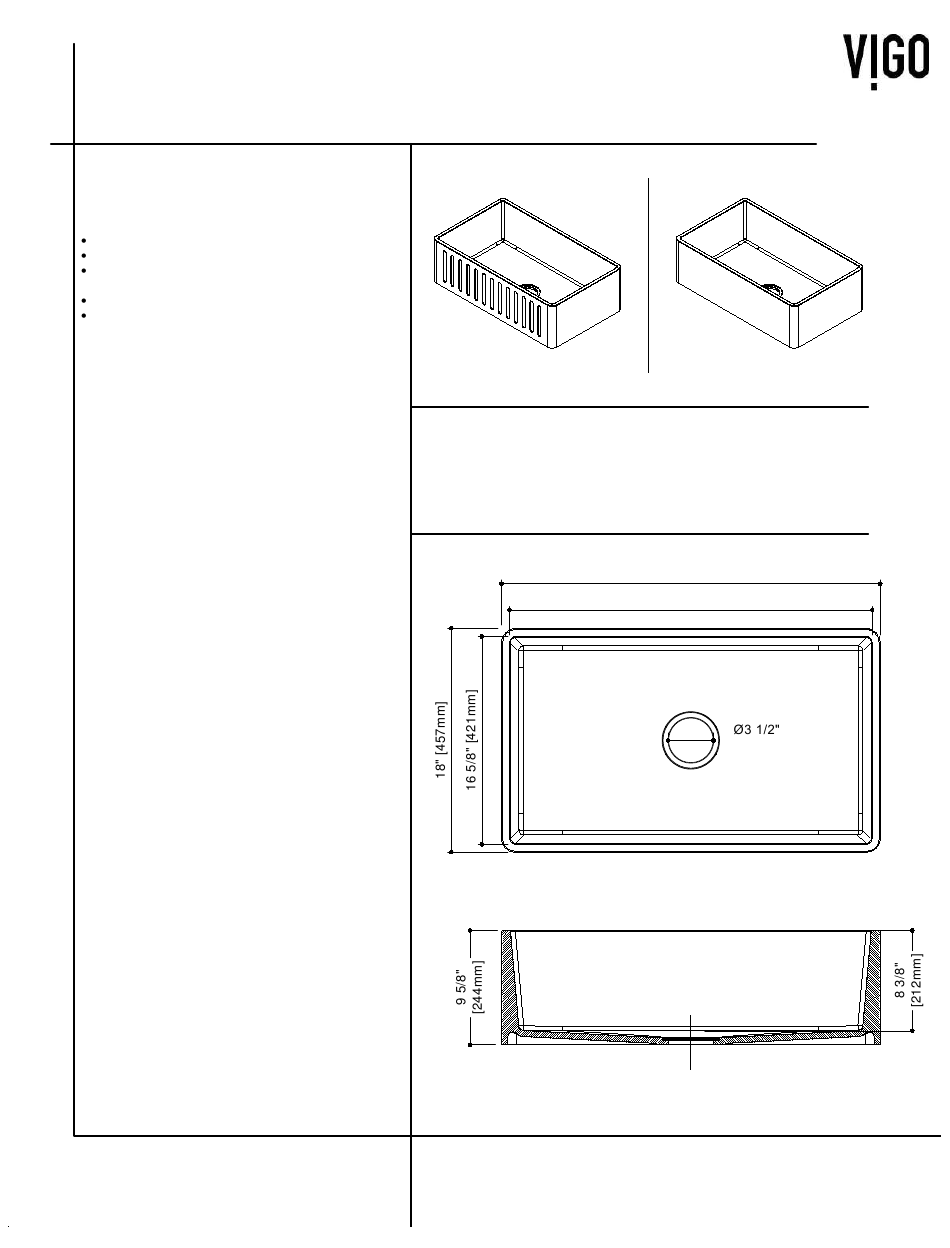

NOMINAL DIMENSIONS
MODEL #
BOWL SIZE
28 5/8" x 16 5/8"
VGRA3018FL
NOTE: DIMENSIONS MAY VARY UP TO 5mm
SINK DEPTH
EXTERIOR
9 5/8"
30" x 18"
30" [762mm]
28 5/8" [726mm]
[90 mm]
TOP VIEW
FRONT VIEW
1
