SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
VGRA3018SL
Model
FEATURED MODEL VGRA3018SL
9 5/8" BOWL DEPTH
FEATURES
Solid surface, matte stone
10mm radius corners
Long-lasting, easy-to-clean, glossy interior and
matte exterior finish
Center drain placement
Reversible for flat apron front or casement front
PACKING LIST
-
SINK
-
STRAINER
NOTE: Due to the nature of the material,
models can differ up to 5 mm from the listed
dimensions. We advise that you do not cut
your countertop based off of the dimensions
in the specifications area of the website, but
instead wait until your sink arrives to
measure and cut the countertop to ensure a
perfect fit.
This Sink comes with Sink VGRA3018SL and
Strainer VGSTRAINERFH.
NOTE: Customer needs to select the flat or
casement front and proceed accordingly.
NOMINAL DIMENSIONS
MODEL #
BOWL SIZE
VGRA3018SL
28 5/8" x 16 5/8"
NOTE: DIMENSIONS MAY VARY UP TO 5mm
SINK DEPTH
EXTERIOR
9 5/8"
30" x 18"
30" [762mm]
28 5/8" [726mm]
[90 mm]

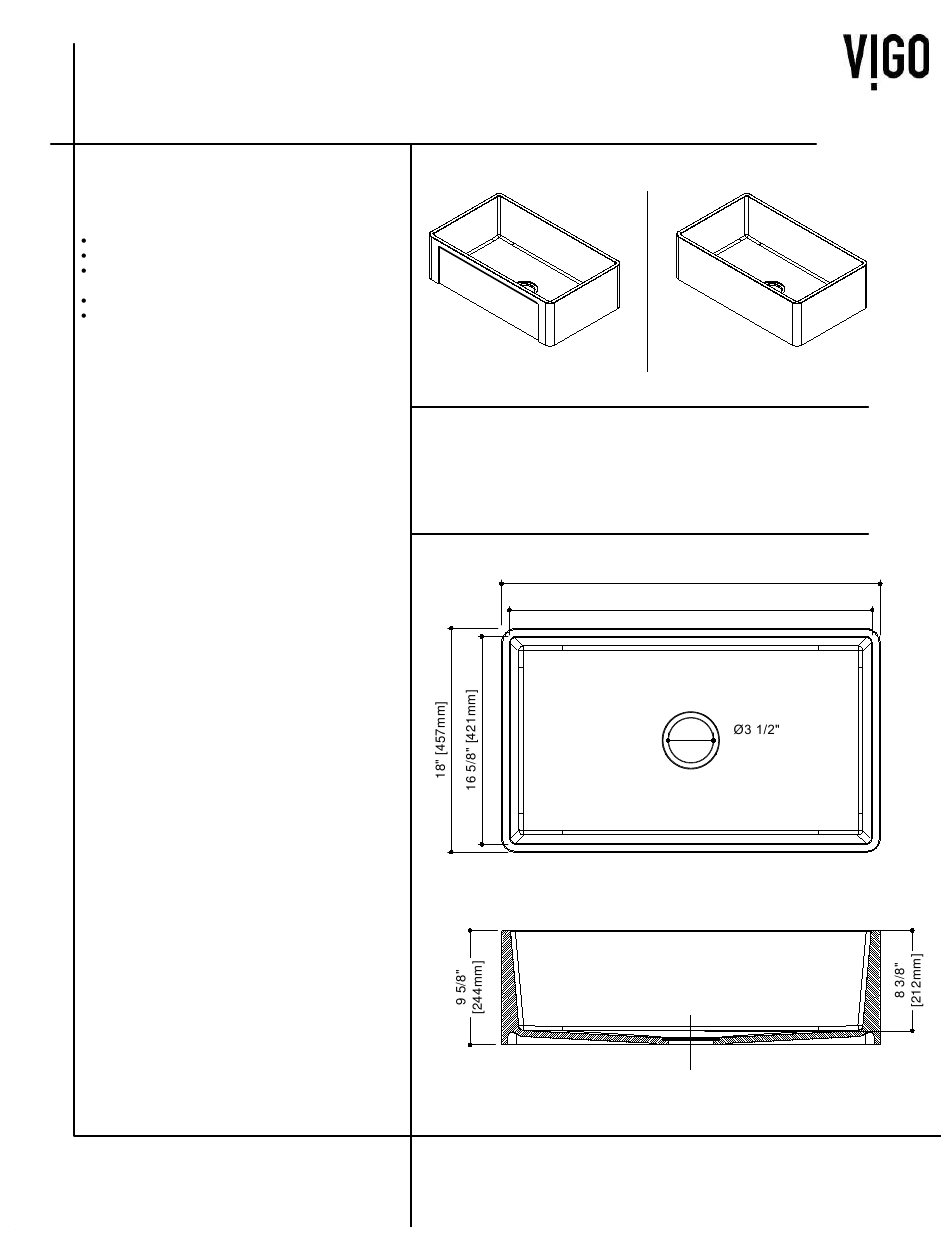

TOP VIEW
FRONT VIEW
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VIGO VG151017
Summary of Contents for VIGO VG151017
- Page 1 SINK SPECIFICATIONS SINGLE BOWL Farmhouse VGRA3018SL Model FEATURED MODEL VGRA3018SL 9 5/8" BOWL DEPTH FEATURES Solid surface, matte stone 10mm radius corners Long-lasting, easy-to-clean, glossy interior and matte exterior finish Center drain placement Reversible for flat apron front or casement front PACKING LIST SINK NOMINAL DIMENSIONS...
- Page 2 Installation instructions Farmhouse Sinks...
- Page 3 Installation Options: Vigo Farmhouse series sinks offer installation options depending on your design.
- Page 5 Care and Maintenance ALWAYS NEVER...
- Page 6 VGRA3018SL VGRA3018SL Surface solide, pierre mate Emplacement du drain central tablier avant LISTE DES ARTICLES DIMENSIONS NOMINALES VGRA3018SL 28 5/8" x 16 5/8" 9 5/8" 30" x 18" 30" [762mm] 28 5/8" [726mm] [90 mm] dimensions. Nous vous conseillons de ne dimensions dans le domaine des VUE DE DESSUS coupez le comptoir pour ajustement parfait.
- Page 8 Options d'installation :...
- Page 10 Entretien TOUJOURS JAMAIS...
- Page 11 ESPECIFICACIONES DEL LAVABO VGRA3018SL Modelo MODELO DESTACADO VGRA3018SL Esquinas de radio de 10 mm Reversible para frente de delantal plano o frente de marco CONTENIDOS DEL PAQUETE Fregadero DIMENSIONES NOMINALES Colador MODELO PROFUNDIDAD NRO. DE TAZON DEL FREGADERO EXTERIOR DIM. VGRA3018SL 28 5/8"...
- Page 13 Opciones de Instalaci n:...
- Page 15 Cuidado y Mantenimiento SIEMPRE NUNCA...
-
Page 26: Packing List
FAUCET SPECIFICATIONS Pull-Down Spray Kitchen Faucet Model VG02027 MODEL VG02027 FEATURES PACKING LIST DIMENSIONS MODEL # HOLE FAUCET SPRAYER DIAMETER HEIGHT REACH VG02027 1 3/8" 23 1/2" 9 3/8" 9 3/8" NOTE: All faucets are compliant to CEC 2016 regulations. If you have inquiries about your water flow, please email techmail@vigoindustries.com. -
Page 27: Front View
FUNCTION BUTTON 9 3/8" 3" 1 3/4" 2 1/8" SIDE VIEW TOP VIEW FRONT VIEW VG02027 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 3/8"... -
Page 28: Maintenance
WATER IS RUNNING, CHECK FOR LEAKS. IT IS IMPORTANT TO VIEW THE CONNECTIONS AT If you have any questions please contact the Vigo Technical Support THE MALE AND FEMALE FLEXIBLE HOSE CONNECTIONS. IF LEAKS ARE DETECTED, REFER Department before proceeding with installation. -
Page 29: Troubleshooting
5.A - Remove and clean aerator. 5.B - Contact Vigo Technical Support for replacement. PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support SUPPLY DATE INDICATOR (INTERNAL USE ONLY) PART PART #... - Page 30 VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
-
Page 31: Liste D'emballage
LISTE D'EMBALLAGE DIMENSIONS TROU ROBINET VAPORISATEUR VG02027 1 3/8" 23 1/2" 9 3/8" 9 3/8" de la CEC de 2016. Si vous avez des questions au sujet de votre... -
Page 32: Vue Avant
BOUTON FONCTION 9 3/8" 3" 1 3/4" 2 1/8" VUE DE DESSUS VUE AVANT VG02027... -
Page 33: Entretien
CONTENU DE L'EMBALLAGE ASSEMBLAGE 1. COUPEZ L'ALIMENTATION EN EAU. ENLEVEZ L'ANCIEN PLAQUE ANNEAU EN ROBINET ET LES TUYAUX FLEXIBLES. NETTOYEZ LA CAOUTCHOUC SUPPORT EN PLASTIQUE ASSUREZ-VOUS D'UTILISER DU RUBAN POUR TUYAU ET NE SERREZ PAS D'ALIMENTATION PUISQUE CELA DU PRODUIT CE QUI POURRAIT VAPORISATEUR Goupille de cuivre... - Page 34 MESURE CORRECTIVE 1.A - Cartouche non assise avec de l'eau chaude et bien asseoir dans le logement. 1.B - Communiquer avec le Soutien technique de Vigo pour un 3 - Fuite aux points de connexion remplacement. 2.B - Encrassement dans tuyau/conduite d'alimentation 2.A - Enlever et faire tremper/nettoyer avec un agent non abrasif...
- Page 35 VIGO INDUSTRIES, LLC ("VIGO") EN VIGUEUR LE 1er AVRIL 2013 original pour usage domestique personnel. Des restrictions additionnelles s'appliquent aux utilisations commerciales. de la vente des produits en cause. Restrictions verre qui pourrait causer des blessures corporelles ou la mort.] constructeur.
- Page 36 ESPECIFICACIONES DEL GRIFO Grifo de cocina con rociador extensible Modelo VG02027 MODELO VG02027 LISTA DE CONTENIDO DIMENSIONES MODELO # ALTURA ALCANCE ORIFICIO GRIFO ROCIADOR VG02027 1 3/8" 23 1/2" 9 3/8" 9 3/8" NOTA: Todos los grifos cumplen con CEC 2016 regulaciones. Si usted tiene preguntas acerca de su flujo de agua, por favor escriba techmail@vigoindustries.com.
-
Page 37: Vista Frontal
9 3/8" 3" 1 3/4" 2 1/8" VISTA LATERAL VISTA SUPERIOR VISTA FRONTAL VG02027... -
Page 38: Montaje
CONTENIDO DE LA CAJA MONTAJE ARO DE GOMA PLACA 1. CIERRE EL SUMINISTRO DE AGUA. RETIRE EL GRIFO VIEJO Y LAS MANGUERAS FLEXIBLES. LIMPIE LA SUPERFICIE DEL LAVABO CON UN LIMPIADOR NO ABRASIVO PARA COLOCAR EL GRIFO NUEVO. 2. ENROSQUE EL EXTREMO HEMBRA DE LA GRIFO (2). -
Page 39: Lista De Piezas
1.B - El cartucho es defectuoso 2 - Caudal insuficiente 1.B - 2.A - Suciedad en el aireador Vigo para el reemplazo 4 - Grifo flojo 2.A - Retire y remoje o limpie con un producto no abrasivo (p. ej., vinagre) 2.B -... - Page 40 JA PARTIR DEL 1 DE ABRIL DE 2013 de la fecha inicial de compra por parte del propietario, contratista o constructor a VIGO o a un distribuidor autorizado de VIGO, de por vida para el propietario original o usuario final.
- Page 41 SINK SPECIFICATIONS VGSTRAINER Model FEATURES Chrome or stainless steel kitchen sink strainer Removable basket Fits standard 3 1/2" opening NOMINAL DIMENSIONS DIAMETER DEPTH 4 1/2" 3 5/8" 4 1/2" [114mm] 1. Strainer Basket Assembly 2. Screw 3. Strainer Bowl 4. Top Seal 5.
- Page 42 For commercial uses, additional limitations apply. VIGO warrants the Product to be free from defects in workmanship and materials under normal use and service for a period of one (1) year from the initial date of purchase by the owner or end-user, contractor, or builder, from VIGO or an authorized VIGO dealer.
- Page 43 VGSTRAINER Convient pour une ouverture standard de 3 1/2'' DIMENSIONS NOMINALES 4 1/2" 3 5/8" 4 1/2" [114 mm] 2. Vis...
- Page 44 D'autres limitations s'appliquent en cas d'usage Limitations SAUF DISPOSITION CONTRAIRE CI-DESSUS, VIGO NE FAIT AUCUNE GARANTIE, EXPRESSE OU IMPLICITE, Y COMPRIS DE VALEUR final, l'entrepreneur ou le constructeur.
- Page 45 ESPECIFICACIONES DE ACCESORIOS DE COCINA Modelo VGSTRAINER Colador para fregadero de acero inoxidable o cromo Canasta desmontable DIMENSIONES NOMINALES 4 1/2" 3 5/8" 4 1/2" [114mm] 1. Conjunto de canasta de colador 2. Tornillo 4. Retenedor superior 5. Retenedor inferior...
- Page 46 VIGO INDUSTRIES, LLC ("VIGO") partir de la fecha de compra inicial por parte del propietario/usuario final, contratista o constructor a VIGO o a un distribuidor autorizado de VIGO. personas. Limitaciones incluidos, entre otros, productos de vidrio (es decir, puertas de duchas y lavabos de vidrio) por parte de personas sin experiencia puede provocar ruptura del vidrio y, por ende, lesiones personales o la muerte.
