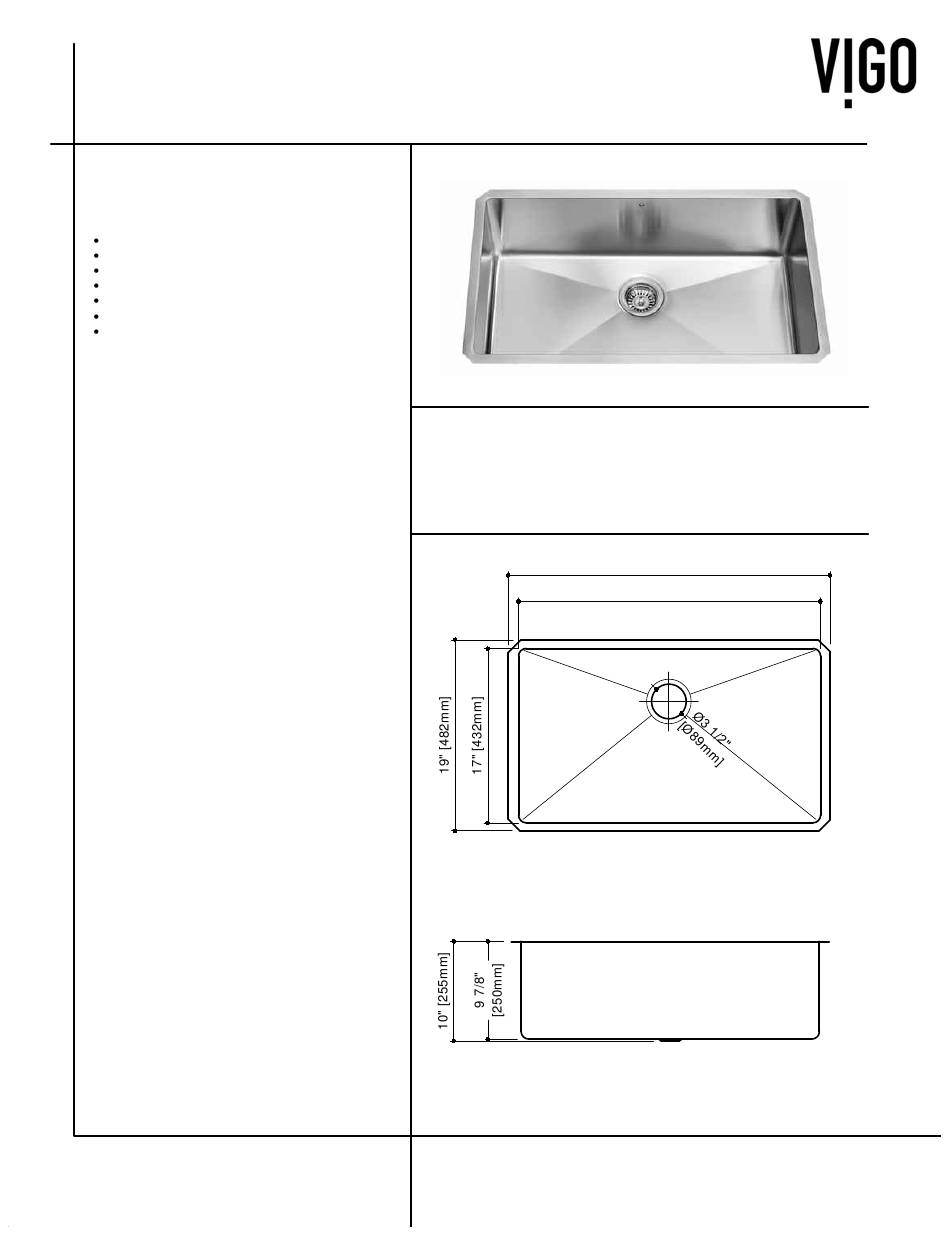

SINK SPECIFICATIONS
ELONGATED SINGLE BOWL Undermount
VGR3219C
Model
FEATURED MODEL VGR3219C
9 7/8" BOWL DEPTH
FEATURES
16 gauge, stainless steel
304 Nickel - Bearing Content
15 mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, satin finish
Sound-deadening insulation
Rear drain placement
PACKING LIST
-
SINK
-
MOUNTING HARDWARE
-
TEMPLATE
NOTE:
THESE SINKS ARE INTENDED FOR
INDOOR KITCHEN USE ONLY. THEY ARE NOT
RATED FOR OUTDOOR USE. INSTALLATION OF
THIS SINK IN AN OUTDOOR SETTING WILL VOID
ANY WARRANTY ON THIS PRODUCT.
NOMINAL DIMENSIONS
MODEL #
BOWL SIZE
VGR3219C
30" x 17"
SINK DEPTH
EXTERIOR GAUGE
DIM.
9 7/8"
32" x 19"
16
32" [812mm]
30" [762mm]
TOP VIEW
FRONT VIEW
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VIGO VGR3219C
Summary of Contents for VIGO VGR3219C
- Page 1 SINK SPECIFICATIONS ELONGATED SINGLE BOWL Undermount VGR3219C Model FEATURED MODEL VGR3219C 9 7/8" BOWL DEPTH FEATURES 16 gauge, stainless steel 304 Nickel - Bearing Content 15 mm radius corners Elegant and functional drain grooves Long-lasting, easy-to-clean, satin finish Sound-deadening insulation...
-
Page 2: Tools And Materials Needed
Long-Life Care Vigo Stainless Steel Sinks are easy to keep looking new, longer with minimal care. For best results, always rinse with a mild soap and wipe after each use. Rub lightly with soft cloth in the direction of the grain line on a regular basis. -
Page 3: Installation Instructions
Please carefully read complete instructions before beginning installation. Only a professional stone fabricator is qualified to perform this installation. Note: These instructions are for installation with solid surface, composite material countertops. Vigo recommends professional countertop installers and is not responsible for damage to the countertop or sink during installation. - Page 4 6. Loosely attach mounting brackets to the countertop, parallel to the cutout opening using the supplied mounting screws and nuts. Mounting screws with brass inserts are supplied with the sink, however, countertop material vary and the correct type of fasteners should be recommended by your installer or supplier. 7.
-
Page 5: Care And Maintenance
Care and Maintenance ALWAYS preventative cleaning. affect the appearance of your sink. abrasive such as Comet. up over time with a mild solution of vinegar and water followed by a thorough flushing with water. grain. NOT RECOMMENDED FOR MIRROR FINISH. NEVER develop rust spots in the stainless steel surface. - Page 6 Subject to the Warranty Service provision below, any product reported to the authorized dealer or to VIGO as being defective within the warranty period will be repaired or replaced (with a product of equal value) at the option of VIGO. This warranty extends to the original owner or end-user and is not transferable to a subsequent owner.
- Page 7 PLE ALLONGE ENCAS VGR3219C VGR3219C Acier inoxydable de calibre 16 Contenant du nickel 304 Isolation sonore LISTE DES ARTICLES DIMENSIONS NOMINALES - QUINCAILLERIE DE MONTAGE VGR3219C 30" x 17" 9 7/8" 32" x 19" 32" [812mm] 30" [762mm] VUE DE DESSUS INDOOR UTILISATION DE CUISINE SEULEMENT.
- Page 8 Veuillez lire attentivement les instructions. l'installation. Soin sur le long terme Attaches de fixation (fournies) Crayon (PAS d'encre) Protection pour les oreilles Protection pour les yeux Chiffons Scie/Scie sauteuse...
- Page 9 lors de l'installation. comptoir. (FIGURE 2) Comptoir Calfeutrage en Calfeutrage en silicone silicone (non fourni) (non fourni) Support Support fixation fixation Dispositif de fixation Dispositif de fixation Figure 1 Figure 2 au-dessus des orifices de l'armoire et du robinet. Figure 3...
- Page 10 Figure 4 Vous DEVEZ utiliser de la silicone pure pour cette installation. Appliquez une bande continue de calfeutrage en silicone sur le appuyez dessus pour l'enfoncer dans le comptoir. Tournez Figure 5...
- Page 11 Entretien TOUJOURS et essuyez-le bien. produit abrasif doux (Comet, par exemple). vinaigre et d'eau, puis rincez minutieusement avec de l'eau. sens du grain. JAMAIS en acier inoxydable.
- Page 12 D'autres limitations s'appliquent en cas d'usage commercial. constructeur. tiers. Limitations directement ou indirectement. blessures, voire la mort. constructeur. Limitations commerciales Service de garantie proposition par le client met fin aux obligations de VIGO au titre de la garantie.
- Page 13 ESPECIFICACIONES DEL LAVABO VGR3219C Modelo MODELO DESTACADO VGR3219C 16" de ancho, acero inoxidable Esquinas de radio de 15 mm Aislamiento insonorizante CONTENIDOS DEL PAQUETE FREGADERO DIMENSIONES NOMINALES PLANTILLA DE CORTE MODELO PROFUNDIDAD NRO. DE TAZON DEL FREGADERO EXTERIOR DIM. ANCHO VGR3219C 30"...
-
Page 14: Herramientas Y Materiales Necesarios
Antes de comenzar: Lea con detenimiento estas instrucciones. Recomendaciones generales: utilizar las herramientas adecuadas y usar siempre accesorios de seguridad personal para protegerse. Cuidado de por vida lana de acero o trapos abrasivos. Herramientas y Materiales necesarios: Alcohol Desnaturalizado Sellador adhesivo de silicona Gafas protectoras Trapos... - Page 15 Vigo recomienda delegar el trabajo a instaladores profesionales de encimeras y no se hace 1. Desempaque el nuevo fregadero y revise el contenido de los materiales suministrados: fregadero, B. Montaje expuesto: el borde del fregadero queda expuesto alrededor 1/4" desde el borde de la apertura de la encimera.
- Page 16 6. Con los tornillos y las tuercas de montaje incluidos, coloque sin ajustar los soportes en la encimera, en paralelo a la apertura del corte. El fregadero viene con tornillos de montaje con injertos de instalador o proveedor deben recomendarle el tipo de tornillos correcto.
-
Page 17: Cuidado Y Mantenimiento
Cuidado y Mantenimiento SIEMPRE una mayor limpieza preventiva. Comet. NO SE RECOMIENDA HACERLO EN ACABADOS BRILLANTES. NUNCA acero inoxidable. demasiado largo pues puede arruinar el acabado. tiempo demasiado largo pues pueden arruinar el acabado. la superficie del fregadero. - Page 18 VIGO INDUSTRIES, LLC ("VIGO") la fecha de compra inicial por parte del propietario/ usuario final, contratista o constructor a VIGO o a un distribuidor autorizado de VIGO y durante toda la vida del propietario o usuario final originales. otras personas.
-
Page 19: Packing List
FAUCET SPECIFICATIONS LED Pull-Down Spray Kitchen Faucet Model VG02030 MODEL VG02030 FEATURES PACKING LIST DIMENSIONS MODEL # HOLE FAUCET SPRAYER DIAMETER HEIGHT REACH VG02030 1 3/8" 18 1/4" 6 1/8" 6 1/8" NOTE: All faucets are compliant to CEC 2016 regulations. If you have inquiries about your water flow, please email techmail@vigoindustries.com. -
Page 20: Side View
FUNCTION BUTTON 6 1/8" 2" SIDE VIEW FRONT VIEW TOP VIEW VG02030 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 3/8"... -
Page 21: Maintenance
WATER IS RUNNING, CHECK FOR LEAKS. IT IS IMPORTANT TO VIEW THE CONNECTIONS AT If you have any questions please contact the Vigo Technical Support THE MALE AND FEMALE FLEXIBLE HOSE CONNECTIONS. IF LEAKS ARE DETECTED, REFER Department before proceeding with installation. -
Page 22: Troubleshooting
5.A - Remove and clean aerator. 5.B - Contact Vigo Technical Support for replacement. PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support SUPPLY DATE INDICATOR (INTERNAL USE ONLY) PART PART #... - Page 23 VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
-
Page 24: Liste D'emballage
LISTE D'EMBALLAGE DIMENSIONS TROU ROBINET VAPORISATEUR VG02030 1 3/8" 18 1/4" 6 1/8" 6 1/8" de la CEC de 2016. Si vous avez des questions au sujet de votre... -
Page 25: Vue Avant
BOUTON FONCTION 6 1/8" 2" VUE AVANT VUE DE DESSUS VG02030... -
Page 26: Entretien
CONTENU DE L'EMBALLAGE ASSEMBLAGE 1. COUPEZ L'ALIMENTATION EN EAU. ENLEVEZ L'ANCIEN CONTREPOIDS ANNEAU EN ROBINET ET LES TUYAUX FLEXIBLES. NETTOYEZ LA SURFACE CAOUTCHOUC SUPPORT EN PLASTIQUE ASSUREZ-VOUS D'UTILISER DU RUBAN POUR TUYAU ET NE D'ALIMENTATION PUISQUE CELA POURRAIT CAUSER UNE VAPORISATEUR DEUX TUYAUX ENSEMBLE... - Page 27 MESURE CORRECTIVE 1.A - Cartouche non assise avec de l'eau chaude et bien asseoir dans le logement. 1.B - Communiquer avec le Soutien technique de Vigo pour un 3 - Fuite aux points de connexion remplacement. 2.B - Encrassement dans tuyau/conduite d'alimentation 2.A - Enlever et faire tremper/nettoyer avec un agent non abrasif...
- Page 28 VIGO INDUSTRIES, LLC ("VIGO") EN VIGUEUR LE 1er AVRIL 2013 original pour usage domestique personnel. Des restrictions additionnelles s'appliquent aux utilisations commerciales. d'un revendeur VIGO. de la vente des produits en cause. Restrictions verre qui pourrait causer des blessures corporelles ou la mort.] constructeur.
- Page 29 ESPECIFICACIONES DEL GRIFO Grifo de cocina con rociador desplegable LED Modelo VG02030 MODELO VG02030 LISTA DE CONTENIDO DIMENSIONES MODELO # ALTURA ALCANCE ORIFICIO GRIFO ROCIADOR VG02030 1 3/8" 18 1/4" 6 1/8" 6 1/8" NOTA: Todos los grifos cumplen con CEC 2016 regulaciones. Si usted tiene preguntas acerca de su flujo de agua, por favor escriba techmail@vigoindustries.com.
-
Page 30: Vista Frontal
6 1/8" 2" VISTA LATERAL VISTA FRONTAL VISTA SUPERIOR VG02030... -
Page 31: Montaje
CONTENIDO DE LA CAJA MONTAJE 1. CIERRE EL SUMINISTRO DE AGUA. RETIRE EL GRIFO VIEJO ARO DE GOMA CONTRAPESO Y LAS MANGUERAS FLEXIBLES. LIMPIE LA SUPERFICIE DEL LAVABO CON UN LIMPIADOR NO ABRASIVO PARA COLOCAR EL GRIFO NUEVO. TUERCA TRENZADA EN EL GRIFO (2). ROCIADOR DOS MANGUERAS LLAVE ALLEN (PARA RETIRAR... -
Page 32: Lista De Piezas
1.B - El cartucho es defectuoso 2 - Caudal insuficiente 1.B - 2.A - Suciedad en el aireador Vigo para el reemplazo 4 - Grifo flojo 2.A - Retire y remoje o limpie con un producto no abrasivo (p. ej., vinagre) 2.B -... - Page 33 JA PARTIR DEL 1 DE ABRIL DE 2013 de la fecha inicial de compra por parte del propietario, contratista o constructor a VIGO o a un distribuidor autorizado de VIGO, de por vida para el propietario original o usuario final.
